Old 15th October 2012, 23:14   #16
XD2
BHPian

XD2's Avatar

Join Date: Aug 2012
Location: HR-26
Posts: 58
Thanked: 175 Times
Default Re: Jeep Step Options & DIY

Well, there are a few who traded off their (only) car for a Jeep

In the two months of my Jeep ownership, I've had people travel with me for whom it was some trouble getting in and out of the Thar, even with the footboard. Although they manage, but when you sense the struggle, you start looking for solutions.
XD2 is online now   (1) Thanks Reply With Quote
Old 16th October 2012, 09:37   #17
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,759 Times
Default Re: Jeep Step Options & DIY

Quote:
Originally Posted by Frankenstein View Post
Basic fitness like strong hand grip, strong legs and back helps a ton in offroad.
Now why didn't i think of that?

Let's play out a little scenario:

Me: Hi wifey, i got you a gym membership to get into shape...

Wife: *silence* & *starting to turn red*

Me: What happened dear?

Wife: *turned a deep shade of crimson* you think I'm fat?

Me: No dear! So that you can get a stronger hand grip, stronger legs and back!

Wife: And why do i want that? *i can now see some steam rising*

Me: So you can climb into my jeep without stressing yourself... *giving a sheepish look*

Wife: Let me get this straight, you want me to workout so i can climb in the jeep many times without stressing? *starts reaching for a weapon*

Me: *readying myself to duck to avoid a missile that can be hurled at me anytime* Yes dear, you get fitter and the jeep doesn't need modifications...

Wife: *BANG!* Yippee ki-yay!!!!

Me: *coughing, bleeding and crawling towards by phone trying hard to delete Frankenstein's phone number...*

Wife: *BANG! BANG! Blows the smoke off the smoking gun ala cowboy style* Hmmm... now to book a ticket to Hyderabad to finish some unfinished business!


Last edited by bblost : 16th October 2012 at 11:18. Reason: typos
Tejas@perioimpl is offline   (8) Thanks Reply With Quote
Old 3rd January 2013, 11:59   #18
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,759 Times
Default Re: Jeep Step Options & DIY

Updates:

Have currently shelved the idea of the previously discussed boat step ladder.

Why? Well, one still needs to raise the foot high to get the foot rest down.

Thus, went back to the drawing board.

Brainstormed about using linear actuators, wiper motors, power door locks, worm gear drivers, motors from power jacks, pneumatics, hydraulics, etc.

Discarded all of them due to:
- high cost
- unreliability
- damage due to muck, physical impact, high pressure wash.

Back to square one and while in the shower today, in typical Archimedes style I had a eureka moment (no i did not run out naked). It's so simple. I'm gonna adapt it first on a model to see how it works first and then shall discuss it here. On paper, it's just too simple and effective for my application.

It ticks the following:

- need a step
- not affect ramp over angle
- not snag at anything
- be durable

Watch this space.
Tejas@perioimpl is offline   (1) Thanks Reply With Quote
Old 3rd January 2013, 13:11   #19
AVR
BHPian

AVR's Avatar

Join Date: Apr 2008
Location: Ahmedabad
Posts: 929
Thanked: 511 Times
Default Re: Jeep Step Options & DIY

Stirrups make a lot of sense here. Have already got myself a pair of them and am going to use leather/canvas belts to fix them to the floor. They are retractable, possibly height adjustable and don't come in the way ever. Is Archimedes thinking differently?
AVR is offline   (1) Thanks Reply With Quote
Old 3rd January 2013, 14:16   #20
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,759 Times
Default Re: Jeep Step Options & DIY

Quote:
Originally Posted by AVR View Post
Stirrups make a lot of sense here. Have already got myself a pair of them and am going to use leather/canvas belts to fix them to the floor. They are retractable, possibly height adjustable and don't come in the way ever. Is Archimedes thinking differently?
Thinking Different. Using pulleys to retract the step. Gravity helps in the drop down motion.

I'll have a working model in two days.
Tejas@perioimpl is offline   Reply With Quote
Old 5th January 2013, 18:10   #21
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,759 Times
Default Re: Jeep Step Options & DIY

So here it is!

What i wanted in my jeep step is that when the door opens, the step should lower and on closing, it should rise up. Electrical options for these using actuators, etc cost upwards of a $1000 for a pair. Even a DIY for this was expensive and unproven as well as susceptible to failure as mentioned previously.

I wanted to use a pulley system but was flummoxed by how to get it work. If i used a pulley system by attaching a wire to the inside of the door, when the door opened, it would pull the wire and retract the step and on closing the door, the wire would slacken and the step would drop down. This was exactly contrary to what i was trying to accomplish.

And one day in the shower it hit me, think out of the box, literally. What if i had the wire running from outside? The door opens, the wire slackens and the step drops due to its weight and when the door closes, it pulls the step up.

Sounded simple and highly possible. Drew a sketch and it seemed probable.

Here's the basic theory the door acts as the force and the step the weight:

Name:  Pulley1.jpg
Views: 3530
Size:  30.9 KB

Once we get down to actually fabricating it, we may use the following principle depending if the simple above one doesn't work :

Name:  pulley 2.gif
Views: 2341
Size:  9.1 KB

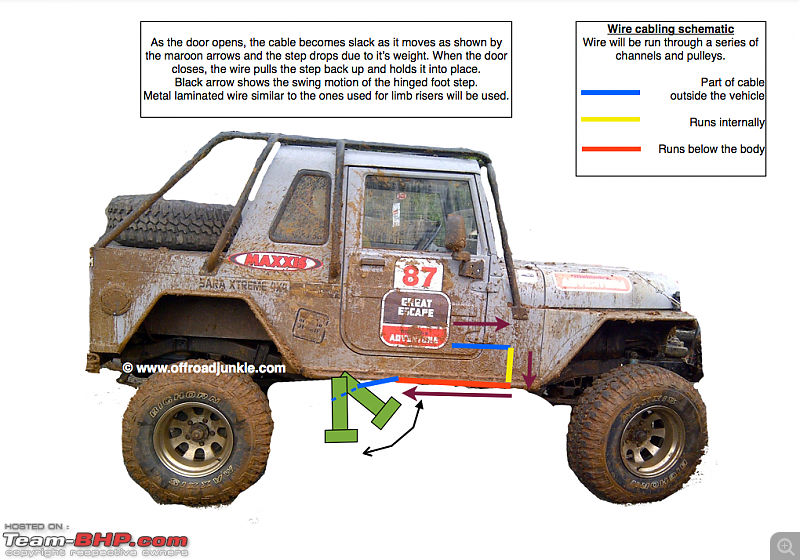

Here's the basic sketch of my idea:

Jeep Step Options & DIY-screen-shot-20130105-5.57.01-pm.png

Items need would be -

The pulley (a few would be required to act as rollers to reduce friction):

Name:  pulley.jpg
Views: 1659
Size:  10.1 KB

And the stainless steel cable:

Name:  ssteelcable15mmloop.jpg
Views: 1646
Size:  5.2 KB

Have already started working on a model to test the above principle. Have dug out my old meccano set and will make a working model and upload the video of it in action. Hope it works.
Tejas@perioimpl is offline   (2) Thanks Reply With Quote
Old 5th January 2013, 19:03   #22
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,759 Times
Default Re: Jeep Step Options & DIY

Yup it works on the meccano model!

Here's a video of the working:



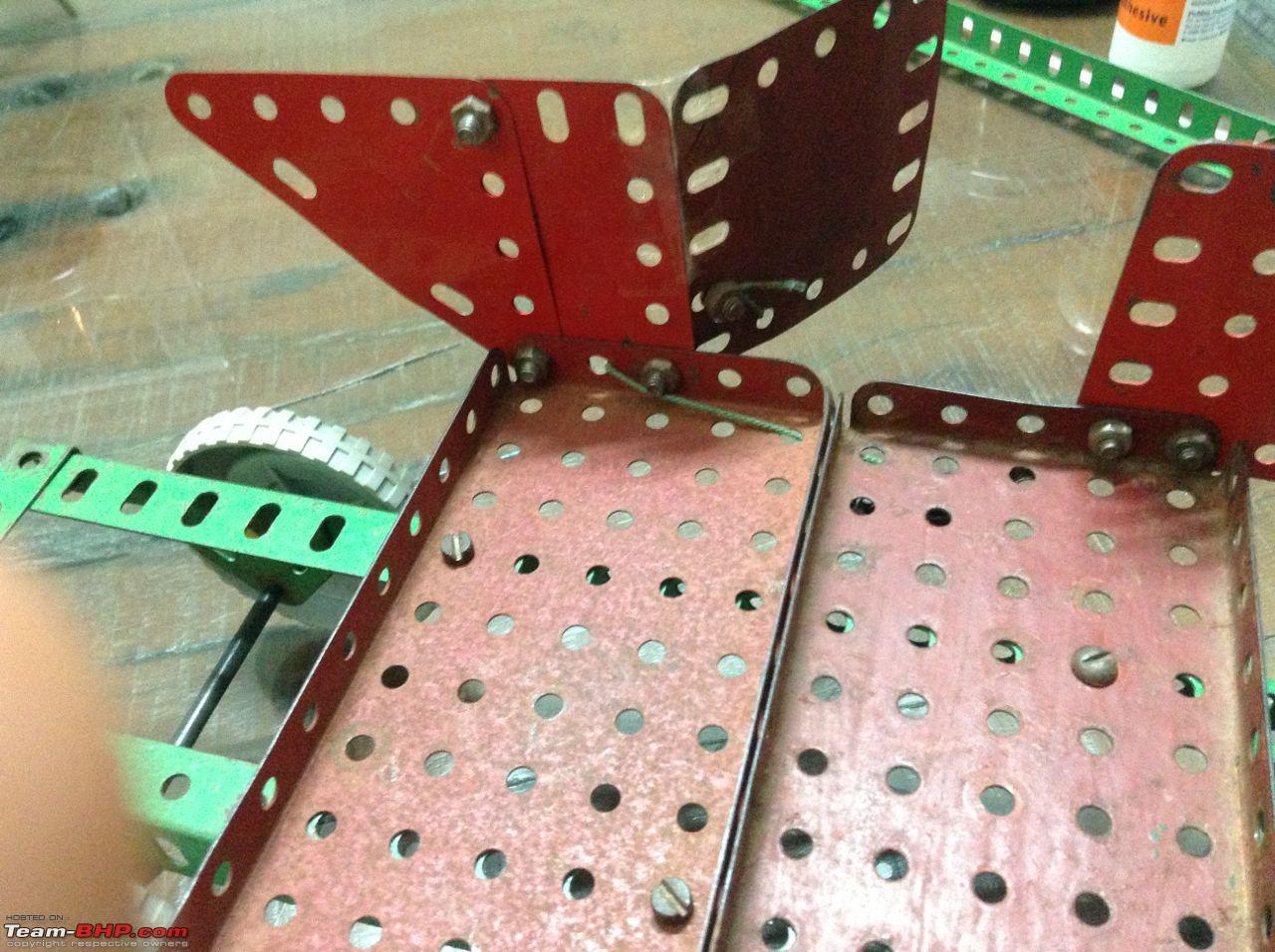

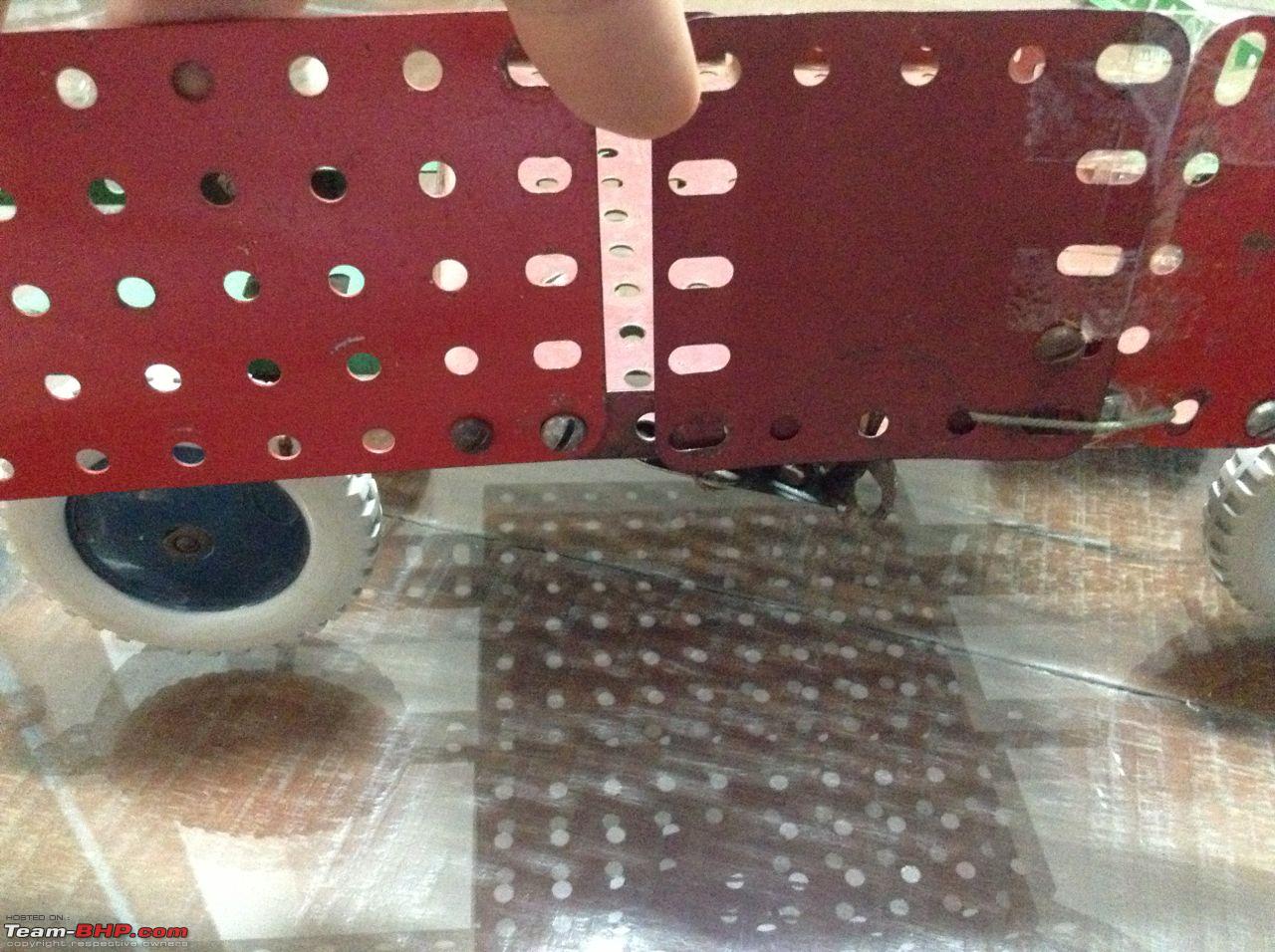

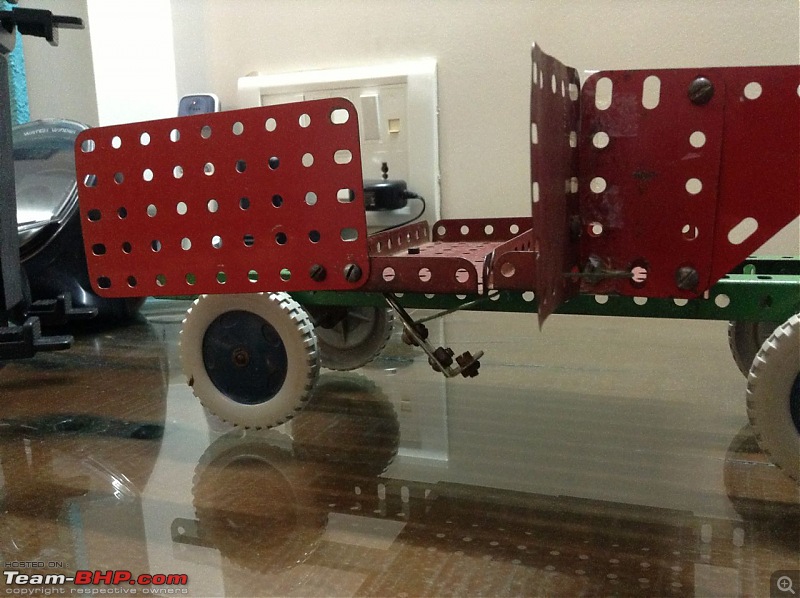

Here are some pictures of the set up.

Jeep Step Options & DIY-step1.jpg

Jeep Step Options & DIY-step2.jpg

Jeep Step Options & DIY-step3.jpg

Jeep Step Options & DIY-step4.jpg

Jeep Step Options & DIY-step5.jpg

Jeep Step Options & DIY-step6.jpg

Yes, it's crude but i'm happy with the basic working principles.

Shall now make a real life cardboard mock up of the step and fix it to the jeep and try it with ropes before actual fabrication. Expect more updates in 20 days.

In the meanwhile suggestions welcome to help me improve upon the design.
Tejas@perioimpl is offline   (4) Thanks Reply With Quote
Old 7th January 2013, 13:14   #23
BHPian

Twinn's Avatar

Join Date: Jun 2011
Location: MD-USaapA
Posts: 337
Thanked: 275 Times
Default Re: Jeep Step Options & DIY

Tejas instead of using the cables, I'd say use small rods & springs, like the ones you see in the brake setup of atlas cycles. Because you'll end up having slags in the cables and its would not be firm enough for the same.

Last edited by Twinn : 7th January 2013 at 13:16.
Twinn is offline   (1) Thanks Reply With Quote
Old 7th January 2013, 16:56   #24
BHPian

voodoochild's Avatar

Join Date: Mar 2009
Location: Pune, Bangalore
Posts: 419
Thanked: 173 Times
Default Re: Jeep Step Options & DIY

Tejas,
Very interesting design. I second Twinn's suggestion of linkages instead of cables. Another thought:
Use a three-piece articulating step consisting of two vertical arms and the actual horizontal step (like |_|). The cable/linkage pulls the rearmost vertical arm, pivoting it anticlockwise by 90 degrees about its top mount, this collapsing the step by making all three arms horizontal.

Might have already occurred to you, but since you asked for suggestions...

Hope it helps!

Cheers,
Rahul
voodoochild is offline   (1) Thanks Reply With Quote
Old 22nd May 2013, 14:11   #25
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Ashok Leyland Tipper - Driver Step (hinged type)

Jeep Step Options & DIY-img20130510wa0003.jpg

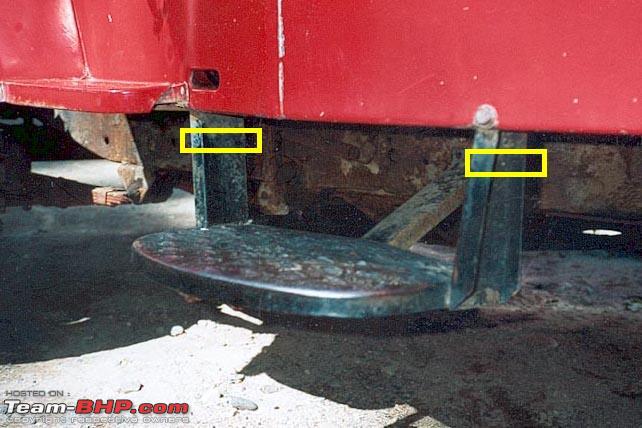

How about this for a AL SWB Truck/tipper that does daily duty in a quarry full of mega sized pot holes! That hinge design looks good and move out of harms way (at least better than stock fixed step) in any jeep. Looks simple too. Concept can be replicated with any cast iron hinge seen on house doors (of course the longest and strongest one) and one can CUT the top most part of the side step and ARC weld (not Carbide Braze at a tinker) and give a pivot to the step.


Name:  1.jpg
Views: 1308
Size:  4.3 KB

Name:  2.bmp
Views: 1373
Size:  148.6 KB

Who can try this and post some pics here?

Name:  3.jpg
Views: 1382
Size:  60.3 KB
svsantosh is offline   Reply With Quote
Old 24th May 2013, 00:10   #26
BHPian

quadra's Avatar

Join Date: Sep 2006
Location: Blore
Posts: 543
Thanked: 52 Times
Default Re: Jeep Step Options & DIY

Another hydraulic step



quadra is offline   Reply With Quote
Old 23rd June 2013, 20:51   #27
BHPian

sriny_blr's Avatar

Join Date: Jul 2004
Location: MAQ/BLR
Posts: 210
Thanked: 49 Times
Default Re: Jeep Step Options & DIY

http://www.quadratec.com/products/12590_1207.htm

Bumped into this!
sriny_blr is offline   Reply With Quote
Old 25th March 2015, 15:16   #28
AVR
BHPian

AVR's Avatar

Join Date: Apr 2008
Location: Ahmedabad
Posts: 929
Thanked: 511 Times
Default Re: Jeep Step Options & DIY

This is what I have on my Jeep.

Does the job. Can be pulled in when not needed.

Keeping it Simple...

Cheers,
Adi

Jeep Step Options & DIY-jeepstirrups.jpg


P.S. Read Tejas's response to Franky again.
AVR is offline   (5) Thanks Reply With Quote
Old 27th March 2015, 09:40   #29
BHPian

sreejeshmp's Avatar

Join Date: May 2007
Location: Bangalore
Posts: 623
Thanked: 571 Times
Default Re: Jeep Step Options & DIY

Looks Cool Adi , really simple and sure it will do the Job. Dont mind if I copy the same

-Sreejesh
sreejeshmp is offline   (1) Thanks Reply With Quote
Old 27th March 2015, 21:44   #30
BHPian

Amrik Singh's Avatar

Join Date: Aug 2010
Location: New Delhi
Posts: 108
Thanked: 39 Times
Default Re: Jeep Step Options & DIY

Quote:
Originally Posted by Tejas@perioimpl View Post
Yup it works on the meccano model!

Here's a video of the working:



Here are some pictures of the set up.

Attachment 1034687

Attachment 1034688

Attachment 1034689

Attachment 1034690

Attachment 1034691

Attachment 1034692

Yes, it's crude but i'm happy with the basic working principles.

Shall now make a real life cardboard mock up of the step and fix it to the jeep and try it with ropes before actual fabrication. Expect more updates in 20 days.

In the meanwhile suggestions welcome to help me improve upon the design.

My favourite ... Meccano

One of the best creative learning toys. Something similar to 'Lego' but more sturdier as it uses Metallic plates and small Nuts /Bolts for construction.
Amrik Singh is offline   (1) Thanks Reply With Quote
