Old 13th November 2012, 11:03   #61
BHPian

Jaskirat's Avatar

Join Date: Jun 2008
Location: Chandigarh
Posts: 175
Thanked: 173 Times
Default

Quote:
Originally Posted by fazalaliadil
Jaskirat,

Plastic would not work at all, it seems to be made of teflon, am I right?
Still it would not break unless there there was an obstruction that opposed the rotation to the point it broke.

Behram Sir, kindly enlighten on the material and reason.
Regards,
Hi Mr. Fazal,

I sure it is Teflon. Though I have only seen the pictures, it is quite amazing how the thing has sheared.

I think it must have been a failure of a bearing that caused this part to come under stress and break.

It will be great know Mr. Behram's views on this.

Regards, Jaskirat
Jaskirat is offline   Reply With Quote
Old 13th November 2012, 21:06   #62
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 3,443
Thanked: 1,941 Times
Default Re: Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle

Quote:
Originally Posted by fazalaliadil View Post
Jaskirat,

Plastic would not work at all, it seems to be made of teflon, am I right?
Still it would not break unless there there was an obstruction that opposed the rotation to the point it broke.
Real Teflon is too soft. It will most probably be one of the engineering plastics with a dry lubricant as filler, say 'Oilon'

Quote:
Originally Posted by Jaskirat View Post
Hi Mr. Fazal,

I sure it is Teflon. Though I have only seen the pictures, it is quite amazing how the thing has sheared.

I think it must have been a failure of a bearing that caused this part to come under stress and break.

It will be great know Mr. Behram's views on this.
The shearing at the hub is unusual. One would expect some of the teeth to be broken/ chewed up, rather than this.

For silent running, phenolic cam gears were used for a long time.

Regards
Sutripta
Sutripta is offline   Reply With Quote
Old 14th November 2012, 08:06   #63
BANNED

Join Date: Apr 2010
Location: Pune
Posts: 1,201
Thanked: 821 Times
Default Re: Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle

Quote:
Originally Posted by Sutripta View Post
For silent running, phenolic cam gears were used for a long time.
I remember seeing a Volvo ( a 4x4 Van ) engine which had a timing gear of non metallic thing & in my Series Land Rover the timing chain tensioner gear is made of Aluminium.

This is a design feature , dont think has a design / material fault ( unless being repeated in No. of vehicles ) .

Is this a common occurrence in these engines ? need to be searched &
reported to the company ( but who is going to do this )

btw do you have pics of the complete assembly (dismantled parts ) ?

Sudarshan

Last edited by Sudarshan : 14th November 2012 at 08:31.
Sudarshan is offline   Reply With Quote
Old 15th November 2012, 09:48   #64
Distinguished - BHPian

Join Date: Jul 2007
Location: MUMBAI
Posts: 3,059
Thanked: 4,571 Times
Default Re: Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle

Dear Sudarshan / Fazal and Jaskirat - can I please see some photographs of the oil sump of this vehicle as it came out after the oil pump gear broke. This part is same as Scorpio, used in regular production in very large numbers. I would also like to see the engine-axle interface closeups in full jounce condition.

Best regards,

Behram Dhabhar
DHABHAR.BEHRAM is offline   Reply With Quote
Old 15th November 2012, 10:55   #65
BHPian

Jaskirat's Avatar

Join Date: Jun 2008
Location: Chandigarh
Posts: 175
Thanked: 173 Times
Default

Quote:
Originally Posted by DHABHAR.BEHRAM
Dear Sudarshan / Fazal and Jaskirat - can I please see some photographs of the oil sump of this vehicle as it came out after the oil pump gear broke. This part is same as Scorpio, used in regular production in very large numbers. I would also like to see the engine-axle interface closeups in full jounce condition.

Best regards,

Behram Dhabhar
Dear Behram Sir,
I will ask Karan to post some pictures of the sump. As per his initial feedback, the sump was not damaged, but we will wait for the pictures. I will also try and get you the engine-axle interface close-up. Simulating full bounce would be bit of a challenge.

I am posting a picture, which I had shared earlier. Engine-axle interface looks quite fine. Under full bounce, the axle should move further away from the sump.

Regards, Jaskirat
Attached Thumbnails
Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle-thar-solid-axle.jpg


Last edited by Jaskirat : 15th November 2012 at 11:18. Reason: Adding a picture
Jaskirat is offline   (1) Thanks Reply With Quote
Old 16th November 2012, 20:00   #66
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 3,443
Thanked: 1,941 Times
Default Re: Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle

Quote:
Originally Posted by Sudarshan View Post
btw do you have pics of the complete assembly (dismantled parts ) ?
Sorry, no.

Quote:
Originally Posted by Jaskirat View Post
Dear Behram Sir,
I will ask Karan to post some pictures of the sump. As per his initial feedback, the sump was not damaged, but we will wait for the pictures.
I think everybody is waiting for this report!

Regards
Sutripta
Sutripta is offline   (1) Thanks Reply With Quote
Old 17th November 2012, 14:07   #67
Newbie

Join Date: Oct 2012
Location: Panchkula
Posts: 10
Thanked: 30 Times
Default Re: Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle

I am posting the pictures of the SUMP..
It is in perfect shape...


Quote:
Originally Posted by DHABHAR.BEHRAM View Post
Dear Sudarshan / Fazal and Jaskirat - can I please see some photographs of the oil sump of this vehicle as it came out after the oil pump gear broke. This part is same as Scorpio, used in regular production in very large numbers. I would also like to see the engine-axle interface closeups in full jounce condition.

Best regards,

Behram Dhabhar
Quote:
Originally Posted by Jaskirat View Post
Dear Behram Sir,
I will ask Karan to post some pictures of the sump. As per his initial feedback, the sump was not damaged, but we will wait for the pictures. I will also try and get you the engine-axle interface close-up. Simulating full bounce would be bit of a challenge.

I am posting a picture, which I had shared earlier. Engine-axle interface looks quite fine. Under full bounce, the axle should move further away from the sump.

Regards, Jaskirat
Quote:
Originally Posted by Sutripta View Post
Sorry, no.


I think everybody is waiting for this report!

Regards
Sutripta
TharPlus is offline   Reply With Quote
Old 19th November 2012, 08:32   #68
Senior - BHPian

headers's Avatar

Join Date: May 2006
Location: Greater Chennai
Posts: 4,548
Thanked: 424 Times
Default Re: Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle

@Tharplus : Sir No pictures found :(
headers is offline   Reply With Quote
Old 19th November 2012, 14:05   #69
Newbie

Join Date: Oct 2012
Location: Panchkula
Posts: 10
Thanked: 30 Times
Default Re: Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle

I am loading the pictures again
Quote:
Originally Posted by headers View Post
@Tharplus : Sir No pictures found :(
Attached Images

TharPlus is offline   (2) Thanks Reply With Quote
Old 17th December 2012, 15:15   #70
BHPian

Jaskirat's Avatar

Join Date: Jun 2008
Location: Chandigarh
Posts: 175
Thanked: 173 Times
Default Re: Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle

Hi Guys,

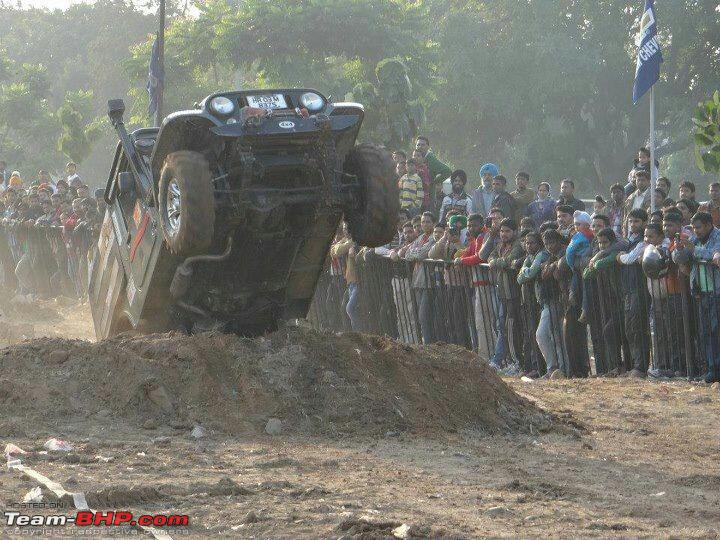

Yesterday, Karan and his Thar participated in OYA Autocross and Off-roading Challenge. Needless to say, he won the event in his modified Thar.

Regards

Jaskirat Singh Nagra
Attached Images

Jaskirat is offline   (3) Thanks Reply With Quote
Old 17th May 2013, 15:35   #71
BHPian

Join Date: May 2007
Location: Jalandhar
Posts: 33
Thanked: 23 Times
Default Re: Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle

No one to comment on why the plastic material was used for that gear in the pump?
TurboDiesel is offline   Reply With Quote
Old 10th October 2013, 00:47   #72
Newbie

Join Date: Sep 2008
Location: delhi
Posts: 11
Thanked: 7 Times
Default Re: Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle

To add to this thread of the past, saw one Thar crde front removed and changed to 550 ngcs solid OKBJs and Rane type RCBT power steering using the same Hydraulic oil pump. looked like a neat job done by one jeep builder of Moga.
bushmaster is offline   Reply With Quote
Old 10th October 2013, 14:01   #73
Newbie

Join Date: Sep 2008
Location: delhi
Posts: 11
Thanked: 7 Times
Default Re: Mahindra Thar - *Converted* Independent Front Suspension to Solid Axle

Quote:
Originally Posted by TurboDiesel View Post
No one to comment on why the plastic material was used for that gear in the pump?
plastic gears are not new to industry. They are liked for their light weight, low noise, ease of manufacturing and price. they aren't too bad either for low torque transmission jobs.
bushmaster is offline   Reply With Quote
