Old 12th June 2013, 10:48   #46
BHPian

whicked wheels's Avatar

Join Date: Jan 2007
Location: PUNE
Posts: 365
Thanked: 56 Times
Default

Hi Arka

The bole does have enough of articulation but im hungry for more😃. As for longer leafs i might have to adjust the mounts a bit and Arka i have taller tyres than the regular ones which might just compensate for the approach angle.

Regards James
whicked wheels is offline   Reply With Quote
Old 1st July 2013, 09:16   #47
BHPian

whicked wheels's Avatar

Join Date: Jan 2007
Location: PUNE
Posts: 365
Thanked: 56 Times
Default Re: Wickedly Radical - Mahindra Bolero Build

Hi guys,

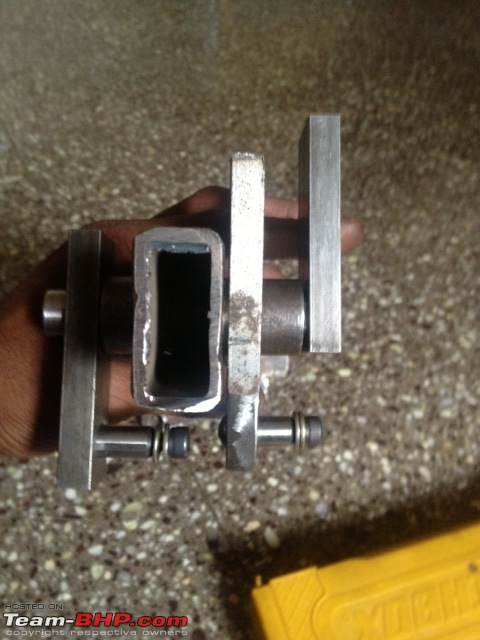

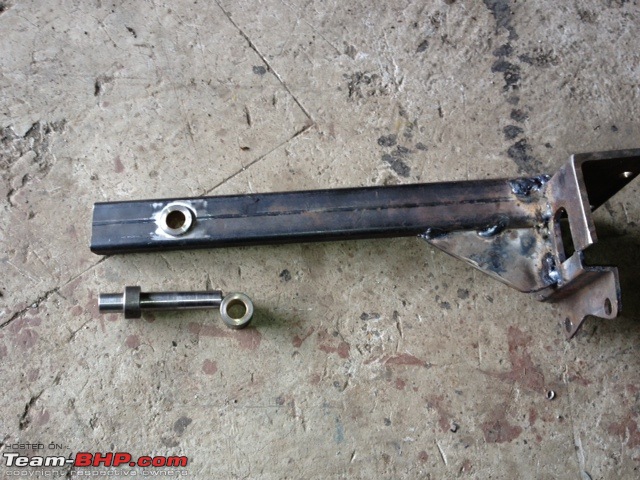

I have finished mounting the transfer case and nearly done with the shifter mechanisim will be trying out the shifter today. posting some pics of the shifter. Fine adjustment might have to be made,should be final by the end of the day.
Attached Images


Last edited by whicked wheels : 1st July 2013 at 09:20.
whicked wheels is offline   Reply With Quote
Old 7th July 2013, 19:34   #48
BHPian

Rajith's Avatar

Join Date: Jul 2008
Location: bangalore
Posts: 615
Thanked: 391 Times
Default Re: Wickedly Radical - Mahindra Bolero Build

Hi,

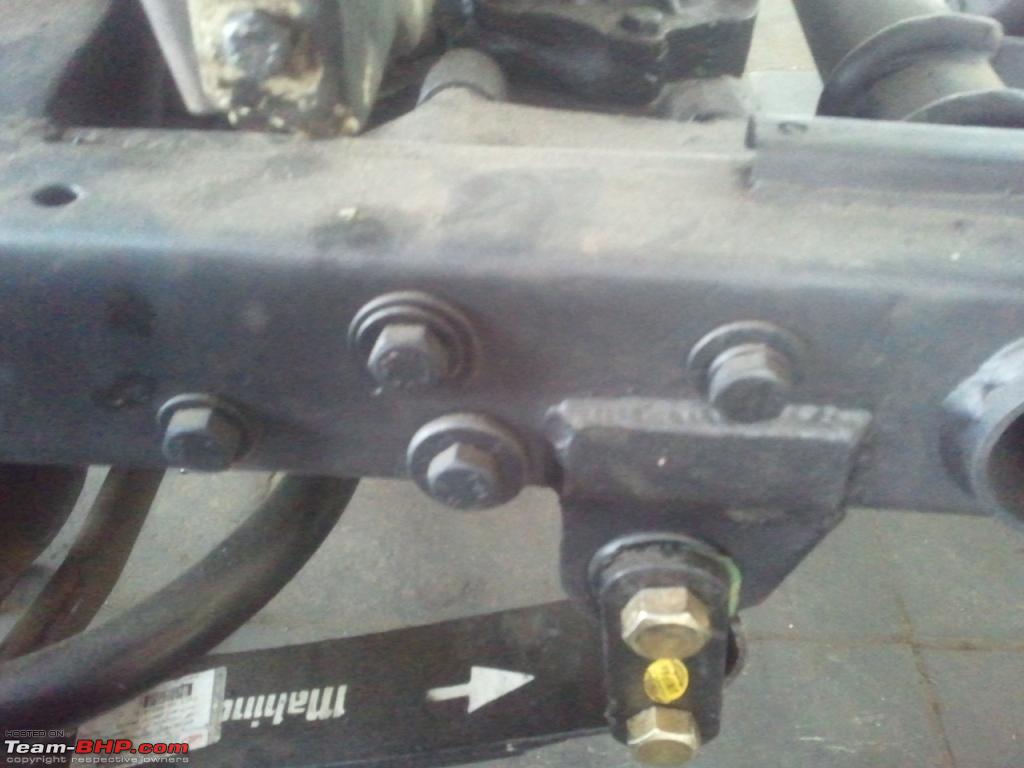

I mounted solid axles on a THAR CRDe chasis as below.Copied same to same from 4wd Bolero GLX . All same for Armada grand/Bolero 4wd pick up/DI Turbo.

Got all 4 spring bracket assy from M&M.Im not clear with your mounting idea.
Attached Thumbnails
Wickedly Radical - Mahindra Bolero Build-photo0807.jpg

Wickedly Radical - Mahindra Bolero Build-photo0808.jpg

Wickedly Radical - Mahindra Bolero Build-thar-front-mounting-1.jpg


Last edited by Rajith : 7th July 2013 at 19:36.
Rajith is offline   (2) Thanks Reply With Quote
Old 13th July 2013, 00:22   #49
BHPian

whicked wheels's Avatar

Join Date: Jan 2007
Location: PUNE
Posts: 365
Thanked: 56 Times
Default

Hi guys

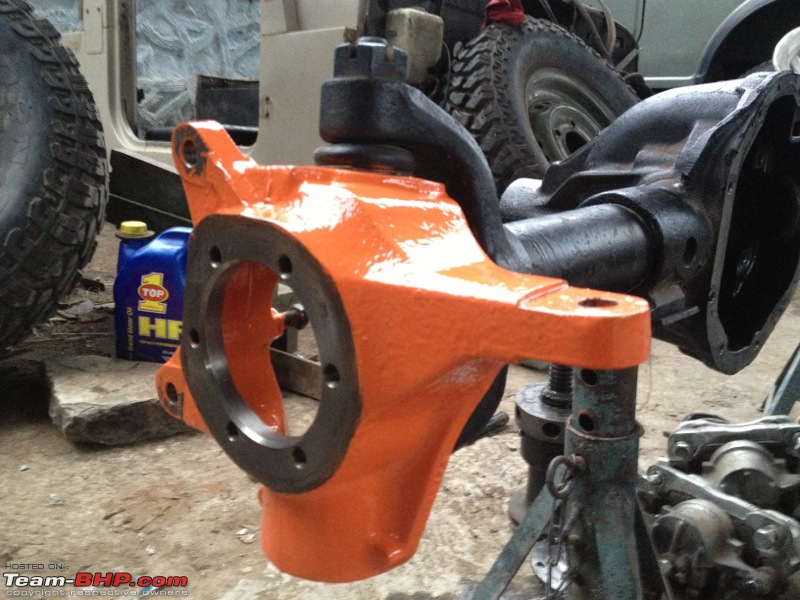

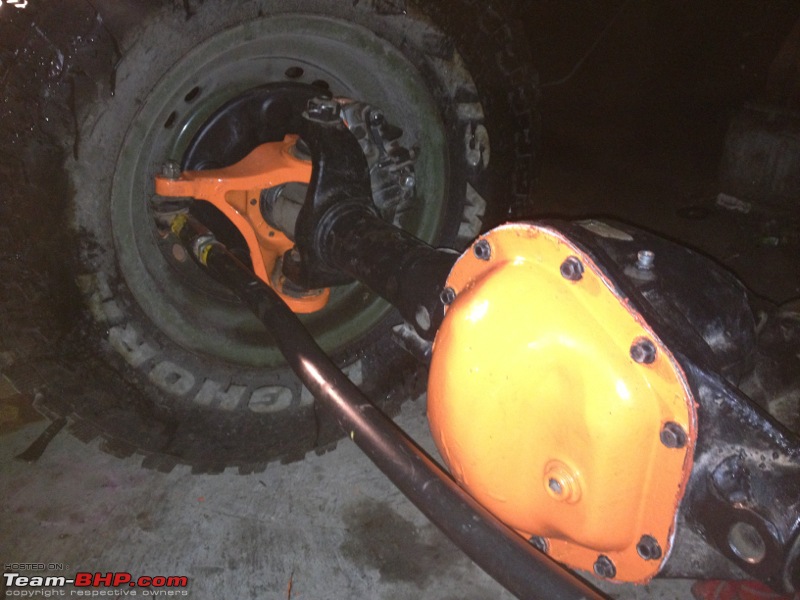

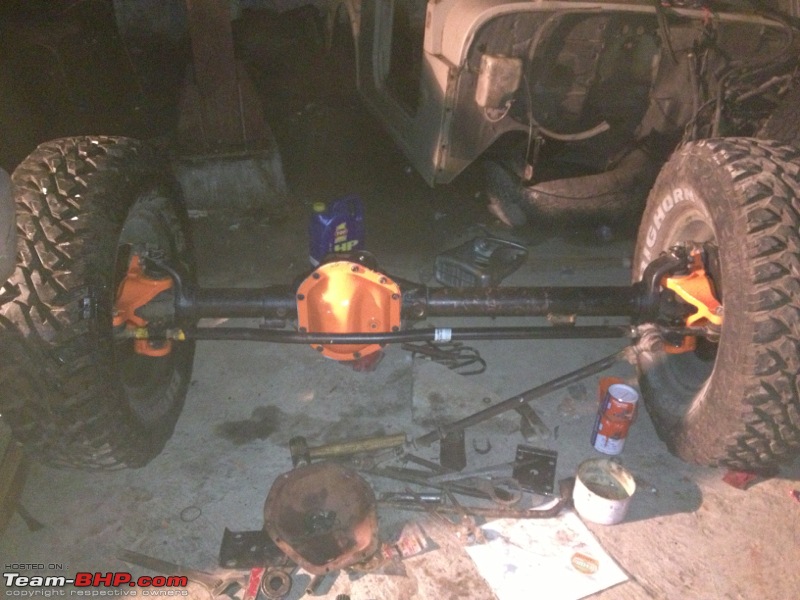

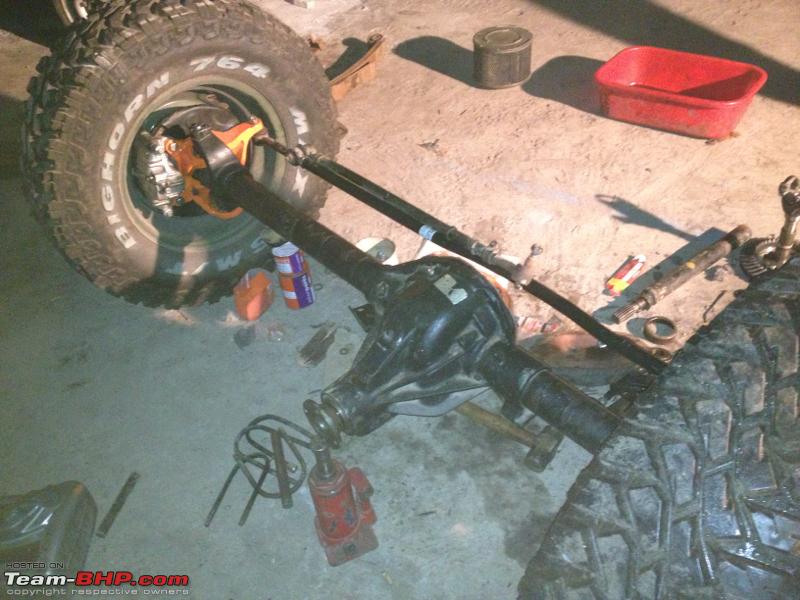

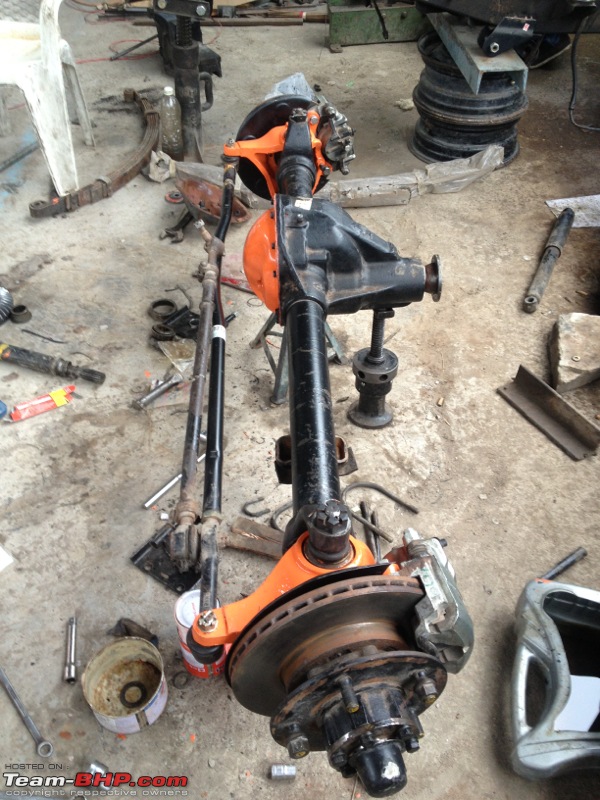

Just today finished my work on the front differential, changed the ratio from 4.27 to 4.88. Today will start work on the leaf spring mounts will not be going for the shackle reversal set but instead will be going in for longer rear leaf springs up front ( RUF - rears up front) with a standard setup.here some pics of the differrential

Name:  image1285747379.jpg
Views: 4989
Size:  541.7 KB
Name:  image2814617427.jpg
Views: 5715
Size:  541.2 KB
Name:  image3213573107.jpg
Views: 4971
Size:  518.9 KB
Name:  image2029791755.jpg
Views: 4781
Size:  476.5 KB
Name:  image1774215748.jpg
Views: 4712
Size:  597.9 KB
Name:  image2576236357.jpg
Views: 4727
Size:  579.1 KB
Name:  image2576236357.jpg
Views: 4727
Size:  579.1 KB
Name:  image1324759847.jpg
Views: 4592
Size:  573.0 KB
Attached Images

whicked wheels is offline   (5) Thanks Reply With Quote
Old 14th July 2013, 22:37   #50
BHPian

whicked wheels's Avatar

Join Date: Jan 2007
Location: PUNE
Posts: 365
Thanked: 56 Times
Default

Hi guys,

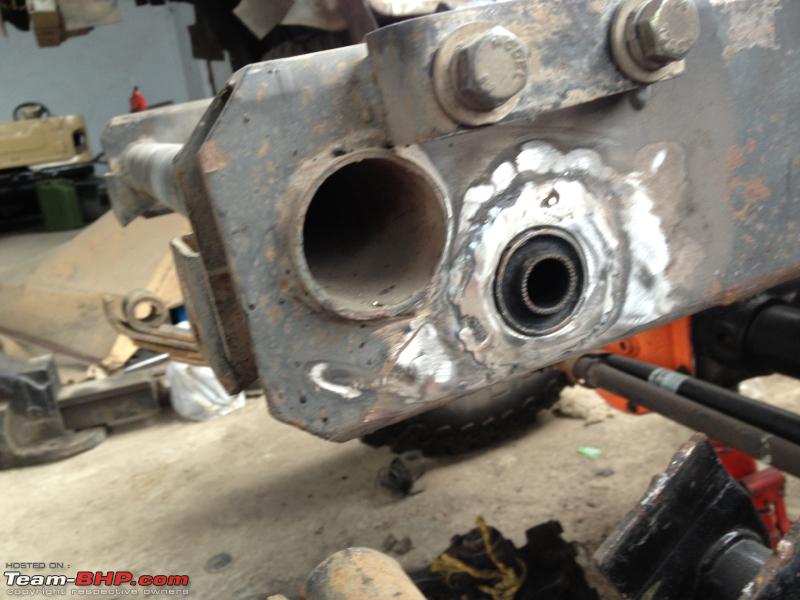

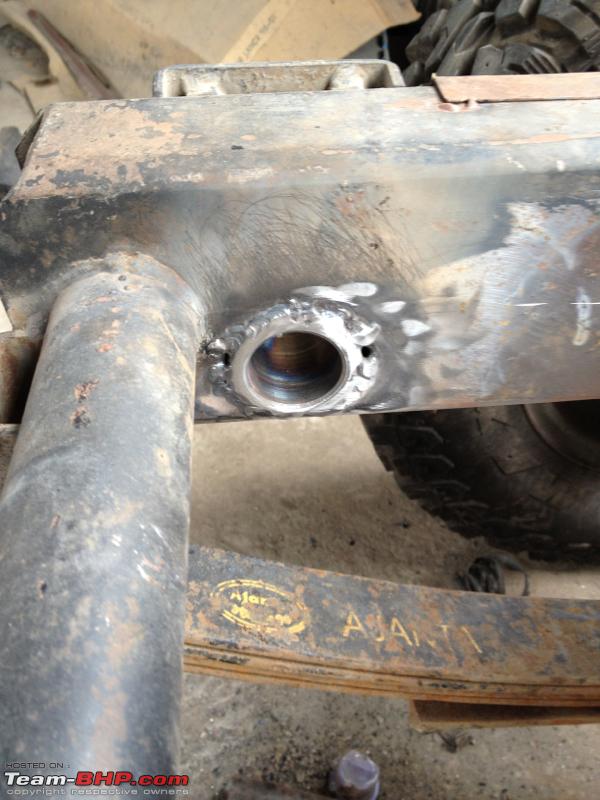

Got my front shackle mounts done today, going in for mahindra savari rear leaf springs. Posting some pics of the front mounts.
Attached Images

whicked wheels is offline   (1) Thanks Reply With Quote
Old 16th July 2013, 20:28   #51
BHPian

whicked wheels's Avatar

Join Date: Jan 2007
Location: PUNE
Posts: 365
Thanked: 56 Times
Default

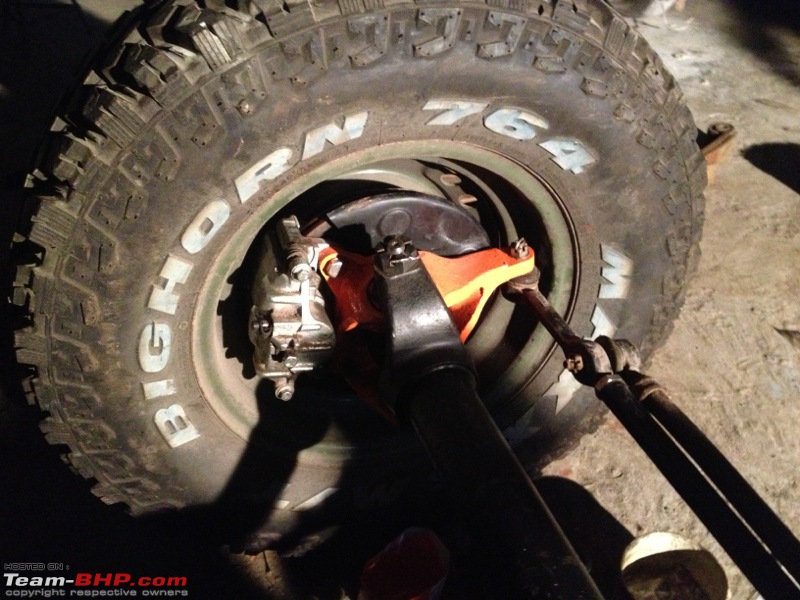

Hi guys

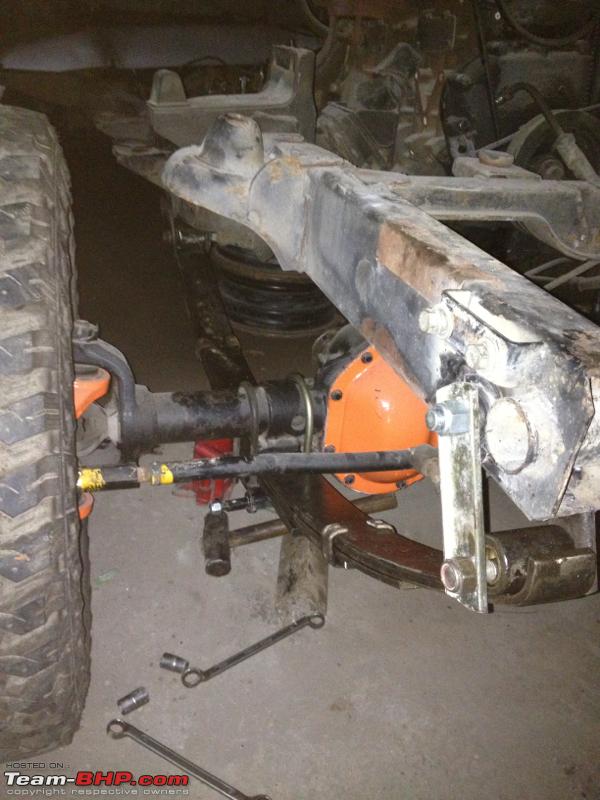

Got my front leaf springs fitted, now waiting for my shackles to come from the fabricator.
Here r some pics of the set up.
Attached Images

whicked wheels is offline   (3) Thanks Reply With Quote
Old 17th July 2013, 15:54   #52
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: Wickedly Radical - Mahindra Bolero Build

Can the IFS mounts on the chassis left for futrure reversal, or do they come in the way and have to be cut out?
svsantosh is offline   Reply With Quote
Old 17th July 2013, 21:02   #53
BHPian

whicked wheels's Avatar

Join Date: Jan 2007
Location: PUNE
Posts: 365
Thanked: 56 Times
Default

Quote:
Originally Posted by svsantosh View Post
Can the IFS mounts on the chassis left for futrure reversal, or do they come in the way and have to be cut out?
Hi Santosh

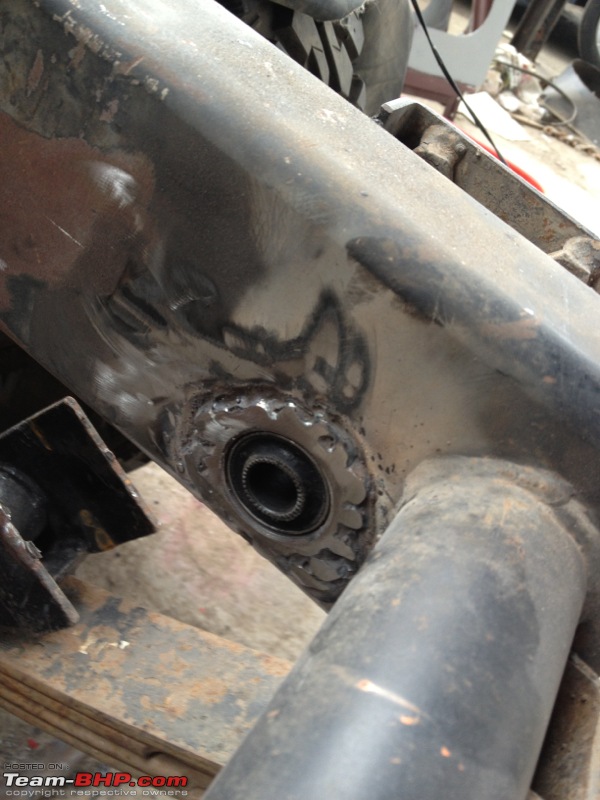

The ifs lower mount has to be cut of u can leave the upper mount but it might hit the tyre during articulation, the shocker mount also has to be cut.
Now for some updates got the boomerang shackles done and fitted, some pics of the process.

Name:  image3332025537.jpg
Views: 3840
Size:  575.5 KB

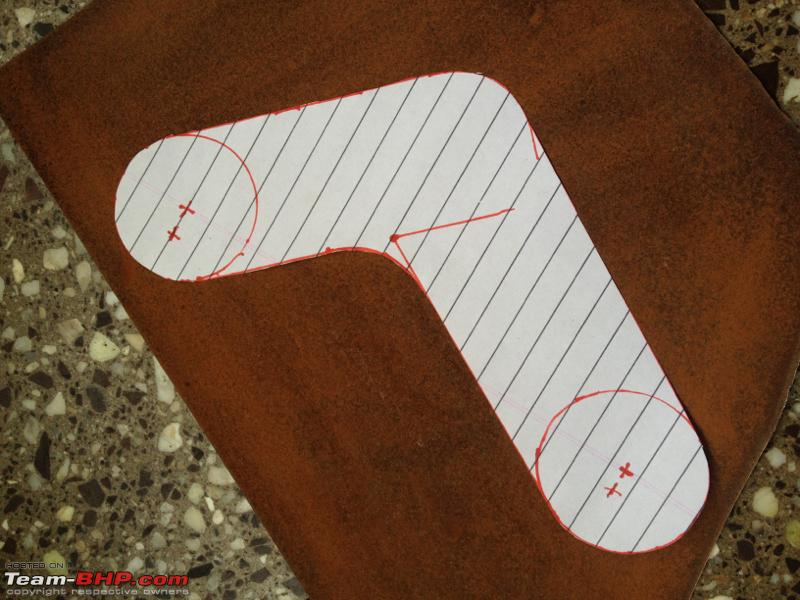

Made a paper template

Name:  image3341039427.jpg
Views: 3675
Size:  688.8 KB

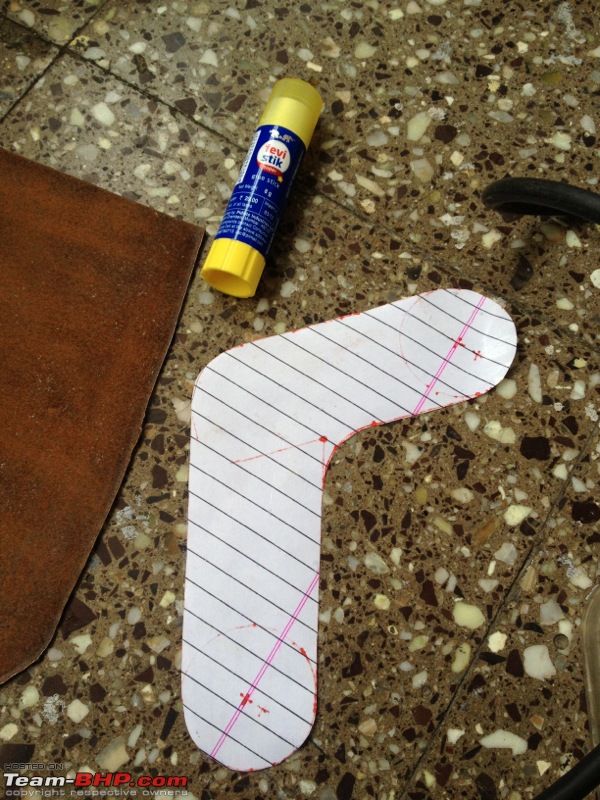

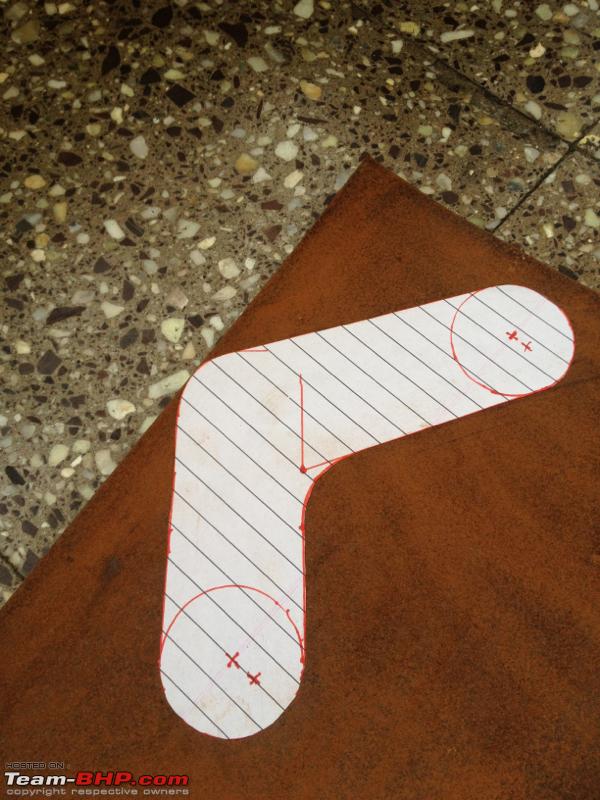

Stuck it to the metal sheet with glue

Name:  image3858112995.jpg
Views: 3665
Size:  616.3 KB

Ready to cut

Name:  image330424378.jpg
Views: 3664
Size:  568.0 KB

My multi functional cutting tool has a jig saw on one side and a nibbler on the other and the drive is give with a hand drill.

Name:  image3540262878.jpg
Views: 3618
Size:  376.6 KB

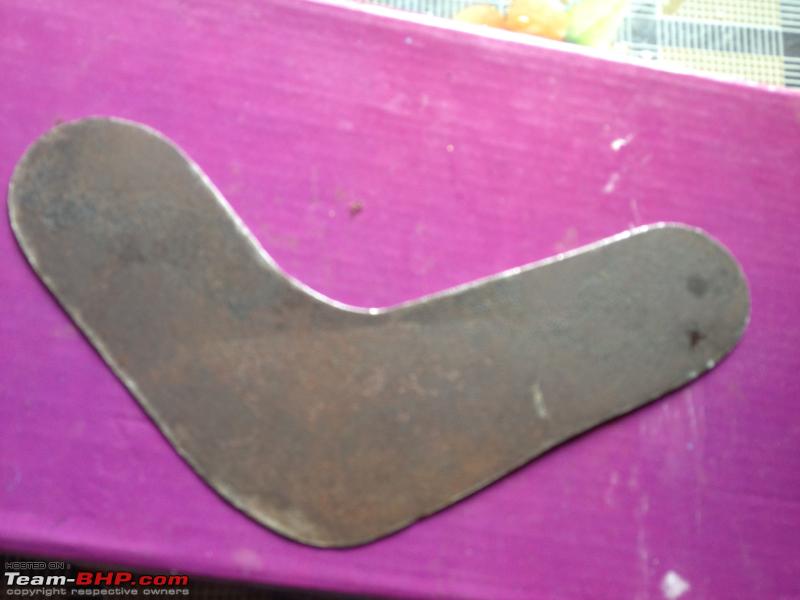

Metal template ready for profile cutting

Name:  image2347482767.jpg
Views: 3543
Size:  339.9 KB

The finished product

Name:  image4173958625.jpg
Views: 3546
Size:  339.3 KB



Name:  image2132771854.jpg
Views: 3548
Size:  429.4 KB

Now ready to roll
whicked wheels is offline   (2) Thanks Reply With Quote
Old 17th July 2013, 21:11   #54
Senior - BHPian

ex670c's Avatar

Join Date: Nov 2004
Location: Chennai
Posts: 2,454
Thanked: 1,789 Times
Default Re: Wickedly Radical - Mahindra Bolero Build

Hi James,

Nice work on you Bolero.

Please look into the following.

1) The boomerang shackles? How will they Help? Will they survive Torsional load under articulation?

2) The helper spring in the front spring pack will snag with the chassis under full compression.

Regards,

Arka
ex670c is offline   (1) Thanks Reply With Quote
Old 17th July 2013, 21:42   #55
BHPian

whicked wheels's Avatar

Join Date: Jan 2007
Location: PUNE
Posts: 365
Thanked: 56 Times
Default

Quote:
Originally Posted by ex670c View Post
Hi James,

Nice work on you Bolero.

Please look into the following.

1) The boomerang shackles? How will they Help? Will they survive Torsional load under articulation?

2) The helper spring in the front spring pack will snag with the chassis under full compression.

Regards,

Arka
Hi Arka

The shackles are 8mm thick so i think it will take the load, if not i have made provision for a support spacer to be fitted. Your second point of the springs hitting the chassis is the reason i made boomerang shackles it moves the spring towards the front. Tried it out with three of us jumping the chassis. As of now its ok but offroad its gonna be a different story for sure. Keeping my fingers crossed and hoping my calculations are right.
whicked wheels is offline   Reply With Quote
Old 20th July 2013, 11:13   #56
BANNED

Join Date: Apr 2010
Location: Pune
Posts: 1,201
Thanked: 821 Times
Default Re: Wickedly Radical - Mahindra Bolero Build

James Saab ;

There is a way to check the leaf spring deflation , just attach the Gundi Pata or with the cover pata , [main leaf & cover leaf ] to the axle , while the body is not in place ( mounted ) , no other leafs please.

This way you can judge whats happening wrt

# articulation

# axle clearance between lower engine components .


I think its high time to visit the place to see & observe & to absorb the things going on there .

Awaiting your permission & appointment Sir

With best regards to the adventure

Sudarshan
Sudarshan is offline   Reply With Quote
Old 21st July 2013, 22:35   #57
BANNED

Join Date: Apr 2010
Location: Pune
Posts: 1,201
Thanked: 821 Times
Thumbs up Re: Wickedly Radical - Mahindra Bolero Build

Quote:
Originally Posted by Sudarshan View Post
.


I think its high time to visit the place to see & observe & to absorb the things going on there .

Awaiting your permission & appointment Sir
James ; you just don't know what you are doing

Hats off to your adventure , yes it is one . The end can be as unpredictable as anything , but the thrill to ride the tide -- well I just got some wind of it & I am truly exited.

Some one needs to be mad enough & passionate enough to carry some adventurous ideas . I highly appreciate your calculated passion coupled with the adventurous madness of implementing wild ideas .

Thanks for letting me in the shop & sharing views.

Carry on , just dont care about the outcome. Doesn't matter, the whole effort is worth living for.

Sudarshan
Sudarshan is offline   Reply With Quote
Old 22nd July 2013, 07:37   #58
BHPian

whicked wheels's Avatar

Join Date: Jan 2007
Location: PUNE
Posts: 365
Thanked: 56 Times
Default

Hi guys

Thanks Sudarshan it was a pleasure. With your knowledge and experience that u carry has always amazed me thanks for the pointers will work on them.
Yes people really think i am gone mad yes for sure if i wasn't there would be no project, jeeps have always been a passion for me right from childhood. My first jeep too had a lot of stuff when nobody had tube fenders rock sliders, 2wd low,and 5.38 diffs, like to do the things out of the box but not without studying before i venture into a project. Even with the bolero i have been doing the same thing.

Name:  image3821931288.jpg
Views: 3739
Size:  445.8 KB

My first mm540 it also had widen gypsy rims
Attached Images

whicked wheels is offline   (3) Thanks Reply With Quote
Old 22nd July 2013, 15:03   #59
BHPian

Shubhendra's Avatar

Join Date: Apr 2009
Location: Poona
Posts: 948
Thanked: 1,107 Times
Default Re: Wickedly Radical - Mahindra Bolero Build

Quote:
Originally Posted by whicked wheels View Post
Hi guys

Yes people really think i am gone mad yes for sure if i wasn't there would be no project,
My first mm540 it also had widen gypsy rims
James Bhai,
You are brightest and most knowledgeable among us and there is no doubt about it.
i have got one more reason to visit you, if everything is sorted, lets test bolero this weekend?

Shubhendra Singh
Shubhendra is online now   Reply With Quote
Old 22nd July 2013, 22:47   #60
BHPian

whicked wheels's Avatar

Join Date: Jan 2007
Location: PUNE
Posts: 365
Thanked: 56 Times
Default

Quote:
Originally Posted by Shubhendra View Post
James Bhai,
You are brightest and most knowledgeable among us and there is no doubt about it.
i have got one more reason to visit you, if everything is sorted, lets test bolero this weekend?

Shubhendra Singh
Hi Shubhendra

No man im not the biggest there are bigger and mor knowledgeable guys than me let me remain on ground level only. Im just a student and will always remain one the only difference is i like to try different things.
Its long since we met up, come on over anytime.
As for the bolero want to complete it by the weekend lets see then we will go testing for sure.

Regards James
whicked wheels is offline   Reply With Quote
