Default Grand Vitara gets custom made skid plates

Until the day I test drove the GV, it was not even a contendor in my list. I did it merely to get a reference point. After the TD, it became a serious contendor. That's when I started reading up on it, and that broke the myth that it is a soft-roader like CR-V. And I eventually became a GV owner. Of course, there are still lots of people who believe it to be a soft-roader, hopefully they will be enlightened someday.

However, in the very first month of my Grand Vitara ownership, it became clear to me that I wonít be able to exploit most of its off-roading ability until it has some serious underbelly protection. Probably this is what propagates the soft-roader myth.

GV has one of the flattest underbelly among SUVs.
Name:  P3150524.JPG
Views: 14244
Size:  144.3 KB

It has 3 stock skid plates.
Name:  P3150523.JPG
Views: 21931
Size:  99.9 KB
A - Covers (not protect) the engine and radiator
B - Covers the gear box
C - This one is actually silly, it just covers a part of the drive shaft.

The uncovered parts are shown in the next two images. They are mainly transfer case, cat-con, exhaust system, fuel tank, etc.

Name:  P3150526.jpg
Views: 17532
Size:  178.9 KB

Name:  P3150529.jpg
Views: 23477
Size:  164.8 KB

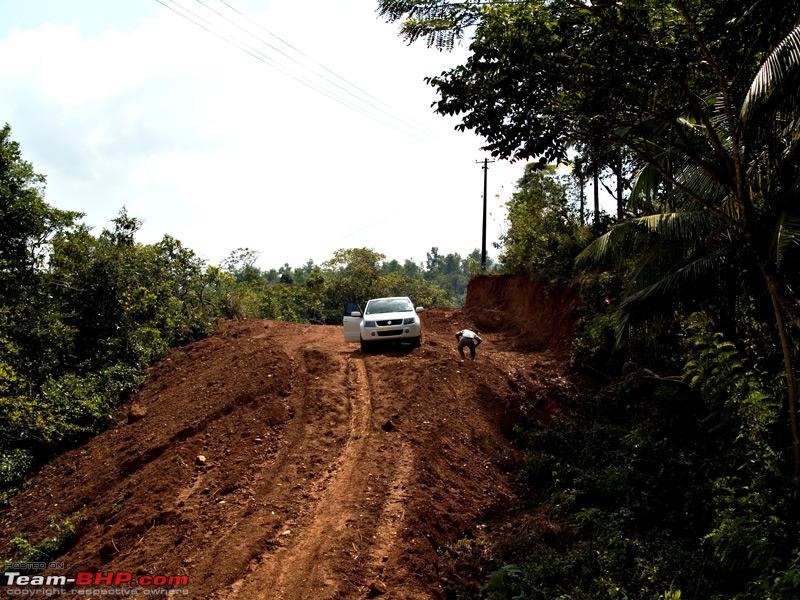

  1. Very first week, the transfer case brushed against a protrusion in the mud while trying my first off-roading venture. I had to backup and try a new angle.
    Name:  _B084512.jpg
Views: 13210
Size:  229.7 KB
  2. In a GV photography trip with Rudra, we had to turn back when the road got too rocky for the underbelly.
    Name:  226508934_GKRsCL.jpg
Views: 13198
Size:  207.6 KB
  3. The Kelambakkam 4x4 off-roading trip finally brought home the point. Offroaders are not supposed to turn back at some rough road, they are supposed ride-on with impunity.
    Name:  231275530_kqFW9L.jpg
Views: 13193
Size:  233.6 KB

That took me on an extensive research on how get this protection. That is how I discovered the term Skid Plates. I had never heard of it before, but now I needed it. After discussing with many GV owners around the world (in GV forums), one thing was clear. The stock plastic skid plates that come with GV are a joke, most owners who tried off-roading with it, had it torn pretty fast. It was merely a guard against flying debris in gravel road driving, nothing more. After having a first-hand look, I had to concur.

Recently the toughness of GV stock skid plates has been a topic of hot debate. The GV has only 3 plastic skid plates as shown below.
Name:  P3080504.JPG
Views: 12814
Size:  73.3 KB

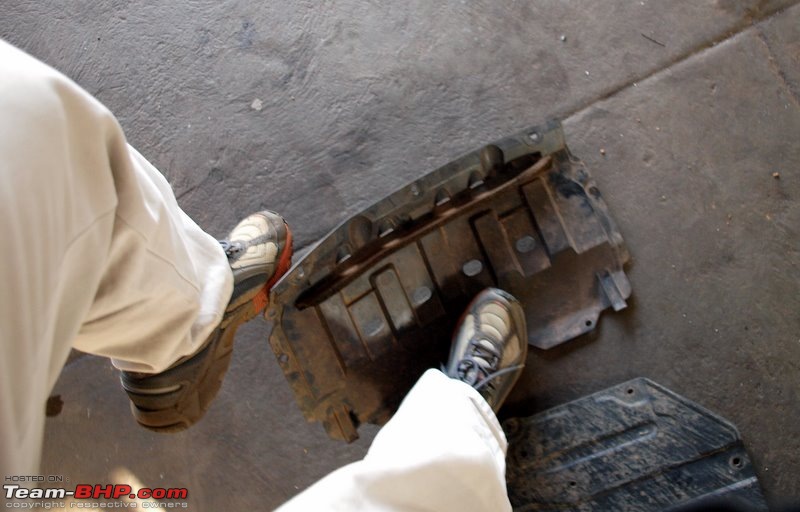

I could bend it using my leg and shoot it at the same time.
Name:  P3080505.JPG
Views: 12590
Size:  76.8 KB

Now, I am not at all technical about cars. Until I joined Team-BHP 3 years back, I had never tried to mod any car I owned. Even after joined Team-BHP, I only did modifications that I could understand. Considering my limited automotive knowledge, it never went beyond changing tyres or air filter. So I figured I can do the same with skid plates, buy them and fit them. But it was not so simple this time. Nobody sells off-roading accessories in India, and especially not for Grand Vitara. My research found vendors in Europe and Australia who made skid plates specific to current generation of Grand Vitara. To my surprise, I found that even USA and Canadian GV owners didnít have ready access to GV skid plates. One Israeli company gave me a quote of US$1400 for shipping it to India, and there is customs duties in addition making it prohibitively expensive. I didnít get any response from the others; they didnít want to bother with international shipping.

But it was a learning experience nevertheless; I had learnt that the best option is Aluminium skid plates with 6mm thickness, it is lighter and rustproof. It has to have service holes for various service functions, reducing weight and clearing debris. The best news I heard was that, not a single bolt hole need to be drilled into GV chassis, it has enough readymade bolt holes threaded and non-threaded all across the underbody. It should also allow the chassis to flex as required.

After discussing with many Team-BHPians, and in forums dedicated to off-roading and Grand Vitara, it finally dawned upon me that I may have to consider getting this custom made. I got recommendation on various guys who could do it Chennai, Coimbatore or Bangalore. But they would need my GV for the duration of making it, which would be very impractical, for me. The only practical way would be to get it done locally, within 10Kms of where I live. Now, I live in a small place, where I canít even get synthetic engine oil or leather steering cover for my GV, I know because I have tried. So, how the heck am I going to get this done?

At first I thought of hiring the aluminium workshop and give him my requirement. But that thought didnít last long. I have been a product development engineer all my professional life, and it has taught me that one canít build a product unless one knows the target domain very well. Therefore, the thought of two automobile noobs (me and the aluminium guy) developing an automotive part for an imported SUV just withered away. The design and construction of the skid plates has to be done by somebody understands the automobile in question very well. There are many moving parts down there, the drive shaft, the suspension, and many other things I donít know about.

Now when I think about it, I donít remember how it came about. In one of the visits to the local Maruti dealer/service station, Abharan Motors, I ended up discussing this problem with the Works Manager Mr.Nagaraj Kamath. Out of the blue, he offered to look into the matter himself and check out the possibilities. I know him pretty well from before, he was the guy who supervised the Baleno crank shaft issue last year. So, I quickly emailed him all the links on various skid plates available for GV around the world. Soon he got back to me saying this may be something worth trying. Since this was an experiment, I didnít put any budget or time constraint, and asked him go ahead.

The work got kicked off with the purchase of an 8ftx4ft aluminium sheet of 6mm thickness. It weighed about 50Kgs, although only 2/3 of it might be used eventually. I had to leave the GV couple of times for measurements. After that it took a long time, while they figured out what to cover, what not to cover, how to cover, how not to cover, etc. In fact, it took little over two month when I finally got a call to look over the first draft. The skid plates were supposed to be in 3 parts, and only the first one had been shaped and rest werenít. It is a good thing that I am from product development, I understood this was only an iteration and I knew why they had to do it one step at a time. Plus, bending the 6mm aluminium to required shape by hand was a major problem. Nobody had access to any hydraulic press capable of doing this. So they had to make channels and bend it along the channel, the channel is later welded close. Meanwhile, it also came to light that Mr.Kamath used to rally-prep Kadur Family rally cars in the 90s. That explained why he was open to take up this experiment.

Initial design
Name:  257109970_Qm4qBL.jpg
Views: 12350
Size:  61.9 KB

Two weeks later, they were ready for the first fit. Also, we discussed the rear part again and decided to change it. So the design changed from 3 pieces to 5 pieces. Now there was an U-shaped steel bracket to mount the rear skid plates, a bracket that is designed to take load. Usually the middle part of the wheelbase should have maximum clearance, but GV has the unprotected transfer case right there. Although this piece looks as if it is reducing the GC in the center, it is almost at the same height as the exhaust pipe, but protects the transfer case from any direct impact.

Meanwhile, I have to mention that most of the design and implementation was being handled by a senior mechanic named Mr.Ramachandra. This time I left the vehicle for 4 days so that they can have ample time trying it out, I got an Esteem as a loaner car for that period.

Last Saturday they were finally ready with all the skid plates, for field testing. Finally, it was time for me to show the designers what the product was supposed to do. I took both Mr.Kamath and Mr.Ramachandra to my office grounds where I had a pretty good off-roading site. This is the same place where we off-road tested the Gurkha. As I chose the off-road obstacle to test the skid plates, I saw a strange expression on both their faces, and I suddenly realised that they have never seen off-roading of this kind.

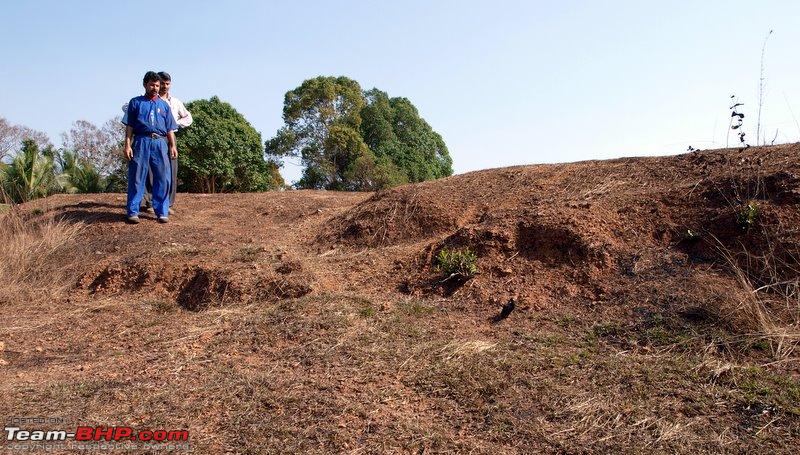

All this time they were thinking of roads with rocks or big potholes and not the sport of off-roading.
Name:  P3080457.JPG
Views: 12354
Size:  140.2 KB

Notice the normal gap in the front wheel arch.
Name:  P3080460.JPG
Views: 12442
Size:  151.0 KB

The front skid plate hits the obstacle, see the wheel arch gap increase.
Name:  P3080465.JPG
Views: 12313
Size:  140.0 KB

Now the middle part hits the obstacle, see the wheel arch go up again, it could have been the transfer case.
Name:  P3080469.JPG
Views: 12229
Size:  140.4 KB

I climbed the obstacle in 4L easily and they were quite mesmerized at how easy it was in the end. The underbody banged the ground as expected at couple of spots. Mr.Ramachandra was closely watching which parts hit the ground, all of them were on the skid plates and at well supported places.

Here is the animated image of the full test.
Name:  skidplates2.gif
Views: 15330
Size:  472.8 KB

After trying it once more, we found similar results. Then I offered to take both of them as passengers on the same ride to see the effect of additional load. This time we hit the ground harder and in many more spots. Again, skid plates took on all the contact. The test was complete, and the result had to wait until we return to the service station. Before returning, I took them to my computer and I showed them the photos from Kelambakkam off-road training. I think they finally understood what I was trying to do and why I needed skid plates so badly.

Back at the service station, we again hoisted the vehicle and carefully scrutinized the effect of the field test. The Skid plates had held their place very well, and had taken the brunt of the hits. No other part had touched the ground. The field test was a thumping success. So the skid plates were removed for finish up. All the steel brackets had to be fully welded and painted in the same process used for painting the chassis, the antirust coat followed with automotive paint. The skid plates had to be further bent at the right places in order to flush with the underbody.

A week later, that is yesterday, was the final installation. I spent nearly 3 hours standing under the GV watching the final installation. It was fun to watch so much excitement by many mechanics and service advisors unrelated to this project either helping out or watching the progress. I found Mr.Ramachandra taking down diagrams and measurements of various parts for his reference. Although this was his design, he had never committed it to paper until today. His enthusiasm and pride towards the project was very apparent.

Last edited by Samurai : 16th March 2008 at 10:43.
Samurai is offline   (1) Thanks Reply With Quote
Old 16th March 2008, 10:27   #2
Team-BHP Support

Samurai's Avatar

Join Date: Jan 2005
Location: B'lore-Manipal
Posts: 22,043
Thanked: 13,496 Times
Default

Here are the parts before installation.

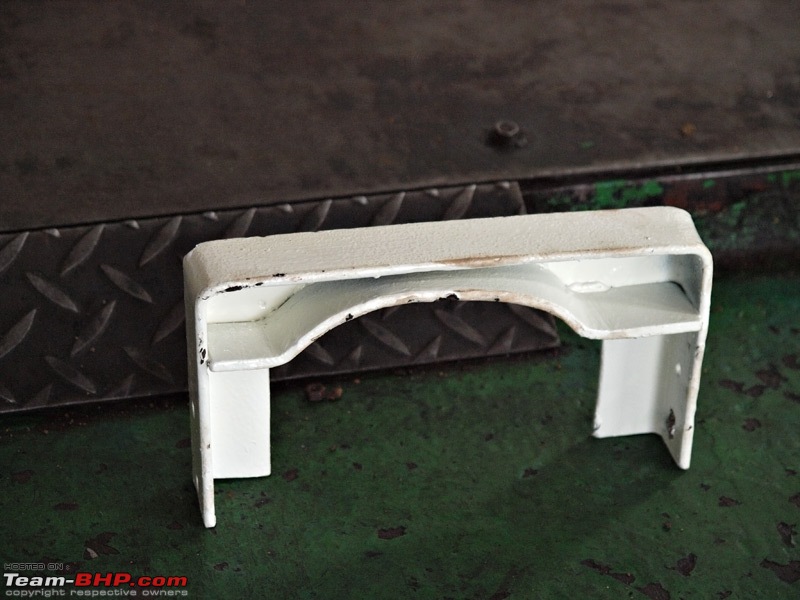

Brackets:
Name:  P3150530.jpg
Views: 11993
Size:  177.3 KB

Name:  P3150533.jpg
Views: 11886
Size:  117.5 KB

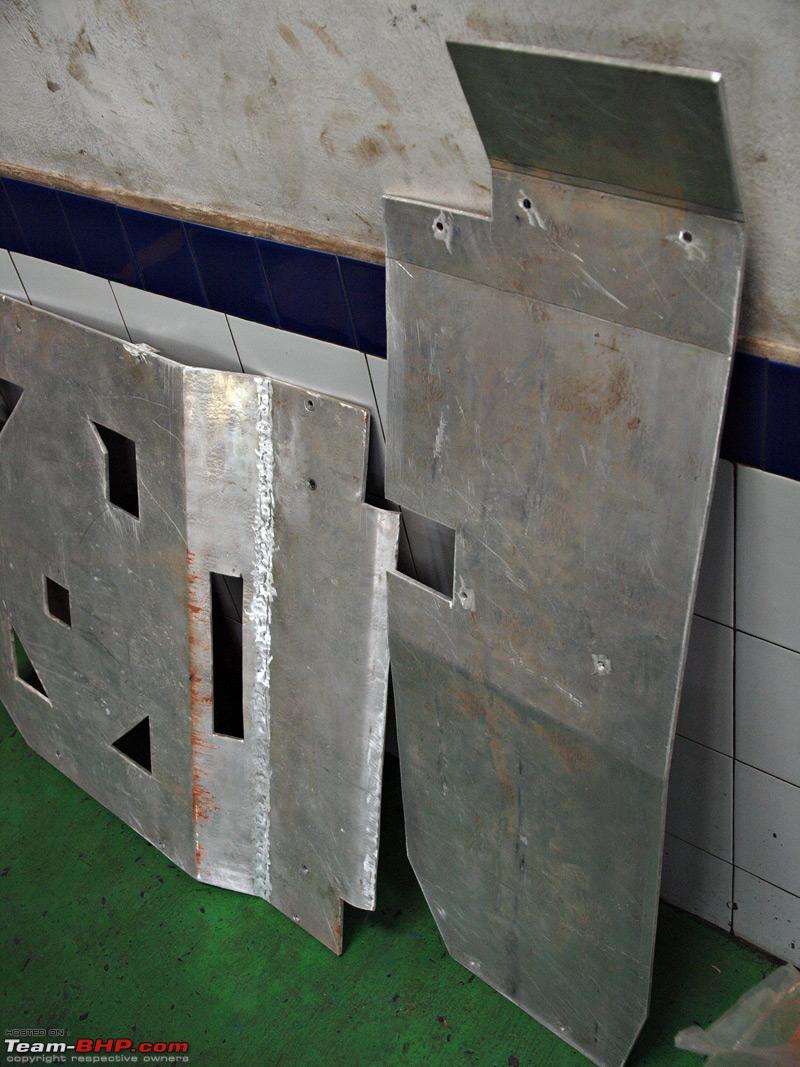

Plates:
Name:  P3150540.jpg
Views: 11910
Size:  170.1 KB

Grand Vitara gets custom made skid plates-p3150542.jpg

If you are wondering how heavy these are, check this out. I am lifting the biggest skid plate with two fingers of my left hand, while shooting the photo with the heavy E3 in the other hand.
Name:  P3150550.jpg
Views: 11828
Size:  132.3 KB

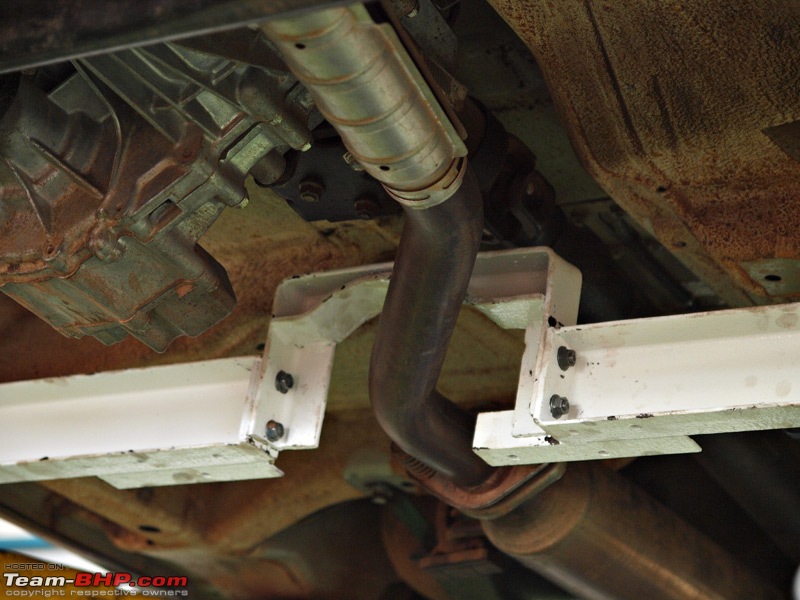

The brackets are getting mounted. None of these bracket bear any load, expect the last one.

Name:  P3150543.jpg
Views: 11690
Size:  135.2 KB

Name:  P3150546.jpg
Views: 11586
Size:  109.2 KB

Name:  P3150545.jpg
Views: 11616
Size:  153.0 KB

Name:  P3150537.jpg
Views: 11526
Size:  143.9 KB

Mechanic & Designer Mr.Ramachandra installing his creation.
Name:  P3150538.jpg
Views: 11428
Size:  99.1 KB

Name:  P3150549.jpg
Views: 11453
Size:  128.1 KB

The bolts are tightened with torque wrench.
Name:  P3150557.jpg
Views: 12739
Size:  130.2 KB

There was quite a crowd around the installation pit. Every free mechanic was milling around, often the service advisors were chasing them away.
Name:  P3150568.jpg
Views: 11532
Size:  145.9 KB

Now the transfer case is secured.
Name:  P3150560.jpg
Views: 11307
Size:  126.7 KB

The final setup is ready to roll.

The rear and center plates, you can see mud stains where the plates hit the ground in the field test. This covers the fuel tanks, transfer case and resonator.
Name:  P3150570.jpg
Views: 15725
Size:  152.1 KB

The center plates protecting the transfer case, gear box and it also acts as deflecting the impact away from exhaust pipes.
Name:  P3150571.jpg
Views: 12855
Size:  136.0 KB

Name:  P3150575.jpg
Views: 11517
Size:  164.5 KB

The front plate protecting the engine and radiator. The mud stains from the field test are visible. Notice how the front plate is flush fitted.
Name:  P3150574.jpg
Views: 12205
Size:  138.8 KB

The full view of the skid plates.
Name:  P3150572.jpg
Views: 21033
Size:  172.3 KB

That completes the custom skid plates story. I haven't received the bills for material and labour yet, but I have a Grand Vitara that I can boldly drive.

How often can one get factory trained Maruti technicians making custom parts for your car? My incredible thanks to Mr.Nagaraj Kamath and Mr.Ramachandra for taking up this challenge and delivering it. They have completed this project with utmost ingenuity and professional attitude.

I can't forget the help from Team-BHP support team who were following the progress keenly with lots of feedback and advice.

Finally, I also have to thank my new camera Olympus E3 which made this pictorial possible. Most of these shots are taken handheld at speeds of 1/5sec to 1/30sec at ISO800 without using flash. Very few dSLRs could have done that.

So, what next? Rock sliders of course. Notice the part highlighted by the dark circle. They take quite a banging, I need to protect it with strong metal tubes that can take on any impact.
Name:  P3150558.jpg
Views: 13318
Size:  71.7 KB
As you see, the chassis has enough bolt holes to mount a rock slider. The question that remains is do I get it readymade from abroad, or get it custom built locally.

Last edited by Samurai : 16th March 2008 at 11:28.
Samurai is offline   (1) Thanks Reply With Quote
Old 16th March 2008, 12:45   #3
adc
Senior - BHPian

adc's Avatar

Join Date: Mar 2007
Location: Kolkata
Posts: 1,343
Thanked: 2,072 Times
Default

Quote:
Originally Posted by Samurai View Post
However, in the very first month of my Grand Vitara ownership, it became clear to me that I wonít be able to exploit most of its off-roading ability until it has some serious underbelly protection. Probably this is what propagates the soft-roader myth.
Huge congrats and a definite big thumbs up, it is great following all your detailed off roading posts. It is so refreshing to see a high-end 4wd vehicle being put through its paces. Looking forward to the monsoon season runs.
adc is offline   Reply With Quote
Old 16th March 2008, 13:16   #4
Distinguished - BHPian

phamilyman's Avatar

Join Date: Jul 2007
Location: Gurgaon
Posts: 5,582
Thanked: 3,244 Times
Default

Superb is the word. Looking forward to many more such runs :-)

Now I gotto fit something similar on my bike too!
phamilyman is offline   Reply With Quote
Old 16th March 2008, 13:31   #5
Senior - BHPian

black12rr's Avatar

Join Date: Dec 2005
Location: Ridin earth now
Posts: 1,259
Thanked: 271 Times
Default

Would it has been difficult to have the bolts flush-fit them . If you hit a rock and the bolt breaks or damaged , it would be difficult to get the broken bolt out .

Something like this http://www.zeebuck.com/bimmers/tech/...badapter02.JPG . the allen bolts are flush mounted , just an example . Similarly the bolts should have been flush mounted or should have had mental ring surrounding the bolts.

Last edited by black12rr : 16th March 2008 at 13:37.
black12rr is offline   Reply With Quote
Old 16th March 2008, 13:35   #6
Senior - BHPian

abhinav.gupta88's Avatar

Join Date: Sep 2007
Location: Delhi , India
Posts: 4,087
Thanked: 308 Times
Default

Wow. Nothing can match such a test. Cool. What was the entire cost?
abhinav.gupta88 is offline   Reply With Quote
Old 16th March 2008, 13:40   #7
Senior - BHPian

normally_crazy's Avatar

Join Date: Feb 2004
Location: Mumbai
Posts: 4,368
Thanked: 383 Times
Default

Congratulations Samurai ! Now you can go anywhere.

A very beautiful photoblog that's educative and informative. I am sure a lot of SUV owners will benefit a lot from this thread. Also it was very very nice of Mr Kamath and Mr Ramchandra to do this so professionally.

And lastly - you got exactly what you wanted. That is most satisfying.
normally_crazy is offline   Reply With Quote
Old 16th March 2008, 13:50   #8
Senior - BHPian

DirtyDan's Avatar

Join Date: Jul 2007
Location: Dharamsala
Posts: 1,781
Thanked: 694 Times
Default Good approach

Well done, easy to understand your explanation, too.

Question: do you think the aluminum is heavy enough gage or, if you were to do it over, would you go to a heavier gage (thickness).
DirtyDan is offline   Reply With Quote
Old 16th March 2008, 14:36   #9
Senior - BHPian

kpzen's Avatar

Join Date: Oct 2004
Location: Faridabad
Posts: 5,528
Thanked: 1,524 Times
Default

Congratulations..!!

Samurai u have an amazing skill of describing anything with pics. Keep them coming..
kpzen is online now   Reply With Quote
Old 16th March 2008, 14:49   #10
Team-BHP Support

Samurai's Avatar

Join Date: Jan 2005
Location: B'lore-Manipal
Posts: 22,043
Thanked: 13,496 Times
Default

Thanks everybody for the kind comments. It sure feels nice to get something like this done to ones satisfaction.

Quote:
Originally Posted by black12rr View Post
Similarly the bolts should have been flush mounted or should have had mental ring surrounding the bolts.
Flush mounting as shown in your pic, that would weaken the plate at the bolts. But if you notice closely, we have used bolts with collar everywhere.
Name:  P31505571.jpg
Views: 10939
Size:  127.9 KB

Quote:
Originally Posted by abhinav.gupta88 View Post
Wow. Nothing can match such a test. Cool. What was the entire cost?
I don't have that info yet.

Quote:
Originally Posted by DirtyDan View Post
Question: do you think the aluminum is heavy enough gage or, if you were to do it over, would you go to a heavier gage (thickness).
I didn't pick 6mm thickness randomly. All the skid plates available for GV from different vendors, had one thing in common. They were all 6mm aluminium (or aluminum for you) sheets. It appears to be the best compromise between strength and weight and workability.

Quote:
Originally Posted by kpzen View Post
Samurai u have an amazing skill of describing anything with pics. Keep them coming..
Thanks, it saves me the thousand words.

Last edited by Samurai : 16th March 2008 at 14:50.
Samurai is offline   Reply With Quote
Old 16th March 2008, 15:02   #11
Distinguished - BHPian

JayD's Avatar

Join Date: Jun 2007
Location: Cochin! At last
Posts: 3,194
Thanked: 1,989 Times
Default

AH! Classic T-bhp attitude! The guy has just finished an installation, and he's already looking for an upgrade!!
JayD is offline   Reply With Quote
Old 16th March 2008, 15:09   #12
Distinguished - BHPian

condor's Avatar

Join Date: Jun 2006
Location: Speed-brkr City
Posts: 10,321
Thanked: 3,664 Times
Default

Makes a world of difference to know that the under-body is secured.

Did you get the under-body washed once before having the plates fixed finally ?
condor is online now   Reply With Quote
Old 16th March 2008, 15:23   #13
Senior - BHPian

pjbiju's Avatar

Join Date: Apr 2006
Location: Karamattom, Aluva, Kotagiri, Yercaud, Hospet, Indore, Nashik, Pune (now)
Posts: 1,167
Thanked: 433 Times
Default

Congratulations samurai and thank you for explaining the whole thing so beautifully for the crazy bunch of team-bhpians. I am sure this will give you a new found confidence to travel around your village especially after the monsoons

Do give us an update on the cost once you are billed.
pjbiju is offline   Reply With Quote
Old 16th March 2008, 17:31   #14
BHPian

Alfa_Kilo's Avatar

Join Date: Apr 2007
Location: Jaipur
Posts: 328
Thanked: 8 Times
Default

Congratulations!
The skid plate installation is thoroughly professional. Why donít you forward it to MSIL? Some marketing suit might see a spark in this.

You may need spring washers to prevent the nuts from loosening after extensive usage. Check the bolts for tightness during every service.

Let me know about the progress on rock rails. They can be subjected to severe forces, which must be transmitted to the chassis through the mounting points properly. Too few or improper mountings may cause excessive local stresses and deform the chassis. See if you can install a couple of cross members between the rock rails.

Enjoy offroading!

Last edited by Alfa_Kilo : 16th March 2008 at 17:32.
Alfa_Kilo is offline   Reply With Quote
Old 16th March 2008, 17:33   #15
Senior - BHPian

Ricky_63's Avatar

Join Date: Dec 2006
Location: Gurgaon
Posts: 3,837
Thanked: 354 Times
Default

One word WOW !!! Your Vitara is now a "go anywhere" vehicle. Great initiative / innovation & job no I think it deserves another thumbs up


Cheers
Ricky_63 is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
IND-style Number Plates : Movell Captain Slow Other Cities 45 13th July 2017 08:57
Basic Swift touring mods in Delhi (HID, skid plates, GPS mount) - what else? phamilyman Modifications & Accessories 36 7th November 2013 12:06
CS gets the "indigo" look, diesel gets beige interiors, XL grand discontinued sidindica The Indian Car Scene 18 19th February 2009 17:11
Where can customized license plates be made in Pune city? InternetUser Modifications & Accessories 2 14th March 2008 14:36


All times are GMT +5.5. The time now is 10:08.

Copyright ©2000 - 2017, Team-BHP.com
Proudly powered by E2E Networks
