Default Highly Modified MM340 - Scorpio Powered Beast

O.k. folks, here is write up on my MM340. The write up in chronological order, so skip to the end if you want to see the current set up.

Bought the Jeep new off the showroom floor in 1995. The MM dealer is in Jhandewale Extn., near Karol Bagh. My brother and I walked into the dealer to enquire about a MM540 and the salesmen pointed us to the "sports model" jeep and told us that we really wanted a proper jeep this is the one.

To tell the truth, I like the red color and removable top more than the ergonomics and brutally stiff shifter. So we ended by buying it on a spur of moment type of thing. After driving it a bit, I really started liking the feel of it. The acceleration was brisk because of the Peugeot 2.1L motor combined with 5.38 R&P ratios.

In 1996 I added alloys and 30 inch Desert Duelers (now on my blue MM550). Also added an extra leaf to the springs and re-arch to gain about 2 inches. Threw in a set of Rancho 9000's, a K&N filter and proceeded to have a lot fun.

1997 comes around, and I really want to add some power, so I import a Garret T35 turbo, and drop it in along with an intercooler. So now it was making 80 or 90 hp at 8 psi boost and was really pretty quick and a lot more fun to drive.

Fast forward to 2004: The jeep was in storage for the past 5 years and needed a new head. So the engine was pulled out and completely overhauled with genuine MM parts. New head, pistons, etc. Reinstalled in 2005 and my mechanic tells me that a used Scorpio motor is available and it may be able to fit. So we end up pulling the overhauled motor and put it on the side and proceed to fitup the 2.6 Scorpio motor.

To make a long story short, we finally got the fit up and CNC adaptor right after 6 months of trial and error. Then in 2006 we decided to pull the body off and redo the entire engine/drivetrain fitup. Redid the engine mounts, strengthened the frame with tubular cross braces and we were good to go.

Motor was also extensively modified with high flow injectors, ported & polished head, oversize intercooler, variable boost control, etc.

The current configuration and modifications are as follows:

1995 original jeep
2.6 turbo Scorpio motor
enlarged injector nozzles with EDM machine polish
K&N air filter
oversize aluminum intercooler with polish finish
variable boost control
2 inch thick aluminum race radiator with integral electric fan
12 inch oversize front disc brakes vented
ss braid brake lines
Bilstein race shocks with remote reservoir
front and rear antisway bars
front and rear trac bars
4.27 R&Ps
Hello 4000 fog lights
Ramsey 9500 winch
Led turn, brake lights
30x9.5R15 BFGoodrich mud terrains
8x15 Mickey Thompson classic alloy rims
custom free flow exhaust
Aluminum hard top
removable doors
race seats with 4 pt. harness belts
boost gauge, EGT gauge
On board GPS, Garmin 276C

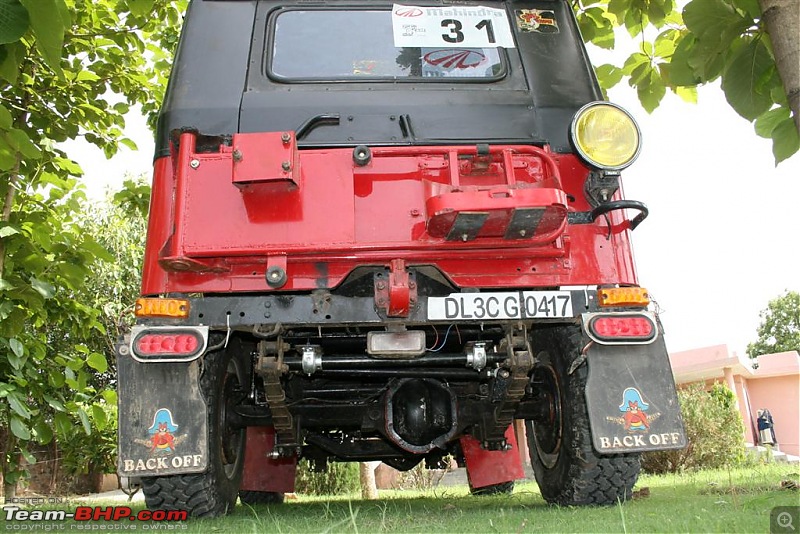

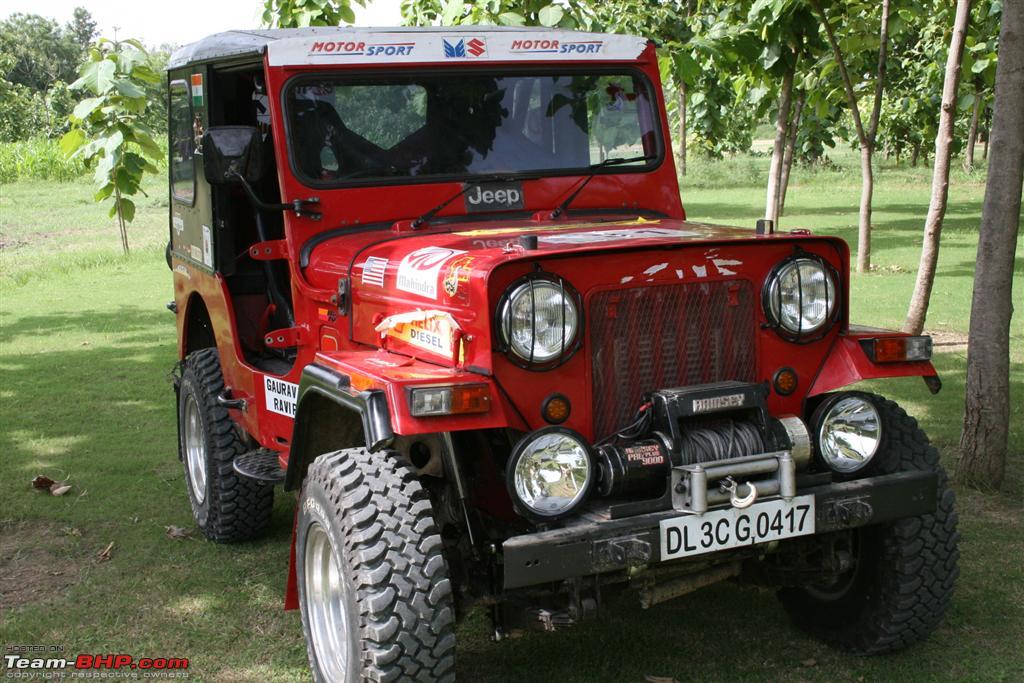

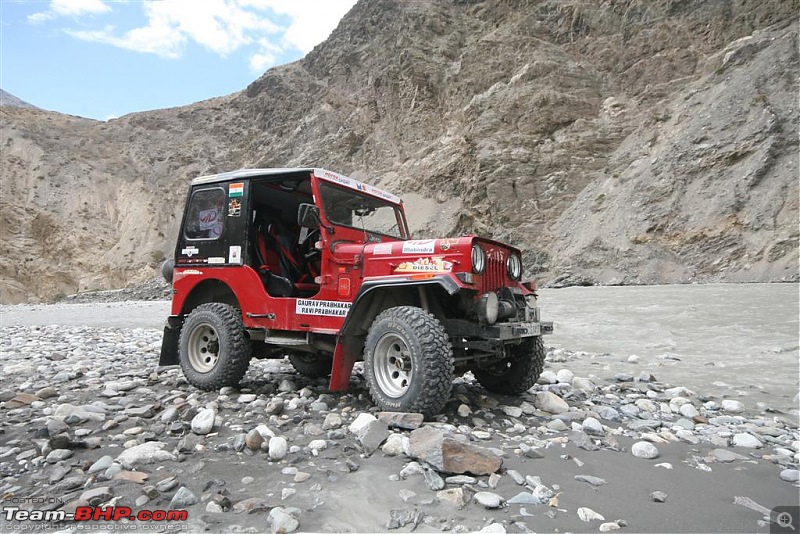

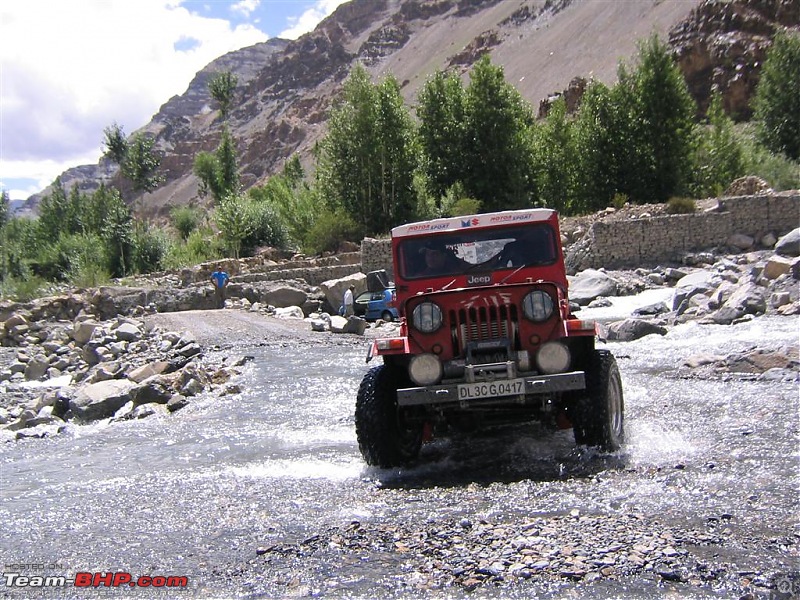

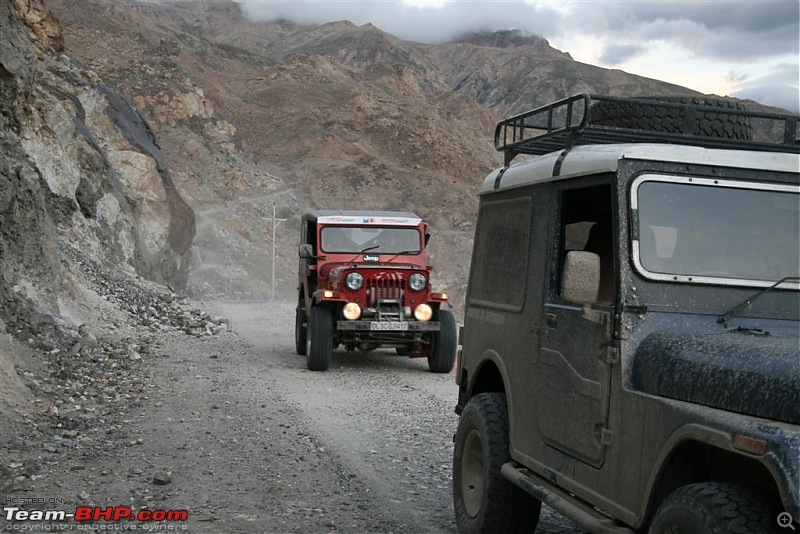

Pics attached.

Cheers,

Gaurav
Attached Thumbnails
Highly Modified MM340 - Scorpio Powered Beast-img_0006-large.jpg

Highly Modified MM340 - Scorpio Powered Beast-img_0005-large.jpg

Highly Modified MM340 - Scorpio Powered Beast-img_0036-large.jpg

Highly Modified MM340 - Scorpio Powered Beast-img_0038-large.jpg

Highly Modified MM340 - Scorpio Powered Beast-img_0048-large.jpg

Highly Modified MM340 - Scorpio Powered Beast-img_3589-large.jpg

Highly Modified MM340 - Scorpio Powered Beast-img_3616-large.jpg

Highly Modified MM340 - Scorpio Powered Beast-img_3605-large.jpg

Highly Modified MM340 - Scorpio Powered Beast-img_3719-large.jpg

Highly Modified MM340 - Scorpio Powered Beast-img_3742-large.jpg

RedMM340 is offline   Reply With Quote
Old 19th May 2008, 01:05   #2
aZa
Senior - BHPian

aZa's Avatar

Join Date: Mar 2006
Location: Noida / Delhi
Posts: 1,595
Thanked: 17 Times
Default

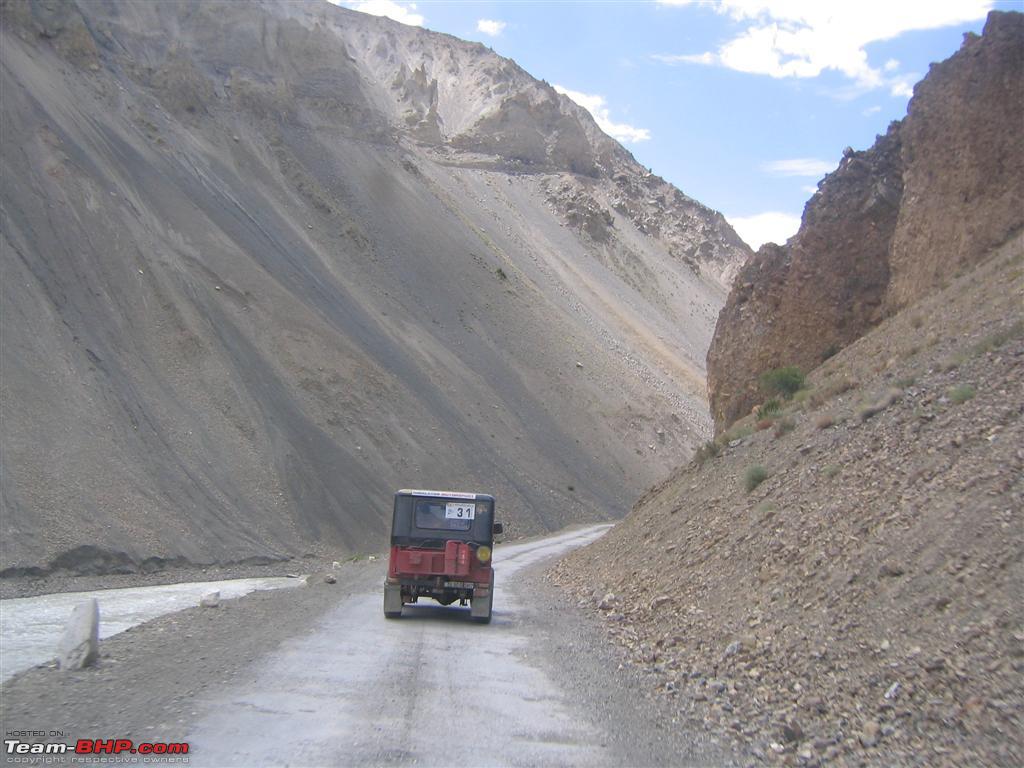

Amazing stuff gaurav!! The pics are to die for ! PIC Number 3 and the Last pic is wallpaper meterial. I see you are from delhi i'd love to see this vehicle in person sometime if possible.
