Old 16th August 2008, 12:39   #1
BHPian

offroad_maniac's Avatar

Join Date: Aug 2008
Location: Thane-Mumbai
Posts: 453
Thanked: 35 Times
Default Difference in Chassis Design of Army V/s Regular 4WD Mahindra MM550

Hello guys,

Sorry if I missed it out somewhere,but I really wanted to know the actual difference in Army MM550 & Regular MM550 4WD chassis design.
Specially on fronts of chassis design & overall strength of ladder frame.
All I know is difference between engine type & tyres (Sandgrip on Army)

So here are some of the initial queries that I have in my mind :

1. Is chassis/ frame of Army spec MM550 stronger than that of regular? If
so, then by what means?)

2. Can we install the Force Gurkha's Front (I think it's IFS only) & Real
Differentials with locks on a Mahindra Jeep keeping everything else
(like T'case) the same?

So one question arises in my mind, that if someone changes the color, tyres & seat arrangements (i.e. External appearance) of a regular MM550 to that of an Army version, how to make out the real difference.

(This can happen if someone not knowledgeable enough goes to a 2nd hand shop asking for a military jeep? )

Your suggestion is recommended,

Thanks in advance.
offroad_maniac is offline   Reply With Quote
Old 16th August 2008, 19:14   #2
BANNED

Join Date: Jul 2008
Location: in a Toyota!
Posts: 2,686
Thanked: 592 Times
Default

Maniac, thats a nice set of questions you asked.

i will try to get some info from my sources.

cheers
cheers:
Parm is offline   Reply With Quote
Old 17th August 2008, 00:23   #3
BHPian

Join Date: May 2007
Location: Bangalore
Posts: 34
Thanked: Once
Default

Quote:
So one question arises in my mind, that if someone changes the color, tyres & seat arrangements (i.e. External appearance) of a regular MM550 to that of an Army version, how to make out the real difference.
Hi Maniac,

I am a new member and this is my first post. I am hazarding a reply to your above question on the basis of knowledge gained, reading over threads of the 4x4 forum and some experience gained first hand. Experts, please correct if I am wrong.

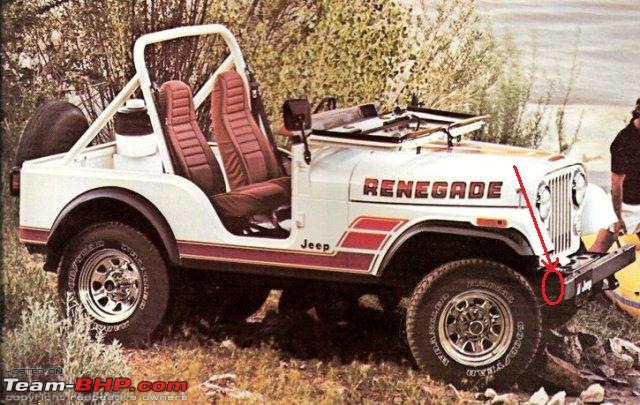

The ladder chassis members in MM540, like any other jeep, protrude out of the body shell and a sort of bumper gets bolted/welded in front. One has to get down and observe the right hand side main ladder member. Towards the end you can see, engravings that will tell the model out. If an original Army version, you should see the following:

550 XDB

There is something else also written, but I do not have it at the top of my memory now. Again, experts can comment.
Attached Images


Last edited by Rehaan : 17th August 2008 at 22:46. Reason: Quote box added. Please use the QUOTE button when quoting a reply. Thanks.
amreshmahapatra is offline   Reply With Quote
Old 21st August 2008, 20:40   #4
BHPian

offroad_maniac's Avatar

Join Date: Aug 2008
Location: Thane-Mumbai
Posts: 453
Thanked: 35 Times
Default

Thank you guys for replying to my post.
I was just wondering, what makes the chassis of MM550 XD stronger than regular MM550 ?
offroad_maniac is offline   Reply With Quote
Old 22nd August 2008, 12:56   #5
Distinguished - BHPian

Join Date: Jul 2007
Location: MUMBAI
Posts: 3,059
Thanked: 4,571 Times
Default

Dear offroadmaniac - MM540s original specifications were 95.5" wheelbase, 51" wheeltrack front and rear, 100mm*50mm C section chassis. In January 1998, the NGCS (new generation chassis and suspension) was introduced in the Armada which later went on to become the present Bolero. This was essentially a 115mm*60mm constant section box chassis having very good torsional rigidity. This chassis got adapted on the MM540s made after this time, but retained the wheelbasae and track. Please do not think of swapping chassis as all parts are different.

Hope this clarifies.

Best regards,

Behram Dhabhar
DHABHAR.BEHRAM is offline   Reply With Quote
Old 22nd August 2008, 16:56   #6
Senior - BHPian

ex670c's Avatar

Join Date: Nov 2004
Location: Chennai
Posts: 2,454
Thanked: 1,789 Times
Default Mm550xd Ngcs

Quote:
Originally Posted by DHABHAR.BEHRAM View Post
Dear offroadmaniac - MM540s original specifications were 95.5" wheelbase, 51" wheeltrack front and rear, 100mm*50mm C section chassis. In January 1998, the NGCS (new generation chassis and suspension) was introduced in the Armada which later went on to become the present Bolero. This was essentially a 115mm*60mm constant section box chassis having very good torsional rigidity. This chassis got adapted on the MM540s made after this time, but retained the wheelbasae and track. Please do not think of swapping chassis as all parts are different.
I think the NGCS were offered on the MM550XDs post 2003-04.
ex670c is offline   Reply With Quote
Old 22nd August 2008, 18:30   #7
Senior - BHPian

vinod_nookala's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 1,737
Thanked: 410 Times
Default

Quote:
Originally Posted by DHABHAR.BEHRAM View Post
Dear offroadmaniac - MM540s original specifications were 95.5" wheelbase, 51" wheeltrack front and rear, 100mm*50mm C section chassis. In January 1998, the NGCS (new generation chassis and suspension) was introduced in the Armada which later went on to become the present Bolero. This was essentially a 115mm*60mm constant section box chassis having very good torsional rigidity. This chassis got adapted on the MM540s made after this time, but retained the wheelbasae and track. Please do not think of swapping chassis as all parts are different.

Hope this clarifies.

Best regards,

Behram Dhabhar
Dear dhabar ji,

I think the track on NGCS for front axle is different as it is wider. This was done to improve the turing radius and also for stability purpose. I have noticed on army NGCS 550 XDb and even on bolero the difference between font & rear track is over 100mm. This is not seen on any off roader. It becomes difficuilt to transverse difficult terrain as fron and rear wheel will follow diffrent track....especially in conditions like river crossing on wodden logs etc.

Pre 2003 Army XDb were alsmost similar to MM540 chassis except that few vital areas on chassis were strengthened especially crossmembers. Where exactly they were done is what you have to confirm:-) Also i think the steering system was of heavy duty to support 7.50 16 sand masters...correct me if wrong


regards

vinod
vinod_nookala is offline   Reply With Quote
Old 22nd August 2008, 18:33   #8
Senior - BHPian

vinod_nookala's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 1,737
Thanked: 410 Times
Default

Also, will the current MM550 NGCS suspension match the suspension articulation of old MM540? I guess not. If yes...then RTI figures please?
vinod_nookala is offline   Reply With Quote
Old 22nd August 2008, 20:41   #9
BHPian

offroad_maniac's Avatar

Join Date: Aug 2008
Location: Thane-Mumbai
Posts: 453
Thanked: 35 Times
Default

If new generation MM550 XDP are built upon NGCS which they are using for Bolero also? Then Bolero Invader's Chassis must be as strong as XDP?

there is a thread in "what car?" section that has details of latest Army auction of tata Shaktimans, MM550 XDs & lots of Gypsies. http://www.team-bhp.com/forum/suvs-m...m-d-gypsy.html
Sad that the auctions are not conducted anywhere near here.


Regards,
Raviraj
offroad_maniac is offline   Reply With Quote
Old 23rd August 2008, 00:59   #10
BHPian

susan3004's Avatar

Join Date: Oct 2007
Location: Kapurthala
Posts: 345
Thanked: 120 Times
Default

'B' pillar has a aluminium tablet giving out the model and other details like the year of mfg. the engine and chassis number etc.This differentiates between the other models.
Presence of the oil cooler in the military jeep is another indication of being authentic.
I have noticed that only 550 is available with the option of windshield opening on hinges on the top.
susan3004 is offline   Reply With Quote
Old 23rd August 2008, 01:25   #11
Team-BHP Support

Samurai's Avatar

Join Date: Jan 2005
Location: B'lore-Manipal
Posts: 22,045
Thanked: 13,496 Times
Default

Quote:
Originally Posted by offroad_maniac View Post
2. Can we install the Force Gurkha's Front (I think it's IFS only) & Real
Differentials with locks on a Mahindra Jeep keeping everything else
(like T'case) the same?
I am waiting for someone to answer this. I was actually floored by the question.
Samurai is offline   Reply With Quote
Old 23rd August 2008, 05:44   #12
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,631
Thanked: 2,947 Times
Default

Quote:
Originally Posted by Samurai View Post
I am waiting for someone to answer this. I was actually floored by the question.
Thats a nice question. really that would be a really cost effective & great way to add more capabilities to ones MM-4x4 vehicles.

BUT, even if it was possible, where would you get Gurkha's Diffs?.
khan_sultan is offline   Reply With Quote
Old 23rd August 2008, 10:21   #13
DKG
Senior - BHPian

DKG's Avatar

Join Date: Feb 2008
Location: Hyderabad
Posts: 3,706
Thanked: 913 Times
Default

Quote:
Originally Posted by offroad_maniac View Post
Can we install the Force Gurkha's Front (I think it's IFS only) & Real
Differentials with locks on a Mahindra Jeep keeping everything else
(like T'case) the same?
Assuming the differentials are Dana units for the Mahindra why not source difflocks and install them instead of trying to suit Gurkha mechanicals. It might be worth someone's effort to identify the makes and models of diff locks commercially available
DKG is offline   Reply With Quote
Old 23rd August 2008, 18:24   #14
BHPian

offroad_maniac's Avatar

Join Date: Aug 2008
Location: Thane-Mumbai
Posts: 453
Thanked: 35 Times
Default

Thanks Susan for the differentiating info,

Regarding the Gurkha diffs on 550s: I thought that if the diif ratios in MM550 & that of Gurkha can be matched then it will be easier to install a differential with factory fitted locks,. As Khan_sultan has tried out an excellent job of installing a lock in his Gypsy, but I guess it was, at first very confusing & tension-wala job for the owner & also to the mechanics.
So just a thought, as Gurkha diffs ( I think it should be available as spares at Force shops) can be fitted in any garage.

Also would like to add, that Mahindra tried to bring some excitement in classic 4X4 scene by developing a "Mod it yourself" kinda concept in Year (I guess) 2000 by bringing out Mahindra Quadro. But this effort was a flop as it got no response. I guess that's why they stopped the production of MM550/ 40s, thinking people here are not into classic looks anymore.
( Do they need a signature drive??)

Last edited by Jaggu : 23rd August 2008 at 18:37. Reason: 2 smilie per post please
offroad_maniac is offline   Reply With Quote
Old 23rd August 2008, 18:43   #15
Team-BHP Support

Samurai's Avatar

Join Date: Jan 2005
Location: B'lore-Manipal
Posts: 22,045
Thanked: 13,496 Times
Default

Quote:
Originally Posted by offroad_maniac View Post
So just a thought, as Gurkha diffs ( I think it should be available as spares at Force shops) can be fitted in any garage.
No true. Not only Force workshops won't have it, even the Force factory won't have it. From what I have heard, the Gurkha diff locks are imported on order.
Samurai is offline   Reply With Quote
