One of the pending items in the SPoA modification had been the steering setup. With the lift, the angle of the draglink had become acute and it was putting in lots of stress on the rod-ends.

Here is a picture of the angle of the draglink.



After much searching, even some failed attempts at fabricating parts, I managed to get hold of mercedes steering control arms. The merc arms will bolt on to the brake caliper pin and provide a point for making a X-over steering setup.

After much thought, I decided to do a X-over rather than a Hi-Steer.

Here is Viji holding the Merc arms :-)
Name:  merc_arms.jpg
Views: 2380
Size:  44.3 KB

This is one setup that we tried: The rod-ends from bottom, but this was touching the leafs on lock to lock (Right turn)
Gypsy on Steroids -- The SPoA Project.  EDIT: Stage-2 Started now..-img0245a.jpg


So, we then redid the merc end to make the draglink rod-end to be from top.

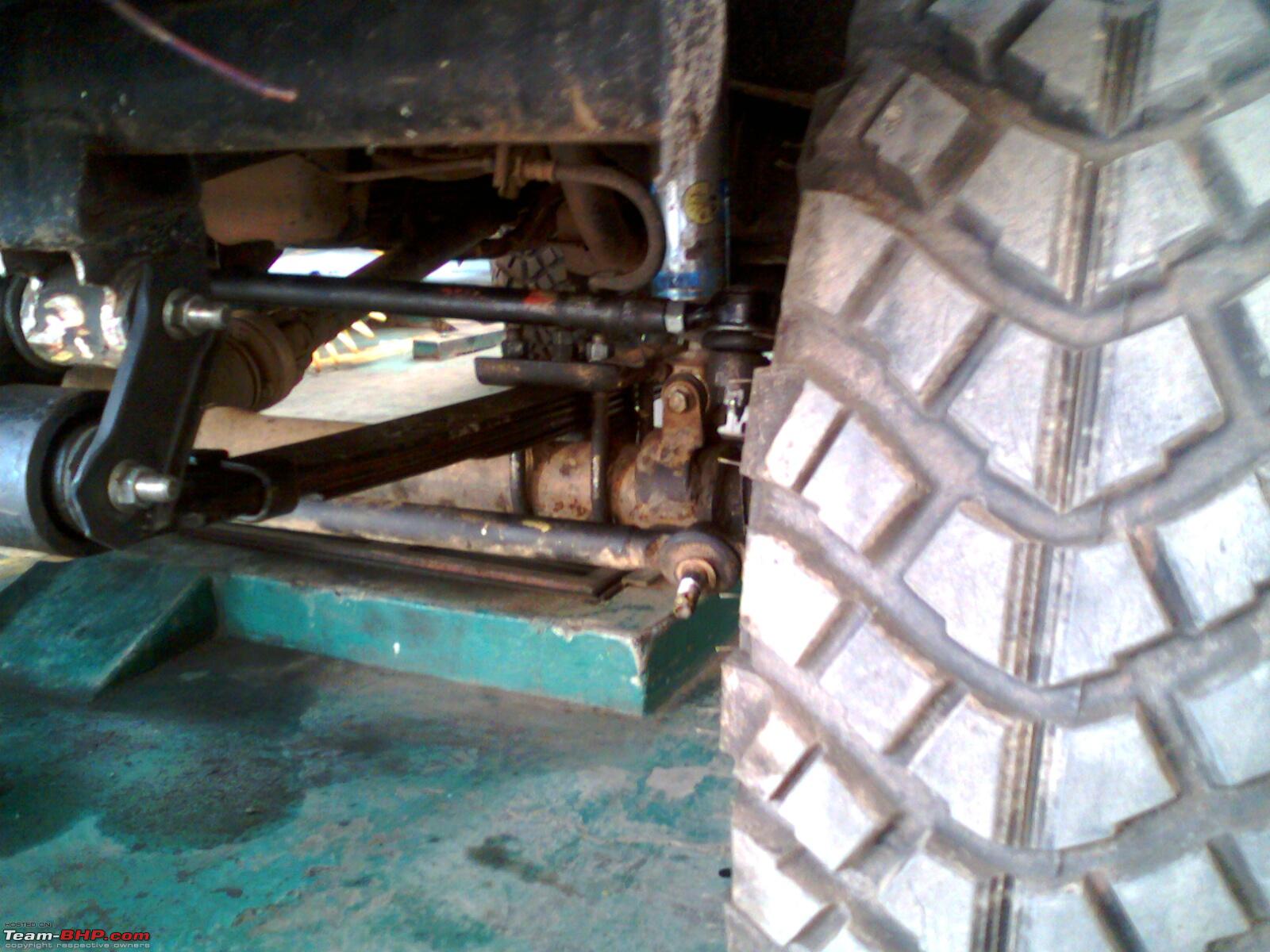

Gypsy on Steroids -- The SPoA Project.  EDIT: Stage-2 Started now..-img0247a.jpg

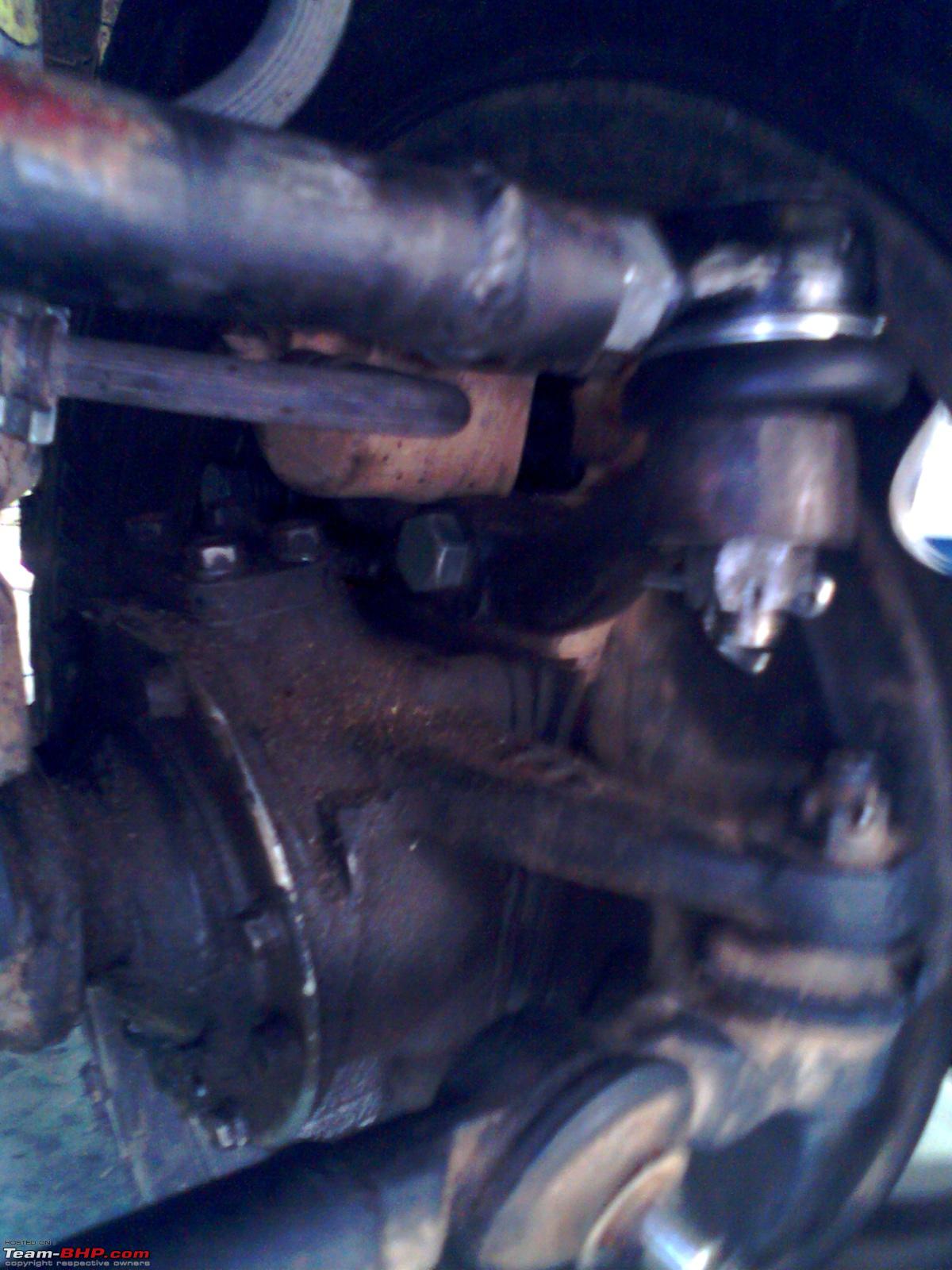

Gypsy on Steroids -- The SPoA Project.  EDIT: Stage-2 Started now..-img0248a.jpg

Gypsy on Steroids -- The SPoA Project.  EDIT: Stage-2 Started now..-img0250a.jpg

Oh yes, forgot to mention then a Gypsy draglink is not adjustable and is rigid. So had to get it fabricated to take in a adjustable rod-end joint.

Lots of days & several iterations later, the steering works like a charm. have driven it just a few kms but can feel that it is on the right track now

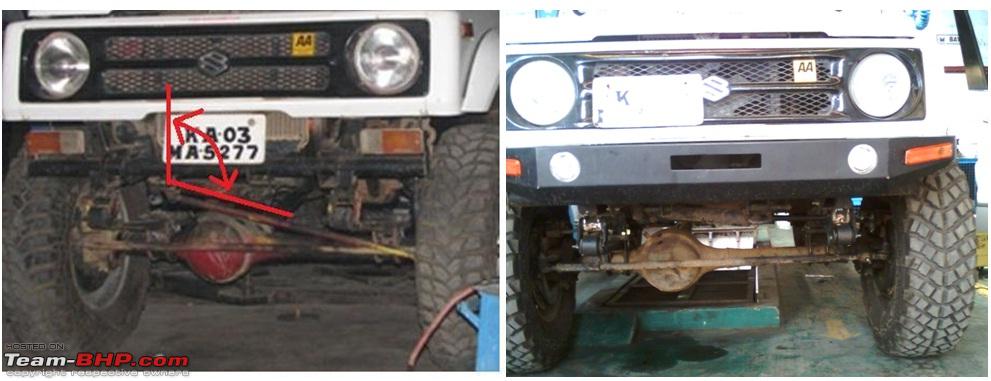

Here is a comparison picture showing the angle:
Gypsy on Steroids -- The SPoA Project.  EDIT: Stage-2 Started now..-final.jpg

Oh yes, here is the Gypsy getting a well deserved scrub:
Gypsy on Steroids -- The SPoA Project.  EDIT: Stage-2 Started now..-img0253a.jpg

Gypsy on Steroids -- The SPoA Project.  EDIT: Stage-2 Started now..-img0254a.jpg

Last edited by khan_sultan : 29th May 2010 at 18:05.
khan_sultan is offline   Reply With Quote
Old 29th May 2010, 21:05   #201
Senior - BHPian

Join Date: Dec 2007
Location: Dubai
Posts: 3,854
Thanked: 123 Times
Default

Good to see Spidey getting a long over-due betterment!

And, nice seats. When did you get them done?

And looks like all the sticker's at the rear door had been removed. Is it?
HappyWheels is offline   Reply With Quote
Old 29th May 2010, 21:45   #202
BHPian

ladak.imran's Avatar

Join Date: Aug 2009
Location: Bombay
Posts: 290
Thanked: 6 Times
Default

New steering setup looks great!
I'll be waiting to hear more about the way she handles now..
Goodluck!

Can't wait to take a ride in your vehicle during EXAMMs and AKC!
ladak.imran is offline   Reply With Quote
Old 30th May 2010, 23:28   #203
Team-BHP Support

Jaggu's Avatar

Join Date: May 2004
Location: Bangalore
Posts: 17,491
Thanked: 6,768 Times
Default

Khan saab that link thing looks to be a simple but brilliant mod job and nice seats, custom made eh?

Spidey steers, need to change the L to R link ends and it will be really tight. Main difference is the turn in's, now it's superb and great feel on road. Actually you can feel the uneven roads on the steering now
Jaggu is offline   Reply With Quote
Old 15th June 2010, 15:45   #204
Senior - BHPian

pdev29's Avatar

Join Date: Feb 2006
Location: Mumbai
Posts: 1,037
Thanked: 258 Times
Default

Khan,

very interesting project, too tempted to try this.

hatts of to your R&D, your mechanics.

i think you should get the following stuff too.

1) front axel wrap
2) roll cage
3) underbody protection

these things will make it a hardcore offroad machine.
pdev29 is offline   Reply With Quote
Old 23rd September 2010, 21:00   #205
Senior - BHPian

V-16's Avatar

Join Date: May 2005
Location: mumbai
Posts: 4,575
Thanked: 834 Times
Default

What to say Khan. I sat in the monster during Exxam and was pleasantly surprised to find the ride at the rear also very very comfortable.

Can you email me the blueprints please as am taking notes to shamelessly copy this design when i have a gypsy of my own??

Kudos to the whole team.
V-16 is offline   Reply With Quote
Old 30th September 2010, 12:17   #206
Senior - BHPian

pdev29's Avatar

Join Date: Feb 2006
Location: Mumbai
Posts: 1,037
Thanked: 258 Times
Default

can anyone put it in simple language whats the difference between Hi-Steer and X Over saw the setup got the idea but still not clear on this.

Last edited by pdev29 : 30th September 2010 at 12:19.
pdev29 is offline   Reply With Quote
Old 30th September 2010, 12:32   #207
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,631
Thanked: 2,947 Times
Default

Quote:
Originally Posted by pdev29 View Post
can anyone put it in simple language whats the difference between Hi-Steer and X Over saw the setup got the idea but still not clear on this.
Hi-Steer: Both the draglink/tie-rod are moved up and are just like OE setup but just higher. Will create an impact on the 'ackerman angle'

X-Over: Only the tie-rod (the angular rod from steering/pitman arm to draglink) is moved up. The rod connecting the two knuckle arms remains where it was. In this the tie-rod needs to be removed from drag-link and made as an independent rod. This brings the angle of the link as close to OE as possible. Things to note: Since the drag-link & tie-rod are now independent, you will face a lot more bump-steer and steering feedback will be lot more/vibrations felt.

Here is the pictorial representation:

Hi-Steer
Name:  fullhighsteerr.jpg
Views: 1742
Size:  15.1 KB

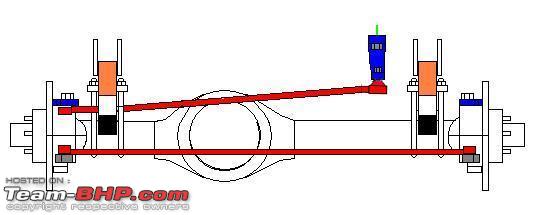

X-Over (Also known as half hi-steer)
Name:  halfhighsteer.jpg
Views: 1722
Size:  15.3 KB

Last edited by khan_sultan : 30th September 2010 at 12:37.
khan_sultan is offline   (2) Thanks Reply With Quote
Old 30th September 2010, 13:10   #208
Senior - BHPian

pdev29's Avatar

Join Date: Feb 2006
Location: Mumbai
Posts: 1,037
Thanked: 258 Times
Default

i dont understand the point of moving the rod connecting the two knuckle arms ??? any particular reason.

here is the pic of what i have done in my monstar.

I have fabricated and extened the steering link.

let me know your inputs on this.
Attached Images
File Type: bmp untitled.bmp (506.3 KB, 213 views)
pdev29 is offline   Reply With Quote
Old 30th September 2010, 13:36   #209
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,631
Thanked: 2,947 Times
Default

Quote:
Originally Posted by pdev29 View Post
i dont understand the point of moving the rod connecting the two knuckle arms ??? any particular reason.
Getting the setup as close to OE/stock as possible. All angles with this will be nearly like that of a OE vehicle.

Quote:
here is the pic of what i have done in my monstar.

I have fabricated and extened the steering link.

.
Not clear in the picture, but I think what you have done is fabricated a custom drop pitman arm which lowers the angle of your rod and makes it as parallel to ground as possible. That should also work fine.
All such mods would have some +/- aspects on the steering setup so nothing much too worry about . Just enjoy and have fun.!!!
