Old 21st March 2009, 15:44   #106
Senior - BHPian

headers's Avatar

Join Date: May 2006
Location: Greater Chennai
Posts: 4,548
Thanked: 424 Times
Default

Quote:
Originally Posted by Parm View Post
i got it now. thanks for the answer, the articulation sure makes a big in OTS. it gives flexibility to the vehicle to over come the hurdle.

thanx again Headers.
Your Welcome Sir
headers is offline   Reply With Quote
Old 21st March 2009, 16:22   #107
Senior - BHPian

DirtyDan's Avatar

Join Date: Jul 2007
Location: Dharamsala
Posts: 1,781
Thanked: 694 Times
Default

Quote:
Originally Posted by star_aqua View Post
Khan sir, one major difference i could see here is the track width. with the wide track the steering drag/correction will be less during articulation.
The Axe's greater width lessens the angle a little. A little means a lot in this application. I wonder if this very thing will be upgraded for the Axe by the boys at M&M. Axe's doors could use an upgrade, too.

Mr. Khan, you continue to take risks and do interesting things. I doff my cap to thee.
DirtyDan is offline   Reply With Quote
Old 21st March 2009, 20:15   #108
BHPian

sreerajunnithan's Avatar

Join Date: Jun 2006
Location: Banagalore
Posts: 445
Thanked: 5 Times
Default

K_S a quick question. Don't you think your roll over chances will be substantially high after this mod? What do you have in your mind about increasing the track width? All the zukis i came across in the net have broader tyres/axles/spacers to compensate this. And you just spent some good money for new MTs. I think you should have a high negative offset wheels.
I came across this Mag Wheels,Automotive Wheels,Aluminum Alloy Wheels,Car Chrome Wheels,Supplier and confirmed its available in Bangalore. Let me know if you need the contact.

Thanks
--Sree--

Last edited by sreerajunnithan : 21st March 2009 at 20:17.
sreerajunnithan is offline   Reply With Quote
Old 22nd March 2009, 04:08   #109
BANNED

Join Date: Jul 2008
Location: in a Toyota!
Posts: 2,686
Thanked: 591 Times
Default

Quote:
Originally Posted by sreerajunnithan View Post
K_S a quick question. Don't you think your roll over chances will be substantially high after this mod? What do you have in your mind about increasing the track width? All the zukis i came across in the net have broader tyres/axles/spacers to compensate this. And you just spent some good money for new MTs. I think you should have a high negative offset wheels.
I came across this Mag Wheels,Automotive Wheels,Aluminum Alloy Wheels,Car Chrome Wheels,Supplier and confirmed its available in Bangalore. Let me know if you need the contact.

Thanks
--Sree--
im learning new things about pros and cons of lifting a vehicle. thanks to this thread i can understand it much better now.

lifting a vehicle will surely make it more prone to toppling over during articulation or bending the body too much due to the lift. yes increasing the track width and having wider tyres will make a big difference in stoping that.

waiting to read what khan saab doing with this problem.
Parm is offline   Reply With Quote
Old 22nd March 2009, 09:02   #110
Senior - BHPian

headers's Avatar

Join Date: May 2006
Location: Greater Chennai
Posts: 4,548
Thanked: 424 Times
Default

Well. a niceley designed rollcage should adorn the Gypsy now. The objective of the rollcage is to bring the gypsy back on its wheels if it topples by chance. Any designs?

Sorry Khan for hijacking, but found the idea irresistable!
headers is offline   Reply With Quote
Old 22nd March 2009, 09:27   #111
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,631
Thanked: 2,947 Times
Default

Quote:
Originally Posted by Torque-ative View Post
...
After thought the tyre set up on Sultan's gypsy was adequate for the stock suspension set-up. This is now dwarfed with the SPOA and needs urgent upgrade !
He he. Who knows what will happen next/tomorrow .

Quote:
Originally Posted by sreerajunnithan View Post
K_S a quick question. Don't you think your roll over chances will be substantially high after this mod? What do you have in your mind about increasing the track width? All the zukis i came across in the net have broader tyres/axles/spacers to compensate this. ...
Yes. it will compared to the stock Gypsy. However, better articulation should address 'some' of that concern.

You are right about lots of zuks having wide axle but then they all invariable run 32-34-35 size tyres and much more lift even on SPoA. In that case, I think, the axle width/tyre ratio would nearly be about same as what I have now with 29 size tyres.

Quote:
I came across this Mag Wheels,Automotive Wheels,Aluminum Alloy Wheels,Car Chrome Wheels,Supplier and confirmed its available in Bangalore. Let me know if you need the contact.
Not needed now. Have made some alternate arrangements to address this

Quote:
Originally Posted by headers View Post
Well. a niceley designed rollcage should adorn the Gypsy now. The objective of the rollcage is to bring the gypsy back on its wheels if it topples by chance. Any designs?..
You just guesed my next Mod sir. Just wait and the work will begin soon on this front also.
khan_sultan is offline   Reply With Quote
Old 22nd March 2009, 10:46   #112
Senior - BHPian

headers's Avatar

Join Date: May 2006
Location: Greater Chennai
Posts: 4,548
Thanked: 424 Times
Default

Quote:
Originally Posted by khan_sultan View Post
You just guesed my next Mod sir. Just wait and the work will begin soon on this front also.
Time for me to copy the design from you now!
headers is offline   Reply With Quote
Old 22nd March 2009, 11:27   #113
Senior - BHPian

joshguy's Avatar

Join Date: Mar 2006
Location: Chennai
Posts: 1,357
Thanked: 88 Times
Default

BTW khan,how much have you spent till now for the suspensions alone?
joshguy is offline   Reply With Quote
Old 23rd March 2009, 18:23   #114
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,631
Thanked: 2,947 Times
Default

Here is a picture of the Gypsy after SPoA.


Name:  DSC00166.jpg
Views: 6024
Size:  62.5 KB


Name:  DSC00274.jpg
Views: 2831
Size:  49.2 KB

Last edited by khan_sultan : 23rd March 2009 at 18:27.
khan_sultan is offline   Reply With Quote
Old 23rd March 2009, 19:51   #115
BHPian

star_aqua's Avatar

Join Date: Aug 2008
Location: BLR
Posts: 612
Thanked: 88 Times
Default SPoA - Tested OK

Here is the another pic of JEEPsy. Testing the articulation and the travel of the axle.
Attached Thumbnails
Gypsy on Steroids -- The SPoA Project.  EDIT: Stage-2 Started now..-dsc01606.jpg

star_aqua is offline   Reply With Quote
Old 23rd March 2009, 20:01   #116
Senior - BHPian

mjothi's Avatar

Join Date: Dec 2007
Location: Bangalore
Posts: 3,252
Thanked: 216 Times
Default

Quote:
Originally Posted by star_aqua View Post
Here is the another pic of JEEPsy. Testing the articulation and the travel of the axle.
Wow, so finally its ready to climb trees
mjothi is offline   Reply With Quote
Old 23rd March 2009, 20:30   #117
BHPian

starter's Avatar

Join Date: Jan 2009
Location: Bangalore
Posts: 898
Thanked: 261 Times
Default

Hey Khan,
Super cool mags there. Your Gypsy looks more like a tank to me.
It should definitely sport a sticker saying, "Go anywhere do anything"
Cheers buddy,
Deepak
starter is online now   Reply With Quote
Old 23rd March 2009, 20:55   #118
Team-BHP Support

Jaggu's Avatar

Join Date: May 2004
Location: Bangalore
Posts: 17,491
Thanked: 6,768 Times
Default

Quote:
Originally Posted by mjothi View Post
Wow, so finally its ready to climb trees
lol i was about to type the same!

So how does it feel off road? any updates?
Jaggu is offline   Reply With Quote
Old 23rd March 2009, 21:17   #119
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,631
Thanked: 2,947 Times
Default

Quote:
Originally Posted by starter View Post
... It should definitely sport a sticker saying, "Go anywhere do anything
mmmm. I would prefer a sleeper



Quote:
Originally Posted by mjothi View Post
Wow, so finally its ready to climb trees


Quote:
Originally Posted by Jaggu View Post
lol i was about to type the same!

So how does it feel off road? any updates?
Well, It can climb this
Name:  DSC00051.jpg
Views: 2792
Size:  68.4 KB

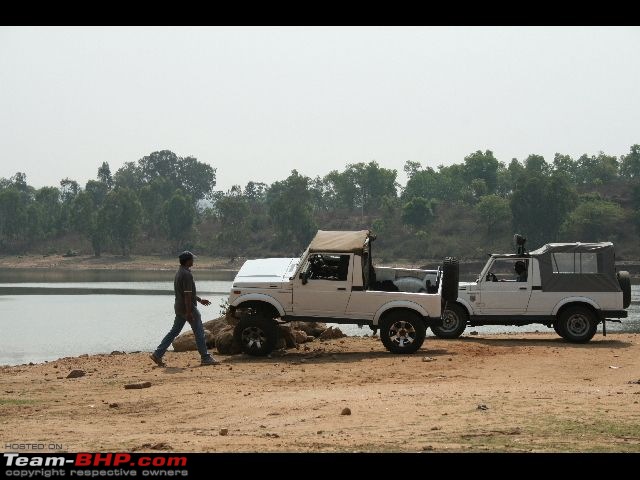

and this
Name:  DSC00085.jpg
Views: 2795
Size:  55.5 KB


and this
Name:  DSC00088.jpg
Views: 2790
Size:  72.7 KB


and this
Name:  DSC00093.jpg
Views: 4950
Size:  67.6 KB


But still can't do this
Name:  DSC00135.jpg
Views: 2923
Size:  64.7 KB


On a serious note, the SPoA job is just tooo good and opens up lots of possibilities and doors for more serious off-roading. Better articulation, better GC, better control over rocks..

The Gypsy rocks now man. The Lockers + t-case + short rear & the SPoA are now working in complete harmony and complimenting each other.
khan_sultan is offline   Reply With Quote
Old 23rd March 2009, 21:25   #120
BHPian

Join Date: Sep 2008
Location: Delhi
Posts: 304
Thanked: 240 Times
Default

Quote:
Originally Posted by khan_sultan View Post
mmmm. I would prefer a sleeper
Yeah, right!! with a lift, those tires and alloys it is sure a "SLEEPER"

cheers
vishwas
vishwaschettri is offline   Reply With Quote
