Default Are the transfercases interchangeable?

Quote:
Originally Posted by jyobeb View Post
absolutely sure. My gearbox is a NGT530.
Your transfer case will be a direct bolt on. Take my word for it. Been there done that and spent one hell of a lot of money too.
I have a BA10 link system, an electic transfer case, a KMt90 gearbox and a whole lot of parts left behind to show for it.
Jyobeb,
I had some idea that T18 came fitted with NGT 520 gear box. Never knew this happened to BA 10 as well. Now charging 50k plus premium for 4wd for a T18 is a day light robbery in new M&M vehicle. Anyway iam told all new M&M vehicles come with brogwarner transfer cases right from Major (manual) to Scorpio (electric). Only few pickup versions have T18 running in them now.
vinod_nookala is offline   Reply With Quote
Old 22nd July 2009, 17:06   #32
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default

This is for Sreeraj and Swastikviji.
I did a conversion of a link type 4WD BA10 jeep into a direct shift BA10 with 4WD.
We basically bought a BA10 direct shift gearbox and removed the rear housing and replaced it with the rear housing of the Link type gearbox and fitted the T18 transfer case to the direct shift gearbox.
One of the links on the gearbox is on the rear housing and has to be removed and a dummy put in place to block the hole. After that its all a straight forward fit.
Attached Thumbnails

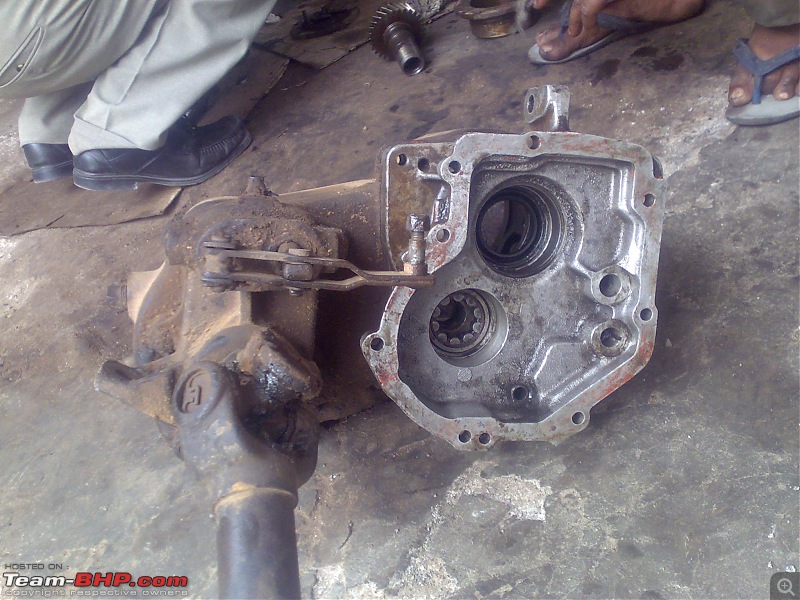

Need advice:MM 550 BA 10 : 4x4  gear box direct Shift.-2wd-ba10-direct-shift-rear-housing-removed.jpg

Need advice:MM 550 BA 10 : 4x4  gear box direct Shift.-2wd-ba10-direct-shift-rear-housing-removed-side-top-view.jpg

Need advice:MM 550 BA 10 : 4x4  gear box direct Shift.-ba10-wd-drive-adapter-rear-housing.jpg

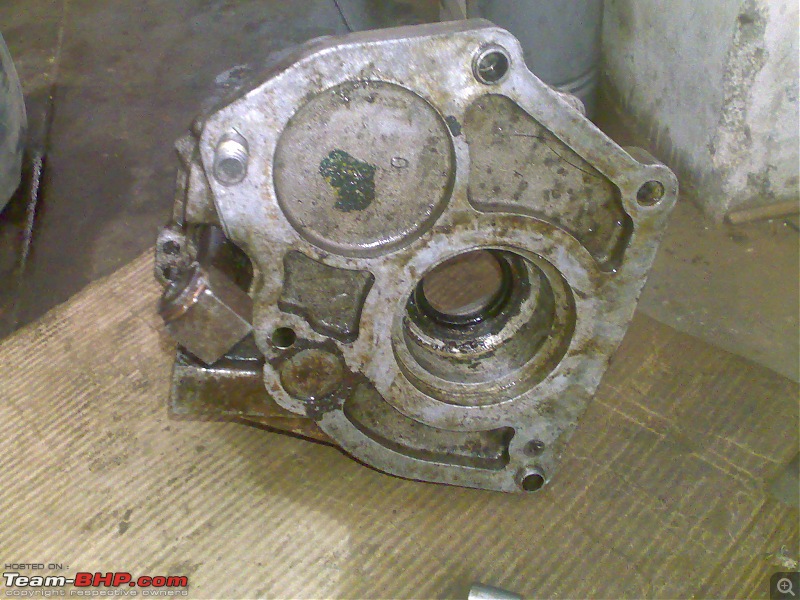

Need advice:MM 550 BA 10 : 4x4  gear box direct Shift.-ba10-wd-drive-adapter-rear-housing-view-2.jpg

Need advice:MM 550 BA 10 : 4x4  gear box direct Shift.-ba-10-2wd-rear-housing-4wd-rear-housing-drive-shaft-end.jpg

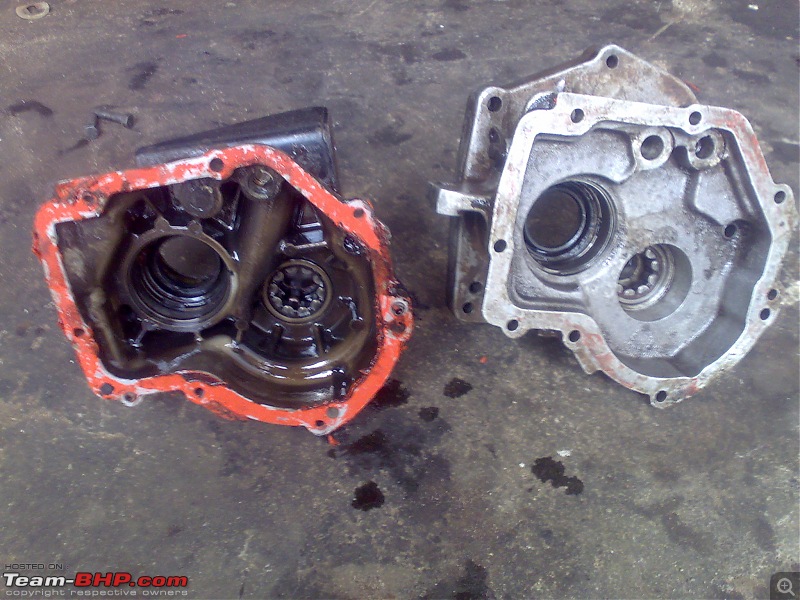

Need advice:MM 550 BA 10 : 4x4  gear box direct Shift.-ba-10-2wd-rear-housing-4wd-rear-housing-gearbox-side.jpg

Need advice:MM 550 BA 10 : 4x4  gear box direct Shift.-ba-10-2wd-rear-housing-4wd-rear-housing-gearbox-side-2.jpg

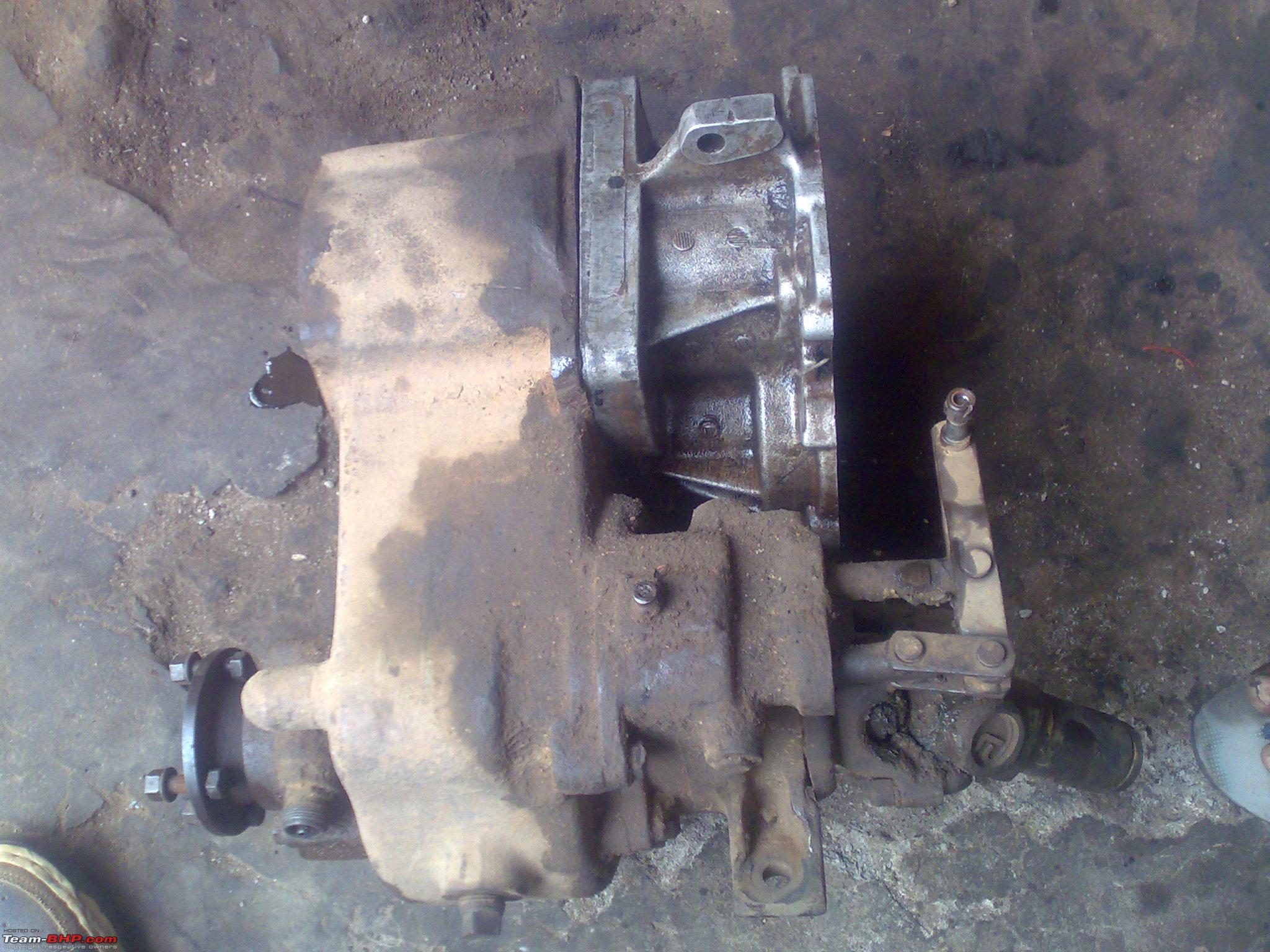

Need advice:MM 550 BA 10 : 4x4  gear box direct Shift.-t18-transfer-case-4wd-adapter-housing.jpg

Need advice:MM 550 BA 10 : 4x4  gear box direct Shift.-t18-transfer-case-4wd-adapter-housing-3.jpg

Need advice:MM 550 BA 10 : 4x4  gear box direct Shift.-t18-transfer-case-4wd-adapter-housing-4.jpg

jyobeb is offline   Reply With Quote
Old 22nd July 2009, 22:26   #33
BHPian

swastikviji's Avatar

Join Date: Feb 2009
Location: Bangalore
Posts: 417
Thanked: 158 Times
Default

Quote:
Originally Posted by jyobeb View Post
This is for Sreeraj and Swastikviji.
I did a conversion of a link type 4WD BA10 jeep into a direct shift BA10 with 4WD.
We basically bought a BA10 direct shift gearbox and removed the rear housing and replaced it with the rear housing of the Link type gearbox and fitted the T18 transfer case to the direct shift gearbox.
One of the links on the gearbox is on the rear housing and has to be removed and a dummy put in place to block the hole. After that its all a straight forward fit.
Thanks a lot Jyobeb. My savings Drained ,i am going to continue with the old setup for time being.
swastikviji is offline   Reply With Quote
Old 23rd July 2009, 10:54   #34
BHPian

sreerajunnithan's Avatar

Join Date: Jun 2006
Location: Banagalore
Posts: 445
Thanked: 5 Times
Default

Quote:
Originally Posted by jyobeb View Post
absolutely sure. My gearbox is a NGT530.
Your transfer case will be a direct bolt on. Take my word for it. Been there done that and spent one hell of a lot of money too.
I have a BA10 link system, an electic transfer case, a KMt90 gearbox and a whole lot of parts left behind to show for it.
Quote:
Originally Posted by jyobeb View Post
This is for Sreeraj and Swastikviji.
I did a conversion of a link type 4WD BA10 jeep into a direct shift BA10 with 4WD.
We basically bought a BA10 direct shift gearbox and removed the rear housing and replaced it with the rear housing of the Link type gearbox and fitted the T18 transfer case to the direct shift gearbox.
One of the links on the gearbox is on the rear housing and has to be removed and a dummy put in place to block the hole. After that its all a straight forward fit.
I thought it's NGT530!!!!

Thanks
--Sree--
sreerajunnithan is offline   Reply With Quote
Old 23rd July 2009, 14:44   #35
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default

This was done for my friend last week. My gearbox is an NGT530.
jyobeb is offline   Reply With Quote
Old 23rd July 2009, 18:20   #36
BHPian

Alfa_Kilo's Avatar

Join Date: Apr 2007
Location: Jaipur
Posts: 328
Thanked: 8 Times
Default

@Jyobeb

Does the TCase input gear from the main GB have a dog clutch for the PTO?
Alfa_Kilo is offline   Reply With Quote
Old 23rd July 2009, 18:46   #37
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default

Quote:
Originally Posted by Alfa_Kilo View Post
@Jyobeb

Does the TCase input gear from the main GB have a dog clutch for the PTO?
No, but it looked like it was possible to fit a PTO with a little ingenuity.
jyobeb is offline   Reply With Quote
Old 2nd August 2009, 21:40   #38
BHPian

Join Date: Sep 2008
Location: udupi
Posts: 44
Thanked: 8 Times
Default

Hi viji what is the cost of new full shifter assembly.
sashas is offline   Reply With Quote
Old 3rd August 2009, 00:00   #39
BHPian

swastikviji's Avatar

Join Date: Feb 2009
Location: Bangalore
Posts: 417
Thanked: 158 Times
Default

Quote:
Originally Posted by sashas View Post
Hi viji what is the cost of new full shifter assembly.
Hi Sachin,

I don't know !!! i tried my level best to get a new shifter assembly its not available. i replaced all plastic bushes to metal bushes now its working better.
swastikviji is offline   Reply With Quote
Old 3rd August 2009, 22:35   #40
BHPian

Join Date: Sep 2008
Location: udupi
Posts: 44
Thanked: 8 Times
Default

Where can i get this metal bush..
sashas is offline   Reply With Quote
Old 4th August 2009, 00:34   #41
BHPian

swastikviji's Avatar

Join Date: Feb 2009
Location: Bangalore
Posts: 417
Thanked: 158 Times
Default

Quote:
Originally Posted by sashas View Post
Where can i get this metal bush..
Hi Sachin,

Any Lathe fellow can do it, my lathe fellow told me that he is making bushes with bi metal, its more durable than brass bushes. it can't be made as a standard for all linkages, because of wear, if you can't do it their you send me the linkages i arrange it here.
swastikviji is offline   Reply With Quote
Old 20th February 2011, 00:22   #42
BHPian

dieselhead's Avatar

Join Date: Oct 2007
Location: Bhubaneswar
Posts: 54
Thanked: 30 Times
Default Re: Need advice:MM 550 BA 10 : 4x4 gear box direct Shift.

Quote:
Originally Posted by jyobeb View Post
This is for Sreeraj and Swastikviji.
I did a conversion of a link type 4WD BA10 jeep into a direct shift BA10 with 4WD.
We basically bought a BA10 direct shift gearbox and removed the rear housing and replaced it with the rear housing of the Link type gearbox and fitted the T18 transfer case to the direct shift gearbox.
One of the links on the gearbox is on the rear housing and has to be removed and a dummy put in place to block the hole. After that its all a straight forward fit.
Thanks for the info Jyobeb...Please help me find a 2wd BA10 and the 4wd adapter for the T18. Where can I source them from for my 2000 and 2001 MM 550s (ex army) ?
dieselhead is offline   Reply With Quote
Old 20th February 2011, 10:51   #43
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default Re: Need advice:MM 550 BA 10 : 4x4 gear box direct Shift.

2WD Ba10 gearboxes are very easily available, whereas the 4WD adapter plate is impossible to procure. I think that we should just ask "jeepgeorge", to cast us a few sets!
jyobeb is offline   Reply With Quote
Old 23rd February 2011, 19:25   #44
Senior - BHPian

headers's Avatar

Join Date: May 2006
Location: Greater Chennai
Posts: 4,548
Thanked: 424 Times
Default Re: Need advice:MM 550 BA 10 : 4x4 gear box direct Shift.

@Guys/Beboy

Wonderful information though I am bumping into this thread late..

Can anyone think of reducing the gear shift throws in the KMT 90?

It would then be an amazing gearbox.

I'm told BA10 is a short life gearbox [read flimsy not robust] and NGT 520/530 4WD are hard to find..
headers is offline   Reply With Quote
Old 8th July 2011, 20:22   #45
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,653
Thanked: 679 Times
Default Re: Need advice:MM 550 BA 10 : 4x4 gear box direct Shift.

BA10 GB can be easily converted to NGT530, there is a standard kit available for this, if anyone is interested let me know, I will share the part nos.

Spike
SPIKE ARRESTOR is offline   Reply With Quote
