Cool Mahindra Armada - 2WD to 4WD conversion possible?

Hi BHPians. For the past 4 monts or so i have been trying to find an Armada Grand 4wd,but without any luck. I have found plenty of Grand 2wd.

Now my query is this-
1. Can an Armada Grand be converted to 4 wd?
2. Will it be reliable?
3. How much would it cost?
4. Where can I find a reputed garage for this conversion? I reside in Mumbai, so Mumbai Jeepers please help !!!!!!!!!!

I wanna be a Jeeper soon, so any advice or suggesions would be welcome!!!!!!
powertrain is offline   Reply With Quote
Old 19th November 2009, 13:41   #2
Senior - BHPian

trammway's Avatar

Join Date: Apr 2006
Location: Chennai, India
Posts: 1,122
Thanked: 210 Times
Default

Quote:
Originally Posted by powertrain View Post
Hi BHPians. For the past 4 monts or so i have been trying to find an Armada Grand 4wd,but without any luck. I have found plenty of Grand 2wd.

Now my query is this-
1. Can an Armada Grand be converted to 4 wd?
2. Will it be reliable?
3. How much would it cost?
4. Where can I find a reputed garage for this conversion? I reside in Mumbai, so Mumbai Jeepers please help !!!!!!!!!!

I wanna be a Jeeper soon, so any advice or suggesions would be welcome!!!!!!
It is very much possible. You need the following items to convert your Armada Grand into 4WD vehicle

1. BA-10 gear box with Transfer case (Approximately Rs. 35000/- will be your wallet damage and bit difficult but not impossible to find one)

2. Front differential housing (I guess it is 9/44 ratio) with disc brake knuckle kit. (please refer your exact width of rear differential housing and get the similar width front housing) (Approximately 15000/- in the 2nd hand market)

3. You also need to buy rear differential kit or the housing as the 4WD setup will require the differential to be on right(drive side) side of the vehicle.(Approximately 11000/- in the 2nd hand market)

4. You also require a propeller shaft to run the front differential from transfer case. (Buy new one with in 2000/- approx)

5. You need to do a little alternation or change the gear lever boot inside the Armada Grand cabin ground between the driver and passenger leg space.


The gear levers of BA-10 gearbox with transfer case and the linkages should be in good condition to make your setup work seamlessly.

I would suggest try getting the BA-10 with manual transfercase kit instead of BA-10 with motorized transfercase kit.

Of course you need to consider your mechanics bills and other running around expenses too.
trammway is offline   Reply With Quote
Old 19th November 2009, 13:58   #3
Senior - BHPian

beejay's Avatar

Join Date: Apr 2009
Location: The Nilgiris
Posts: 1,916
Thanked: 108 Times
Default

Quote:
Originally Posted by powertrain View Post
Hi BHPians. For the past 4 monts or so i have been trying to find an Armada Grand 4wd,but without any luck. I have found plenty of Grand 2wd.

Now my query is this-
1. Can an Armada Grand be converted to 4 wd?
2. Will it be reliable?
3. How much would it cost?
4. Where can I find a reputed garage for this conversion? I reside in Mumbai, so Mumbai Jeepers please help !!!!!!!!!!

I wanna be a Jeeper soon, so any advice or suggesions would be welcome!!!!!!
Any specific reason for zeroing in on the Grand?
beejay is offline   Reply With Quote
Old 19th November 2009, 14:26   #4
Senior - BHPian

ex670c's Avatar

Join Date: Nov 2004
Location: Chennai
Posts: 2,454
Thanked: 1,789 Times
Default Easier Way to convert to 4WD

Quote:
Originally Posted by trammway View Post
It is very much possible. You need the following items to convert your Armada Grand into 4WD vehicle

1. BA-10 gear box with Transfer case (Approximately Rs. 35000/- will be your wallet damage and bit difficult but not impossible to find one)

2. Front differential housing (I guess it is 9/44 ratio) with disc brake knuckle kit. (please refer your exact width of rear differential housing and get the similar width front housing) (Approximately 15000/- in the 2nd hand market)

3. You also need to buy rear differential kit or the housing as the 4WD setup will require the differential to be on right(drive side) side of the vehicle.(Approximately 11000/- in the 2nd hand market)

4. You also require a propeller shaft to run the front differential from transfer case. (Buy new one with in 2000/- approx)

5. You need to do a little alternation or change the gear lever boot inside the Armada Grand cabin ground between the driver and passenger leg space.


The gear levers of BA-10 gearbox with transfer case and the linkages should be in good condition to make your setup work seamlessly.

I would suggest try getting the BA-10 with manual transfercase kit instead of BA-10 with motorized transfercase kit.

Of course you need to consider your mechanics bills and other running around expenses too.
Hi Powertrain,

1) Gearbox - use KMT90+18 + Bell Housing for XD3P (18-20K)

2) Front Differential (Closed Knuckle or OKBJ)
a) Closed Knuckle I would recommend the 58" Track and used the 2WD Steering Knuckle and brakes used in the M&M FC Van. (8K)
b) OKBJ 57" Track - Maxx/Bolero 4WD. (20K)

3) Rear-Differential - Keep the 2WD rear Diff. That is common to all Armada Grand & Bolero

4) Diff-Ratio - Change the differential Ratio to 5.38:1 front and Back and Use 31/32/33" Tyres. (3Kx2= 6K)

5) Propeller Shaft - You will have to make custom prop-shafts which cost about 1.5-4K each (Front & Rear)

Regards,

Arka
ex670c is offline   (1) Thanks Reply With Quote
Old 19th November 2009, 15:08   #5
BHPian

sreerajunnithan's Avatar

Join Date: Jun 2006
Location: Banagalore
Posts: 445
Thanked: 5 Times
Default

Quote:
1. BA-10 gear box with Transfer case (Approximately Rs. 35000/- will be your wallet damage and bit difficult but not impossible to find one)
Armada Grand comes with BA-10 so he only need to source Borg Warner Xfercase.

Quote:
2. Front differential housing (I guess it is 9/44 ratio) with disc brake knuckle kit. (please refer your exact width of rear differential housing and get the similar width front housing) (Approximately 15000/- in the 2nd hand market)
Isn't possible to source a an entire from Axel/Diff assembly?

Quote:
3. You also need to buy rear differential kit or the housing as the 4WD setup will require the differential to be on right(drive side) side of the vehicle.(Approximately 11000/- in the 2nd hand market)
Armada Grand's Rear differential is slightly left offset (Co-driver side) so he can use the same differential.

Quote:
4. You also require a propeller shaft to run the front differential from transfer case. (Buy new one with in 2000/- approx)
Always go for new one.

Quote:
I would suggest try getting the BA-10 with manual transfercase kit instead of BA-10 with motorized transfercase kit.
Spot on!!! Original Armada Grand came with electric shift which is a pain.

Quote:
5) Propeller Shaft - You will have to make custom prop-shafts which cost about 1.5-4K each (Front & Rear)
Arka,

Akra, why custom made Prop shafts?(If he use BA-10) I thought he can reduce the length of rear prop shaft (Or go for new prop shaft for Armada Grand 4WD) since X-Fercase will be additional length, and use new one for front (Stock). I could be wrong here.

Thanks
--Sree--

Last edited by sreerajunnithan : 19th November 2009 at 15:11.
sreerajunnithan is offline   Reply With Quote
Old 19th November 2009, 15:09   #6
Distinguished - BHPian

4x4addict's Avatar

Join Date: Nov 2007
Location: Chennai
Posts: 3,890
Thanked: 2,316 Times
Default

Arka:

The 2WD Armada grand has the diff in the center of the axles without any off-set? Wouldn't that have to be changed when the gearbox/t-case is changed to KMT90+T18 due to the offset prop shaft from the t-case?
4x4addict is offline   Reply With Quote
Old 19th November 2009, 15:41   #7
Senior - BHPian

vinod_nookala's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 1,737
Thanked: 410 Times
Default BA-10 is better for Armada grand

Quote:
Originally Posted by 4x4addict View Post
Arka:

The 2WD Armada grand has the diff in the center of the axles without any off-set? Wouldn't that have to be changed when the gearbox/t-case is changed to KMT90+T18 due to the offset prop shaft from the t-case?

KMT 90 4wd transfercase cannot be used on Armada grand as the differential is slightly offset to left. In BA 10 the rear output is from center be it 2wd or 4wd which is not the case in KMT 90 4wd. If he uses KMT90 4wd gear box rear diff offset has to be changed to right which is cumbersome and if the off set is changed by welding grinding etc it is not safe

Best is to go for a complete set up of BA 10 4wd gearbox, source front axle assembly, convert it to manual set up and have a happy road crusing and some ofroadability

Last edited by vinod_nookala : 19th November 2009 at 15:46.
vinod_nookala is offline   Reply With Quote
Old 19th November 2009, 16:05   #8
BHPian

sreerajunnithan's Avatar

Join Date: Jun 2006
Location: Banagalore
Posts: 445
Thanked: 5 Times
Default

Quote:
In BA 10 the rear output is from center be it 2wd or 4wd which is not the case in KMT 90 4wd.
Vinod, not necessarily. The offset depends on the transfer case. If you have Borg Warner with BA-10, He can use current rear diff. If its is T18 with BA-10 it will be right offset, i have BA-10 with T-18 (Most Probably) look at the below picture

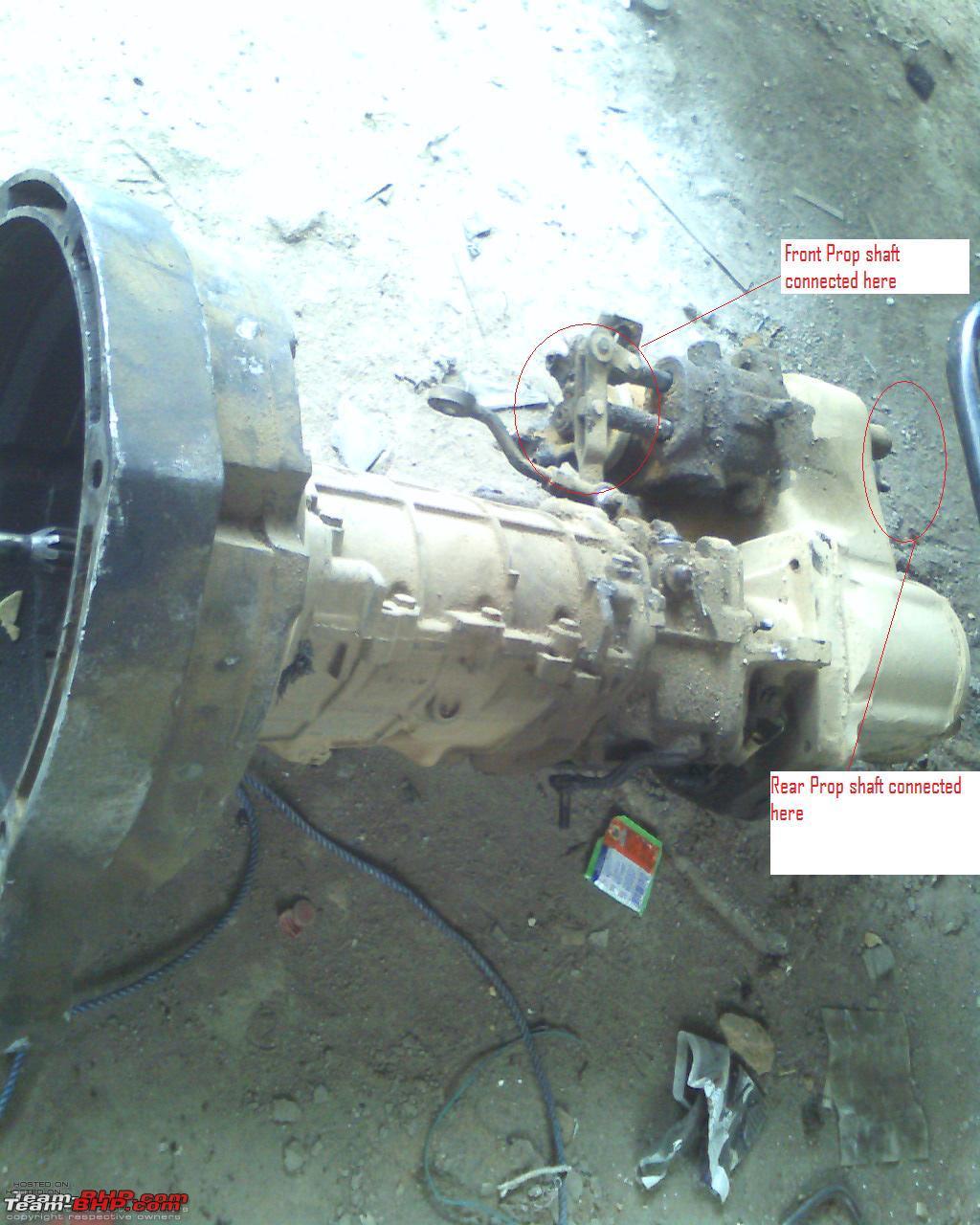

Mahindra Armada - 2WD to 4WD conversion possible?-img0018a.jpg

Now look at Beboy's setup, Though its a NGT 530, dimensions are equivalent to BA-10. He has a Borg Warner hence rear diff is almost center (Slightly Left Offset)

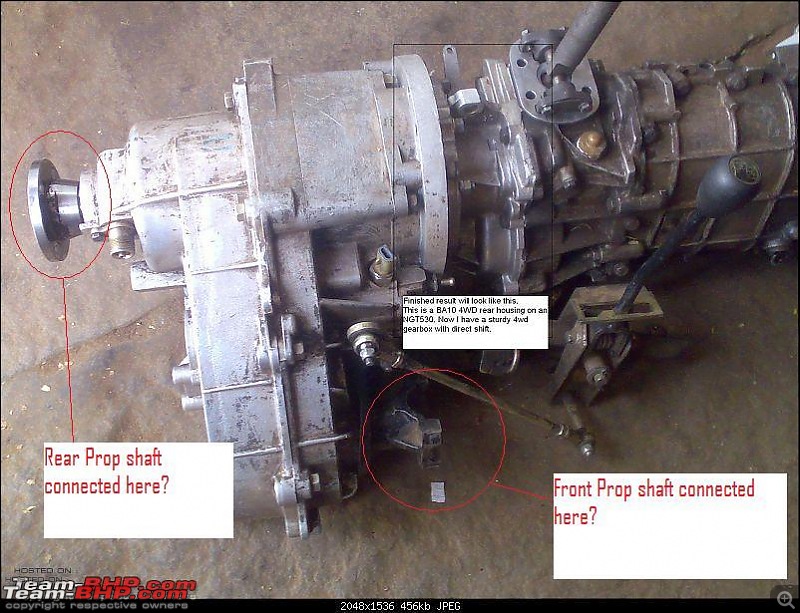

Mahindra Armada - 2WD to 4WD conversion possible?-gear-linkages-530-transfer-case.jpg


Quote:
Best is to go for a complete set up of BA 10 4wd gearbox, source front axle assembly, convert it to manual set up and have a happy road crusing and some ofroadability
Ideally this is the Best he can do, or he can use the BA-10 and change the last part of the 2WD GB and attach a Borg Warner Xfercase, and save the money of rear diff assembly.

PS: By looking at all these Tech jargons, he mignt have abandoned the entire idea Don't worry pal, its possible.

Thanks
--Sree--

Last edited by sreerajunnithan : 19th November 2009 at 16:09.
sreerajunnithan is offline   Reply With Quote
Old 19th November 2009, 16:24   #9
Senior - BHPian

vinod_nookala's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 1,737
Thanked: 410 Times
Default

Thanks Sree...it was out of my mind that T18 tranfer case can be attached to the BA-10. Since the topic was Armada grand, brog warner case was the only one in my mind:-))
vinod_nookala is offline   Reply With Quote
Old 19th November 2009, 16:50   #10
Senior - BHPian

ex670c's Avatar

Join Date: Nov 2004
Location: Chennai
Posts: 2,454
Thanked: 1,789 Times
Default Rear Differential

Quote:
Originally Posted by 4x4addict View Post
Arka:

The 2WD Armada grand has the diff in the center of the axles without any off-set? Wouldn't that have to be changed when the gearbox/t-case is changed to KMT90+T18 due to the offset prop shaft from the t-case?
Quote:
Originally Posted by vinod_nookala View Post
KMT 90 4wd transfercase cannot be used on Armada grand as the differential is slightly offset to left. In BA 10 the rear output is from center be it 2wd or 4wd which is not the case in KMT 90 4wd. If he uses KMT90 4wd gear box rear diff offset has to be changed to right which is cumbersome and if the off set is changed by welding grinding etc it is not safe
Quote:
Originally Posted by sreerajunnithan View Post
Vinod, not necessarily. The offset depends on the transfer case. If you have Borg Warner with BA-10, He can use current rear diff. If its is T18 with BA-10 it will be right offset, i have BA-10 with T-18 (Most Probably) look at the below picture

Attachment 230730

Now look at Beboy's setup, Though its a NGT 530, dimensions are equivalent to BA-10. He has a Borg Warner hence rear diff is almost center (Slightly Left Offset)

Attachment 230732


Ideally this is the Best he can do, or he can use the BA-10 and change the last part of the 2WD GB and attach a Borg Warner Xfercase, and save the money of rear diff assembly.
@ Sreeraj, I suggested a KMT90 setup as it is more economical, rugged and reliable, It is easier to make propeller shaft than fabricate linkages for the T-Case, or source a Borg-Warner T-Case & Adapter for BA10, or T-18 Adapter for BA10/NGT520/NGT530.

@ 4x4Addict
Armada 2WD/4WD Rear Diff - Center Diff
Grand 2WD/4WD Rear Diff - Left Off-Set
Bolero 2WD/4WD Rear Diff - Left Off-Set

@Vinod, the differential's are assembled in the same process of grinding and welding, I'm using an Switch-Over Diff in my MM540XD, since Jan 2009 with Auto Lockers, no problems so far.

You have to know your mods or the right guys to get this done.

incidentally the differential tubes are press fitted into the diff-housing and roseatte welded, how difficult is that?

If "Powertrain" decides to use a KMT90+T18, the propeller shaft will run from Right (T-Case) to Left (Differential).

But since this is a 106" Wheel Base he can just about manage it
or
Change the rear differential to M&M FJ van 58" Track with a Centre Diff. to get a slightly shallower Drive-Line angle. (8K)

Regards,

Arka
ex670c is offline   Reply With Quote
Old 19th November 2009, 17:43   #11
BHPian

powertrain's Avatar

Join Date: Oct 2009
Location: Mumbai
Posts: 572
Thanked: 374 Times
Cool

Quote:
Originally Posted by trammway View Post
It is very much possible. You need the following items to convert your Armada Grand into 4WD vehicle
Thanks brother for all your help !!!!!!!!!!
My question is where do i find all the hardware?????? I'm not much of a mechanical fellow, but i'm all set to gets my hands dirty !!!In Mumbai, theres a place called Kurla where my mechanic says you can get all the items but the reliablity is directly proportional to your luck !!! Can Mumbai Jeepers confirm? Trammway, Can these parts be sourced from Chennai or nearby Chennai. I dont mind the trouble if you dont ????!!!!!!!

Quote:
Originally Posted by beejay View Post
Any specific reason for zeroing in on the Grand?
I chose the Grand cause i wanted a closed body, as it will be used to ferry my staff at my factory site near Mumbai. Alternatively, i'm also looking at the MM Marshal 4wd

Quote:
Originally Posted by ex670c View Post
Hi Powertrain,

1) Gearbox - use KMT90+18 + Bell Housing for XD3P (18-20K)

2) Front Differential (Closed Knuckle or OKBJ)
a) Closed Knuckle I would recommend the 58" Track and used the 2WD Steering Knuckle and brakes used in the M&M FC Van. (8K)
b) OKBJ 57" Track - Maxx/Bolero 4WD. (20K)

3) Rear-Differential - Keep the 2WD rear Diff. That is common to all Armada Grand & Bolero

4) Diff-Ratio - Change the differential Ratio to 5.38:1 front and Back and Use 31/32/33" Tyres. (3Kx2= 6K)

5) Propeller Shaft - You will have to make custom prop-shafts which cost about 1.5-4K each (Front & Rear)

Regards,

Arka
Thanks Arka, but i have some queries. It would be helpful if ypu could shed some light -
1. Is'nt KMT 90 a 4+1 gerabox & BA10 a 5+1 gearbox? We had an Armada back in '95 & i remember my dad complaining abt it. Any specific reason For recommending the KMT 90?
2. Where can i make custom prop-shafts ?

Quote:
Originally Posted by sreerajunnithan View Post
Vinod, not necessarily. The offset depends on the transfer case. If you have Borg Warner with BA-10, He can use current rear diff. If its is T18 with BA-10 it will be right offset, i have BA-10 with T-18 (Most Probably) look at the below picture
Sree, thanks for all those pics. It gave me perspective of things to be done. Althought the tech jargons are confusing, i have not abandoned the idea!!!!!!!!But where do i find competent mechanics for this job. Dudus, please help !!!!!!!! Does anybody know good garages where it can be done?????

Last edited by Jaggu : 19th November 2009 at 18:29. Reason: Stop creating back to back posts! Use multi quote and visit Announcement section please.
powertrain is offline   Reply With Quote
Old 19th November 2009, 19:47   #12
Senior - BHPian

trammway's Avatar

Join Date: Apr 2006
Location: Chennai, India
Posts: 1,122
Thanked: 210 Times
Default

Quote:
Originally Posted by powertrain View Post
Thanks brother for all your help !!!!!!!!!!
My question is where do i find all the hardware?????? I'm not much of a mechanical fellow, but i'm all set to gets my hands dirty !!!In Mumbai, theres a place called Kurla where my mechanic says you can get all the items but the reliablity is directly proportional to your luck !!! Can Mumbai Jeepers confirm? Trammway, Can these parts be sourced from Chennai or nearby Chennai. I dont mind the trouble if you dont ????!!!!!!!
Absolutely no problem, however it is not so hard to find it from Mumbai itself. The new items could be sourced from Atlas motors in Grant road.

If you approach Mr.Prakash in Atlas motors he may help you getting used ones too.

I suggested to change the rear diff as the manual transfercase (T18) attached to BA-10 needs the diff to be on the right hand side. The same has been explained by Sree with pictures. There are BogWarner Transfer case as well which has the rear propeller shaft running from center of it. But I think most or all of the BW are center mounted propeller shaft for rear drive.

Why I did I suggest BA10 because it is smoother and considering the Armada Grand which normally used as family vehicle, needs noiseless and smoother operation.

What if we use KMT-90, it is good and going to make foolproof 4WD operations and make the cost cut by 20K. Driving comfort ?

If your vehicle is a Short or Mid Jeep, no 2nd opinion KMT90 is the best.

BA-10 or KMT90 it is your call.

going for rear differntial with 5.38.1 ratio also makes the vehicle crawl good, but highway cruising goes for task. So stick with 4.88.1 which is best with XD3P engine.

Getting the parts from chennai is bit tricky if you are looking at BA10 as it has most probable chances that the BA-10 Aluminium gearbox get damaged in transit in the transport companies. Try getting it in Mumbai itself.

I forgot to refer you to GTO's Classic service center, in all the possibilities they should have clearer idea and you may end up stricking brand new companents at a good price too.

Remember if you wanted to use your existing gearbox (BA-10 without transfercase), It may turn stressful to find parts as you may need to change the main shaft to accomodate the transfercase and also the casting that sits between the transfercase and gearbox needs to be sourced.

The only hope for you is that, you live in Mumbai so you may actually get it as Mahindra's homeland is Mumbai. Try meeting your friend at Vorli to get some details.

Last edited by trammway : 19th November 2009 at 19:51.
trammway is offline   Reply With Quote
Old 19th November 2009, 23:43   #13
BHPian

Join Date: Jul 2008
Location: Bangalore
Posts: 98
Thanked: 40 Times
Default

Armada Grand 2wd has independant front suspension (correct me if iam wrong) and 4wd has leaf spring suspension. It will be a pain to convert. NOT WORTH IT
Suresh
Suresh Stephen is offline   Reply With Quote
Old 20th November 2009, 09:05   #14
Senior - BHPian

trammway's Avatar

Join Date: Apr 2006
Location: Chennai, India
Posts: 1,122
Thanked: 210 Times
Default

@Suresh Stephen,

I was reading the specs of 2WD Grand and front axle is Dead Tubular and Stabilizer bar with an elliptical leaf spring what it had mentioned.
trammway is offline   Reply With Quote
Old 20th November 2009, 09:25   #15
Senior - BHPian

Join Date: Mar 2006
Location: goa
Posts: 1,066
Thanked: 52 Times
Default

Quote:
Originally Posted by Suresh Stephen View Post
Armada Grand 2wd has independant front suspension (correct me if iam wrong) and 4wd has leaf spring suspension. It will be a pain to convert. NOT WORTH IT
Suresh

The bolero was the first vehicle from mahindra to have front independent suspension, the Armada and Armada grand both came with leaf springs even on the 2wd models.
dinar is offline   (1) Thanks Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
MM540 2WD to 4WD - Mileage drop after conversion yamaniac 4x4 Technical 7 29th February 2012 20:02
My Mahindra Armada 2.1 2wd Long-term Report. sagar iswalkar Long-Term Ownership Reviews 28 6th June 2011 19:43
Armada Grand 4wd or Bolero 4wd? VEA 4x4 Vehicles 38 25th July 2010 01:50
Mahindra Scorpio CRDe - 2WD to 4WD conversion suhasd75 Modifications & Accessories 8 3rd November 2009 18:02
Armada Grand 4WD Modifications 4x4addict 4x4 Technical 17 15th April 2009 12:31


All times are GMT +5.5. The time now is 14:59.

Copyright ©2000 - 2017, Team-BHP.com
Proudly powered by E2E Networks
