Old 24th February 2010, 20:32   #31
BHPian

offroad_maniac's Avatar

Join Date: Aug 2008
Location: Thane-Mumbai
Posts: 453
Thanked: 35 Times
Default

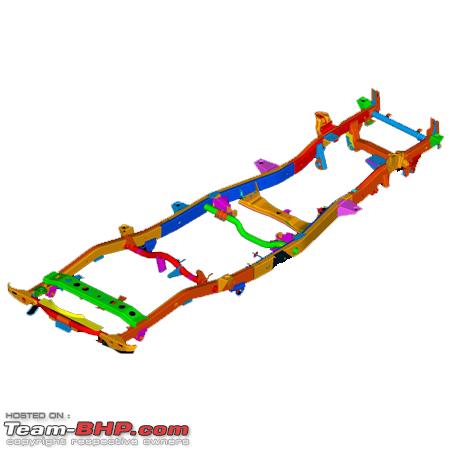

Here is one pic showing Scorpio chassis (Source:mahindraengineering.com)

The details given as below:

Ladder frame Tubular & formed x-member Fully welded components Side members as C IN C box section, stitch welded, 3 piece variable section & multi-plane bending

Whats is stich welding. is it a type of welding done keeping a small gap at frequent intervals so as to act as stress busters?
AHAIK, Scorpio chassis do not have big holes or any holes in the side rails.

Whats is the meaning of 3 piece?
What signifies the Red,Blue & Orange colors? Are they of different thickness for weight reduction/ strength?

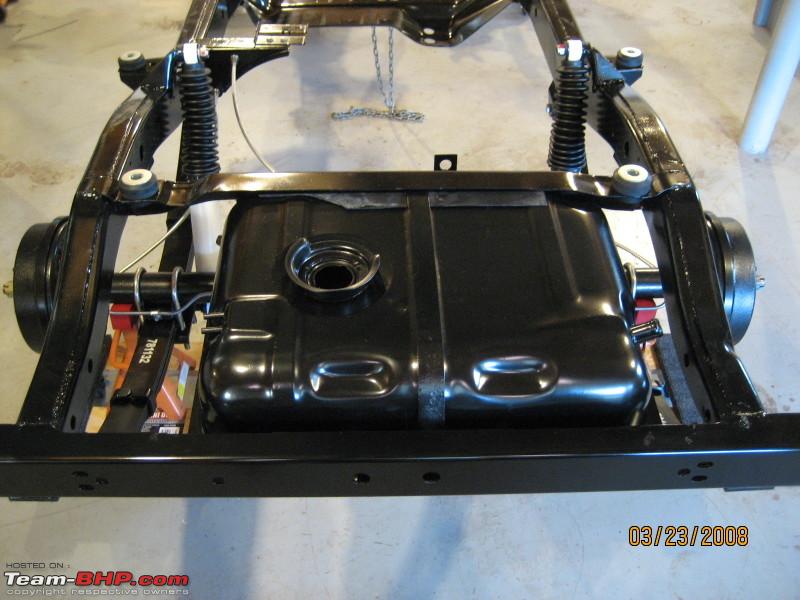

Last black chassis is of Jeep CJ7- again C in C ?
Attached Images

offroad_maniac is offline   Reply With Quote
Old 24th February 2010, 22:25   #32
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,653
Thanked: 679 Times
Default

@offroad maniac stitch welding is a term used for co-relating a weld joint to that of stitching a cloth, during welding gaps are not provided for stress relieval, the holes are punched in the blank itself before the bending/forming process,red,blue,green are used for representing various sections in a CAD layout, the thickness may or may not be similar,the last pic has a C in C construction

Spike

Last edited by SPIKE ARRESTOR : 24th February 2010 at 22:27.
SPIKE ARRESTOR is offline   Reply With Quote
Old 25th February 2010, 05:34   #33
BHPian

offroad_maniac's Avatar

Join Date: Aug 2008
Location: Thane-Mumbai
Posts: 453
Thanked: 35 Times
Default

Quote:
Originally Posted by SPIKE ARRESTOR View Post
@offroad maniac stitch welding is a term used for co-relating a weld joint to that of stitching a cloth, during welding gaps are not provided for stress relieval, the holes are punched in the blank itself before the bending/forming process,red,blue,green are used for representing various sections in a CAD layout, the thickness may or may not be similar,the last pic has a C in C construction

Spike
Thanks Spike for answering my queries. you know I am so much interested in chassis etc as it is a base for any vehicle, & its design & strength is very important for an offroader.

Whats your fav. type? (If I may ask)
offroad_maniac is offline   Reply With Quote
Old 25th February 2010, 21:57   #34
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 3,444
Thanked: 1,942 Times
Default

Quote:
Originally Posted by offroad_maniac View Post
AHAIK, Scorpio chassis do not have big holes or any holes in the side rails.
Re: the big holes seen in the riveted chassis shown in post # 25, check out the spatial relationship between the holes and the rivets.

Regards
Sutripta
Sutripta is offline   Reply With Quote
Old 25th February 2010, 22:28   #35
BHPian

offroad_maniac's Avatar

Join Date: Aug 2008
Location: Thane-Mumbai
Posts: 453
Thanked: 35 Times
Default

Quote:
Originally Posted by Sutripta View Post
Re: the big holes seen in the riveted chassis shown in post # 25, check out the spatial relationship between the holes and the rivets.
Regards
Sutripta
Yes, but that chassis is of Ford. I am talking about Mahindra Scorpio Chassis. It has got very small holes that too in lesser numbers.
offroad_maniac is offline   Reply With Quote
Old 25th February 2010, 23:05   #36
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 3,444
Thanked: 1,942 Times
Default

Quote:
Originally Posted by offroad_maniac View Post
Yes, but that chassis is of Ford. I am talking about Mahindra Scorpio Chassis. It has got very small holes that too in lesser numbers.
Was saying why the Scorpio chassis does not have/ need big holes. IMHO, the big holes in the Ford chassis are for access to the underside of the rivets. The Scorpio chassis is welded. If the primary purpose of the big holes in the Ford chassis had been anything else, the outer C section would also have holes punched in them!

See also post # 30. Also I would think that there should be some means of air circulation, else there will be condensation/ rusting problems.

Regards
Sutripta
Sutripta is offline   Reply With Quote
Old 26th February 2010, 14:48   #37
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,653
Thanked: 679 Times
Default

Quote:
Originally Posted by offroad_maniac View Post
Thanks Spike for answering my queries. you know I am so much interested in chassis etc as it is a base for any vehicle, & its design & strength is very important for an offroader.

Whats your fav. type? (If I may ask)
@offroad_maniac yes you may, it is my pleasure, i love the chassis sections of old CJ3Bs (KISS-Keep it simple and stupid), only thing is they are susceptible to overloads as prevalent in indian conditions (overload e.g. commander 650)

Spike
SPIKE ARRESTOR is offline   Reply With Quote
Old 26th February 2010, 14:53   #38
Senior - BHPian

vinod_nookala's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 1,737
Thanked: 410 Times
Default Old better than new?

Quote:
Originally Posted by SPIKE ARRESTOR View Post
i love the chassis sections of old CJ3Bs (KISS-Keep it simple and stupid),

Spike
Strange you don't like the improved Mahindra's NGCS chassis? If so why? How is old 3B chassis better than NGCS in pure off roading point of view? (no over loading, handling, cmvr etc.. etc)
vinod_nookala is offline   Reply With Quote
Old 26th February 2010, 15:11   #39
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,653
Thanked: 679 Times
Default

Quote:
Originally Posted by vinod_nookala View Post
Strange you don't like the improved Mahindra's NGCS chassis? If so why? How is old 3B chassis better than NGCS in pure off roading point of view? (no over loading, handling, cmvr etc.. etc)
@Vinod i didn't say that, i like CJ3B as it is simple, the best thing about it is despite being so simple it can handle a good amount of abuse, one of the best thoughts on it is the K member, any idea if any CJ3s came with cross braces or not?

Spike
SPIKE ARRESTOR is offline   Reply With Quote
Old 26th February 2010, 15:23   #40
Senior - BHPian

vinod_nookala's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 1,737
Thanked: 410 Times
Default

Quote:
Originally Posted by SPIKE ARRESTOR View Post
despite being so simple it can handle a good amount of abuse, one of the best thoughts on it is the K member, any idea if any CJ3s came with cross braces or not?

Spike
Yes K member is damn tough and best for towing! Why was it discontinued? My MM540 has it. But later models got rid of it. Why?

No idea about cross braces...what are they?
vinod_nookala is offline   Reply With Quote
Old 26th February 2010, 15:56   #41
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,653
Thanked: 679 Times
Default

@Vinod the reason for discontinuing I guess is the packaging of fuel tank assembly at the rear overhang, cross bracing is done to improve the torsional rigidity of the chassis i am attaching a pic for this.

Spike
Attached Images


Last edited by SPIKE ARRESTOR : 26th February 2010 at 15:58.
SPIKE ARRESTOR is offline   Reply With Quote
Old 26th February 2010, 17:14   #42
Senior - BHPian

vinod_nookala's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 1,737
Thanked: 410 Times
Default

Quote:
Originally Posted by SPIKE ARRESTOR View Post
@Vinod the reason for discontinuing I guess is the packaging of fuel tank assembly at the rear overhang, cross bracing is done to improve the torsional rigidity of the chassis i am attaching a pic for this.

Spike
Spike my 540 has a K member and its fuel tank is located behind. how?
vinod_nookala is offline   Reply With Quote
Old 26th February 2010, 17:23   #43
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,653
Thanked: 679 Times
Default

@Vinod good information, can you post the pics of your rear overhang area

Spike
SPIKE ARRESTOR is offline   Reply With Quote
Old 26th February 2010, 17:23   #44
Senior - BHPian

headers's Avatar

Join Date: May 2006
Location: Greater Chennai
Posts: 4,548
Thanked: 424 Times
Default

Quote:
Originally Posted by SPIKE ARRESTOR View Post
@Vinod the reason for discontinuing I guess is the packaging of fuel tank assembly at the rear overhang, cross bracing is done to improve the torsional rigidity of the chassis i am attaching a pic for this.

Spike
Quote:
Originally Posted by vinod_nookala View Post
Spike my 540 has a K member and its fuel tank is located behind. how?
Yours must be an old model to feature the K member. Newer vehicles do not have it.

There will be an entire design team that decide on what to remove and what NOT to remove on new vehicles.

Modern software even allow the design dynamics to be tested virtually before finalising the BOM.

And I guess the different coloring of the chassis is done by the CAD CAM packages to distinguish between various pieces of the BOM.

Interesting thread
headers is offline   Reply With Quote
Old 26th February 2010, 17:40   #45
Senior - BHPian

vinod_nookala's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 1,737
Thanked: 410 Times
Default

Quote:
Originally Posted by SPIKE ARRESTOR View Post
@Vinod good information, can you post the pics of your rear overhang area

Spike
Will upload it tom
