Old 3rd March 2010, 20:34   #76
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,570
Thanked: 554 Times
Default

@Sutripta 3 years back i was in college (so don't ask me to derive anything from the Torsion or Bending equation), also as i am a novice with very less offroading experience i leave it to the Jeep gurus to answer your queries on chassis flex.

Spike

PS-I have sent you a PM
SPIKE ARRESTOR is offline   Reply With Quote

Old 4th March 2010, 04:02   #77
Newbie

ali_khl's Avatar

Join Date: Feb 2010
Location: London
Posts: 3
Thanked: 0 Times
Default

Gentlemen, how exactly do you calculate torsional stiffness of a ladder-frame chassis? I know Finite Element Method simulation is the standard in the industry now, but lets say in terms of very basic written calculations for a very basic chassis design (ie. two box-section main rails of fixed dimensions, connected by 4 equally-spaced box section cross-members of same height all of same thickness).

If three parts of the frame are constrained at suspension mounting points (as was mentioned in this thread), and say an arbritary load of 1000kg (approx 9000N) is placed on the one unconstrained point of the frame - Is there any way to estimate the torsional stiffness by calculation rather than physical testing?


Also its pretty interesting to note that Mercedes uses tubular 'through frame' cross-members for they're G-wagen & Unimogs (check out the pics).

Latest Unimog off-road chassis:


G-Wagen frame:

ali_khl is offline   Reply With Quote
Old 4th March 2010, 06:43   #78
BHPian

hgnishanth's Avatar

Join Date: Aug 2005
Location: Bangalore / High SEAS
Posts: 186
Thanked: 4 Times
Default

Quote:
Originally Posted by Sutripta View Post


Korean Tankers?

Regards
Sutripta

OT: No Sir.. Was on Hyundai Cellular containers and NYK PCC's. From your replies I guess you too are in the merchant navy?? Engineer??

Cheers

Nishanth
hgnishanth is offline   Reply With Quote
Old 4th March 2010, 08:04   #79
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,570
Thanked: 554 Times
Default

@ali khl the chassis splay in the above shown is constant throughout, you need not design a new cross member for each and every position, a closed tubular cross member would suffice, is the DAC of a load carrier?

Spike
SPIKE ARRESTOR is offline   Reply With Quote
Old 4th March 2010, 21:08   #80
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 2,645
Thanked: 908 Times
Default

Quote:
Originally Posted by SPIKE ARRESTOR View Post
@Sutripta 3 years back i was in college (so don't ask me to derive anything from the Torsion or Bending equation), also as i am a novice with very less offroading experience i leave it to the Jeep gurus to answer your queries on chassis flex.

Spike

PS-I have sent you a PM
Three years. Thats as fresh as they come. Now dust off your text books and calculator because you are now the official teaching assistant!

Replied to your PM.

Quote:
Originally Posted by ali_khl View Post
Gentlemen, how exactly do you calculate torsional stiffness of a ladder-frame chassis? I know Finite Element Method simulation is the standard in the industry now, but lets say in terms of very basic written calculations for a very basic chassis design (ie. two box-section main rails of fixed dimensions, connected by 4 equally-spaced box section cross-members of same height all of same thickness).

If three parts of the frame are constrained at suspension mounting points (as was mentioned in this thread), and say an arbritary load of 1000kg (approx 9000N) is placed on the one unconstrained point of the frame - Is there any way to estimate the torsional stiffness by calculation rather than physical testing?
If the chassis is so simple that it almost the same as a wireframe, I suppose it could be solved analytically. Far more complex problems can be successfully predicted using FEA, as you have rightly said. So one can predict without building and testing an actual or a scale model. Whether I've answered your question, I don't know.


Quote:
Originally Posted by hgnishanth View Post
OT: From your replies I guess you too are in the merchant navy?? Engineer??

Cheers

Nishanth
Me! No! Just the thought of sitting in the rear seat of a Scorpio makes me seasick! As landlubbery as they come.

Regards
Sutripta
Sutripta is offline   Reply With Quote
Old 8th March 2010, 18:22   #81
BHPian

offroad_maniac's Avatar

Join Date: Aug 2008
Location: Thane-Mumbai
Posts: 451
Thanked: 30 Times
Default

Quote:
Originally Posted by MileCruncher View Post
In the Bolero Storm which sports the same suspension config i.e. Scorpio IFS upfront and Leaf Springs in the rear, there is no welding in betwen.
May be Spike can confirm this,
Bolero got Hydroformed chassis rails. So no issues for welding.

Quote:
Originally Posted by ex670c View Post
The Front End of the Storm is from a 2WD Scorpio IFS Coil Springs
The Front End of the Thar is from a 4WD Scorpio IFS with Torsion Bar.
But the question still remains.
If there is no joint in between, then how can a C in C Chassis is fitted/ combined with a Hydroformed BOX Chassis.
(Pls forget about Scorpio IFS & Bolero names)

There has to be some method. I am asking this again & again coz Thar will be offered as an Offroader. Then will the chassis take all that pressure at the integration point? (A joint or Weld as marked in Orange)

Why this question is not answered with proper answer? :( I think this is also important.

M&M .. RTI
Attached Images


Last edited by offroad_maniac : 8th March 2010 at 18:31.
offroad_maniac is offline   Reply With Quote
Old 8th March 2010, 20:11   #82
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,570
Thanked: 554 Times
Talking

Quote:
Originally Posted by offroad_maniac View Post
If there is no joint in between, then how can a C in C Chassis is fitted/ combined with a Hydroformed BOX Chassis.
(Pls forget about Scorpio IFS & Bolero names)

There has to be some method. I am asking this again & again coz Thar will be offered as an Offroader. Then will the chassis take all that pressure at the integration point? (A joint or Weld as marked in Orange)
M&M .. RTI
@Offroad_maniac, hmm interesting question, it shows your eagerness to learn new things, i request the gurus to take over.

Spike

OT- can someone tell me who has told "the chassis is welded in between scorpio and bolero rails"
SPIKE ARRESTOR is offline   Reply With Quote
Old 8th March 2010, 20:17   #83
Senior - BHPian

vinod_nookala's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 1,732
Thanked: 381 Times
Default

Quote:
Originally Posted by SPIKE ARRESTOR View Post

OT- can someone tell me who has told "the chassis is welded in between scorpio and bolero rails"
At least this is a popular belief and i have read about this in a auto magazine when testing Storm. The term fusion was used. Please elaborate on this myth /reality.
vinod_nookala is offline   Reply With Quote
Old 8th March 2010, 20:24   #84
Senior - BHPian

MileCruncher's Avatar

Join Date: Jan 2009
Location: AP-09
Posts: 3,901
Thanked: 277 Times
Default

Quote:
Originally Posted by offroad_maniac View Post
Bolero got Hydroformed chassis rails. So no issues for welding.



But the question still remains.
If there is no joint in between, then how can a C in C Chassis is fitted/ combined with a Hydroformed BOX Chassis.
Sir,

Please explain what is a C in C chassis and what is a Hydroformed chassis?

The only two types of Chassis that I know are
  1. Box Type Chassis
  2. C-Channel Chassis.
Bolero is a box type chassis. Being from an automotive background and having seen chassis manufacturing up close, day in day out, I can tell you that it is one of the easiest processes compared to say panel welding et al.

I 'm definitely sure no manufacturer will be foolish enough to weld/join two different chassis as it is a definite recipe for disaster.
MileCruncher is offline   Reply With Quote
Old 8th March 2010, 21:01   #85
BHPian

offroad_maniac's Avatar

Join Date: Aug 2008
Location: Thane-Mumbai
Posts: 451
Thanked: 30 Times
Default

Quote:
Originally Posted by MileCruncher View Post
Sir,

Please explain what is a C in C chassis and what is a Hydroformed chassis?

The only two types of Chassis that I know are
  1. Box Type Chassis
  2. C-Channel Chassis.
Bolero is a box type chassis. Being from an automotive background and having seen chassis manufacturing up close, day in day out, I can tell you that it is one of the easiest processes compared to say panel welding et al.

Hi MC... I am no sir. just a Comp guy.

For more details regarding C in C Construcion, refer to Post # 16 & #31 here. In short it is also a box section chassis formed by clubbing two C section long rails together. Eg. Scorpio Chassis.

Hydroformed Box means it is a single rectangular tubing throughout. There will be just one seamless weld as marked by red arrow (PIC 1).
Eg: Bolero & Army NGCS

Quote:
I 'm definitely sure no manufacturer will be foolish enough to weld/join two different chassis as it is a definite recipe for disaster.
Thats why I want some proper confirmation. Just Compare the pictures of Thar Front End Chassis with Back.

Can anyone pls tell me what happened in between the Fusion :?
Attached Thumbnails

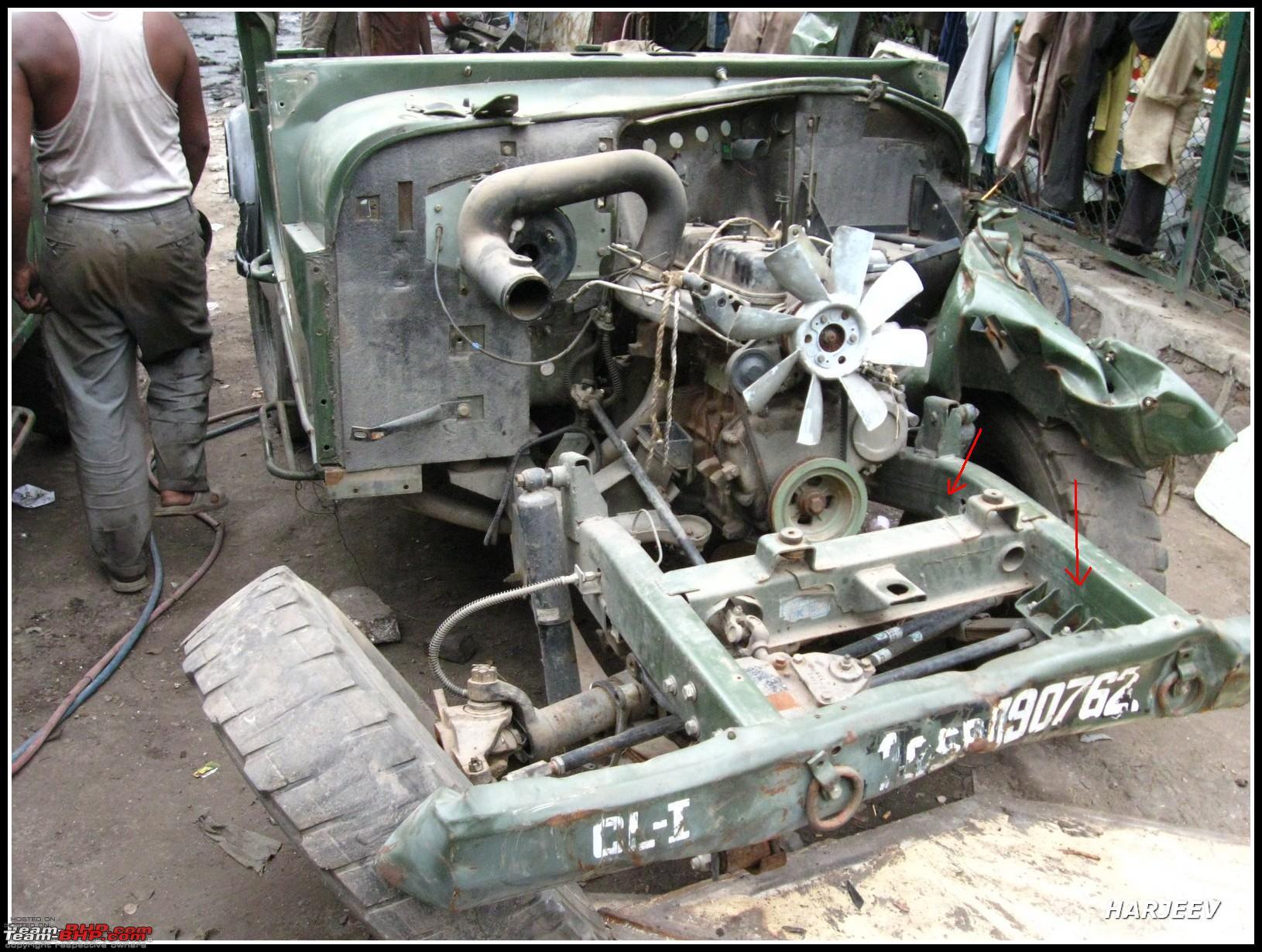

Various types of chassis sections used in Ladder frame construction-ngcs.jpg

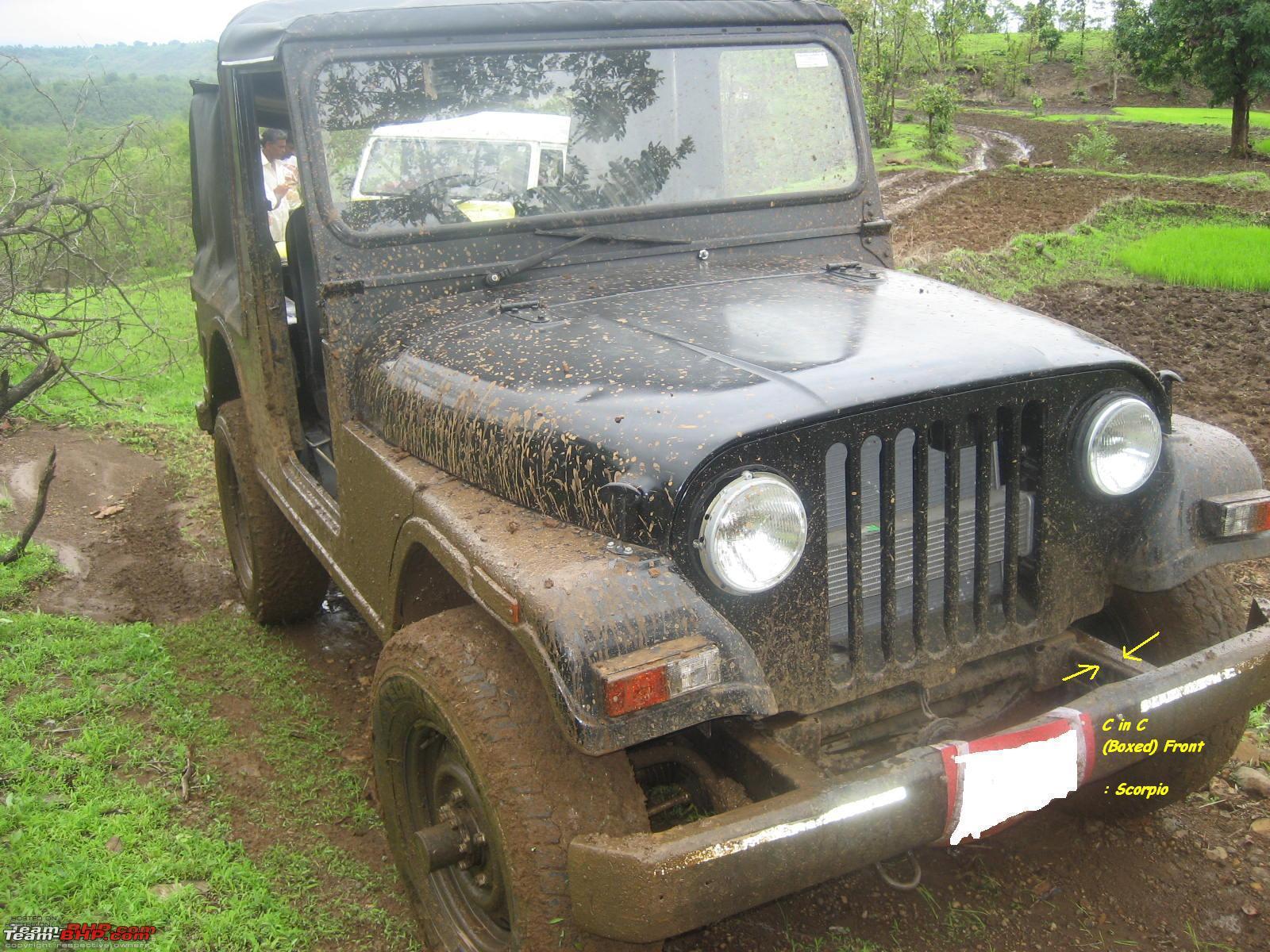

Various types of chassis sections used in Ladder frame construction-thar-front.jpg

Various types of chassis sections used in Ladder frame construction-thar-back.jpg


Last edited by offroad_maniac : 8th March 2010 at 21:06.
offroad_maniac is offline   Reply With Quote
Old 9th March 2010, 20:14   #86
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 2,645
Thanked: 908 Times
Default

Quote:
Originally Posted by offroad_maniac View Post
...
If there is no joint in between, then how can a C in C Chassis is fitted/ combined with a Hydroformed BOX Chassis.

There has to be some method. I am asking this again & again coz Thar will be offered as an Offroader. Then will the chassis take all that pressure at the integration point? (A joint or Weld as marked in Orange)

M&M .. RTI
Hi,
Never seen the Thar in the flesh, let alone eyeballed its underpinnings, but I'm pretty sure its not a cut and shut job. The front and rear might be based on, similar to, inspired by etc. rather than is exactly the same as. That is assuming the rumours/ received wisdom is true. Leaving aside other technical issues, cut and shut would be an extremely unproductive and expensive means of manufacture.

Could those in the know shed some light please.

Sutripta
Sutripta is offline   Reply With Quote
Old 9th March 2010, 20:26   #87
BHPian

offroad_maniac's Avatar

Join Date: Aug 2008
Location: Thane-Mumbai
Posts: 451
Thanked: 30 Times
Default

Quote:
Originally Posted by Sutripta View Post
Hi,
Never seen the Thar in the flesh, let alone eyeballed its underpinnings, but I'm pretty sure its not a cut and shut job. The front and rear might be based on, similar to, inspired by etc. rather than is exactly the same as. That is assuming the rumours/ received wisdom is true. Leaving aside other technical issues, cut and shut would be an extremely unproductive and expensive means of manufacture.

Could those in the know shed some light please.

Sutripta
I am also not quite sure. Guess it will remain as a puzzle which will be revealed as an engineering marvel after the launch.

would've been great if something is shared here (Not too technical but some small idea), as I think this kind of setup is very Unique & NEVER tried on any other manufacturers Box ladder frame.
(Guess M&M should have a patent then)

Nevermind....
offroad_maniac is offline   Reply With Quote
Old 9th March 2010, 20:42   #88
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,570
Thanked: 554 Times
Default

Quote:
Originally Posted by Sutripta View Post
Hi,
Could those in the know shed some light please.
Sutripta
Quote:
Originally Posted by offroad_maniac View Post
would've been great if something is shared here (Not too technical but some small idea),
Nevermind....
Sutripta, Ravi, welding is one of the operations involved while making a chassis, the members are cut to various lengths, blanked, pierced, bent to various shapes and then finally welded according to the requirements,

Spike
SPIKE ARRESTOR is offline   Reply With Quote
Old 9th March 2010, 20:49   #89
BHPian

vaisakhr's Avatar

Join Date: Aug 2009
Location: KL-32
Posts: 346
Thanked: 115 Times
Default

Quote:
Originally Posted by SPIKE ARRESTOR View Post
Sutripta, Ravi, welding is one of the operations involved while making a chassis, the members are cut to various lengths, blanked, pierced, bent to various shapes and then finally welded according to the requirements,

Spike
Which all type welding are used for chassis construction?
vaisakhr is online now   Reply With Quote
Old 9th March 2010, 22:06   #90
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 2,645
Thanked: 908 Times
Default

Quote:
Originally Posted by SPIKE ARRESTOR View Post
Sutripta, Ravi, welding is one of the operations involved while making a chassis, the members are cut to various lengths, blanked, pierced, bent to various shapes and then finally welded according to the requirements,

Spike
The main rail is built up?

Sutripta
Sutripta is offline   Reply With Quote
