I think Spike is saying the vehicle won't move on its own power (towing vehicle).
fiery enzyme is offline   Reply With Quote
Old 3rd April 2010, 11:44   #17
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,759 Times
Default

Quote:
Originally Posted by ex670c View Post
Please DONOT engage 2WD-Lo on any surface.
You mean 4WD-Lo right?

Quote:
Originally Posted by star_aqua View Post
There will be wind up even if you switch the 4x4 shifter to neutral. So towing wil be difficult.
Yes, thus i was asking about FWHs for rear tyres. Maybe we should carry spare hubs just in case of such a scenario...

Quote:
Originally Posted by SPIKE ARRESTOR View Post

P.S. I hope I am not confusing anyone.
Yes spike you are confusing!!!

You mean to say that a vehicle with the 4x4 shifter in neutral won't move while getting towed? Why? My jeep does and so do gypsies.

Also, when we are talking about broken down 4x4s; so the question of them getting out under their own power does not arise. Thus, putting in neutral. (both the gear and transfer case)
Tejas@perioimpl is offline   Reply With Quote
Old 3rd April 2010, 12:06   #18
Senior - BHPian

ex670c's Avatar

Join Date: Nov 2004
Location: Chennai
Posts: 2,454
Thanked: 1,789 Times
Default 2WD-Lo

Quote:
Originally Posted by Tejas@perioimpl View Post
You mean 4WD-Lo right?
2WD-LO = 4WD-Lo with FWHubs at Free.

The rear axles take up the all the Torque developed at the T-Case.

Engine to Gear Box to T-Case 50:50 Split (Front:Rear with FWH at Free) to Diff 50:50 Split (Left:Right ideally with lockers)

Regards,

Arka
ex670c is offline   Reply With Quote
Old 3rd April 2010, 14:40   #19
Distinguished - BHPian

sudev's Avatar

Join Date: Jan 2008
Location: Gurgaon
Posts: 3,434
Thanked: 1,912 Times
Default

Quote:
Originally Posted by mohan;1813943.....The problem with the jerks is a real one.
I feel we should have an attachable [B
tow-bar[/b] which would minimise the jerks.....
Slightly OT :

In general while towing the only way to avoid such jerks is for the towed vehicle driver to be equally aware and involved in driving. Suppose the towing vehicle in changing gears there is bound to be a slack and subsequent jerk.

To avoid this the driver of towed vehicle has to always keep the tow rope tight. I use slight handbrake to do this and have towed vehicles out of sand and on highways for a long distance using very thin ropes which otherwise would have broken.

Similarly when braking it is better that the vehicle being towed applies brakes more than the towing vehicle. In fact with proper coordination small braking can be entirely handled by the towed vehicle.

All this to keep the towing rope "taut" and avoid jerks and sudden pulls that tend to break the tow ropes. Also avoids messy tangling where the rope itself gets tangles in the front axle of the towed vehicle.
sudev is offline   Reply With Quote
Old 6th May 2010, 22:52   #20
BHPian

swastikviji's Avatar

Join Date: Feb 2009
Location: Bangalore
Posts: 417
Thanked: 158 Times
Red face Tow bar discussion for 4x4's

Quote:
Originally Posted by sreerajunnithan View Post
And now we know what should be the ideal length of a Tow Rope to avoid coming under towed vehicle's Tyre and, Idea of Fabricating Tow Bar is catching momentum, see we are learning from every opportunity be it good or bad.

Thanks
--Sree--
Yes Sree we have to seriously think about this, Jaggu your idea and Drawing for tow bar please.
Attached Images


Last edited by swastikviji : 6th May 2010 at 22:53.
swastikviji is offline   Reply With Quote
Old 6th May 2010, 23:30   #21
Team-BHP Support

Jaggu's Avatar

Join Date: May 2004
Location: Bangalore
Posts: 17,487
Thanked: 6,764 Times
Default

Quote:
Originally Posted by swastikviji View Post
Yes Sree we have to seriously think about this, Jaggu your idea and Drawing for tow bar please.
I like this one also, will be more sturdy at the jeep end. Mine is a simple design similar to what delhi 440 has. Sree added universal joint to the design to make it more flexible, ie it will move in both horizontal and vertical plain.

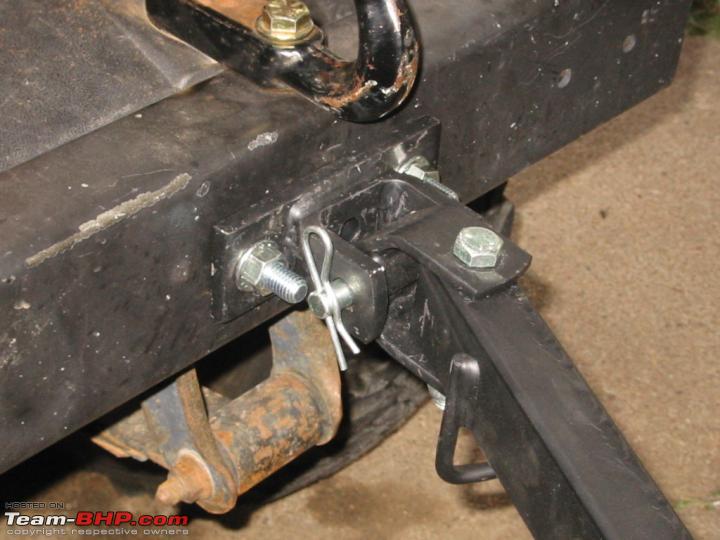

Attaching some ideas from inet http://www.jedi.com/obiwan/jeep/flattow.html

Some more designs http://www.thecj2apage.com/forums/to...ost112457.html
Attached Thumbnails
Towing a broken down 4x4-towbar_02.jpg

Attached Images


Last edited by Jaggu : 6th May 2010 at 23:55.
Jaggu is offline   Reply With Quote
Old 7th May 2010, 10:01   #22
Senior - BHPian

Kandisa's Avatar

Join Date: Oct 2008
Location: Noida
Posts: 1,040
Thanked: 203 Times
Default

The tow bar in the 440 was fabricated by fellow bhpian 'renegade'. Apart from numerous short distance towing of other jeeps, it was used in a long drive from Delhi to Jaipur for towing a Ford GPW with another 440. And it comfortable did 80-90 on the highways without any problem. I never knew about a fixed tow before that and seems this arrangement is really the best option for towing an offroad vehicle to an OTR spot or for similar applications.
Kandisa is offline   Reply With Quote
Old 7th May 2010, 12:20   #23
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,759 Times
Default

A similar discussion happening here as well:

http://www.team-bhp.com/forum/4x4-ex...own-4x4-2.html

See links to a few designs i researched on the net:

Halfords Steel Tow Bar | Products | Auto Express

2 TON 1.8 MTR RIGID STEEL TOW BAR POLE / TOWING ROPE on eBay (end time 30-May-10 17:15:00 BST)

2 Tonne Tow Bar & Damper - Screwfix.com, Where the Trade Buys

The advantage of a single rod type tow bar over the triangular one is that it can fit all vehicles. If you need to tow another vehicle which doesn't have a couple of front D shackles, then it's a problem.

I'm planning to get one fabricated using a pipe and a couple of loops. Similar to the ones used by the police towing guys.
Tejas@perioimpl is offline   Reply With Quote
Old 7th May 2010, 13:59   #24
BHPian

sreerajunnithan's Avatar

Join Date: Jun 2006
Location: Banagalore
Posts: 445
Thanked: 5 Times
Default

Quote:
Originally Posted by Jaggu View Post
Sree added universal joint to the design to make it more flexible, ie it will move in both horizontal and vertical plain.
The circled parts could be replaced by the Prop shaft U-Joint. Simple and easy

Name:  tow_bar22_720.jpg
Views: 736
Size:  68.2 KB

Quote:
Originally Posted by Kandisa View Post
The tow bar in the 440 was fabricated by fellow bhpian 'renegade'. Apart from numerous short distance towing of other jeeps, it was used in a long drive from Delhi to Jaipur for towing a Ford GPW with another 440. And it comfortable did 80-90 on the highways without any problem. I never knew about a fixed tow before that and seems this arrangement is really the best option for towing an offroad vehicle to an OTR spot or for similar applications.
Could you please ask Renegade to share the drawings?

Quote:
Originally Posted by Tejas@perioimpl View Post
The advantage of a single rod type tow bar over the triangular one is that it can fit all vehicles. If you need to tow another vehicle which doesn't have a couple of front D shackles, then it's a problem.
And the disadvantage is, you need to have a driver in Towed vehicle. We can make it universal at-least for Jeeps. Intead of that Bumper adapter, it should wrap over the bumper and should be Bolted.

Thanks
--Sree--

Last edited by sreerajunnithan : 7th May 2010 at 14:02.
sreerajunnithan is offline   Reply With Quote
Old 7th May 2010, 14:07   #25
Senior - BHPian

shankar.balan's Avatar

Join Date: Apr 2008
Location: BLR
Posts: 8,053
Thanked: 5,303 Times
Default

rigid tow bars are the best for haulage medium and long distance
for short distances you can use a steel cored rope or steel rope itself

i have helped out a friend in the past with a standard slack nylon rope but frankly that is not recommended. shear strength is nowhere near sufficient to pull another vehicle along.
shankar.balan is offline   Reply With Quote
Old 7th May 2010, 14:14   #26
Senior - BHPian

Blue Thunder's Avatar

Join Date: Jul 2007
Location: Right here .
Posts: 1,630
Thanked: 328 Times
Exclamation

Quote:
Originally Posted by sreerajunnithan View Post
The circled parts could be replaced by the Prop shaft U-Joint. Simple and easy...
The prop-shaft UJ is probably designed more to handle torque (turning moment) than longitudinal forces. Please check this aspect before deciding on this option.
Blue Thunder is offline   Reply With Quote
Old 7th May 2010, 14:35   #27
Team-BHP Support

khan_sultan's Avatar

Join Date: Apr 2006
Location: Bangalore
Posts: 4,631
Thanked: 2,947 Times
Default

Quote:
Originally Posted by sreerajunnithan View Post
The circled parts could be replaced by the Prop shaft U-Joint. Simple and easy
How about rod-end joints/rubber bushes sleeved in a pipe. These would allow some movement in a 3D plane. I had got these fabricated for the traction bar in my Gypsy using rubber bushes from Omni/WagonR.

This is not exactly same, but would not similar ends work in a tow-bar?

khan_sultan is offline   Reply With Quote
Old 7th May 2010, 14:45   #28
Distinguished - BHPian

Sankar's Avatar

Join Date: May 2005
Location: Kerala
Posts: 4,552
Thanked: 2,752 Times
Default

Is the universal joint designed to withstand stretching and compression forces which is generated while pulling a vehicle? Its designed to withstand twisting (torque) force only isn't it?

I don't know the answer for the above, but hope you are clear about it.
Sankar is offline   Reply With Quote
Old 7th May 2010, 15:01   #29
Team-BHP Support

Jaggu's Avatar

Join Date: May 2004
Location: Bangalore
Posts: 17,487
Thanked: 6,764 Times
Default

See the tow bar design and the links i provided are for towing vehicles without a driver in the towed vehicle. So the tow bar is designed in such a way that the towed vehicle also steers along with the tow vehicle.

In our case i think we need a simpler, but a sturdy design which will connect both the vehicles.

So coming back to the discussion a box section or a round bar as in Khan's design can be used. Its the attachment end's and the length we need to work out. If you notice its a pin type hook thats used to attach in front, we need to see if something can be cooked up with a D shackle kinda design which can be connected to the tow hooks which most of our jeeps come with.

The universal joint was just an idea, we dont need to make it so complicated.

EDIT

D shackle idea is already incorporated in this http://www.autoexpress.co.uk/product...l_tow_bar.html

Khan saab coming to think about it the sway bar end might be the perfect solution will have some damping also lol

Last edited by Jaggu : 7th May 2010 at 15:13.
Jaggu is offline   Reply With Quote
Old 7th May 2010, 15:28   #30
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,759 Times
Default

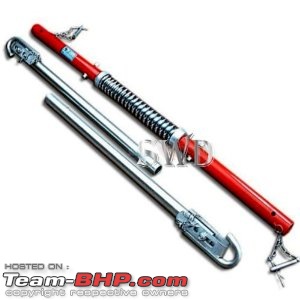

My parents are in UK and i've asked my brother to order one of these and send it down. I think it will take care of the problems mentioned earlier.

And it's only 20pounds. (cost, not weight )
Attached Images

Tejas@perioimpl is offline   Reply With Quote
