Old 21st July 2013, 00:21   #256
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default Re: New 4X4 project

Thanks Santosh, settings changed.
Santosh, I need to work on that. Hopefully by the time I am done, it will look integrated!!
jyobeb is offline   Reply With Quote
Old 23rd July 2013, 17:19   #257
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default

Tow hitch for my Montero almost ready.
Attached Images

jyobeb is offline   (2) Thanks Reply With Quote
Old 2nd August 2013, 18:04   #258
BHPian

Join Date: Nov 2008
Location: Mumbai
Posts: 200
Thanked: 31 Times
Default Re: New 4X4 project

Hi Jyobeb,

Wonderful project, truly inspirational. thanks for the details update.

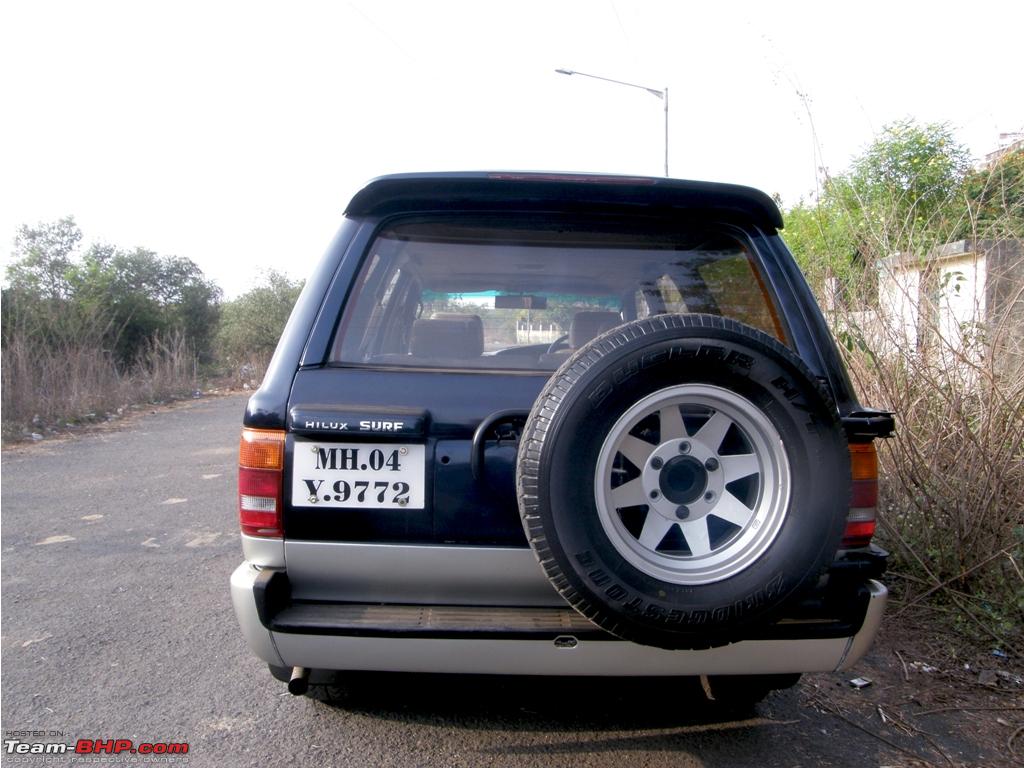

My little input for you project. The rear door of my Toyota Hilux Surf also open the same way as your vehicles. I have a swing assembly for the spare wheel. I am attaching a few pics for your reference.

For more photos you may refer the this link.

the Last photo is for Blue Colour Reference
Attached Thumbnails
New 4X4 project-p1010049.jpg

New 4X4 project-p1010052.jpg

New 4X4 project-p1010053.jpg

New 4X4 project-imag8213.jpg

Cloud_Chaser is offline   (1) Thanks Reply With Quote
Old 3rd August 2013, 00:20   #259
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default Re: New 4X4 project

Thanks cloud_chaser. Very useful pics. I will start on trying to fabricate something like this, Again, thank you.
jyobeb is offline   Reply With Quote
Old 3rd August 2013, 08:34   #260
BHPian

Join Date: Nov 2008
Location: Mumbai
Posts: 200
Thanked: 31 Times
Default Re: New 4X4 project

Quote:
Originally Posted by jyobeb View Post
Thanks cloud_chaser. Very useful pics. I will start on trying to fabricate something like this, Again, thank you.
I will really be gratified if I am able to associate with your build in some way

I am planning to take up a project next year and your thread will be the reference point. I have a few questions.

1. Your reason to choose Safari chassis.
2. What will be the main purpose of your vehicle, %age of onroad and offroad.
3. I am not sure why no one has asked this question or if I have missed the post where this was discussed. How are you going to register this vehicle? Will you continue the Safari Registration or the Station Wagons Registration?
4. Recently, In and around Mumbai I know a few guys who have ran into RTO trouble because of wide tires and other modifications to their 550's, Thars and Gypsys. How are you planning to deal with it?
5. Which AC compressor/ setup are you using?

Sorry for asking too many questions but they will help me and other guys planning a custom build project to plan accordingly.
Cloud_Chaser is offline   Reply With Quote
Old 3rd August 2013, 10:51   #261
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default Re: New 4X4 project

1) Looked first for a Pajero chassis, but with no luck. (Have one now, by the way) Found the Safari chassis in good nick and went for it. The dimensions also suit that of the wagon.

2)To be honest, 20% off-road, 20% onroad, 60 % show value.

3)My Wagon already has endorsement for both changes. Got it that way or to be more accurate, made sure it was that way before I bought it. The older endorsements were very vague and generalised.

4)I actually may go for 33" tyres. I will be using the vehicle and checking the compatibility of the engine, the gearbox, the 4.55 final drive and then switch to smaller tyres if necessary.

5) The ac compressor is a Sanden SD7V16, with a Unicla ac blower adapted for R134 refrigerant. I also plan to use a top mounted van cooling coil, since the area is quite large. That is the reason I went for the SD7V16.
jyobeb is offline   (2) Thanks Reply With Quote
Old 31st August 2013, 12:44   #262
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default

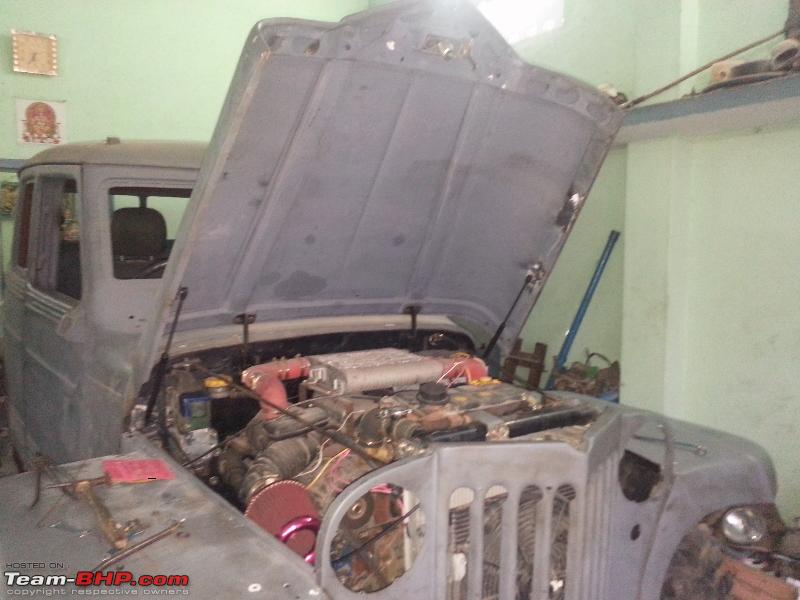

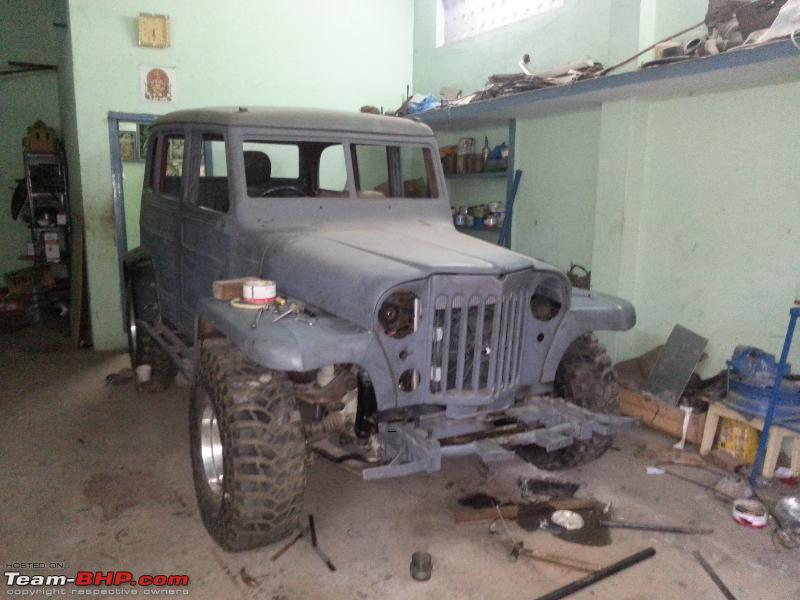

I had to redo some work on the fenders and front grill and also on the side mirrors. I got hydraulic struts fitted onto the hood.
Attached Images

jyobeb is offline   (6) Thanks Reply With Quote
Old 24th September 2013, 21:38   #263
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default

I am now working on a rear bumper mounted, single pivot swing away tyre carrier.
Some pics of the pivot, Hummer mirrors and the fuel cap.
Attached Images

jyobeb is offline   (4) Thanks Reply With Quote
Old 24th September 2013, 22:42   #264
Senior - BHPian

Join Date: Mar 2005
Location: N.A
Posts: 6,818
Thanked: 1,439 Times
Default Re: New 4X4 project

Quote:
Originally Posted by jyobeb View Post
I am now working on a rear bumper mounted, single pivot swing away tyre carrier.
Some pics of the pivot, Hummer mirrors and the fuel cap.
Pic 2 looks like the Terminator at the end of one of the movies, red electronic eye popping out...

I think you should plonk these headlamps on your finished product:

http://www.alibaba.com/product-gs/28..._headlamp.html

Last edited by Steeroid : 24th September 2013 at 22:44.
Steeroid is offline   (3) Thanks Reply With Quote
Old 2nd October 2013, 12:41   #265
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default

My rear heavy duty crashguard bumper made out of a Mahindra Van chassis. The pivot ( Thanks to Vijay Kumar, Swastijvij) has been fixed.
Attached Images

jyobeb is offline   (4) Thanks Reply With Quote
Old 7th October 2013, 13:04   #266
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: New 4X4 project

Isnt the fuel cap door on the body from a pulsar bike?
svsantosh is offline   Reply With Quote
Old 8th October 2013, 00:21   #267
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default Re: New 4X4 project

Quote:
Originally Posted by svsantosh View Post
Isnt the fuel cap door on the body from a pulsar bike?
Yup! Good spotting! From a Pulsar indeed!
jyobeb is offline   (1) Thanks Reply With Quote
Old 8th October 2013, 11:26   #268
BHPian

B O V's Avatar

Join Date: Feb 2013
Location: Cochin
Posts: 289
Thanked: 202 Times
Default Re: New 4X4 project

Brrr. Just gettin goosebumps by imagining how the final product would look.

Just went through the entire thread today. Amazing work mate. Absolutely amazing.Its clear the amount of dedication that has gone into this project.

I suppose if you ever get bored with its look you could just chop off the the rear and turn it into a bruiser pick up truck

I don't know if you're still taking suggestions on the colour. Here goes

Gun metal/Dull grey.With any chrome bits done in black. Would look a bit dark I suppose.

Deep maroon. With generous amounts of chrome.

I don't know if I missed it but are you planning to add a winch?

Once again. Amazing work.

B O V
B O V is offline   Reply With Quote
Old 8th October 2013, 11:45   #269
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default

Winch is being fitted and the plate is already fabricated. The front will have the original chrome bumper which I hope will not be out of sync with the overall scheme of things.
Thank you for the colour suggestions. Will have to have a photoshop session before I finalise.

Last edited by jyobeb : 8th October 2013 at 11:47.
jyobeb is offline   Reply With Quote
Old 8th October 2013, 12:10   #270
BHPian

Anupam's Avatar

Join Date: Mar 2006
Location: Pune - India
Posts: 259
Thanked: 37 Times
Default Re: New 4X4 project

Quote:
Originally Posted by Steeroid View Post
Beboy

Those (rear) wheel arches dont seem to suit the vehicle as it looks now - perhaps you have more exterior work planned that will make them belong more.
Hi Beboy

awesome work, and hats off to your ability to visualize your steps, I stumbled on this thread today and to cover it all in one go.. I must say in the beginning I had my reservations on the probability to pull this project off for, but I see that you have made a consistent progress through out, your ability to source parts is also way above average.

This is the first project to be executed of this caliber, that I know off.

while I do not think that I am eligible to make any suggestions, but if i don't then it would pinch me. hence I would add my 2 cents

1. Real Wheel Arch - is not matching the front or the theme, you need to go retro and have a fabricated arch matching the front

2. Side Step - maybe it will look good in the end, but at this point I would prefer if the box tube can stay as support and on top you can have a fluted sheet to match the overall body

*** voted this thread as excellent ***

Last edited by Anupam : 8th October 2013 at 12:14. Reason: Voted this thread as 'Excellent'
Anupam is offline   Reply With Quote
