Old 6th August 2010, 18:25   #106
Senior - BHPian

jeepster's Avatar

Join Date: Oct 2008
Location: MH24 aka LATUR
Posts: 1,521
Thanked: 941 Times
Default

Quote:
Originally Posted by DirtyDan View Post
I am not trying to cause trouble here but M&Ms web page and literature are usually out of date. I will still bet 2 rupees that they have switched to semi and probably as far back as 3 years ago.
you are right they have camper with SFRA . (attached pic)

NOTE:in view of Their policy of continuously improving Their prouuct, they reserve right to alter specifications or designs without customers prior notice.
Attached Thumbnails
Mahindra Invader 4WD-3707186710_d2f910d420_o.jpg

jeepster is offline   Reply With Quote
Old 4th October 2010, 11:02   #107
vak
BHPian

Join Date: Sep 2008
Location: Cochin
Posts: 47
Thanked: 43 Times
Default Bolero Rear Axle: FFRA or SFRA

Bolero pickup (non flat bed) and camper come with FFRA or SFRA. May be at the manufacturing stage they fit what ever is available.

But the following is true AFAIK.

1. All Bolero Passenger vehicle (Five door) come with FFRA only.
2. All Bolero Invader come with SFRA only.
3. All Bolero pickups with flat bed loading area come with SFRA only. Flat bed pickups have SPOA setup at the rear.
4. Non flat bed bolero pickups and camper come with either FFRA or SFRA.

SFRA come with 30spline axle shafts and FFRA come with 19spline axle shafts. Also note that it is much easier to get Diff locks for 30 spline axles.

Regards,

Vinshad Aziz
vak is offline   Reply With Quote
Old 5th October 2010, 18:51   #108
BHPian

Join Date: Dec 2009
Location: Ghaziabad
Posts: 980
Thanked: 698 Times
Default

Slightly off topic query. But, how much should you pay at max. for a decent condition 4x4 Invader (2006 model) with AC. Can someone advise if there would be any big issues owning it in Kolkata (Metro), like Registration Transfer (BS2), spares, maintenance, etc.?
Also, how do I check whether it's 4 WD mechanism is in order? I have seen the vehicle checklists in other sections, but nothing about how to verify the 4 WD state... Please help.
roy_libran is offline   Reply With Quote
Old 11th October 2010, 19:13   #109
Senior - BHPian

jeepster's Avatar

Join Date: Oct 2008
Location: MH24 aka LATUR
Posts: 1,521
Thanked: 941 Times
Default

wanted a dimension reference diagram (blue-print) of invader. [for my scientific studies]
if any one has it please post here.


some example's.
Name:  BoleroSpec.JPG
Views: 6763
Size:  35.3 KB

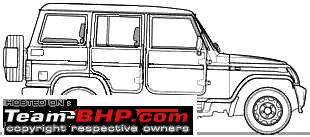

Name:  mahindrabolerofuelsmart2009.png
Views: 2364
Size:  10.1 KB

Last edited by jeepster : 11th October 2010 at 19:15.
jeepster is offline   Reply With Quote
Old 18th October 2010, 11:10   #110
Distinguished - BHPian

4x4addict's Avatar

Join Date: Nov 2007
Location: Chennai
Posts: 3,889
Thanked: 2,306 Times
Default

BSIII/IV norms have killed the Invader/Major. I spoke to a dealer last month and he told me not to buy as it cannot be registered from this month.
4x4addict is offline   Reply With Quote
Old 18th October 2010, 11:40   #111
AWD
BANNED

Join Date: Nov 2009
Location: Drivers seat
Posts: 804
Thanked: 217 Times
Default

Quote:
Originally Posted by 4x4addict View Post
BSIII/IV norms have killed the Invader/Major.
The advent of motorized 4-wheelers killed bullock carts but here I would say Invader/Major died their own death because everyone knew BS3/4 were coming.

BS3/4 norms came as a blessing for consumers, nothing can beat the environmental cause but also many ageing cars received updates which included increasing power, new engines, etc. in some.
AWD is offline   Reply With Quote
