Old 31st October 2012, 09:30   #106
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 2000 Armada Grand 4WD

Thanks a lot Beboy...!

Screw the Cable, I am doing this (DIY - Simple Hand brake for Jeeps - Ball Valve as a Line Lock)
svsantosh is offline   Reply With Quote
Old 1st November 2012, 22:06   #107
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 2000 Armada Grand 4WD

Got the AG back from mechs place.

1) Radiator fully rebuilt, was clogged up badly over the years. Also found it is a 3 core one, not the 4 core one as on my CJ. Cost of rebuild - 500rs (no leaks and overheating after a long TD)

2) All 4 hubs greased, all bearings ok, changed oil seals.

3) Front Knuckles/Kingpin overhauled, as said in prev page - the top kingpin had a plastic bush and bottom was a regular bearing. I did a mod here - From the time I got the AG I felt the PS over-servoed and too vague for my liking. So got rid of the bottom kingpin bearing and went for a 'unipak brand' brass bush. So I dont have any kingpin bearings now, and after a 50Km Test drive over highway, rural roads, slight offroad I can say the power-steering feels perfect now, need the elbow a bit but not too much, and just enough servo to feel at ease!!

4) Alternator opened up and rebuilt, the leak was not from the oil seal still got a new one at 220, labor 180 - 400Rs here.

4 oil seals
1 knuckle kit
2 brass kingpin bushes
^^ - 580Rs

2 knuckles and 4 hubs took around 2Kilos grease, I had them in stock, so dont recollect the prices. Approx 150rs/Kg

edit - 120Rs for a new 1-foot hydraulic hose 10mm dia - which returns engine oil from ALT to engine block.

Labor for 4 wheel hub grease, radiator removal refitting, 2 knuckle rebuild, 1 alternator removal-refit = 1000Rs (asked more, but i gave only that much!!)

Next month oil change and tappet tuning due...

Last edited by svsantosh : 1st November 2012 at 22:10.
svsantosh is offline   Reply With Quote
Old 22nd November 2012, 21:55   #108
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 2000 Armada Grand 4WD

Quote:
Originally Posted by svsantosh View Post
Thanks a lot Beboy...!

Screw the Cable, I am doing this (DIY - Simple Hand brake for Jeeps - Ball Valve as a Line Lock)
Done This time again on front disc's like the CJ... parts are slightly expensive this time, all included came upto nearly 1000

2000 Armada Grand 4WD-ag-hand-brake.jpg
svsantosh is offline   Reply With Quote
Old 26th November 2012, 15:16   #109
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re-Cambered all leaf sets

The OE rear was supposed to have 5 and front shd be 6. I read this from Spikey's reply in Rolling AG of Suresh Stephen... Last post...

http://www.team-bhp.com/forum/4x4-te...ada-grand.html (Rolling Armada Grand)

2000 Armada Grand 4WD-img_20121124_153305.jpg

The pic above was my rear set, had 7 leafs and was pretty hard, and more thanks to the Sand grips! Got 2 removed and said the recamber guy to max the height. All 4 sets with misc parts costed me 350Rs for parts and 1500 for Labor. Took about half a day...

Post the recamber, this is the stance.

2000 Armada Grand 4WD-img_20121125_160402.jpg
svsantosh is offline   Reply With Quote
Old 27th November 2012, 17:05   #110
BHPian

Sabareesh's Avatar

Join Date: Apr 2008
Location: Ambarnath
Posts: 328
Thanked: 59 Times
Default Re: Re-Cambered all leaf sets

Quote:
Originally Posted by svsantosh View Post

Post the recamber, this is the stance.
Santosh,

I don't know whether its my eyes playing tricks but I see that the rear is sitting a tad higher than the front end. Any particular reason for this ? Was the front set recambered as well ?
Sabareesh is offline   (1) Thanks Reply With Quote
Old 27th November 2012, 19:34   #111
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: Re-Cambered all leaf sets

Quote:
Originally Posted by Sabareesh View Post
Santosh,

I don't know whether its my eyes playing tricks but I see that the rear is sitting a tad higher than the front end. Any particular reason for this ? Was the front set recambered as well ?
Usually thats how an all-4 leaf vehicle is set by the camber guy. They say its for load, etc etc in rear, but it doesnt matter. As long as it is soft in rear, and front doesnt cause a axle wrap you are good...

oh, i almost forgot - the front axle wrap I had during purchase (under sudden braking) has vanished after this recamber work. I guess my mech was right after all, it was too flattened out when I had purchased it.
svsantosh is offline   Reply With Quote
Old 30th November 2012, 21:43   #112
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Thumbs up Winch done...

Bolted on existing CJ's winch plate on a 2x2 bolt pattern directly on the long members of the AG. All credits to Mohan.

2000 Armada Grand 4WD-1.jpg

2000 Armada Grand 4WD-2.jpg

2000 Armada Grand 4WD-3.jpg

2000 Armada Grand 4WD-4.jpg

2000 Armada Grand 4WD-5.jpg

2000 Armada Grand 4WD-6.jpg

Only issue was with front grill which I didnt like anyways, so it got the treatment!! Oh, and the winch works fine
svsantosh is offline   Reply With Quote
Old 30th November 2012, 21:50   #113
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Talking NGCS Flex

Found a good ramp at Mohans home to test the articulation of the NGCS. Here are 2 pics for your reference!

I was stupid enough not to engage 4wd and while reversing had no traction in rear right and went in a further good 3-5 inches!! Then got down, FWH+Shiftster and crawled out



2000 Armada Grand 4WD-img_20121129_095735.jpg

2000 Armada Grand 4WD-img_20121129_095755.jpg
svsantosh is offline   (1) Thanks Reply With Quote
Old 18th December 2012, 18:29   #114
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 2000 Armada Grand 4WD

Lots of small updates...

After Recambering of all 4 leaf packs

Name:  after recamber.jpg
Views: 2003
Size:  181.2 KB

Got the diff guards installed

Name:  diff guards.jpg
Views: 2027
Size:  163.0 KB

Attempted and got a body lift using balatta packing (Nylon bush idea failed for wrong design execution)

Name:  body lift.jpg
Views: 2130
Size:  157.9 KB

Name:  body lift1.jpg
Views: 2258
Size:  168.0 KB

Name:  body lift2.jpg
Views: 2151
Size:  121.0 KB

Also made a custom rear tow hook/dshackle receiver

Name:  custom rear tow hook.jpg
Views: 2174
Size:  192.4 KB

Name:  custom rear tow hook1.jpg
Views: 2044
Size:  210.1 KB

Name:  custom rear tow hook2.jpg
Views: 1980
Size:  219.7 KB

Grill lifted but radiator in same place (OE) for water pump reason

Name:  grill lift.jpg
Views: 2150
Size:  137.1 KB

Rear plate with hook

Name:  rear with hook.jpg
Views: 1928
Size:  134.8 KB

One body bed was cut and causing LOTS of confusing symptoms and we went to extent of nearly opening up steering system!!

Name:  bed brazing.jpg
Views: 1910
Size:  142.4 KB

After lift...

Name:  after lift.jpg
Views: 2364
Size:  200.7 KB

Front view after lift

Name:  front after lift.jpg
Views: 1999
Size:  202.5 KB

Then decided to ditch the DC Grill and go MM Way!!

Name:  lights  parts.jpg
Views: 1896
Size:  195.4 KB

Tinker chiseling away the spot welded plate

Name:  tinker  grill.jpg
Views: 1882
Size:  203.4 KB

Blind!!

Name:  without rings.jpg
Views: 1875
Size:  194.1 KB

new lights!

Name:  with new lights.jpg
Views: 1917
Size:  194.9 KB

Rims looked out of place and did a can spray job DIY (all black now)

Name:  side washing.jpg
Views: 1901
Size:  196.0 KB

Painting the front grill

Name:  painter.jpg
Views: 1876
Size:  159.8 KB

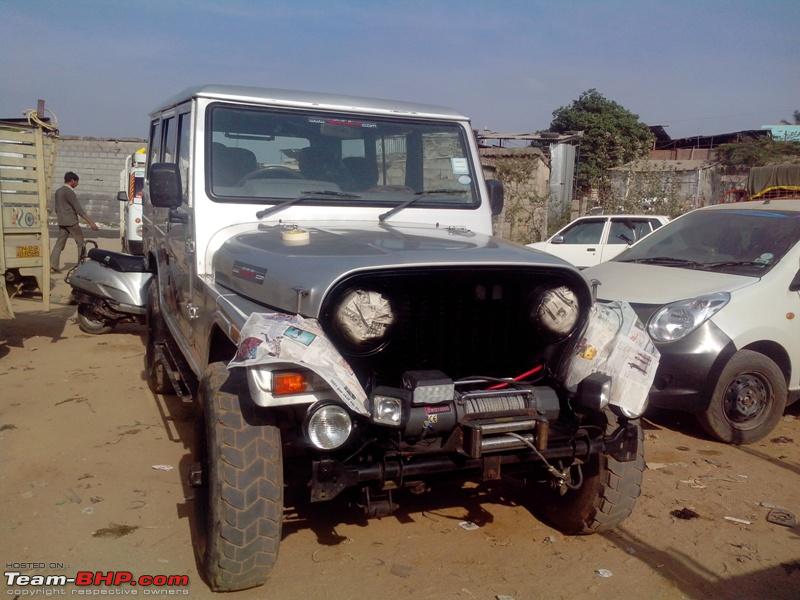

Masked and drying...

Name:  drying....jpg
Views: 1852
Size:  182.7 KB

final outcome...

Name:  FINAL.jpg
Views: 1864
Size:  198.8 KB
svsantosh is offline   (3) Thanks Reply With Quote
Old 18th December 2012, 18:43   #115
BHPian

sriny_blr's Avatar

Join Date: Jul 2004
Location: MAQ/BLR
Posts: 210
Thanked: 49 Times
Default Re: 2000 Armada Grand 4WD

That looks a monster in front view with all those additional lights....

Interesting AG comes without hand brake??? or am I missing something...

Reminds me to adding my list to get the simple DIY handbrake. I like that...
sriny_blr is offline   Reply With Quote
Old 18th December 2012, 19:24   #116
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 2000 Armada Grand 4WD

AG came with a HB, but tooooo complicated to change the cable once its due for replacement - so ditched it!
svsantosh is offline   Reply With Quote
Old 19th December 2012, 09:14   #117
BHPian

madhkris's Avatar

Join Date: Mar 2010
Location: Bengalur
Posts: 295
Thanked: 70 Times
Default Re: 2000 Armada Grand 4WD

Nice body lift, front grill colour and Rear tow hook Santosh. I have a few questions.
Does the body lift alter the steering geometry?
How is the ride quality?
Does it help in increasing the articulation?
Since the radiator sits a bit below, does this cause an issue later?
Do you need a K member to place the tow hook or can be done even on a 540?
madhkris is offline   Reply With Quote
Old 19th December 2012, 19:05   #118
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 2000 Armada Grand 4WD

Quote:
Originally Posted by madhkris View Post
Does the body lift alter the steering geometry?

How is the ride quality?

Does it help in increasing the articulation?

Since the radiator sits a bit below, does this cause an issue later?

Do you need a K member to place the tow hook or can be done even on a 540?
1) Strictly speaking YES - but not much a disaster in a MRCBT Vs your current setup

2) hmm, since mine earlier OE setup was in shambles, now its better with newer beds/balatta pieces, so cant really compare - but again, the COG goes up and rolling is more pronounced

3) Hmm - NO, tyres wont get damaged inside the front fender (31+" tyres)

4) Radiator is still in OE position, only the AC condensor has gone up a inch alongwith the grill, no issues in AC perf...

5) AG didnt have a tow hook, thats why had to beg for the plate from my neighbour
svsantosh is offline   (1) Thanks Reply With Quote
Old 19th December 2012, 20:35   #119
Distinguished - BHPian

Join Date: Jul 2009
Location: Kolkata
Posts: 3,443
Thanked: 1,941 Times
Default Re: 2000 Armada Grand 4WD

Quote:
Originally Posted by madhkris View Post
Does the body lift alter the steering geometry?
Quote:
Originally Posted by svsantosh View Post
1) Strictly speaking YES - but not much a disaster in a MRCBT Vs your current setup
Hi,
The question is the routing/ angle of the steering column/ shaft, rather than the type of steering box.

Regards
Sutripta
Sutripta is offline   Reply With Quote
Old 20th December 2012, 06:48   #120
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 2000 Armada Grand 4WD

Quote:
Originally Posted by Sutripta View Post
Hi,
The question is the routing/ angle of the steering column/ shaft, rather than the type of steering box.

Regards
Sutripta
yes Dada, but I was contemplating docs next question and discouraged him attempting in his 540... mrcbt forgives you in this mod while a old steering box in 540 won't let you stretch the rod out of its milling by more than qtr, half an inch...
svsantosh is offline   Reply With Quote
