Go Back   Team-BHP > Buckle Up > 4x4 & Off-Roading > 4x4 Vehicles


Reply

Thread Tools Search this Thread
Old 6th February 2016, 17:20   #1
Team-BHP Support

Join Date: Feb 2004
Location: Mumbai
Posts: 6,995
Thanked: 21,576 Times
Default Force Gurkha @ Auto Expo 2016

Force Motors displayed the Gurkha EOV 4x4x4 at the 2016 Auto Expo.

The Gurkha EOV 4x4x4 has been the star of the Rain Forest Challenge India. It is powered by 2.2-litre, 4-cylinder diesel engine that produces 140 BHP and 321 Nm of torque and is mated to a G 32-M/5 gearbox.

Facts & figures:
  • Max speed = 100 kph (limited)
  • Ground clearance = 290 mm
  • Max gradeability = 60 degrees
  • Approach angle = 88 degrees
  • Departure angle = 58 degrees
  • Roll over angle = 30 degrees
  • Wading capability = 1,100 mm
  • Articulation capability = 14 inch suspension travel / 24 inch wheel travel, 42 inch ramp travel index
Force Gurkha @ Auto Expo 2016-4.jpg

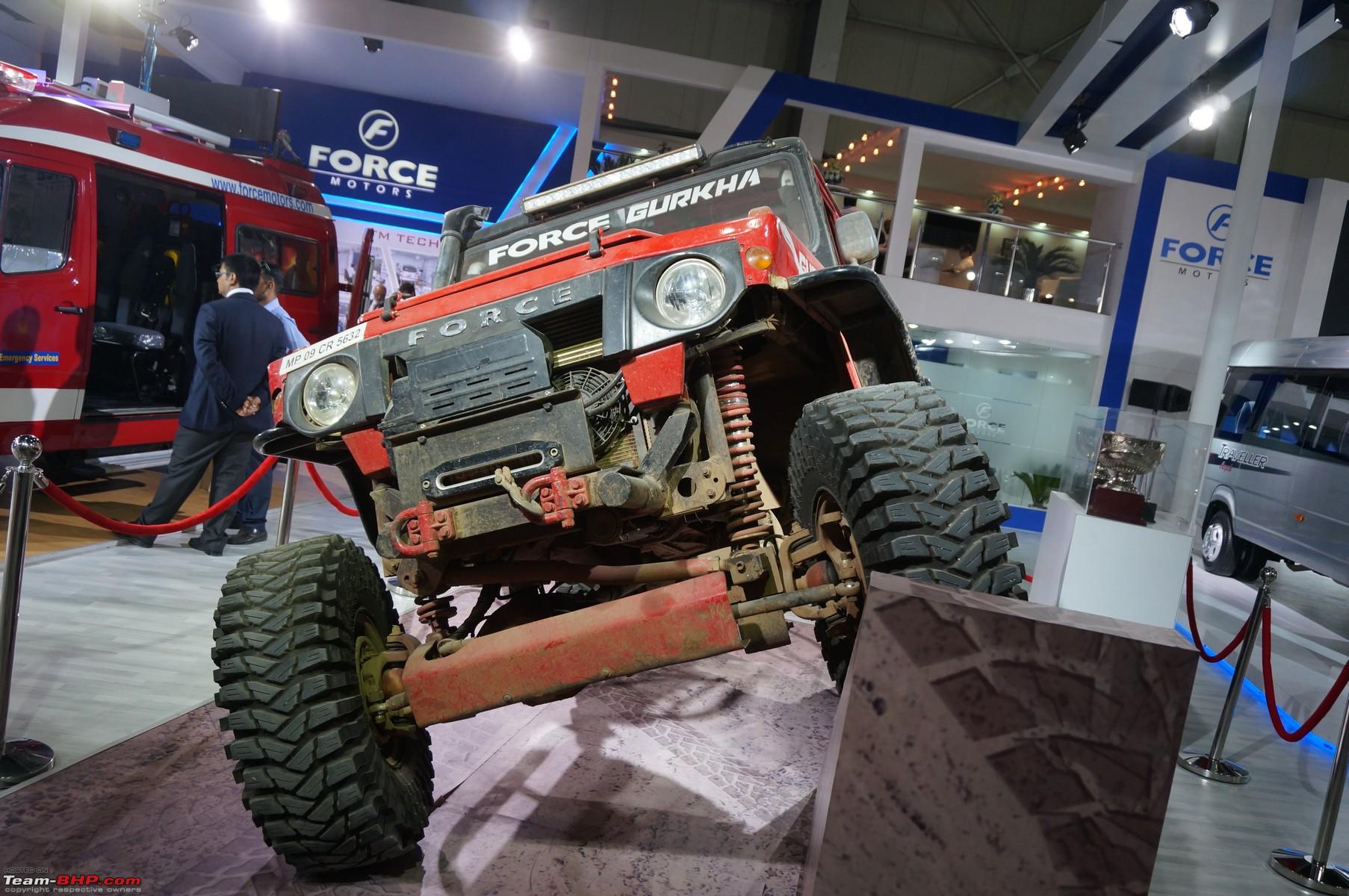

Force Gurkha @ Auto Expo 2016-5.jpg

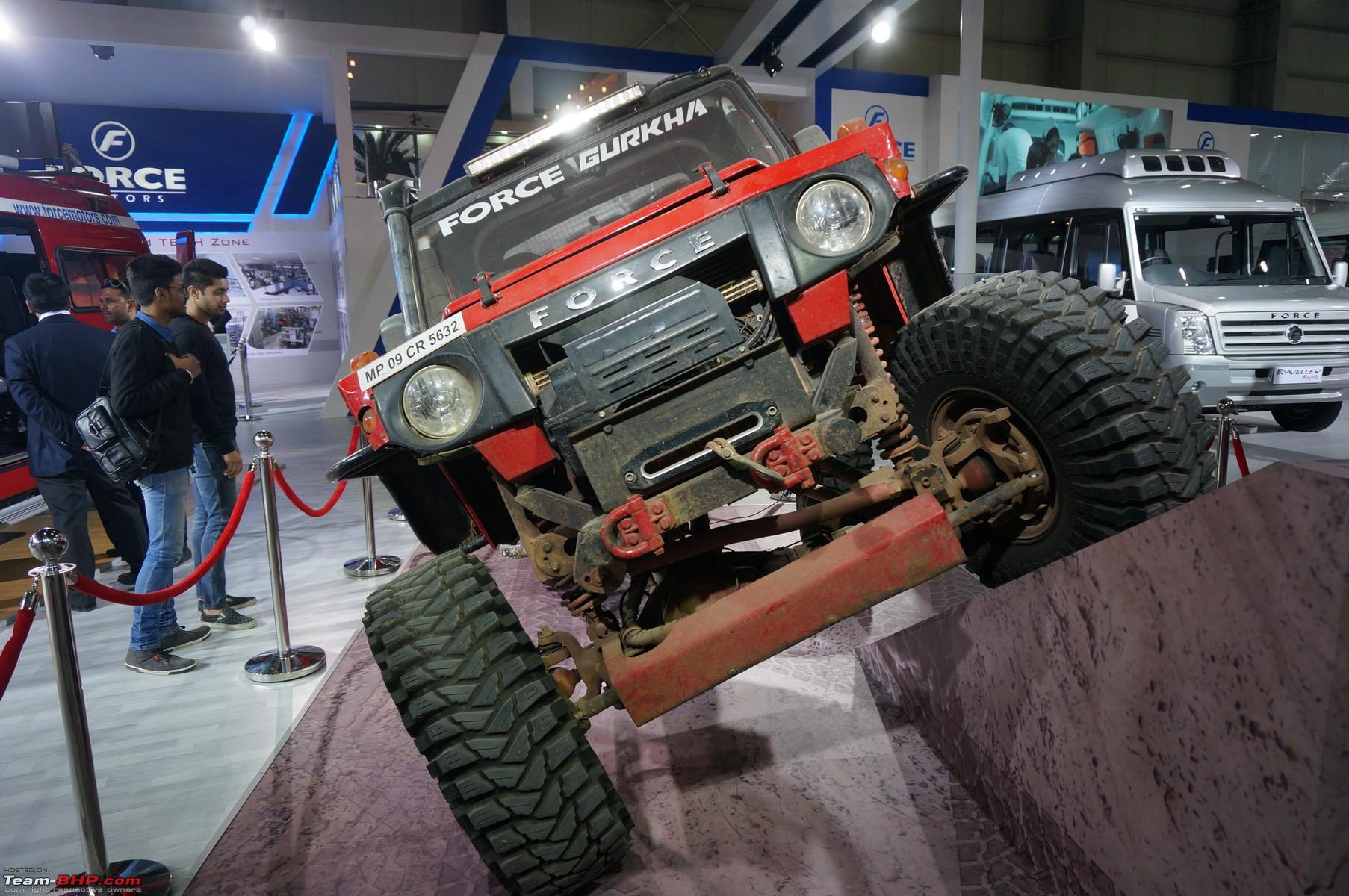

Force Gurkha @ Auto Expo 2016-6.jpg

Force Gurkha @ Auto Expo 2016-7.jpg

Force Gurkha @ Auto Expo 2016-8.jpg

The badge displays a "kukri" - the characteristic weapon of the Gorkha regiment of the Indian Army:
Force Gurkha @ Auto Expo 2016-9.jpg

Chunky Maxxis Trepador Bias tyres (37 x 12.50 x 16):
Force Gurkha @ Auto Expo 2016-11.jpg

Front and rear suspension have an extended length of 36 inches and a collapsed length of 22 inches:
Force Gurkha @ Auto Expo 2016-12a.jpg

Force Gurkha @ Auto Expo 2016-12.jpg

The undercarriage still wears the red earth of Goa:
Force Gurkha @ Auto Expo 2016-13.jpg

Force Gurkha @ Auto Expo 2016-13a.jpg

A basic side step - won't hurt if this gets damaged:
Force Gurkha @ Auto Expo 2016-14.jpg

Like all serious off-roaders, this one has a snorkel:
Force Gurkha @ Auto Expo 2016-15.jpg

The loading bay is dominated by a spare tyre:
Force Gurkha @ Auto Expo 2016-16.jpg

A look at the top of the car:
Force Gurkha @ Auto Expo 2016-16a.jpg

Such switches can be found only on purpose-built vehicles used for motor sport. No creature comforts here:
Force Gurkha @ Auto Expo 2016-17.jpg

A good roll cage is extremely important when you are participating in an event as extreme as the Rain Forest Challenge. Notice the hammer tied to it:
Force Gurkha @ Auto Expo 2016-18.jpg

Awards won by the Gurkha:
Force Gurkha @ Auto Expo 2016-18a.jpg

Last edited by Aditya : 7th February 2016 at 07:51.
Aditya is offline   (17) Thanks Reply With Quote
Old 7th February 2016, 07:59   #2
Team-BHP Support

Join Date: Feb 2004
Location: Mumbai
Posts: 6,995
Thanked: 21,576 Times
Default Re: Force Gurkha @ Auto Expo 2016

Thread moved out from the Assembly Line (The "Assembly Line" Forum section) section.
Aditya is offline   Reply With Quote
Old 7th February 2016, 08:15   #3
BHPian

batterylow's Avatar

Join Date: May 2014
Location: Driver seat!
Posts: 563
Thanked: 660 Times
Default Re: Force Gurkha @ Auto Expo 2016

That undercarriage picture though

Manufacturers create fancy terrain displays with stones et all to showcase the capability of their SUV's, the 4*4*4 has taken that to a new high!
batterylow is offline   (1) Thanks Reply With Quote
Old 7th February 2016, 10:00   #4
Senior - BHPian

tanwaramit's Avatar

Join Date: Aug 2005
Location: Dilwalon ki Dilli
Posts: 1,888
Thanked: 330 Times
Default Re: Force Gurkha @ Auto Expo 2016

Thanks, trying to make an impact by showing as a true offroader without any blings.

Its the maximum it can go on that ramp without getting turtle.

Liked the tow hooks at the front, military truck style (shaktimaan etc)

I just read the reason why there is extra 4 in 4x4x4.

its for 4 wheel steering where the rear wheels also turn to assist in low speed turns (opposite direction of front wheel) Or high speed changes of lanes (same direction as front wheel).
tanwaramit is offline   (1) Thanks Reply With Quote
Old 7th February 2016, 10:33   #5
BHPian

Miel's Avatar

Join Date: Dec 2011
Location: Bangalore
Posts: 97
Thanked: 99 Times
Default Re: Force Gurkha @ Auto Expo 2016

Quote:
Originally Posted by tanwaramit View Post

I just read the reason why there is extra 4 in 4x4x4.

its for 4 wheel steering where the rear wheels also turn to assist in low speed turns (opposite direction of front wheel) Or high speed changes of lanes (same direction as front wheel).

Nope bro, that is not the reason for the extra 4 in 4x4x4, here! The extra 4 is Force's own way of indicating the differential locks on both the front and rear axles.

Also, if you look at the rear suspension, do you see that the rear wheels can be steered? No, right?
Miel is offline   (4) Thanks Reply With Quote
Old 7th February 2016, 10:47   #6
Senior - BHPian

Join Date: Aug 2010
Location: Delhi
Posts: 2,097
Thanked: 979 Times
Default Re: Force Gurkha @ Auto Expo 2016

Yes there are no steering linkages for the rear wheels. The housing is rigid and there is no UJ at the wheels.
Aroy is offline   (1) Thanks Reply With Quote
Old 7th February 2016, 11:12   #7
Senior - BHPian

tanwaramit's Avatar

Join Date: Aug 2005
Location: Dilwalon ki Dilli
Posts: 1,888
Thanked: 330 Times
Default Re: Force Gurkha @ Auto Expo 2016

Quote:
Originally Posted by Miel View Post
Nope bro, that is not the reason for the extra 4 in 4x4x4, here! The extra 4 is Force's own way of indicating the differential locks on both the front and rear axles.

Also, if you look at the rear suspension, do you see that the rear wheels can be steered? No, right?
Ooh, I searched the meaning of 4x4x4 and shared what implies of 4x4x4.

It seems the global meaning is not applicable here.
tanwaramit is offline   (1) Thanks Reply With Quote
Old 7th February 2016, 16:20   #8
BHPian

vibhavraghav's Avatar

Join Date: Aug 2011
Location: Shimla
Posts: 51
Thanked: 42 Times
Default Re: Force Gurkha @ Auto Expo 2016

I sincerely wish we can have such modifications available for the general public too who are keen on it. Very few good workshops/experts available. But i am glad the scene is picking up. Any idea if Force offers such mods?
vibhavraghav is offline   Reply With Quote
Old 7th February 2016, 22:12   #9
BANNED

Join Date: Jul 2008
Location: in a Toyota!
Posts: 2,686
Thanked: 591 Times
Default Re: Force Gurkha @ Auto Expo 2016

Brave of FM to showcase the world's only 4x4x4 in the current Auto Expo.

Hope companies like Land Rover who had the tag line "The best 4x4 x Far" must be feeling humbled by FM

By wining the Rain Forest challenge, has the Gurkha 4x4x4 been able to convert the wining into a sales success? NO.
Parm is offline   (1) Thanks Reply With Quote
Old 7th February 2016, 23:05   #10
BHPian

Join Date: Jan 2014
Location: mum,lko,kolkata
Posts: 645
Thanked: 606 Times
Default Re: Force Gurkha @ Auto Expo 2016

Quote:
Originally Posted by Parm View Post
..........By wining the Rain Forest challenge, has the Gurkha 4x4x4 been able to convert the wining into a sales success? NO.
True, but unfortunate. For such a competent off-roader - which is handicapped for urban as well as highway use - the civilian market is mostly limited to the participants in off-road events. Though why the armed forces and other para-military services (ITBF e.g.) are not placing bulk orders for it I don't know.
shashanka is offline   Reply With Quote
Old 8th February 2016, 09:20   #11
BANNED

Join Date: Jul 2008
Location: in a Toyota!
Posts: 2,686
Thanked: 591 Times
Default Re: Force Gurkha @ Auto Expo 2016

Quote:
Originally Posted by shashanka View Post
True, but unfortunate. For such a competent off-roader - which is handicapped for urban as well as highway use - the civilian market is mostly limited to the participants in off-road events. Though why the armed forces and other para-military services (ITBF e.g.) are not placing bulk orders for it I don't know.
Gurkha was made for the Indian Army and other security forces, but they also never bought this competent vehicle with incompetent company!

FM missed the boat BIG time.
Parm is offline   Reply With Quote
Old 8th February 2016, 15:02   #12
Senior - BHPian

girishglg's Avatar

Join Date: Oct 2008
Location: KA-05
Posts: 1,077
Thanked: 420 Times
Default Re: Force Gurkha @ Auto Expo 2016

The Gurkha seems to be the most butch vehicle coming out of an Indian manufacturer. After Gypsy this seems to be a real brute of the bad roads and yes the Gypsy looks like a puny kitten in front of this (no offense meant to Gypsy lovers) especially the under body side of things.

The real question is do they really sell this vehicle to the general public or it is just for the rally circuit made to order kinds. Would be great if they sell such a rare niche product out there!
girishglg is offline   Reply With Quote
Old 8th February 2016, 16:17   #13
Senior - BHPian

fiat_tarun's Avatar

Join Date: Jan 2010
Location: Pune / Mysore
Posts: 1,092
Thanked: 552 Times
Default Re: Force Gurkha @ Auto Expo 2016

Force Gurkha @ Auto Expo 2016-img_20160206_122921.jpg

The spec. sheet for this beast !
fiat_tarun is offline   (4) Thanks Reply With Quote
Old 12th February 2016, 19:24   #14
BHPian

AJ-got-BHP's Avatar

Join Date: Sep 2014
Location: Calcutta
Posts: 560
Thanked: 1,944 Times
Default Re: Force Gurkha @ Auto Expo 2016

Caught some snaps of the Force GURKHA showing the articulation !! This one is for all the Off Road Enthusiasts :

Force Gurkha @ Auto Expo 2016-gurkha-1.jpg

Force Gurkha @ Auto Expo 2016-gurkha-2.jpg

Force Gurkha @ Auto Expo 2016-gurkha-3.jpg
AJ-got-BHP is offline   (1) Thanks Reply With Quote
Old 20th November 2016, 17:51   #15
BHPian

ringoism's Avatar

Join Date: May 2012
Location: Himachal
Posts: 479
Thanked: 1,093 Times
Default Re: Force Gurkha @ Auto Expo 2016

Maybe already noted, but looks like loads of articulation on the rear and basically none on the front. Typical IFS limitation I suppose, but hard to believe it couldn't be better set-up.

-Eric
ringoism is offline   Reply With Quote
