Yesterday, while i was packing for tomorrow's camping trip, i realised the extreme need for organised storage options at the back of the Pajero.

With stuff piling one on top of the other, it's a pain to access the stuff at the base.

I'm also planning to remove the last row seats. They have never been used since i have purchased the vehicle and eat away into a lot of real estate.

I want a low profile system on which i can still store bags and stuff. Plus the entire system will be designed to easily be removed in case i need to put the seats back.

Have already bought a bit of ancillary hardware for this project.

My uncle in ahmedabad has a factory that produces these new age plastic (acrylic?) sheets that are like regular plywood - same thickness at less than half the weight and same strength. Advantages would be: no issue with water, no need for finishing wooden strips ("leaping patti" as carpenters call it), no need to add extra laminates or paint/polish on it.

Thinking of going for that option instead of ply. Also exploring making an aluminium frame and using alubond type material to cover up the sides. Main aim is to keep weight as low as possible without compromising the strength.

The entire unit will be bolted to existing tie down points (remove those brackets and use same nut and bolts to fix this).

Googling has thrown up the following pics. Would love to hear opinions and ideas.

Mitsubishi Pajero SFX - Project Overland Conversion-096c0adc.jpg

Name:  100_drawer_1.jpg
Views: 4254
Size:  180.6 KB

Name:  arb_drawers_5.jpg
Views: 3980
Size:  108.2 KB

Mitsubishi Pajero SFX - Project Overland Conversion-dsc03749_zps7ff57b98.jpg

Name:  week_drawer.JPG
Views: 4584
Size:  122.4 KB

Last edited by Tejas@perioimpl : 29th September 2016 at 11:54. Reason: correct typos
Tejas@perioimpl is offline   (7) Thanks Reply With Quote
Old 29th September 2016, 12:27   #62
Senior - BHPian

Ace F355's Avatar

Join Date: Aug 2009
Location: Delhi NCR
Posts: 1,141
Thanked: 1,410 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Quote:
Originally Posted by Tejas@perioimpl View Post
Yesterday, while i was packing for tomorrow's camping trip, i realised the extreme need for organised storage options at the back of the Pajero.
My vote goes for this...

Attachment 1560549

Leaves you ample space for utilization on top and smaller items can be carried into drawers, just make sure the size of drawers is on practical side.

Quote:
Originally Posted by Tejas@perioimpl View Post
With stuff piling one on top of the other, it's a pain to access the stuff at the base.
Agree, we realized it on our Ladakh trip.


Quote:
Originally Posted by Tejas@perioimpl View Post
I'm also planning to remove the last row seats. They have never been used since i have purchased the vehicle and eat away into a lot of real estate.
Same here. I also plan to remove last row seats in my Fortuner. Moreover, Toyota's solution for rear row is pathetic to say the least. The way these seats fold away and hung onto sides really restrict the usable space in the boot.

Having a chassis underneath in these body-on-frame SUVs makes the matter further worse (.anshuman has taken out rear seats in his XUV and it has freed up a lot of additional space since the floor is quite low, XUV being a Monocoque).

I have personally loved Montero's rear row for that matter where seats fold away in the floor neatly, leaving you plenty of space to use.
Ace F355 is offline   (1) Thanks Reply With Quote
Old 30th September 2016, 23:47   #63
Senior - BHPian

Join Date: Dec 2007
Location: Dubai
Posts: 3,854
Thanked: 123 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Quote:
Originally Posted by Ace F355 View Post
...I have personally loved Montero's rear row for that matter where seats fold away in the floor neatly, leaving you plenty of space to use.
You can even remove this seat (it is a simple self lock mechanism) and have the space under the floor to store things. I store all my off road gear in that space, leaving the boot floor free and available for any other regular purpose.
HappyWheels is offline   (1) Thanks Reply With Quote
Old 2nd October 2016, 11:12   #64
Distinguished - BHPian

Sheel's Avatar

Join Date: Jul 2006
Location: Purnea(Bihar)
Posts: 5,025
Thanked: 4,455 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Quote:
Originally Posted by ariesonu View Post
Caddy's in my TUV
Could you please post a link of its availability online? Desperately need that.

Tejas, the new polymer sheets are pretty strong. Go with them without a worry in world. I would go with the first design.
Sheel is offline   (1) Thanks Reply With Quote
Old 2nd October 2016, 18:18   #65
Newbie

VishJ's Avatar

Join Date: May 2016
Location: Dindigul
Posts: 23
Thanked: 18 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Wow. What a great way to make the SUV serve it's purpose. Haven't imagined one can transform pajero to this extent. It's really a capable outlander and now also seems like a mini RV. A tasteful mod sir.
VishJ is offline   (1) Thanks Reply With Quote
Old 3rd October 2016, 16:08   #66
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,766 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Last weekend we went for a camping trip.

Before that got the battery serviced.

Mitsubishi Pajero SFX - Project Overland Conversion-battery-service.jpg

At that time, got the antenna cable passed through the firewall by my electrician:

Mitsubishi Pajero SFX - Project Overland Conversion-coax-inserted.jpg

Once home, i fit the socket to the coax cable and soldered the ends:

Mitsubishi Pajero SFX - Project Overland Conversion-coax1.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-coax2.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-coax3.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-coax4.jpg

The boot is still a mess, and i need to get the storage solution sorted:

Mitsubishi Pajero SFX - Project Overland Conversion-boot.jpg


Fit LED lights to the awning. Currently has a waterproof connector bought from ali express. When in use, clip on the connector and attach to a cable running to the cig lighter socket.

The LEDs are waterproof type. 2m for Rs 150 from a local electrical shop at Luharchawl in Mumbai.

I'm waiting for my roof rack. Once that is in place, will do permanent wiring and fit dedicated switches.

Mitsubishi Pajero SFX - Project Overland Conversion-led1.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-led2.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-led3.jpg

The connector:

Name:  Newarrival5Kit2PinWayCarWaterproofElectricalConnectorPlugwithWireAWGMarine.jpg_640x640.jpg
Views: 3570
Size:  56.1 KB

Link to buy:

https://www.aliexpress.com/item/New-...608.0.0.BlqPWK


I currently use my handheld cb radio. Not invested in a fixed setup since the radio is also used in the jeep.

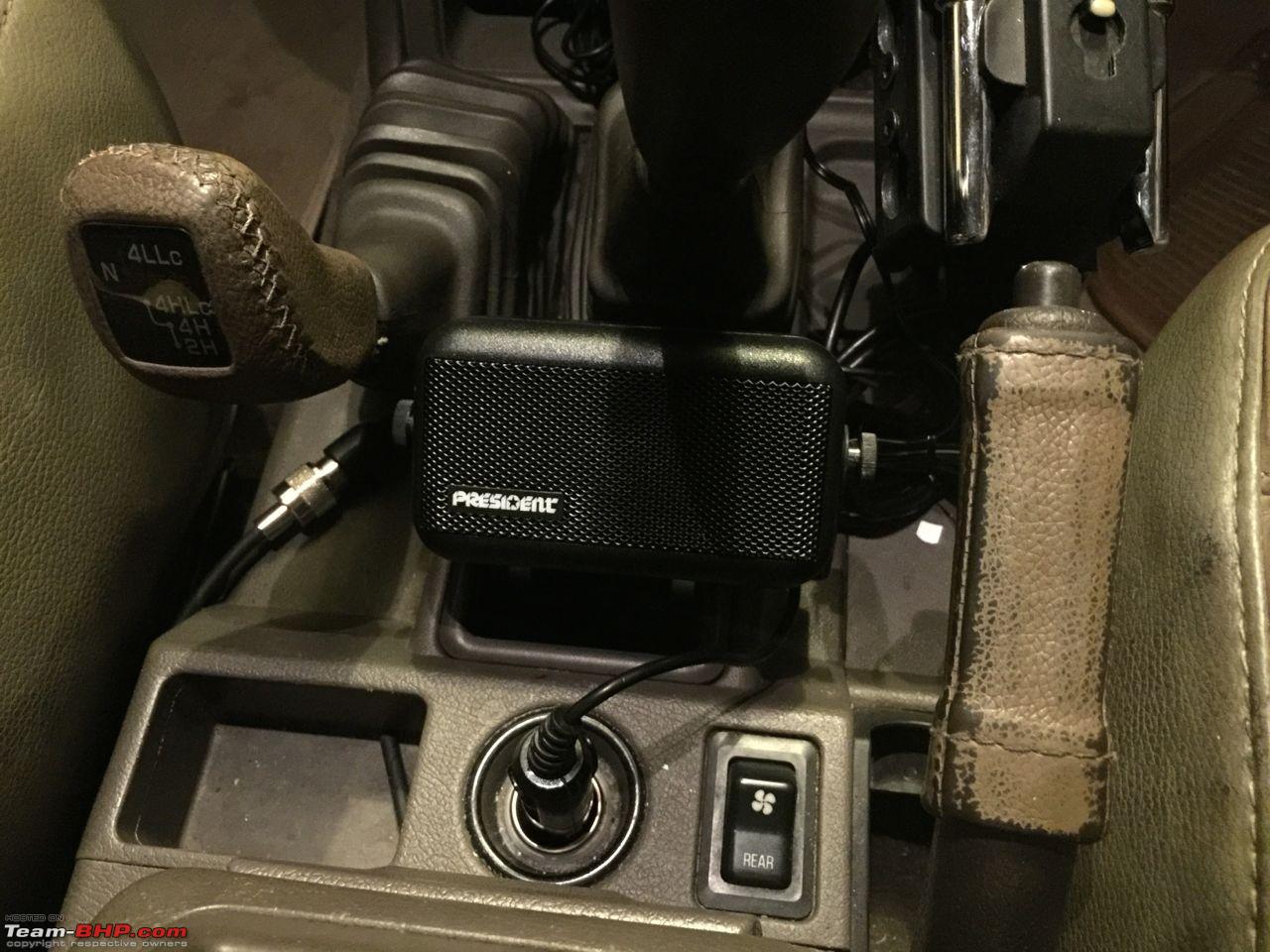

Bought a separate speaker and mic for the handheld. Using a dedicated car adapter for the President Randy II handheld, it converts it to a fixed unit.

The adapter goes to the battery compartment and has 'outs' for an external antenna and continuous power via the cig lighter socket.

The speaker is currently zip tied to the ash tray and the mic is on a magnetic mount to the AC vents. The CB clips to the underside of the gear lock and is out of the way.

Still experimenting with this setup till i find a permanent solution.

Mitsubishi Pajero SFX - Project Overland Conversion-cbmic.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-cbspeaker.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-cb-clipped.jpg

Last edited by Tejas@perioimpl : 3rd October 2016 at 16:12. Reason: corrected typos
Tejas@perioimpl is offline   (7) Thanks Reply With Quote
Old 3rd October 2016, 16:59   #67
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,766 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

A few pics from the camping trip (i'll try to do a detailed write up later on):

Mitsubishi Pajero SFX - Project Overland Conversion-img_7655.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-img_7665.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-img_7672.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-img_7677.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-img_7686.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-img_7697.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-img_7698.jpg

There was a slight issue with radio reception.

I think there is problem with the antenna wiring.

Either my soldering is not perfect or the extra coax cable that i did not cut, but looped around and zip tied is causing interference. Will have to google and figure out. Going to write to the GME company also for advice.
Tejas@perioimpl is offline   (15) Thanks Reply With Quote
Old 5th October 2016, 13:24   #68
Senior - BHPian

ariesonu's Avatar

Join Date: Mar 2010
Location: Bombay
Posts: 1,060
Thanked: 1,197 Times
Infractions: 0/1 (5)
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Quote:
Originally Posted by Sheel View Post
Could you please post a link of its availability online? Desperately need that. .
As requested:
https://www.flipkart.com/accessoreez...9f0650f0243722

http://www.amazon.in/Catchin24-Catch...ords=car+caddy

Just type Car Caddy in both portals and you would get more choices in quality & color.

#Tejas - I would go for this design:
Name:  DSC03749_zps7ff57b98.jpg
Views: 3282
Size:  36.4 KB
1) It does not require mechanical drawer moving mechanism.
2) If you wish to remove the setup - the plastic containers can be easily stored in your Garage (which is already overflowing ) easily.
3) The whole drawer setup would be an additional extra weight.
4) With proper fit selection of plastic/Tin containers you can increase the storage space.
5) If some items require air-tight container, plastic containers are better.

Regards-Sonu

Last edited by ariesonu : 5th October 2016 at 13:26.
ariesonu is offline   (2) Thanks Reply With Quote
Old 7th October 2016, 20:58   #69
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,766 Times
Default Mitsubishi Pajero SFX - Project Overland Conversion

Sometimes it difficult to find time to do work so whenever I am back home early in the evenings, I try to squeeze in a few hours of work on the car.

Today removed the seats and took measurements.

Name:  ImageUploadedByTeamBHP1475853874.999526.jpg
Views: 3176
Size:  350.2 KB

The bolts go back to their place to prevent them from being lost:

Name:  ImageUploadedByTeamBHP1475853917.681486.jpg
Views: 3157
Size:  325.6 KB

I use the Measures app on the iPhone a lot. Very useful.

Attaching the measurements (rough guide and not very exact) so that anyone can use them in the future:

Name:  ImageUploadedByTeamBHP1475854040.314601.jpg
Views: 3146
Size:  335.5 KB

Name:  ImageUploadedByTeamBHP1475854061.720789.jpg
Views: 3128
Size:  239.9 KB

Name:  ImageUploadedByTeamBHP1475854078.620787.jpg
Views: 3129
Size:  318.0 KB

Name:  ImageUploadedByTeamBHP1475854095.668535.jpg
Views: 3117
Size:  275.0 KB

Name:  ImageUploadedByTeamBHP1475854110.923632.jpg
Views: 3105
Size:  318.6 KB
Tejas@perioimpl is offline   (6) Thanks Reply With Quote
Old 8th October 2016, 22:34   #70
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,766 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

I've got a long list of electrical additions to the Pajero.

The pajero does come with blank options - approx 5 but they are spaced out and not together - 2 each on either side of the armrest and one below the music system.

I needed a proper panel to fit switches together.

So the search for positioning a panel started.

The only option available was here. The TPMS was in a temp location and will be relocated and the wiring will be direct:

Mitsubishi Pajero SFX - Project Overland Conversion-1.jpg

To fit the panel, i need to cut out the PAJERO written part.

I tried to remove the centre panel myself (it entails removing everything from the centre box till below the music system), but got stuck at finding one or two bolts.

So took it to a friends garage and his mechanic removed it for me.

Mitsubishi Pajero SFX - Project Overland Conversion-img_7746.jpg

I had taken my tools along so i could cut the slot and have the mechanic fit it back.

This is the positioning:

Mitsubishi Pajero SFX - Project Overland Conversion-2.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-3.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-4.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-5.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-6.jpg


The switches and panel procured from aliexpress.


Using a hack saw i made the straight cuts and using a dremel type tool made the horizontal cut. Filed it smooth:

Mitsubishi Pajero SFX - Project Overland Conversion-8.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-9.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-7.jpg

Switches fit nicely:

Mitsubishi Pajero SFX - Project Overland Conversion-10.jpg

Now the next step is to secure the panel in such a way that it can be removed for wiring. Since i had to remove the top portion in the cut, there was no way to snap fit the panel. The panel only has snap clips on top and bottom but not on the sides.

I had the mechanic fit the fascia and decided to tackle that problem at home.

Last edited by Tejas@perioimpl : 8th October 2016 at 22:35.
Tejas@perioimpl is offline   (8) Thanks Reply With Quote
Old 8th October 2016, 22:56   #71
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,766 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

At home, in the garage, i removed the music system fascia:

Mitsubishi Pajero SFX - Project Overland Conversion-1.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-2.jpg

That left me with easy access to the switch panel.

When the centre fascia was out at the mechanics, i had decided my plan of action. The lower part of the switch would have three small screws placed which would engage the lower half of the fascia as shown by the arrows:

Mitsubishi Pajero SFX - Project Overland Conversion-img_7759.jpg

I had marked the screw position when the fascia was out:

Mitsubishi Pajero SFX - Project Overland Conversion-00.jpg

Using a drill stand, i made the holes and fit the screws:

Mitsubishi Pajero SFX - Project Overland Conversion-3.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-4.jpg

As you notice, the screws are slightly out (not fully tightened). So you put the panel in raise it a bit and lower it so the screws engage the rear part of the fascia and get locked like a clip.

Now to tackle the top part which is more tricky.

The plan is to drill from the top of the panel side ways and engage the inner sides of the fascia as shown by the arrows:

Mitsubishi Pajero SFX - Project Overland Conversion-img_7758.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-img_7757.jpg

For that you have to break the two side clips of the top and drill at an angle through the panel body without damaging the switch.

Use self cutting screws and engage the panel:

Mitsubishi Pajero SFX - Project Overland Conversion-img_7767.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-img_7768.jpg

Now you have to remove the music system as well since you won't have space to tighten the screws. Once it is removed, position the panel, engage the lower screws and start tightening the screws on the sides. The self cutting screws will cut through. You don't need to fully tighten. Just enough to engage:

Mitsubishi Pajero SFX - Project Overland Conversion-img_7769.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-img_7770.jpg

Now fit the music system back. See with the system fit, there is no space to tighten the screws:
Mitsubishi Pajero SFX - Project Overland Conversion-img_7771.jpg

Fit everything back and your panel is ready and looks neat!

Mitsubishi Pajero SFX - Project Overland Conversion-img_7773.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-img_7774.jpg

The wiring is going to be a long process. This is the line diagram to wire a five pin switch:

Name:  IMG_7772.jpg
Views: 2937
Size:  24.3 KB

Mitsubishi Pajero SFX - Project Overland Conversion-screen-shot-20161008-10.16.52-pm.png

Wiring is a story for another day. Will need the help on an electrician for that.

Using a magentic mount, relocated the TPMS screen. I think this will be the final location.

The mount (given my a friend who had a spare). Mount clips onto the side vent:

Mitsubishi Pajero SFX - Project Overland Conversion-img_7776.jpg

Stuck the metal bit to behind the screen with 3M tissue tape (thin double sided incredibly strong tape - from amazon uk).

Had some stickers from aliexpress so stuck a Ralliart one at the bottom of the plain bit:

Mitsubishi Pajero SFX - Project Overland Conversion-sticker.jpg

Mitsubishi Pajero SFX - Project Overland Conversion-mounted.jpg

Ran the wiring from the beading to the cig lighter. Once the electricals are ready to be sorted, will make that direct too. Waiting for some more stuff to arrive from aliexpress.

This panel will be safely stored incase i need something somewhere:

Mitsubishi Pajero SFX - Project Overland Conversion-strip.jpg

Last edited by Tejas@perioimpl : 8th October 2016 at 23:01.
Tejas@perioimpl is offline   (7) Thanks Reply With Quote
Old 8th October 2016, 23:07   #72
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,766 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

The switches explained:

Mitsubishi Pajero SFX - Project Overland Conversion-screen-shot-20161008-11.02.03-pm.png

From left to right:

1. Dual USB charging point with inbuilt volt meter. The centre part gives a volt reading

2. Awning lights - fitting led shown earlier.

3. Interior lights - for the footwell lights as shown earlier.

4. LED Light bar - actually this is a dummy. Here i will have a front camera switch. Already procured a front camera and screen. Very useful while offroading. More on that later. Awaiting camera switch to arrive from China.

5. Roof lights - once the roof rack comes. If i put regular halogens then will use this switch, and if i put a light bar, then will use the LED switch. You can easily remove the top part of the switch and swap.

6. Reverse Lights - work lights to be mounted once roof rack is fit.

7. Driving Lights - for the front KC lights - already installed.

8. Radio - for the handheld radio's direct power adapter.
Tejas@perioimpl is offline   (8) Thanks Reply With Quote
Old 13th October 2016, 19:18   #73
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,766 Times
Default

Murphy Strikes!

Not used the last row of seats since nearly two years. I removed them last week and the extended family decides to go for a trip together. Had to fix one seat back.

Name:  ImageUploadedByTeamBHP1476366370.107127.jpg
Views: 2808
Size:  342.1 KB
Tejas@perioimpl is offline   (6) Thanks Reply With Quote
Old 14th October 2016, 07:40   #74
BHPian

Unavowed_X9's Avatar

Join Date: May 2015
Location: Indeterminate
Posts: 171
Thanked: 192 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

@Tejas@perioimpl.
Have a look at the mod in my Pajero GLX I had earlier made for the same purpose by installing a folding bed. Had long removed it, to be used when necessary, but seemed a good option without the draws.

http://www.team-bhp.com/forum/diy-do...ml#post3730517 (DIY: Sleeping Bed in a Scorpio)

Had even managed to spend some nights on it during travel, and I must say it was mighty comfy owing to the carpeting made.

Last edited by Unavowed_X9 : 14th October 2016 at 07:42.
Unavowed_X9 is online now   Reply With Quote
Old 14th October 2016, 11:20   #75
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 3,947
Thanked: 4,766 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Quote:
Originally Posted by Unavowed_X9 View Post
@Tejas@perioimpl.
Have a look at the mod in my Pajero GLX I had earlier made for the same purpose by installing a folding bed. Had long removed it, to be used when necessary, but seemed a good option without the draws.

http://www.team-bhp.com/forum/diy-do...ml#post3730517 (DIY: Sleeping Bed in a Scorpio)

Had even managed to spend some nights on it during travel, and I must say it was mighty comfy owing to the carpeting made.
I've seen it.

I have a nice Coleman 4 person tent (actually is good for 2) that i use.

Don't have a need for a in-car sleeping option currently.

Thank you
Tejas@perioimpl is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
New Pajero SFX spittingfire 4x4 Vehicles 108 11th December 2015 18:56
Mitsubishi Pajero SFX production to end in 2012 GTO The Indian Car Scene 85 5th September 2015 12:54
Pajero SFX one year on Sawyer Long-Term Ownership Reviews 70 15th October 2012 20:10
Mitsubishi Pajero SFX - Technical Specifications & Feature List Stratos Technical Stuff 3 17th February 2012 12:55


All times are GMT +5.5. The time now is 21:18.

Copyright ©2000 - 2017, Team-BHP.com
Proudly powered by E2E Networks
