Old 15th May 2009, 15:21   #76
BHPian

Alfa_Kilo's Avatar

Join Date: Apr 2007
Location: Jaipur
Posts: 328
Thanked: 8 Times
Default

Quote:
Originally Posted by IronWolf View Post
Alfa - Thats a neat looking offroader. I felt the rubber fenders are not that smooth looking. Just my opinion. Any plans of Fenders 2.0?

How long did the rebuild actually take? Surely not 4-5 months like our other brothers in waiting.

I like the part about the Autorickshaw. You are talking my language.



Yes please. Yes
These fenders are the final version. They tend to polarise opinion. I always take fuction over form. There cannot be any comprimise when one has to battle autos and mettalic maroon Wagon-Rs driven by idiots who like to keep their mirrors folded!
And these fenders will not become a part of the landscape while offroading unlike fiberglass stuff.

I started work on 20th of Jan, the vehicle was drivable in the last week of April.

List of changes/mods:

- Axle ratio: Changed from 4.88 to 5.875
- 0.625" shackle lift
- Diff guards

- Fuel tank relocated under the co-driver's seat
- A 6l feeder tank added

- Rollcage
- 4 point harness and bucket seats
- I had to shorten the rear seats to provide enough legroom in the front. The stock setup was too cramped.
- The rear hood structure was raised as there was insufficient head room at the back. (M&M people seem to derive some sort of sadistic pleasure by designing most of their vehicles with a roof 6 inches too low. Bolero, Armada, 550 etc.)
- Removed the B pillar (thus the doors too) as it is a huge blind spot, makes city driving very inconvenient.

- Added side guards
- Chopped the front mud guards for tyre clearance/ added 'mongrel's ears' rubber fenders
- Relocated indicators and tailamps out of harm's way

- Added a PTO
- Relocated all the breathers
- Snorkel
- Added a transmission parking brake
- Rerouted the exhaust

- sealed (more or less) all the electricals
- 90AH battery
- Larger capacity alt
- Shifted all controls, relays etc. above the windscreen
- Added an 'AC'
etc.

I'll keep an eye out for good 4x4 jeeps, but they are rare.
Alfa_Kilo is offline   Reply With Quote
Old 17th May 2009, 16:48   #77
BHPian

Join Date: Sep 2008
Location: Delhi
Posts: 304
Thanked: 240 Times
Default

@ Alfa - you need to put up a detailed photographic documentation of your steed. Talks just don't do justice. Please.....pretty please.
what's the reason for relocating fuel tank? Did you add a K member to reat tow hook?

cheers
vishwas
vishwaschettri is offline   Reply With Quote
Old 17th May 2009, 22:59   #78
Senior - BHPian

IronWolf's Avatar

Join Date: Jun 2007
Location: Benga-loo-ru
Posts: 1,570
Thanked: 36 Times
Default

Quote:
Originally Posted by Alfa_Kilo View Post
There cannot be any comprimise when one has to battle autos and mettalic maroon Wagon-Rs driven by idiots who like to keep their mirrors folded!
I feel like you are my long lost AutoHating brother. Be strong> dont flinch if they swerve in your way.

Quote:
Originally Posted by Alfa_Kilo View Post

- Fuel tank relocated under the co-driver's seat
- A 6l feeder tank added

- Relocated all the breathers
- Snorkel
- Added a transmission parking brake
- Rerouted the exhaust
- sealed (more or less) all the electricals
- 90AH battery
- Larger capacity alt
- Shifted all controls, relays etc. above the windscreen
- Added an 'AC'
etc.

I'll keep an eye out for good 4x4 jeeps, but they are rare.
Lovely unique mods. Looks like there is lots of deep of water wading planned.

Where is this Snorkel character? Updated pics please.

AC = open jeep with RJ registration? ! - Maybe at night.
IronWolf is offline   Reply With Quote
Old 23rd May 2009, 13:06   #79
BHPian

Join Date: Sep 2008
Location: Delhi
Posts: 304
Thanked: 240 Times
Default

Bump
@ Alfa - Where art thou?

cheers
vishwas
vishwaschettri is offline   Reply With Quote
Old 25th May 2009, 19:13   #80
BHPian

Alfa_Kilo's Avatar

Join Date: Apr 2007
Location: Jaipur
Posts: 328
Thanked: 8 Times
Default

Some videos of a recent solo offroad. Pics will be posted tonight.



I love this sort of terrain


Alfa_Kilo is offline   Reply With Quote
Old 25th May 2009, 22:40   #81
Senior - BHPian

vinod_nookala's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 1,737
Thanked: 410 Times
Default

alfa kilo,
Nice solo off roading man!! You have that off roadin thing in you. I seriously feel that you are limiting the potential of your vehicle by undersized tyres. You have put in so much of effort just upgrade your tyres to 31 inchers. Your jeep will be un-beatable!
I know you will hav to trade in your decent 15 inchers with alloys and may be a loss making proposition for you, but abilities of your jeep is seriously limited now. Go for bigger tyres now if your budget permits.
vinod_nookala is offline   Reply With Quote
Old 25th May 2009, 23:15   #82
BHPian

Alfa_Kilo's Avatar

Join Date: Apr 2007
Location: Jaipur
Posts: 328
Thanked: 8 Times
Default

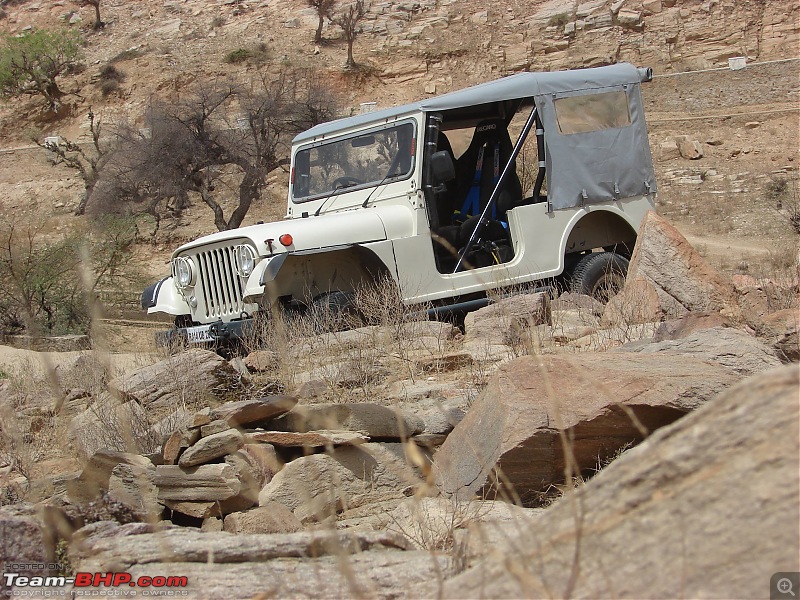

Some photos:

My MM550XD rebuild-dsc04014.jpg

My MM550XD rebuild-dsc04021.jpg

My MM550XD rebuild-dsc04026.jpg

The diff guards paid off beyond here.

My MM550XD rebuild-dsc04034.jpg

My MM550XD rebuild-dsc04038.jpg

My MM550XD rebuild-dsc04046.jpg

My MM550XD rebuild-dsc04050.jpg

My MM550XD rebuild-dsc04074.jpg

My MM550XD rebuild-dsc04077.jpg
Alfa_Kilo is offline   Reply With Quote
Old 25th May 2009, 23:24   #83
BHPian

Alfa_Kilo's Avatar

Join Date: Apr 2007
Location: Jaipur
Posts: 328
Thanked: 8 Times
Default

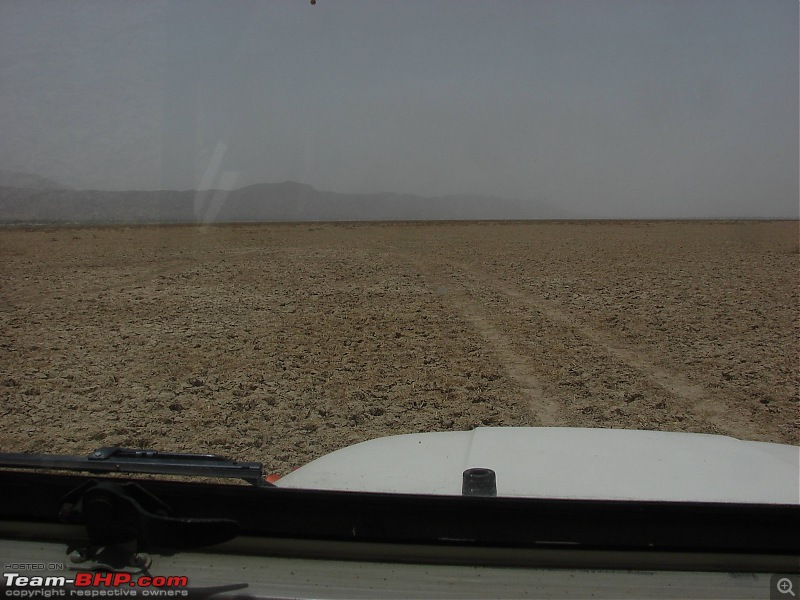

In the heavily potted dry lake, I was driving at ~50km/h observing different bits under vibration when of all things the accelerator pedal broke into two!

My MM550XD rebuild-dsc04080.jpg

My MM550XD rebuild-dsc04082.jpg

My MM550XD rebuild-dsc04087.jpg

My MM550XD rebuild-dsc04089.jpg

My MM550XD rebuild-dsc04093.jpg

Driving on hand throttle:



Detail interior pics to follow soon.

@Vinod

Hi, I have set up the vehicle for taller tyres, these are just a stop gap. They will be replaced as soon as they wear out.
Alfa_Kilo is offline   Reply With Quote
Old 26th May 2009, 16:26   #84
Senior - BHPian

vinod_nookala's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 1,737
Thanked: 410 Times
Default

Super pics alfa kio. Driving with one hand was funny
vinod_nookala is offline   Reply With Quote
Old 26th May 2009, 19:05   #85
Distinguished - BHPian

4x4addict's Avatar

Join Date: Nov 2007
Location: Chennai
Posts: 3,889
Thanked: 2,303 Times
Default

I had the same issue of the accelerator pedal breaking in the middle of chennai traffic !!. I drove with my hand as well. You can get a really heavy duty unit from the Bolero/Pick up. It needs some modification of the holes on the firewall but a huge improvement over the stock unit.
4x4addict is offline   Reply With Quote
Old 26th May 2009, 22:45   #86
BHPian

Join Date: Sep 2008
Location: Delhi
Posts: 304
Thanked: 240 Times
Default

@ Alfa - great machine. Keep the pics coming. I'm really interested in that cockpit type top electrical control panel. Also why did you relocate fuel tank?

cheers
vishwas
vishwaschettri is offline   Reply With Quote
Old 27th May 2009, 01:07   #87
BHPian

Alfa_Kilo's Avatar

Join Date: Apr 2007
Location: Jaipur
Posts: 328
Thanked: 8 Times
Default

Quote:
Originally Posted by 4x4addict View Post
I had the same issue of the accelerator pedal breaking in the middle of chennai traffic !!. I drove with my hand as well. You can get a really heavy duty unit from the Bolero/Pick up. It needs some modification of the holes on the firewall but a huge improvement over the stock unit.
Done exactly that! Now heel and toe possible.

Quote:
Originally Posted by vishwaschettri View Post
@ Alfa - great machine. Keep the pics coming. I'm really interested in that cockpit type top electrical control panel. Also why did you relocate fuel tank?

cheers
vishwas
Because it is prone to damage in its orignal location.
Alfa_Kilo is offline   Reply With Quote
Old 27th May 2009, 09:28   #88
BHPian

motocamp's Avatar

Join Date: Jul 2008
Location: pune
Posts: 456
Thanked: 99 Times
Default

Wow cant wait for the monsoon to start and get back into my jeep for some mud plugging!!
motocamp is offline   Reply With Quote
Old 27th May 2009, 13:07   #89
Senior - BHPian

harjeev's Avatar

Join Date: May 2006
Location: New Delhi
Posts: 1,896
Thanked: 256 Times
Default

Great work alfa.
What did you do to fix the accelerator cable???
harjeev is offline   Reply With Quote
Old 16th July 2012, 13:01   #90
BHPian

Join Date: Jul 2010
Location: JAIPUR
Posts: 27
Thanked: 17 Times
Default Re: My MM550XD rebuild

Hi AK, a very nice looking jeep. Though I know I am a bit late in congratulating you but I came across this thread only today. I am also from jaipur & would love to visit your workshop if you could give me your address. My membership status does not permit me using the personal mail option
BLACK1 is offline   Reply With Quote
