The Isuzu 4jg2 engine shares the clutch cover assembly, clutch plates, release bearing, UJ star and water pump of the Tavera.
The oil filter is the same as used in the Lancer Diesel.
I will update on parts as and when I find out what locally available parts can be used on the ISUZU 4JG2.
jyobeb is offline   Reply With Quote
Old 23rd November 2010, 15:56   #227
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default

A few pics! Still WIP.
Attached Thumbnails
My MM550-4jg2-engine-being-lowered.jpg

My MM550-checking-clearance-issues.jpg

My MM550-egr-exhaust-side-blocked-up..jpg

My MM550-egr-inlet-side-blocked.jpg

jyobeb is offline   Reply With Quote
Old 26th November 2010, 19:53   #228
Senior - BHPian

joshguy's Avatar

Join Date: Mar 2006
Location: Chennai
Posts: 1,358
Thanked: 88 Times
Default

jyobeb fantastic job on the 540 !

i takes lot of patience to do mods and you are one person doing mods for the past 1&1/2 years continuously. Great !

Update on WIP please
joshguy is offline   Reply With Quote
Old 10th February 2011, 10:15   #229
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default Re: My MM550

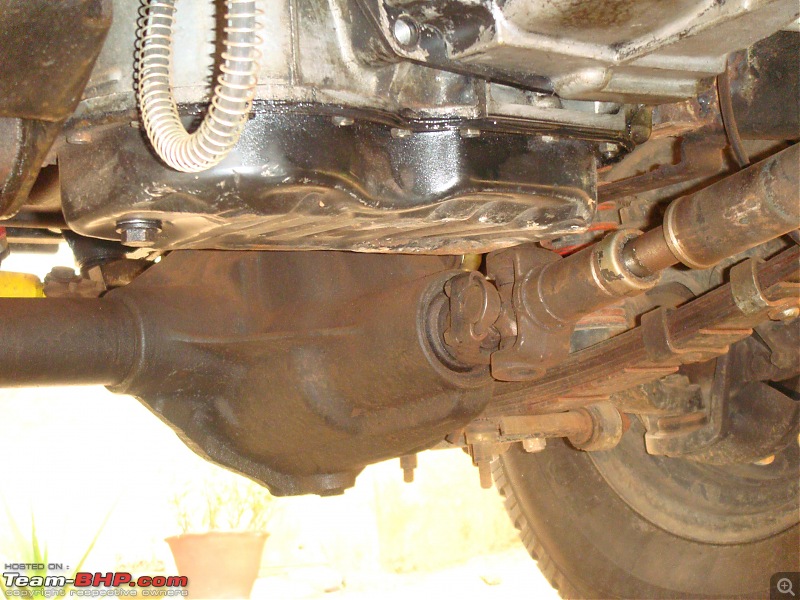

I decided to fit an on-board compressor using an ac compressor. Its working great and I still need to fabricate an on-board airtank. I have completed the air tubing with an on-line oiler and a drier. Some pics.
Attached Thumbnails
My MM550-dsc03307.jpg

My MM550-dsc03308.jpg

My MM550-img_0012.jpg

My MM550-dsc03309.jpg

My MM550-dsc03313.jpg

My MM550-dsc03324.jpg

My MM550-dsc03330.jpg

My MM550-dsc03345.jpg

My MM550-dsc03340.jpg

jyobeb is offline   Reply With Quote
Old 10th February 2011, 11:02   #230
Senior - BHPian

ex670c's Avatar

Join Date: Nov 2004
Location: Chennai
Posts: 2,454
Thanked: 1,789 Times
Default Re: My MM550

Quote:
Originally Posted by jyobeb View Post
I decided to fit an on-board compressor using an ac compressor. Its working great and I still need to fabricate an on-board airtank. I have completed the air tubing with an on-line oiler and a drier. Some pics.
Hi Beboy,

Please put your Front Prop-Shaft the other way around.

Spline Yoke to the T-Case.

Regards,

Arka
ex670c is offline   Reply With Quote
Old 10th February 2011, 11:18   #231
BHPian

Join Date: Jul 2005
Location: mumbai
Posts: 731
Thanked: 53 Times
Default Re: My MM550

put ur front propellor shaft ulta

edit: just seen, arka sir has already brought that to your notice


whats your clearances between the sump and front diff

Last edited by xtreme power : 10th February 2011 at 11:19.
xtreme power is offline   Reply With Quote
Old 10th February 2011, 18:51   #232
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default Re: My MM550

Thanks Arka, Allen, will do! The clearance between diff and sump is 5 inches and more.
jyobeb is offline   Reply With Quote
Old 19th February 2011, 08:34   #233
Senior - BHPian

headers's Avatar

Join Date: May 2006
Location: Greater Chennai
Posts: 4,548
Thanked: 424 Times
Default Re: My MM550

Hey Beboy, Long time, whats the update on your machine?

Why the change from Scorpio engine to Isuzu?
headers is offline   Reply With Quote
Old 19th February 2011, 14:48   #234
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default Re: My MM550

The scorpio engine had major clearance issues and was really heavy.
jyobeb is offline   Reply With Quote
Old 19th February 2011, 15:03   #235
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,653
Thanked: 679 Times
Default Re: My MM550

@Jyobeb, do you have any pics ^^ of the same? What were the clearances?

Spike
SPIKE ARRESTOR is offline   Reply With Quote
Old 20th February 2011, 00:39   #236
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default Re: My MM550

I think I may be able to find some pics! The clearance between the front prop shaft and the crankcase was about 1/2 inch and between the front diff pumpkin and power steering pump was about 2.5 inches. Not enough to off-road on!
jyobeb is offline   Reply With Quote
Old 20th February 2011, 09:48   #237
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,653
Thanked: 679 Times
Default Re: My MM550

^^ @Jyobeb, you have hit the nail on the head, any other way of creating clearances in this set up? Ideally, how much clearances are preferred (considering real world usage)?

Spike
SPIKE ARRESTOR is offline   Reply With Quote
Old 20th February 2011, 10:03   #238
BANNED

Join Date: Nov 2006
Location: London
Posts: 5,012
Thanked: 147 Times
Default Re: My MM550

Quote:
Originally Posted by SPIKE ARRESTOR View Post
^^ @Jyobeb, you have hit the nail on the head, any other way of creating clearances in this set up? Ideally, how much clearances are preferred (considering real world usage)?

Spike
It is really funny to see you asking the questions when you already know the answers you know!! Makes fantastic entertainment material!!

Anyways, @Jyobeb, What wheels are those on the car??
Cyrus43 is offline   Reply With Quote
Old 20th February 2011, 10:13   #239
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default Re: My MM550

I initially was running on an SPOA setup with absolutely no clearance issues. However, that setup was really scary on the highways at speeds that the Scorpio engine was capable of.
In the interests of comfortable everyday driving, I lowered the jeep to a regular SUA, where all clearances went for a toss!!
In my personal opinion, for real world use with some off-roading involved, the front prop should ideally have about 1.5 inches gap between the engine and itself. Between any part of the engine setup to the pumpkin, the clearance should should be at least 5 inches.
@Cyrus43 - Regular army rims.

Last edited by jyobeb : 20th February 2011 at 10:14.
jyobeb is offline   Reply With Quote
Old 20th February 2011, 10:39   #240
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,653
Thanked: 679 Times
Default Re: My MM550

Quote:
Originally Posted by Cyrus43 View Post
It is really funny to see you asking the questions when you already know the answers you know!! Makes fantastic entertainment material!!
Cyrus, you are Spot on! I know the answers, I want that people also must know the reason behind; hence this prompting.

Quote:
Originally Posted by jyobeb View Post
I initially was running on an SPOA setup with ------ Between any part of the engine setup to the pumpkin, the clearance should should be at least 5 inches.
@Jyobeb, you have nailed the coffin, I have nothing more to say. My intention of asking this was only because you are a genuine user who must be having first hand experience of both the setups. By this post you have summarized whatever I had in my mind. You are a good "Product Engineer" material.

Spike
SPIKE ARRESTOR is offline   Reply With Quote
