I last sat for hours on end in a workshop, sipping Chai and eating Vadas about 6 years ago, when I bought a Govt. CJ3B in pathetic condition and did up the whole thing with an Isuzu petrol engine and an Isuzu 4wd gearbox. Not content, I went on to add power assisted disc brakes and power steering and bucket seats etc.
I then proceed to get sick of it and sold it for a grand sum of 1.2 lakhs.
After listening to all the young and crazy folks at T-BHP, the bug bit me again and I started looking for a jeep. The CJ3B was not my scene anymore as the inherent drawbacks inside the city and on the highways put me off. Not to mention that owning a 4X4 safari with 130 bhp had made me quite soft!!!
Well then I came across an ex-army MM550, in relatively good shape and with a newly worked on engine and most importantly clear and correct papers. I proceeded to pick up this jeep for a pretty high sum of 180K.
I drove it for about a week(sorry no pics) and then decided that if I wanted to make this a daily driver, I needed to spruce it up. I decided to remove the body and replace all the mounting bed bushes and check the chassis for cracks and also to paint it.
While that was happening I decided to replace the engine with an XD2S, a peugeot 2.3L turbo diesel with 80 bhp on tap. I also picked up an Armada Grand BA10/5 gearbox with an electric shift transfer case. I removed the electric shift transfer case and replaced it with a Borg warner manual shift transfer case.
This mod made it mandatory for me to replace the rear diff (semi floating with the crown on the right) to a full floating commander unit with a centered crown. I replaced the limited slip diff from the 550 onto the commander unit.

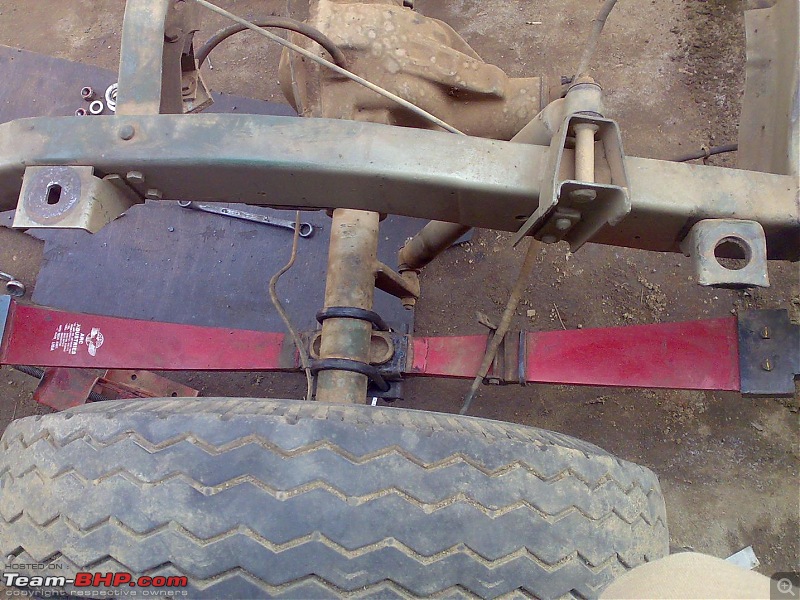

I then decided to try out a pair of fibre glass spring plates and replaced the perch and mounting bracket to that from the Bolero. These look good and have a better rocking motion while stationery. The supplier asked me to try my best to break them.
I then decided to procure a power steering unit for the Bolero and while I was doing that decided to replace my seats with a pair of leather electric seats as I got them cheap!!! I also decided to go for the plain sheet metal dashboard to go back to the plane Jane looks. I also decided to aircondition the jeep.
I went ahead a got myself a set of 5 NANKANG tyres which were the same size as the 7.50X16 sandgrips, namely the FORTA FT7 23585R16 tyres.

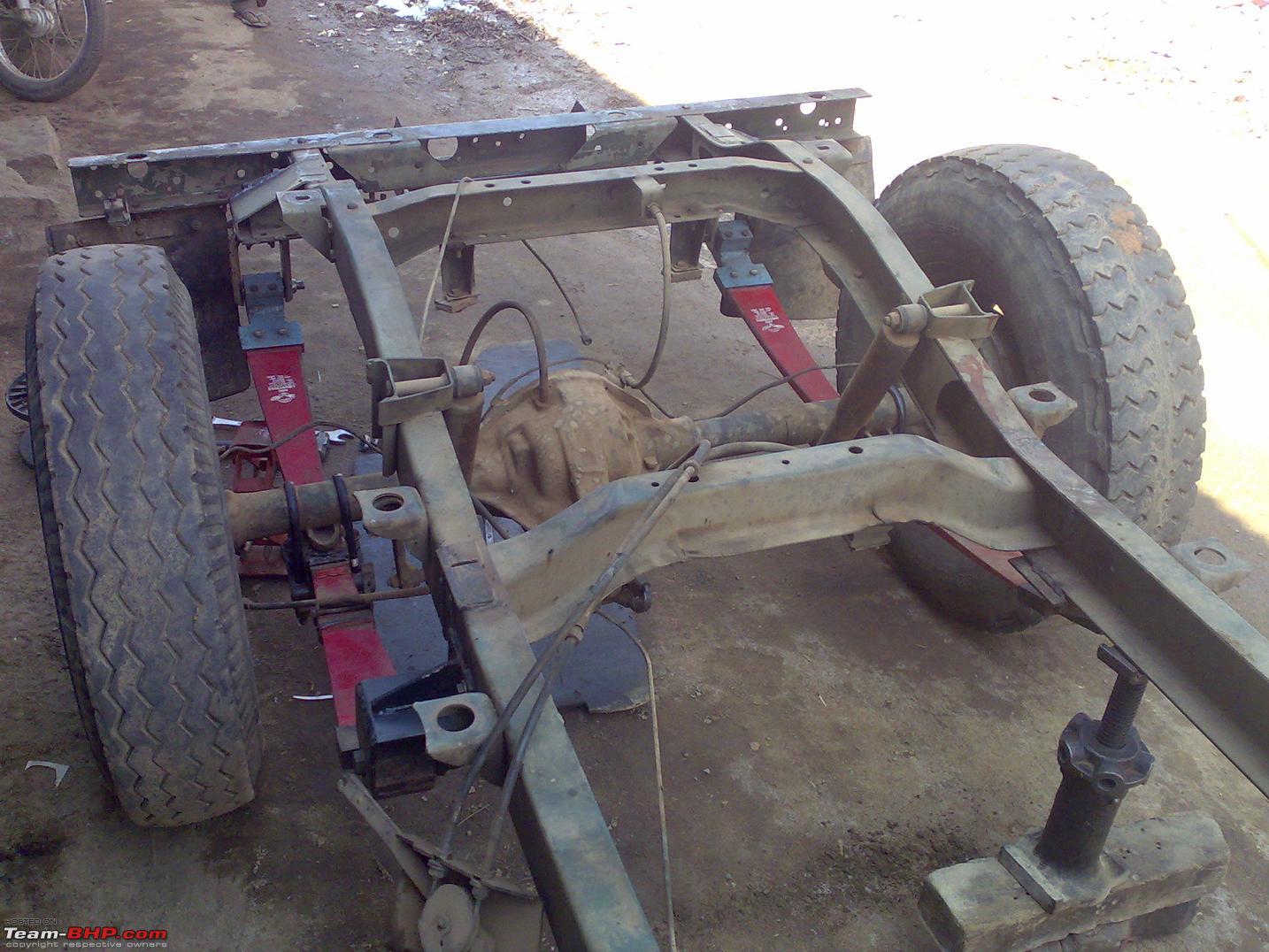

The status of my jeep now is that the chassis has been stripped, re-inforced, painted with quality polyurethane paint and fitted with fibre spring in the rear.
The body is being worked upon and the dashboard and fire walls are being made ready.
Hopefull the engine and gearbox will go in this week.

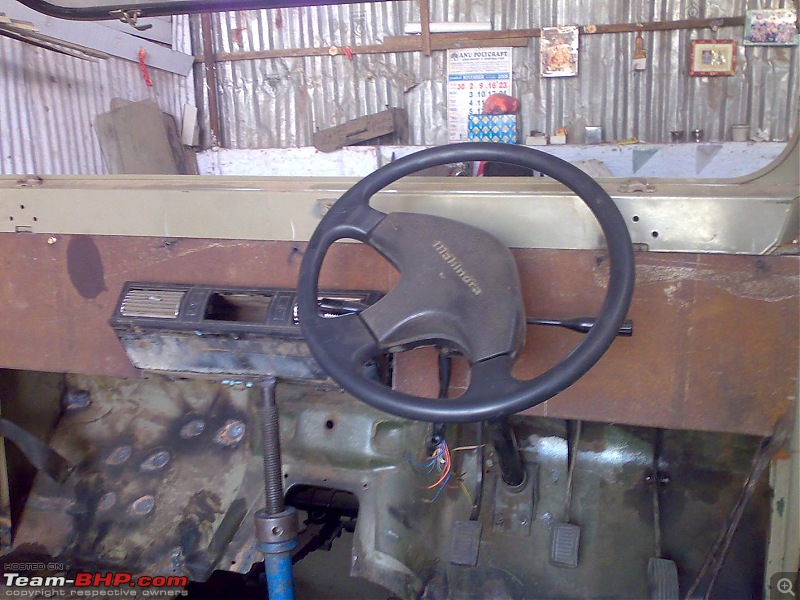

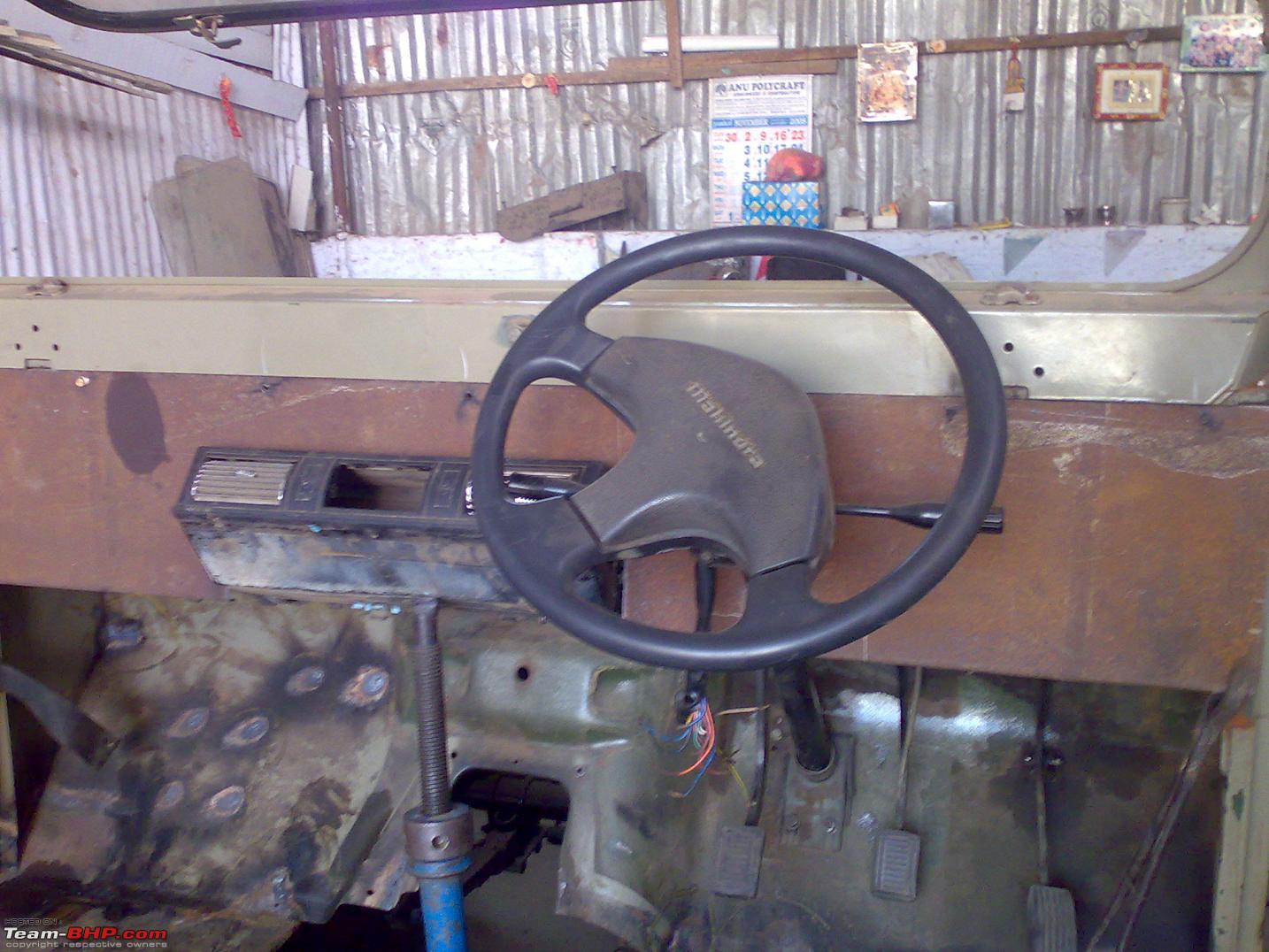

Some pics, enjoy
Attached Thumbnails
My MM550-20022009313.jpg

My MM550-20022009314.jpg

My MM550-28022009323.jpg

My MM550-28022009325.jpg

My MM550-dsc03600.jpg

My MM550-dsc03608.jpg

My MM550-dsc03611.jpg

My MM550-dsc03613.jpg

My MM550-dsc03621.jpg

My MM550-dsc03629.jpg


Last edited by jyobeb : 2nd March 2009 at 23:14.
jyobeb is offline   Reply With Quote
Old 2nd March 2009, 23:15   #2
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default

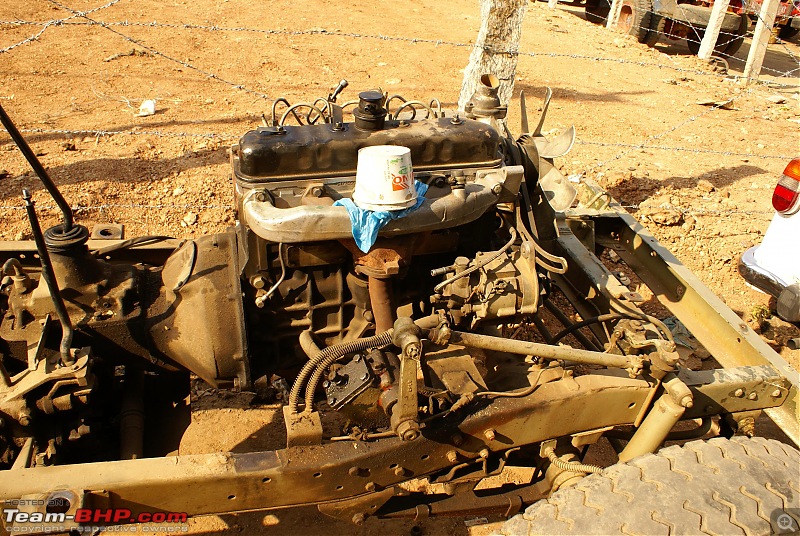

Some more pictures of work in progress.
