cool my friend.. you really have some interesting things here. looking forward for more pics of your progress. congrats for your work
crazyjeeperk is offline   Reply With Quote
Old 8th July 2010, 19:12   #32
Senior - BHPian

Join Date: Jul 2004
Location: Madurai
Posts: 1,007
Thanked: 643 Times
Default

Nicely documented. Good going friend!
Another thing I forgot to tell you is that the oil filter will foul with the steering link rod. You will have to use a smaller filter (Isuzu).
jyobeb is offline   Reply With Quote
Old 8th July 2010, 20:14   #33
BHPian

Jassy1313's Avatar

Join Date: Feb 2007
Location: Mumbai
Posts: 278
Thanked: 55 Times
Default

Impressive but if you are going with such an engine then why so simple mod?
May be you will land up doing something really amazing, but still try something different..
BY THE WAY IS THIS FOR YOUR OWN OR CUSTOMER'S DEMAND?
Jassy1313 is offline   Reply With Quote
Old 8th July 2010, 21:15   #34
Senior - BHPian

Ricky_63's Avatar

Join Date: Dec 2006
Location: Gurgaon
Posts: 3,837
Thanked: 354 Times
Default

Reading about all these nice (wonderful is more apt) builds, gets me all worked up & I WANT to own one such off road monster.

Being totally unaware of this side of the automotive world, may I ask what a 550 with a Scorpio Engine & the works cost ??

Very interesting thread !! All the best for your build



Cheers
Ricky_63 is online now   Reply With Quote
Old 8th July 2010, 23:03   #35
Senior - BHPian

1100D's Avatar

Join Date: Jun 2006
Location: Calcutta
Posts: 4,141
Thanked: 2,243 Times
Default

Are the BA10 and the NGT 530 equal in length? From pictures though, it does not appear so.
1100D is online now   Reply With Quote
Old 9th July 2010, 11:59   #36
BHPian

randeep04's Avatar

Join Date: Nov 2008
Location: Gurgaon
Posts: 629
Thanked: 15 Times
Default

Hey Allan, Great going man. Another amazing Jeep project from your side.
Looking forward to the finished product.

Cheers !!!

Randeep
randeep04 is offline   Reply With Quote
Old 9th July 2010, 12:21   #37
BHPian

sreerajunnithan's Avatar

Join Date: Jun 2006
Location: Banagalore
Posts: 445
Thanked: 5 Times
Default

Allan, i don't know if you realized, but you hit a jackpot with that Borg Warner Manual TC. Now you can have OEM Fully floating rear axle from Bolero without tampering your prop shaft angle!!!! Same goes for front axle also. How did you source it? You are second one who has this TC after Jyobeb!!! All MWB Jeeps are handicaped for a FFRA only because of that offset rear differential (Unless you do some modifications).

Thanks
--Sree--
sreerajunnithan is offline   Reply With Quote
Old 9th July 2010, 12:47   #38
BHPian

Join Date: Jul 2005
Location: mumbai
Posts: 731
Thanked: 53 Times
Default

sree,
most of our fully floating rear axles comes with 19 spline
diff locks for this is very difficult to source

i might retain the semi floating axle for now but get the diff shifted to the left offcentre as compared to where it is now(right)
i have a 30 spline difflock lying, and im dying to use it

sourced these throught a lot of finding and calls

Last edited by xtreme power : 9th July 2010 at 12:48.
xtreme power is offline   Reply With Quote
Old 9th July 2010, 14:34   #39
BHPian

sreerajunnithan's Avatar

Join Date: Jun 2006
Location: Banagalore
Posts: 445
Thanked: 5 Times
Default

Quote:
Originally Posted by xtreme power View Post
sree,
most of our fully floating rear axles comes with 19 spline
diff locks for this is very difficult to source

i might retain the semi floating axle for now but get the diff shifted to the left offcentre as compared to where it is now(right)
i have a 30 spline difflock lying, and im dying to use it

sourced these throught a lot of finding and calls
Allan if you are talking about Manual Diff lock like Gurkha, i agree with your point. I am really skeptical about lockers in semi floating axels. Considering you have a military axle, it should be better, i heard they are much stronger than Civilian ones.

Second point, instead of shifting your diff to left, why don't you use a T-18 transfer case (I know its old tech)? I have a T-18 mated to BA-10 in my Jeep.

Thanks
--Sree--

Last edited by sreerajunnithan : 9th July 2010 at 14:36.
sreerajunnithan is offline   Reply With Quote
Old 9th July 2010, 15:15   #40
Senior - BHPian

Red Liner's Avatar

Join Date: Aug 2006
Location: Bangalore
Posts: 1,990
Thanked: 653 Times
Default

Quote:
Originally Posted by sreerajunnithan View Post

Second point, instead of shifting your diff to left, why don't you use a T-18 transfer case (I know its old tech)? I have a T-18 mated to BA-10 in my Jeep.

Thanks
--Sree--
And to further clarify, Sree's jeep is a MM550 (like yours).
Red Liner is online now   Reply With Quote
Old 10th July 2010, 20:28   #41
BHPian

Join Date: Jul 2005
Location: mumbai
Posts: 731
Thanked: 53 Times
Default

well the borgwarner is imho a better transfer case,

i just removed the axles and differential from the right offset 550,
also purchased the left offset diff housing
shall assemble this tomorow

since im doing all this hands on, i must im super excited
shall post pics later tonight
xtreme power is offline   Reply With Quote
Old 11th July 2010, 17:46   #42
Senior - BHPian

joshguy's Avatar

Join Date: Mar 2006
Location: Chennai
Posts: 1,358
Thanked: 88 Times
Smile Rear Disc Brakes

Hi Allan,Great Going

Why dont you come out with a rear disc brake (all 4 disc) version in this one??

Should be possible right?
joshguy is offline   Reply With Quote
Old 11th July 2010, 21:42   #43
BHPian

Join Date: Jul 2005
Location: mumbai
Posts: 731
Thanked: 53 Times
Default

left offset differential is ready
only left to fit in the axles
pictures tomorrow when i get some free time
cant believe i worked on a sunday
thanks arka for the unintentional push
xtreme power is offline   Reply With Quote
Old 12th July 2010, 17:44   #44
BHPian

Join Date: Jul 2005
Location: mumbai
Posts: 731
Thanked: 53 Times
Default

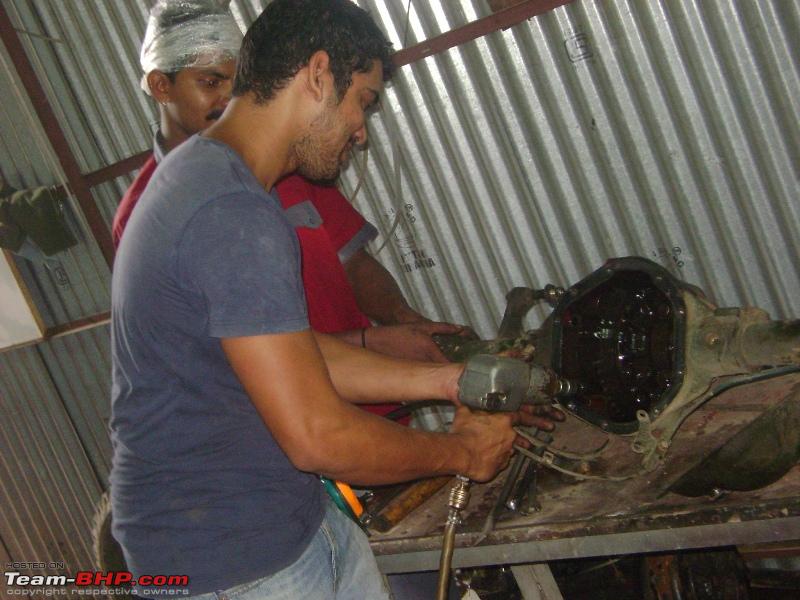

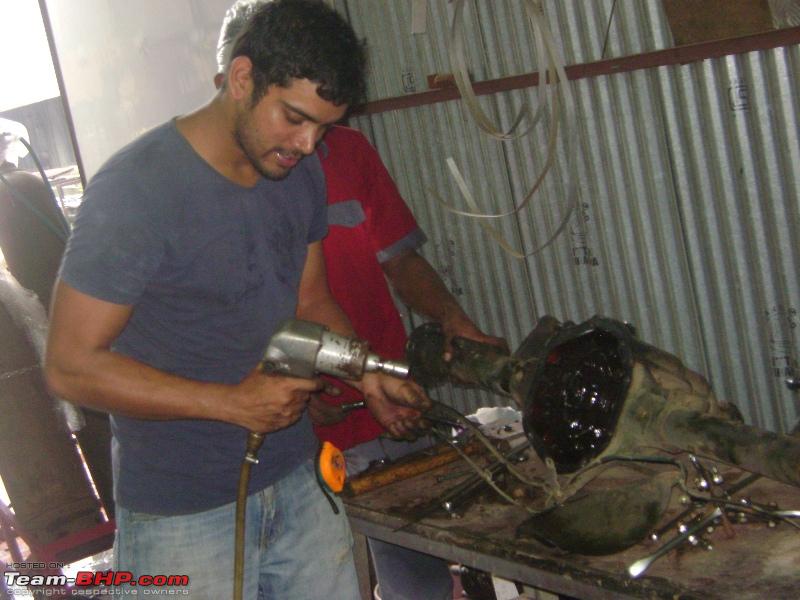

the old diff orientation of the 550
Name:  Picture 012.jpg
Views: 4463
Size:  235.6 KB
Name:  Picture 013.jpg
Views: 4420
Size:  258.0 KB

the 550 differential removal along with the axles
Attached Images

xtreme power is offline   Reply With Quote
Old 12th July 2010, 17:45   #45
BHPian

Join Date: Jul 2005
Location: mumbai
Posts: 731
Thanked: 53 Times
Default

the two diff housings
550 and 2wd 540 with the axles
Name:  Picture 038.jpg
Views: 3784
Size:  255.8 KB
Name:  Picture 039.jpg
Views: 3837
Size:  237.8 KB

the assembly into the 540 diff

Name:  Picture 042.jpg
Views: 3767
Size:  256.6 KB

Name:  Picture 043.jpg
Views: 3782
Size:  225.4 KB

Name:  Picture 045.jpg
Views: 3654
Size:  221.3 KB

Name:  Picture 046.jpg
Views: 3621
Size:  206.3 KB

Name:  Picture 048.jpg
Views: 3589
Size:  217.5 KB

Name:  Picture 051.jpg
Views: 3587
Size:  221.1 KB

Name:  Picture 056.jpg
Views: 3550
Size:  248.5 KB

Name:  Picture 057.jpg
Views: 3485
Size:  266.5 KB

Name:  Picture 058.jpg
Views: 3475
Size:  263.3 KB

Name:  Picture 060.jpg
Views: 3422
Size:  233.7 KB

Name:  Picture 062.jpg
Views: 3445
Size:  247.0 KB

the new orientation

Name:  Picture 063.jpg
Views: 3363
Size:  248.9 KB

Name:  Picture 064.jpg
Views: 3323
Size:  248.7 KB

Last edited by xtreme power : 12th July 2010 at 17:50.
xtreme power is offline   Reply With Quote
