Default LBM makes a Subwoofer!

Hello guys. Everyone know that I love bass and that to lots and lots of it. Have been doing install since childhood. Used to make amplifiers in tiffin boxes and walkman as playback source and Bolton Speakers. I Used to love that sound !! Time passed and the passion grow and crave for more bass and more bass increased. Then came the time I joined this car audio industry I would Sincerely like to thanks Ajay Kamath aka Bass&Trouble. I really enjoyed that part, but due to some constraints I had to push a little back.

Now just as a enthusiast I started installing the equipment in my ride. Did few installs which were the one of a kind in whole of in India. I was first one to do a hair trick here is a vid of the same..



Anyways I dismantled my earlier ride but again made another ride. Here is a vid of the same. Again first wall install in India.



Broke my ride windshield



Anyways that's lots of stories, In my back of my mind I wanted to do something different. So I planned to make a Sub myself.

Here are a few pics of the same..

Machine done of the motor.
LBM makes a Subwoofer!-20130329_163818-large.jpg

Assemblyof the motor to be done
LBM makes a Subwoofer!-20130329_194821-large.jpg

Motor complete and magnetized
LBM makes a Subwoofer!-20130330_152921-large.jpg

Mockup of the sub
LBM makes a Subwoofer!-20130330_174434-large.jpg

Voice Coil winded
LBM makes a Subwoofer!-20130330_212643-large.jpg

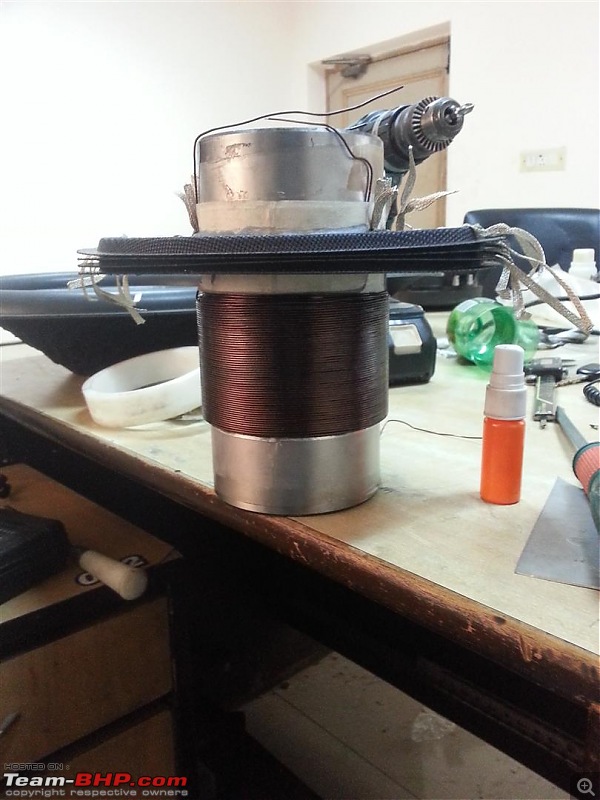

Assemblyof spider on former with voice coil
LBM makes a Subwoofer!-20130331_142734-large.jpg

The complete set of soft parts
LBM makes a Subwoofer!-20130331_154408-large.jpg

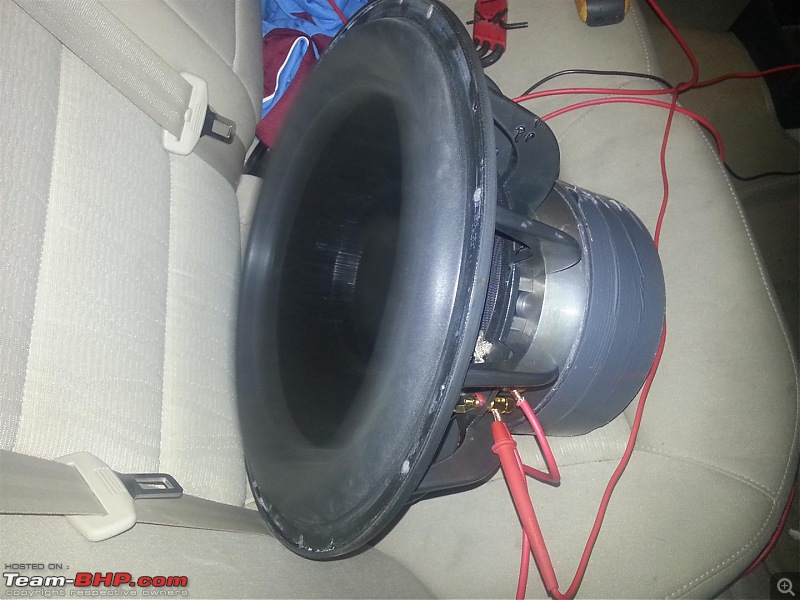

Run-in at the car back seat.
LBM makes a Subwoofer!-20130401_184310-large.jpg


The sub at low power (100-200 rms) was played for few hrs before the final testing can be done. But as soon after installing it a enclosure and with just 1000 rms the sub broke before completing one song

Anyways there is not always success in first try. I made few changes in the materials and adhesives and vola the second one played for 15 mins !!!! But this time I measured the output of the same with the few top notch subs in the market will post the details of the same in my next post.
