Old 28th July 2015, 04:42   #31
Team-BHP Support

Gannu_1's Avatar

Join Date: Apr 2013
Location: Madras
Posts: 4,867
Thanked: 9,701 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Quote:
Originally Posted by adityan27 View Post
Why did you need VCDS coding then? Because the 9W7 needs it and not the 9W2?
Sorry I'm asking so many questions, just want to get my facts straight.
You dont have to be but I would appreciate if you take time to go through what has been posted to avoid repetitive responses. I had already mentioned why VCDS is required in the previous post:

Quote:
However, VCDS is required to add Telephone to the installation list so it shows up on the MFD.
Gannu_1 is offline   (1) Thanks Reply With Quote
Old 28th July 2015, 04:53   #32
Newbie

Join Date: Mar 2014
Location: Pune
Posts: 17
Thanked: 3 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Quote:
Originally Posted by Gannu_1 View Post
You dont have to be but I would appreciate if you take time to go through what has been posted to avoid repetitive responses. I had already mentioned why VCDS is required in the previous post:
Hey I did go through this and hence asked. I thought it's necessary for the 9W7 module only and not for the 9W2. Wanted to make sure if buying the VCDS software is really needed. I'm already stretching my budget a lot
I definitely want my phone to integrate with the HU. I use it for handsfree calling all the time.
adityan27 is offline   Reply With Quote
Old 28th July 2015, 23:40   #33
Newbie

Join Date: Mar 2014
Location: Pune
Posts: 17
Thanked: 3 Times
Default Re: BT update post

Quote:
Originally Posted by Gannu_1 View Post
However, VCDS is required to add Telephone to the installation list so it shows up on the MFD.
One last question, VCDS is required only for MFD integration right? Not for RCD 510? This will clear all my doubts
adityan27 is offline   Reply With Quote
Old 29th July 2015, 16:02   #34
BHPian

lalittalwar's Avatar

Join Date: Jul 2014
Location: Gurgaon
Posts: 239
Thanked: 147 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Hey Gannu,

Would need your expertise with something. I ordered the RCD 510 and Bluetooth 9w2, but with the type 1 connector (with bare cables), not the plug n play . I was hoping your thread would provide the solution.

thanks

Last edited by lalittalwar : 29th July 2015 at 16:03. Reason: correction
lalittalwar is offline   Reply With Quote
Old 30th July 2015, 14:24   #35
Team-BHP Support

Gannu_1's Avatar

Join Date: Apr 2013
Location: Madras
Posts: 4,867
Thanked: 9,701 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Quote:
Originally Posted by lalittalwar View Post
Hey Gannu,

Would need your expertise with something. I ordered the RCD 510 and Bluetooth 9w2, but with the type 1 connector (with bare cables), not the plug n play . I was hoping your thread would provide the solution.

thanks
1. Insert the green female connector into the empty slot of the Quadlock connector like this:

Name:  S7kfTl.jpg
Views: 2992
Size:  39.2 KB

2. You will need to tap the +12V, GND, CAN + and CAN - cables from the Quadlock to the ISO connector using Scotchlok connectors OR solder them and use heatshrink tubing over them to insulate the joints properly.

This is the scheme:

VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation-wp_20150702_11_21_00_pro.png

These are Scotchlok connectors:

Name:  41WttNxCnmL._SY300_.jpg
Views: 2748
Size:  11.4 KB

Don't tap into any of the stock cables.
Gannu_1 is offline   (1) Thanks Reply With Quote
Old 6th August 2015, 15:07   #36
BHPian

Crazy_Bean's Avatar

Join Date: May 2014
Location: Gurgaon
Posts: 351
Thanked: 196 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

HI Gannu, Apologies if I missed this.

I have a Bosch RCD 510 on my Passat. I was planning to get a Bluetooth kit. I understand that 9W7 is ideal for the Bosch unit; but will 9W2 be compatible. I want to choose it coz its cheaper and I only need it for basic calling and bluetooth streaming.
please advise.
Crazy_Bean is online now   Reply With Quote
Old 6th August 2015, 15:17   #37
Team-BHP Support

Gannu_1's Avatar

Join Date: Apr 2013
Location: Madras
Posts: 4,867
Thanked: 9,701 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Quote:
Originally Posted by Crazy_Bean View Post
HI Gannu, Apologies if I missed this.

I have a Bosch RCD 510 on my Passat. I was planning to get a Bluetooth kit. I understand that 9W7 is ideal for the Bosch unit; but will 9W2 be compatible. I want to choose it coz its cheaper and I only need it for basic calling and bluetooth streaming.
please advise.
Yes, the HU will be compatible with both the systems but I suggest you spend a bit more and get the 9W7 unit (check for the eBay seller atom 960 from Poland; the pricing is very very good) since you have the Bosch HU which will display the contacts/phonebook/dialpad on the touchscreen and the cluster capable of displaying the additional information. A friend had used the 9W2 unit recently and complained due to the features missing from it.

While you're at it, best to get the plug-n-play harness.
Gannu_1 is offline   Reply With Quote
Old 6th October 2015, 16:50   #38
BHPian

exhaustpipe's Avatar

Join Date: Jan 2012
Location: New Delhi
Posts: 41
Thanked: 10 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Hi Gannu

Excellent work on your car. I read most of the thread and you are an expert at VCDS and VW systems.

I was wondering if you could shed some light on a question I have regarding my Passat B7 2011 model (current Indian one).

I have the RCD 510 stereo and a 9w7 Bluetooth module. Now from what I've read online, this module supports phonebook listing, audio streaming and even A2DP, however, in my car the RCD 510 doesn't display track information and I can't change tracks from the stereo or from the buttons in the steering wheel. It does not support A2DP functionality.

Is it possible to fix this using VCDS? I used to have the cable in 2012 but most of the modules installed in my Passat B7 weren't support by the latest software from Ross-tech back then so I sold it.

Any info on this will be really helpful.

Thanks for your time in reading this.

Regards
Exhaustpipe
exhaustpipe is offline   Reply With Quote
Old 29th October 2015, 14:14   #39
Senior - BHPian

graaja's Avatar

Join Date: Nov 2013
Location: Coimbatore
Posts: 1,304
Thanked: 2,570 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Hi Gannu,

I have a few questions.

1. I am considering either the RCD510 or the Android HU (the one FrankMehta has installed) for my Polo GT TSi. In his ownership thread, FrankMehta has mentioned that OPS is not available in GT TSi anymore. Do you know if this is true? Is the reverse parking sensor setup that comes with the current GT TSi different from the one in your car? OPS integration is one of the main features I am looking for in RCD510.

2. If OPS is available, and if I also install a reverse camera, will the OPS be overlaid on the camera video, or only one of them will be active?

3. I am thinking to go with 9W2 bluetooth module. From your description, I understand 9W7 will be useful if we have either the Bosch RCD510, or the maxidot instrument cluster. With the Delphi RCD510 and regular instrument cluster, we will not be utilizing the advanced features of 9W7. Is my reasoning correct?

Thanks in advance for your inputs.
graaja is online now   Reply With Quote
Old 29th October 2015, 15:14   #40
Team-BHP Support

Gannu_1's Avatar

Join Date: Apr 2013
Location: Madras
Posts: 4,867
Thanked: 9,701 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Apologies exhaustpipe, I missed your post.

Quote:
Originally Posted by exhaustpipe View Post
you are an expert at VCDS and VW systems.
I am not. I am just tinkering with whatever is available at my disposal and reporting the findings here.

Quote:
Originally Posted by exhaustpipe View Post
I was wondering if you could shed some light on a question I have regarding my Passat B7 2011 model (current Indian one).
I haven’t worked on anything other than the Polo but have read a bit about the Jetta online on several forums so have some idea. Not the Passat though but will try my best regardless.

Quote:
Originally Posted by exhaustpipe View Post
I have the RCD 510 stereo and a 9w7 Bluetooth module. Now from what I've read online, this module supports phonebook listing, audio streaming and even A2DP
That’s correct.

Quote:
Originally Posted by exhaustpipe View Post
however, in my car the RCD 510 doesn't display track information
Something’s definitely wrong there. You should be able to see the track display on the cluster’s MFD.

Quote:
Originally Posted by exhaustpipe View Post
and I can't change tracks from the stereo
You mean the touchscreen presses aren’t responding?

Quote:
Originally Posted by exhaustpipe View Post
or from the buttons in the steering wheel. It does not support A2DP functionality.
Was it this way from day one? Or did it happen recently since a service or a battery swap?

Quote:
Originally Posted by exhaustpipe View Post
Is it possible to fix this using VCDS? I used to have the cable in 2012 but most of the modules installed in my Passat B7 weren't support by the latest software from Ross-tech back then so I sold it.
Yes it is possible but since you mentioned you can’t change tracks from the stereo, I am wondering if the HU itself has gone bad (extremely remote chances that it would have).

The MFD will enable the track display only if you enable the option Radio from the CAN Gateway module:

Name:  CAN Gateway 2.png
Views: 2197
Size:  62.6 KB

Similarly the MFSW buttons will work only if the corresponding bit is enabled under the relevant byte under Central Electronics:

Name:  B9.png
Views: 2351
Size:  52.5 KB

And A2DP can be enabled from the 77-Telephone, Long Coding from here:

VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation-9w7-a2dp.jpg

Quote:
Originally Posted by graaja View Post
1. I am considering either the RCD510 or the Android HU (the one FrankMehta has installed) for my Polo GT TSi. In his ownership thread, FrankMehta has mentioned that OPS is not available in GT TSi anymore. Do you know if this is true?
That’s correct.

Quote:
Originally Posted by graaja View Post
Is the reverse parking sensor setup that comes with the current GT TSi different from the one in your car? OPS integration is one of the main features I am looking for in RCD510.
The previous generation GT and Highline models (both Polo/Vento) came with a superior OPS module which was accessible by VCDS. Check my post here. The current generations now come with a module that only buzzes based on the proximity sensors, no display.

You will have to change the current module with this one (available on Ali) if you need the OPS display on the HU.

Quote:
Originally Posted by graaja View Post
2. If OPS is available, and if I also install a reverse camera, will the OPS be overlaid on the camera video, or only one of them will be active?

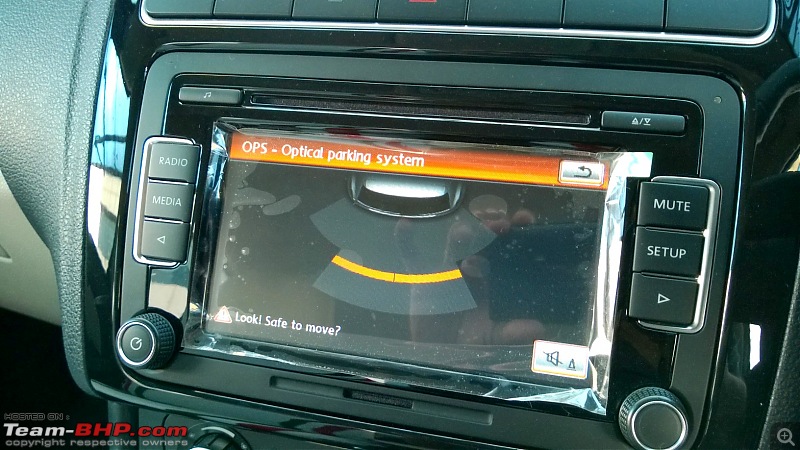

On the RCD510, you have the option of getting only one of the two like this:

VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation-1.jpg



The overlay is possible only on the RNS 510 like this:

Name:  Reversingcamera2OptionalRNS510NavigationSystem.jpg
Views: 2360
Size:  97.8 KB

Quote:
Originally Posted by graaja View Post
3. I am thinking to go with 9W2 bluetooth module. From your description, I understand 9W7 will be useful if we have either the Bosch RCD510, or the maxidot instrument cluster. With the Delphi RCD510 and regular instrument cluster, we will not be utilizing the advanced features of 9W7. Is my reasoning correct?
Yes, you can only pick up/disconnect calls by pressing the phone button on your MFSW. Dialing has to be done via the phone. You can stream BT music as well.

Quoting psispace’s post here since it is relevant to the current discussion:

Quote:
Originally Posted by psispace View Post
The rear bumper sensors on my car were untouched when I added the front sensors. I have OPS display on the Blaupunkt 835 (photos in my ownership thread, so not repeating here).

Suffice to say they are indeed capable of it.
Your car has an OPS module which supports both the front and rear sensors whereas the stock Polo comes with an OPS module that supports only the rear sensors. The current models roll out with a module that does not support OPS display (only beeps). Vagtune has replaced the stock OPS module on your car with a Parkhilfe 8K module supporting front and rear sensors and that's why you are getting this display on your HU.

This is that module:

Name:  20978893.jpg
Views: 2057
Size:  176.4 KB

Quote:
Originally Posted by psispace View Post
Front sensors and cabling cost around 14k.
Plus the new OPS module. Please check up with Vagtune and correct me if I am wrong.

Last edited by Gannu_1 : 29th October 2015 at 15:15.
Gannu_1 is offline   (2) Thanks Reply With Quote
Old 29th October 2015, 16:32   #41
Senior - BHPian

graaja's Avatar

Join Date: Nov 2013
Location: Coimbatore
Posts: 1,304
Thanked: 2,570 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Quote:
Originally Posted by Gannu_1 View Post
The previous generation GT and Highline models (both Polo/Vento) came with a superior OPS module which was accessible by VCDS. Check my post here. The current generations now come with a module that only buzzes based on the proximity sensors, no display.

You will have to change the current module with this one (available on Ali) if you need the OPS display on the HU.
Thanks Gannu. I will check with VCDS if Park Assist control is available.
graaja is online now   (1) Thanks Reply With Quote
Old 29th October 2015, 22:34   #42
BHPian

psispace's Avatar

Join Date: Feb 2015
Location: Kochi
Posts: 94
Thanked: 275 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Quote:
Originally Posted by psispace View Post
The rear bumper sensors on my car were untouched when I added the front sensors. I have OPS display on the Blaupunkt 835 (photos in my ownership thread, so not repeating here).

Suffice to say they are indeed capable of it.
This however required additional adapter cabling which is not too expensive (around 4k).

Mine was not a DYI. I had it fitted at VagTunes. Front sensors and cabling cost around 14k.
Quote:
Originally Posted by Gannu_1 View Post
Plus the new OPS module. Please check up with Vagtune and correct me if I am wrong.
You are correct Gannu_1. Learning something everyday.
Just checked old bills after reading your post.The additional 'cabling' that I mentioned included the OPS module. It was billed separately at 5k. The front parking sensor kit is billed slightly below 14k. So I guess a budget of 20k is in order excluding labour (if not DYI).
psispace is offline   (2) Thanks Reply With Quote
Old 7th November 2015, 14:13   #43
BHPian

ethanhunt123's Avatar

Join Date: Aug 2006
Location: Bangalore
Posts: 866
Thanked: 239 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Gannu - in your Delphi + 9w7 combo - do you get the name of the person who is calling you on the HU or MFD ? Or only the phone number ?
ethanhunt123 is offline   Reply With Quote
Old 7th November 2015, 15:30   #44
Team-BHP Support

Gannu_1's Avatar

Join Date: Apr 2013
Location: Madras
Posts: 4,867
Thanked: 9,701 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

Quote:
Originally Posted by ethanhunt123 View Post
Gannu - in your Delphi + 9w7 combo - do you get the name of the person who is calling you on the HU or MFD ? Or only the phone number ?
I've replied to your PM.

The MFD displays the contact name provided it is saved in your cellphone contacts list. Else the number.

The HU displays a tiny phone symbol when you are using the phone. No displays of contacts or number - only the MFD. But the good thing is you need not take your eyes off the cluster towards the HU or the hands of the steering.
Gannu_1 is offline   Reply With Quote
Old 7th November 2015, 17:57   #45
BHPian

Join Date: May 2006
Location: Trivandrum
Posts: 308
Thanked: 142 Times
Default Re: VW Polo DIY: Delphi RCD 510 headunit + 9W7 Bluetooth unit installation

I am considering this to replace the RCD320(?) that came with my Polo 1.2 GT TSI and/or my Vento TDI HL (the latter car may not be updated as I am planning to upgrade from the Vento)

Main things I need are BT functionality, and rear sensor display, along with the reverse gear mute function.

I visited Aliexpress to search for the RCD510 and ended up mightily confused.

Gannu_1 : How does one differentiate between the Bosch and Delphi units?
pillainp is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
Problems after DIY install - RCD/RCN 320 on Polo/Vento callme9009 In-Car Entertainment 41 21st February 2017 16:58
DIY: RCD 510 head-unit upgrade for VW Vento and Polo moralfibre In-Car Entertainment 96 23rd April 2016 11:36
10K Bluetooth Headunit - Pioneer vs Blaupunkt vs Kenwood jinu_joseph In-Car Entertainment 54 8th April 2016 22:14
DIY: Adding an AUX input to the post-2010 Fiat Grande Punto (Delphi Headunit) mnvvishwa In-Car Entertainment 9 1st October 2015 10:09
Skoda Rapid DIY: Head-unit installation deehunk In-Car Entertainment 1 1st June 2015 13:23


All times are GMT +5.5. The time now is 17:42.

Copyright 2000 - 2017, Team-BHP.com
Proudly powered by E2E Networks
