Old 15th December 2015, 16:15   #76
Senior - BHPian

graaja's Avatar

Join Date: Nov 2013
Location: Coimbatore
Posts: 1,306
Thanked: 2,573 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Quote:
Originally Posted by PhiGolden View Post
Hi graaja,

Mine too has a CAN controller, Some how the call handling buttons alone is not working. The seller says and I quote " did you connect our unit key1 and key2 lines to your car's steer wheel lines? if you connect them, all will ok" I am unable to decipher the coded language above. If you are able understand what this means could you please advice me?

Regards,
Hi PhiGolden,

Sorry for the delay in response. In cars that have steering wheel controls interfaced through CAN bus (like the Polo and other VW cars), the CAN controller that comes with the HU will handle the call handling through the CAN interface. In cars that do not have CAN bus interface for the steering wheel, there will be individual wires coming from the steering wheel for the buttons. These have to be connected to KEY1 and KE2 lines on the HU's cable. Check the image below.

Android Head-Unit in my VW Polo GT TSI-signal-description.jpg

Pins 5 and 6 are marked KEY1 and KEY2. You will have to connect the steering wheel signals to these signals on the HU connector. Check out the below threads in XDA forum and you should find the answer.

http://forum.xda-developers.com/show...10546&page=223
http://forum.xda-developers.com/show...28349&page=787

Quote:
Originally Posted by msiva75 View Post
Those who are facing FM radio quality issues, please connect the BLUE wire from the FM Adapter to the BLUE wire (ANT+) in the main power cable.

This FM radio connector comes with inbuilt FM booster which requires 12V power. After this connection, FM radio quality is same like RCD320. I have cross checked the same with Seller also.
That is an awesome find . Thanks a lot for sharing the information.

I will make this connection when I work on the reverse camera connection. Strange thing is that when I had contacted the vendor about poor radio reception, the vendor did not mention anything about this. He just said to make sure that the antenna connector is firmly connected.
graaja is online now   (1) Thanks Reply With Quote
Old 15th December 2015, 19:15   #77
Newbie

Join Date: Oct 2007
Location: Chennai
Posts: 17
Thanked: 11 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Quote:
Originally Posted by graaja View Post

I will make this connection when I work on the reverse camera connection. Strange thing is that when I had contacted the vendor about poor radio reception, the vendor did not mention anything about this. He just said to make sure that the antenna connector is firmly connected.
The seller didn't mention initially. When I was trying to source powered FM amplifier, realized that the existing one also a powered one. Then I checked with seller and he confirmed with connection details.
msiva75 is offline   (1) Thanks Reply With Quote
Old 19th December 2015, 14:10   #78
Senior - BHPian

graaja's Avatar

Join Date: Nov 2013
Location: Coimbatore
Posts: 1,306
Thanked: 2,573 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Installed the rear view camera on the GT TSi and connected it to the Android HU.

Credits:

I would like to thank:

Overview:

The installation had four major steps.
  1. Choosing the right camera
  2. Taking supply for the camera from the reverse light
  3. Routing the video cable from camera to the HU
  4. Calibrating the guidelines for the Polo

Choosing the camera:

There were various options for the camera.
  1. VW original flip camera that fits in place of VW logo and flips open when the car is reversed. This is the most expensive option at around Rs.15k to 20k. I did not want to spend that much on the camera and ruled this out.
  2. The second option was to get a regular reversing camera and fit it to the bumper. However, as this requires drilling holes on the bumper, I ruled this out.
  3. The third option was to go for a retrofit that fits in the number plate light cutout. As this does not require any drills to the bumper, I decided to go with this. There is one drawback with this approach. The camera is offset from the center. This is taken care of by the custom guidelines. More about this later.

I found various options for VW reverse cameras in the below AliExpress link.

VW Reverse Camera

As they had many models, I first had to choose the right one for my Polo GT TSi. I measured the dimensions of the original number plate light and the cutout and sent this information to the seller. I then sent the photos of the number plate light. The seller then suggested model 107, and I went ahead and ordered it. I received the package in about 4 weeks’ time. I paid $25 for the camera at the time of order. As I write this post, the price is $18.70.

The camera came neatly packed in a small carton.
Android Head-Unit in my VW Polo GT TSI-boxed.jpg

The box had one camera, one power cable and one video cable.
Android Head-Unit in my VW Polo GT TSI-out-box.jpg

The camera.
Android Head-Unit in my VW Polo GT TSI-front-side-view.jpg

The number plate light goes into this opening.
Android Head-Unit in my VW Polo GT TSI-hole-number-plate-light.jpg

Last edited by graaja : 3rd January 2016 at 09:14.
graaja is online now   (3) Thanks Reply With Quote
Old 19th December 2015, 14:32   #79
Senior - BHPian

graaja's Avatar

Join Date: Nov 2013
Location: Coimbatore
Posts: 1,306
Thanked: 2,573 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Power supply for the camera, and bringing in the cables to the boot:

The camera has to be powered from the reverse light supply in the left tail light assembly. I followed Gannu’s tail light swap thread as reference to remove the tail light and solder wires to the reverse light terminals.

Remove tail light assembly.
Android Head-Unit in my VW Polo GT TSI-removed-tail-light.jpg
Android Head-Unit in my VW Polo GT TSI-removed-tail-light-assembly.jpg

Open the back panel.
Android Head-Unit in my VW Polo GT TSI-detach-back-plate.jpg

This picture shows the internals of the tail light assembly. Pins 1 and 2 are for reverse light, and pin 5 is ground.
Android Head-Unit in my VW Polo GT TSI-internal.jpg

Solder two wires to these terminals.
Android Head-Unit in my VW Polo GT TSI-solder-wires.jpg

Fix the tail light back. The two power supply wires are now available inside the boot. Next we need to bring the power and video cables from the camera inside the boot.

First remove the boot trim. I have not taken picture of this. Refer Gannu’s tail light swap thread for this step. Once the boot trim is removed, you can find a cable assembly that goes inside the bumper area through a big opening. We need to bring the power supply and video cables through this hole. Initially, I could not find a way to route the cables from this hole to the number plate lights. Shining a torch through one hole did not show any light on the other side. I had given up and was thinking about taking the car to a workshop to remove the bumper to do the routing, when Gannu gave this brilliant idea of using a fishing cable.

Remove the number plate light. Insert a long spring (fishing cable) inside the slot. Push the spring.
Android Head-Unit in my VW Polo GT TSI-fishing-wire.jpg

Fish inside the hole inside the boot and pull the spring out. Just like fishing, this requires lot of patience to get hold of the spring. Pull the spring out of this hole.
Android Head-Unit in my VW Polo GT TSI-fishing-wire-other-side.jpg

Tie the power and video cables to the spring.
Android Head-Unit in my VW Polo GT TSI-attach-cables-fishing-wire.jpg

Pull the spring from the number plate side, and the power and vide cables should come out of the number plate light cutout.
Android Head-Unit in my VW Polo GT TSI-pull-out-fishing-wire.jpg

This is how the cables come into the boot area.
Android Head-Unit in my VW Polo GT TSI-camera-cables-inside-boot.jpg

Remove the bulb from the original number plate light assembly.
Android Head-Unit in my VW Polo GT TSI-remove-bulb-original-assembly.jpg

Insert the bulb into the camera assembly.
Android Head-Unit in my VW Polo GT TSI-insert-bulb-into-camera-assembly.jpg

Connect the cables to the respective connectors on the camera assembly.
Android Head-Unit in my VW Polo GT TSI-connect-cables.jpg

Secure them with some tape and push the camera assembly in the slot and let it lock. The camera is now fixed.
Android Head-Unit in my VW Polo GT TSI-fit-camera-assembly.jpg

Routing the video cable:

I did not take enough pictures for this stage as I was working alone, except occasionally calling my wife for help to route the wires.

Once the power supply and video cables are inside the boot, connect the power supply cable of the camera assembly to the wires soldered to the reverse light. Here is a view of all the cables inside the boot.

I routed the video cable through the roof lining, from C pillar to B pillar, to A pillar and then behind the glove box to the DIN slot. Here are a couple of sample pictures.

Inserting a fishing wire into the C pillar from inside the boot.
Android Head-Unit in my VW Polo GT TSI-through-c-pillar.jpg

The fishing wire comes out of the roof lining near the B pillar. The other fishing line is from the B pillar to the A pillar down to the side of the glove box.
Android Head-Unit in my VW Polo GT TSI-through-b-pillar.jpg

Once the vide cable reaches to the side of the glove box, remove the glove box, remove the HU, route the cable behind the glove box into the DIN rail slot and connect it to the "Camera In" cable of the HU. Refer the beginning of this thread for details on removing the glove box and routing the cable behind the glove box.

Put everything back in place. Start the car, engage reverse gear, and the HU should display the reverse camera image.

Last edited by graaja : 19th December 2015 at 14:43.
graaja is online now   (5) Thanks Reply With Quote
Old 19th December 2015, 16:25   #80
Senior - BHPian

graaja's Avatar

Join Date: Nov 2013
Location: Coimbatore
Posts: 1,306
Thanked: 2,573 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Calibrating the Guidelines

Everything went well till the reverse camera image was displayed on the HU. The camera superimposes some guidelines on the video.
Android Head-Unit in my VW Polo GT TSI-reverse-camera-action.jpg

This is way off. See the pillar on left side of the image. The clearance between the pillar and the car’s left side is just about 10cm. But the guidelines show the pillar to be very far away thus creating an illusion of safety.

The android HU also has its own guidelines that can be enabled from the Settings -> Drive Settings option. These guidelines are also way off (I will show a picture later in the post)

I started looking for a solution for this problem. Came across the below thread in a forum called rav4world where a user had calibrated and modified guidelines.

http://www.rav4world.com/forums/98-4...it-huifei.html

Below is the high level steps involved.
  • Place some reference objects behind the car, and take a picture of the display on the HU.
  • Using an image editing software, draw your own reference lines aligning with these reference objects. Name this bg_distance.png.
  • The image file for the reverse guidelines is located in the system app “MTCBackView.apk” with the file name “bg_distance.png”.
  • Using a root file explorer, copy MTCBackView.apk to your PC. Open the .apk using an archive program like WinRar, replace the original bg_distance.png with the one you have created.
  • Copy the MTCBackView.apk back to system/app folder.
  • Restart the HU, and the new guidelines should be visible.

Disclaimer: The above process requires modifying the system folder using root access. Do this at your own risk. If you make a mistake, there is a chance of bricking the HU.

The Android HU comes with a rooted firmware. To get root access, go to Settings -> Factory Settings. In the password text box, enter *#hct#root#. Once root access is granted, use a root file explorer to perform update of the app. I used the Fx File Explorer app for this. Use the explorer of your choice.

I will only cover the calibration process. I will not go through the process to update the MTCBackView.apk file. Refer to the thread in rav4world forum for details.

First I parked the car on the road, and drew reference lines using chalk powder. I drew the parallel lines a few inches away from the side of the car. Then I marked distance markers for 0.5, 1.0, 1.5 and 2.0 meters. Below picture shows the reference lines behind the car.
Android Head-Unit in my VW Polo GT TSI-guidelines-behind-car.jpg

Then I engaged reverse gear and took a photo of the image on the HU.
Android Head-Unit in my VW Polo GT TSI-photo-guideline.jpg

Then I cropped the image to get just the HU screen.
Android Head-Unit in my VW Polo GT TSI-crop-image.jpg

Then I used a free software paint.net to create an image 1024x600 pixels, and placed the photo of the HU screen in one layer.
Android Head-Unit in my VW Polo GT TSI-open-image.jpg

Then in another transparent layer, I drew reference lines overlaying the while chalk powder lines, and added distance markers, and also a “objects are near than they look” warning message.
Android Head-Unit in my VW Polo GT TSI-draw-reference-lines.jpg

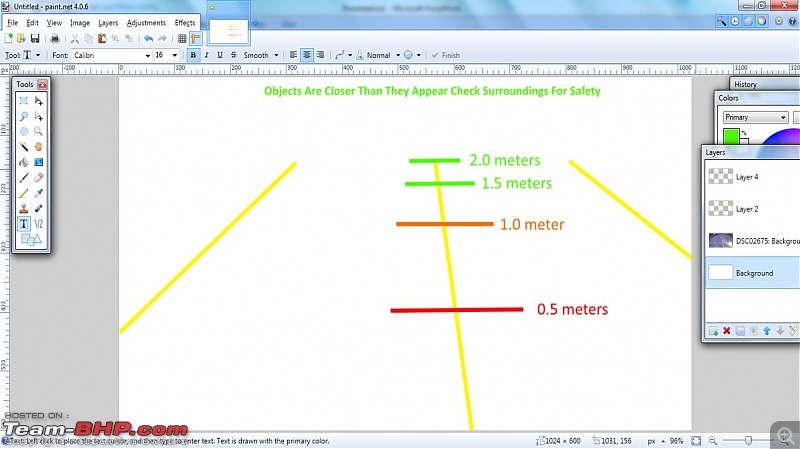

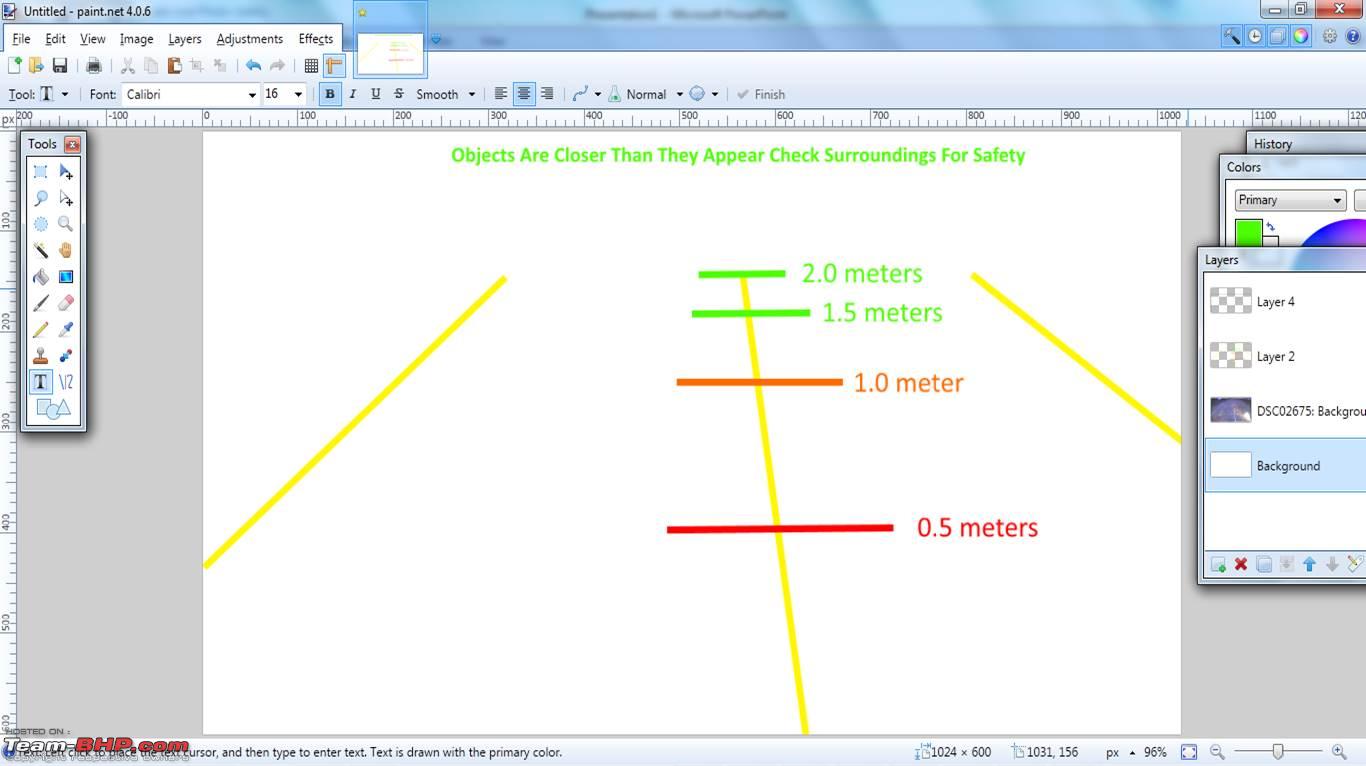

I then saved this layer as a png file, and updated the MTCBackView.apk with this new file.
Android Head-Unit in my VW Polo GT TSI-export-reference-lines-image.jpg

I then copied this new MTCBackView.apk to system/app folder, restarted and voila, here is the result.
Android Head-Unit in my VW Polo GT TSI-final-result.jpg

Note the center guideline is not actually centered on the screen. This is because the camera is offset from the center.

The only fly in the ointment here is that the camera also superimposes some reference lines which cannot be removed. I have written to the seller asking if it is possible to get a camera without these reference lines.

Some comparison pictures:

With original guidelines from the HU
Android Head-Unit in my VW Polo GT TSI-original-guidelines.jpg

With guidelines from the rav4world forum. Note that the 0.5 meter is aligned right, but the 2.0 meter is actually at 1.0 meter. This is because of different position and angle of the camera, and also field of view of the camera.
Android Head-Unit in my VW Polo GT TSI-rav4-guidelines.jpg

With my own guidelines
Click image for larger version

Name:	Final result.JPG
Views:	406
Size:	1.23 MB
ID:	1451786

Here is a video of parking with guidelines.

graaja is online now   (15) Thanks Reply With Quote
Old 19th December 2015, 16:36   #81
BHPian

praveen_v's Avatar

Join Date: Feb 2008
Location: Chennai
Posts: 457
Thanked: 120 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Thats a great DIY and really amazed at the way you went about creating your own guidelines. Brilliant to use paint.net for layering and ceating your own guide-lines!!
praveen_v is offline   (1) Thanks Reply With Quote
Old 20th December 2015, 20:48   #82
BHPian

srinivasnvns's Avatar

Join Date: Nov 2015
Location: Bangalore
Posts: 36
Thanked: 74 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Brilliant DIY graaja. Let us know once you hear from the seller about removing the original guidelines.

Did you consider using imperial metrics for your guidelines? 0.5 to 1 m could be lot of gap when parking in cramped spaces. Also (presuming that your reverse parking sensors are working) what distance does the long beep/train of beeps correspond to?
srinivasnvns is offline   (1) Thanks Reply With Quote
Old 20th December 2015, 23:06   #83
BHPian

Join Date: Apr 2010
Location: New Delhi
Posts: 941
Thanked: 256 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Hi Graaja,

An absolutely noob question - I've been struggling to get a similar Apple Carplay based system. During your research, did you come across any such one i.e. is the re any such ones that you're aware of?

PS: I am aware that it's highly unlikely that there is some because unlike Android, which is Open source, iOS, which I assume forms the basis of Carplay, is wholly Apple owned. Just trying my luck.
Abhi_Automobile is offline   (1) Thanks Reply With Quote
Old 20th December 2015, 23:08   #84
Senior - BHPian

frankmehta's Avatar

Join Date: Mar 2006
Location: Mumbai
Posts: 3,866
Thanked: 2,231 Times
Default

You need not go in for an oe fit then. Carplay and Android Auto are already available in India since a while.

https://pioneer-india.in/product/avh-x8690bt/

https://pioneer-india.in/product/avic-f970bt/
frankmehta is offline   (1) Thanks Reply With Quote
Old 21st December 2015, 14:55   #85
Senior - BHPian

graaja's Avatar

Join Date: Nov 2013
Location: Coimbatore
Posts: 1,306
Thanked: 2,573 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Quote:
Originally Posted by praveen_v View Post
Thats a great DIY and really amazed at the way you went about creating your own guidelines. Brilliant to use paint.net for layering and ceating your own guide-lines!!
Thanks Praveen! Actually, I just followed the method described in the Toyota forum thread. But it was very exciting to see the final results after all the work.


Quote:
Originally Posted by srinivasnvns View Post
Brilliant DIY graaja. Let us know once you hear from the seller about removing the original guidelines.

Did you consider using imperial metrics for your guidelines? 0.5 to 1 m could be lot of gap when parking in cramped spaces. Also (presuming that your reverse parking sensors are working) what distance does the long beep/train of beeps correspond to?
Thanks Srinivas. I thought 0.5 and 1.0 meter marks would be good enough for judging near objects. I parked a couple of times with these lines as reference and I am able to park accurately. As I have hearing loss, I can't hear the beeps coming from the reverse parking sensors. That was the main reason for going for reverse camera as I needed visual aid. I will try to get my wife's help in mapping the distance vs. beep pattern and update.

Regarding the guidelines from the camera, the seller responded back and confirmed it is not possible to remove the guidelines. I also checked various other options and the guidelines are there in these models as well. So, for now, I have decided to live with this eyesore!


Quote:
Originally Posted by Abhi_Automobile View Post
Hi Graaja,

An absolutely noob question - I've been struggling to get a similar Apple Carplay based system. During your research, did you come across any such one i.e. is the re any such ones that you're aware of?

PS: I am aware that it's highly unlikely that there is some because unlike Android, which is Open source, iOS, which I assume forms the basis of Carplay, is wholly Apple owned. Just trying my luck.
Hi, I did briefly look for HU with car play with OE fitting for the Polo, but could not find any. Even the ones pointed by Frank are not compatible with CAN bus cars for steering wheel controls. It may be some more time by the time you get aftermarket HU's with CarPlay that integrate into the car.
graaja is online now   Reply With Quote
Old 22nd December 2015, 13:20   #86
BHPian

patron's Avatar

Join Date: Jun 2010
Location: Bangalore
Posts: 188
Thanked: 106 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

@Graaja: Thanks to your inspiration, finally installed this. Pretty straight forward install. It was a direct plug and play. One advantage with this system is that the android box is a separate unit. I connect it to any HDMI enabled monitor and can play around with it.
I installed XDAuto Rom before I even installed the HU in the car. Next Updated the MCU to the latest version. Only thing not working is the steering wheel scroller. Need to figure out how to make this work for volume control.

Also got an OBD scanner and works flawlessly. The HU being dual bluetooth, OBD is connected even when I have a phone connected.

- Overall happy with the install. The sound quality has definitely improved several notches and I can customize it the way I want it now. I use MixZing player.

- Being an 8" screen, the videos also look nice and the screen is very sharp.

- Maps: tried Google maps (needs internet), Navi maps and Now Maps. Both work well and get a satellite lock in seconds.

- Connected the dashcam to the unit and now everything is recorded/stored in the memory card. No need to fiddle with the dashcam to view the videos/pictures.

Next step: Reverse camera. The unit is fully equipped for reverse cam but unfortunately the camera I got does not fit. Will have to source another one.

Last edited by patron : 22nd December 2015 at 13:22.
patron is offline   (2) Thanks Reply With Quote
Old 22nd December 2015, 15:46   #87
Senior - BHPian

graaja's Avatar

Join Date: Nov 2013
Location: Coimbatore
Posts: 1,306
Thanked: 2,573 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Quote:
Originally Posted by patron View Post
@Graaja: Thanks to your inspiration, finally installed this. Pretty straight forward install.
I am very glad to know that this thread helped in your installation. I checked the product in AliExpress. The 8" screen looks awesome!! Please do post some pictures of the HU in action and also a review.
graaja is online now   Reply With Quote
Old 28th December 2015, 12:27   #88
BHPian

petrol_power's Avatar

Join Date: Oct 2015
Location: Bangalore/TVM
Posts: 167
Thanked: 154 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Quote:
Originally Posted by patron View Post
@Graaja: Thanks to your inspiration, finally installed this. Pretty straight forward install. It was a direct plug and play. One advantage with this system is that the android box is a separate unit. I connect it to any HDMI enabled monitor and can play around with it.
I installed XDAuto Rom before I even installed the HU in the car. Next Updated the MCU to the latest version. Only thing not working is the steering wheel scroller. Need to figure out how to make this work for volume control.

Also got an OBD scanner and works flawlessly. The HU being dual bluetooth, OBD is connected even when I have a phone connected.


- Being an 8" screen, the videos also look nice and the screen is very sharp.

- Maps: tried Google maps (needs internet), Navi maps and Now Maps. Both work well and get a satellite lock in seconds.
As per the specification, this has a 2 GB ram, good. Does it support usb dongle? And this device can also be rooted like graaja's device with the same passcode?

What does dual bluetooth mean? We can connect 2 bluetooth devices at a time?
petrol_power is offline   Reply With Quote
Old 28th December 2015, 12:38   #89
Senior - BHPian

Tanveer_2558's Avatar

Join Date: Apr 2015
Location: Mumbai
Posts: 1,538
Thanked: 1,997 Times
Default Re: Android Head-Unit in my VW Polo GT TSI

Quote:
Originally Posted by patron View Post
@Graaja: Thanks to your inspiration, finally installed this. Pretty straight forward install. It was a direct plug and play. One advantage with this system is that the android box is a separate unit. I connect it to any HDMI enabled monitor and can play around with it.
I installed XDAuto Rom before I even installed the HU in the car. Next Updated the MCU to the latest version. Only thing not working is the steering wheel scroller. Need to figure out how to make this work for volume control.

Also got an OBD scanner and works flawlessly. The HU being dual bluetooth, OBD is connected even when I have a phone connected.

- Overall happy with the install. The sound quality has definitely improved several notches and I can customize it the way I want it now. I use MixZing player.

- Being an 8" screen, the videos also look nice and the screen is very sharp.

- Maps: tried Google maps (needs internet), Navi maps and Now Maps. Both work well and get a satellite lock in seconds.

- Connected the dashcam to the unit and now everything is recorded/stored in the memory card. No need to fiddle with the dashcam to view the videos/pictures.

Next step: Reverse camera. The unit is fully equipped for reverse cam but unfortunately the camera I got does not fit. Will have to source another one.
Hello! Which car did you install this on? looks very interesting, Some pictures/ Videos please? A review would be highly appreciated actually, Looking to get it for my jetta.
Tanveer_2558 is offline   (1) Thanks Reply With Quote
Old 29th December 2015, 08:07   #90
BHPian

patron's Avatar

Join Date: Jun 2010
Location: Bangalore
Posts: 188
Thanked: 106 Times
Default

Quote:
Originally Posted by petrol_power View Post
As per the specification, this has a 2 GB ram, good. Does it support usb dongle? And this device can also be rooted like graaja's device with the same passcode?

What does dual bluetooth mean? We can connect 2 bluetooth devices at a time?






Quote:
Originally Posted by Tanveer_2558 View Post
Hello! Which car did you install this on? looks very interesting, Some pictures/ Videos please? A review would be highly appreciated actually, Looking to get it for my jetta.
It comes pre-rooted out of the box. As I mentioned I did a full root using kingo root and installed XDAuto ROM.
Yes, dual Bluetooth is for 2 devices. I connected obd scanner and my phone. Not sure if we can connect 2 phones/other devices.
My car is 2015 rapid. There are connectors for Jetta as well and will fit. Shouldn't take more than 30 mins to install. Mainly because of the GPS receiver and mic to be connected and concealing the cable. Otherwise a fairly straight forward job.

I will post pics soon.
patron is offline   (3) Thanks Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
VW Polo GT 1.2L TSi: The baby TSi robimahanta Test-Drives & Initial Ownership Reports 318 22nd October 2016 11:04
DIY: RCD 510 head-unit upgrade for VW Vento and Polo moralfibre In-Car Entertainment 96 23rd April 2016 11:36
Clarion AX1: Android-based Head-Unit launched @ Rs. 56,000 SaurabhSaran In-Car Entertainment 9 27th April 2015 09:20
VW Polo TSI: Stock Head-Unit with Infinity. Thoughts? kbk_75 In-Car Entertainment 45 8th July 2014 17:37
Looking for VW Polo Stereo Head Unit (Highline's) Reeto In-Car Entertainment 2 25th August 2011 23:47


All times are GMT +5.5. The time now is 08:13.

Copyright ©2000 - 2017, Team-BHP.com
Proudly powered by E2E Networks
