Smile DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Requirement: To have a touchscreen android unit in car

Options considered:
1. Android HU. I didnt want to spend too much money since i am not a music buff and needed the display mainly for viewing data from OBD.
2. Tablet mount available online: Most of these were suction mounts on glass/dashboard which affect the visibility.
3. I was OK with slight loss of aesthetics as long as it did'nt look downright ugly.
4. Already had a spare Nexus 7 lying around so decided to use that.

Items needed:
1. Some wooden/plastic blocks
2. Sandpaper for wood
3. Velcro
4. 3M double sided Tape
5. 30 minutes

Name:  IMG_20170715_171357.jpg
Views: 12488
Size:  103.0 KB

Getting Hands dirty? Not really!
Went around neighborhood and bought item 1,2,3 from different shops. Since the quantity needed was tiny, none of them asked for money. Had I bought from from one shop, I might had to pay something

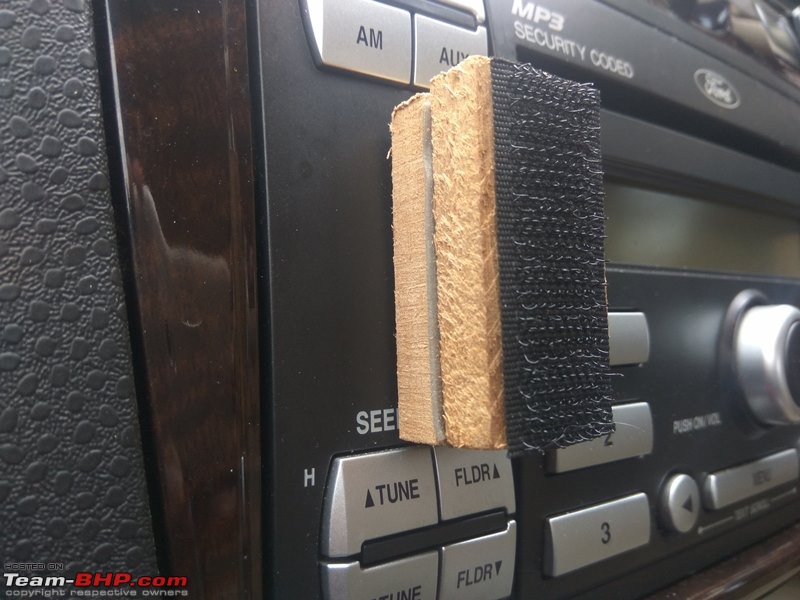

1. Get the wooden blocks sanded properly. Make sure that the height is more than the central ON/OFF+Volume knob. As of now I have just stuck two blocks with 3M tape (one onto another) but will replace them with a single block once I find time. Also the length of the block should be such that it has enough contact area on HU for holding weight of Tablet.

2. Cut required length of Velcro and stick it on wooden blocks as well as either ends of tablet. I have kept soft strip on tablet and hard on wooden block. Measure the distance between two blocks and match it with Velcro on tablet.

These pics were taken before the blocks were sanded. Now they are silky smooth!
Name:  IMG_20170718_162631.jpg
Views: 12233
Size:  91.9 KB

Ideally I wanted the blocks to be slightly nearer but this is the only flat place I could find.
Name:  IMG_20170718_162638.jpg
Views: 12211
Size:  95.9 KB

3. Thats it, job done!

Name:  IMG_20170718_165530.jpg
Views: 12206
Size:  95.7 KB

Name:  IMG_20170718_172102.jpg
Views: 12959
Size:  81.6 KB

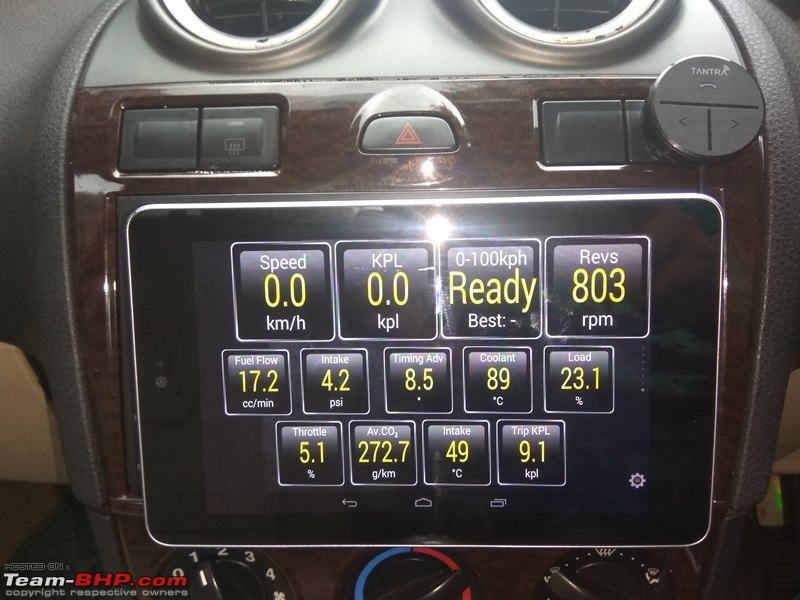

So now I get all readings from Torque pro without using my mobile. I also have a TANTRA bluetooth receiver connected to N7 and I can watch movies or listen songs while the sound gets routed to car audio. I cannot use it to make calls since my N7 does not have simslot. Doing a workaround to fix this.

The tablet does not vibrate/shake even on bad roads. One of the reasons for using Velcro and two blocks of wood with 3M tape. All have good dampening. One issue I am facing right now is to access volume knob when tablet is mounted. I am mitigating that by using volume options on tablet.

So thats it guys. I know many have done it much better but this is sufficient for me. Total cost? About 4 inches of 3M tape!!
akshay380 is online now   (31) Thanks Reply With Quote
Old 18th July 2017, 21:52   #2
Newbie

Join Date: Mar 2015
Location: Delhi
Posts: 11
Thanked: 10 Times
Default re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Nice mod. And good use of the Nexus 7... one of the iconic tablets.

Do you switch it off when you park the car? The only potential hazard is the lithium cell in the tab. The high temps in the stationary car may impact the battery. Definitely do not keep it on standby mode. Switching off might alleviate the problem a bit.
social3047 is offline   (5) Thanks Reply With Quote
Old 18th July 2017, 22:35   #3
BHPian

akshay380's Avatar

Join Date: Sep 2011
Location: Goa
Posts: 728
Thanked: 551 Times
Default re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Quote:
Originally Posted by social3047 View Post
Nice mod. And good use of the Nexus 7... one of the iconic tablets.

Do you switch it off when you park the car? The only potential hazard is the lithium cell in the tab. The high temps in the stationary car may impact the battery. Definitely do not keep it on standby mode. Switching off might alleviate the problem a bit.
Hey, Thanks. I take it out when leaving the car. That's the reason I'm using velcro.
akshay380 is online now   (5) Thanks Reply With Quote
Old 18th July 2017, 22:58   #4
Senior - BHPian

govigov's Avatar

Join Date: Oct 2007
Location: Cochin!!!!!
Posts: 1,305
Thanked: 423 Times
Default re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Quote:
Originally Posted by akshay380 View Post
Requirement: To have a touchscreen android unit in car
Very nice. The nexus 7 is a good tablet for this purpose. There are some custom roms and kernels/firmwares which can take this to the next level.

For example -
https://forum.xda-developers.com/sho....php?t=2789993

https://timur.mobi/timurs-kernel-n7-2013/
govigov is offline   (3) Thanks Reply With Quote
Old 19th July 2017, 01:55   #5
BHPian

vidyanand's Avatar

Join Date: Jan 2013
Location: BLR
Posts: 98
Thanked: 54 Times
Default re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Nice budget mod.

You can install/sideload Android Auto app on your tablet if it is Lollipop or higher. Interface will give you all Android Auto features including handsfree (Google voice) controls in a standalone app.

https://play.google.com/store/apps/d...ction.gearhead

Last edited by vidyanand : 19th July 2017 at 01:59. Reason: Edit to add app info.
vidyanand is offline   (3) Thanks Reply With Quote
Old 19th July 2017, 10:02   #6
BHPian

Join Date: Apr 2009
Location: Bangalore
Posts: 216
Thanked: 357 Times
Default re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Looks nice. But, how do you operate the ICE? The access to ICE is completely shut by the Android

I doubt even if remote works on ICE since android physically covers the system.
gkveda is offline   (2) Thanks Reply With Quote
Old 19th July 2017, 11:16   #7
BHPian

akshay380's Avatar

Join Date: Sep 2011
Location: Goa
Posts: 728
Thanked: 551 Times
Default Re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Quote:
Originally Posted by gkveda View Post
Looks nice. But, how do you operate the ICE? The access to ICE is completely shut by the Android

I doubt even if remote works on ICE since android physically covers the system.
Ok, only thing I use from ICE is the AUX port situated at the bottom. It's connected to tantra Bluetooth receiver. For volume knob, I have set it to almost max position and use volume controls on tablet. I don't use FM or CD player at all. Also worst case, I can just remove the tablet in one second
akshay380 is online now   (1) Thanks Reply With Quote
Old 20th July 2017, 12:10   #8
BHPian

Join Date: Aug 2008
Location: Kolkata
Posts: 292
Thanked: 34 Times
Default Re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Please can you let me know how do you get all this data from OBD.

Looks really useful.
joy_swift is offline   (1) Thanks Reply With Quote
Old 21st July 2017, 12:42   #9
BHPian

ank.nsit's Avatar

Join Date: Oct 2013
Location: Faridabad
Posts: 386
Thanked: 158 Times
Default Re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Simply nice work.

But I have one question, the setup as such does not look sturdy enough to take on the potholes of Indian roads.

How did you ensure that the blocks do not come out? Is the 3M tape that strong?
ank.nsit is offline   Reply With Quote
Old 21st July 2017, 13:05   #10
BHPian

harsh79's Avatar

Join Date: Apr 2016
Location: DL 3C
Posts: 318
Thanked: 557 Times
Default Re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

@akshay380

Try Dual Lock from 3M instead of the velcro.
harsh79 is offline   (2) Thanks Reply With Quote
Old 21st July 2017, 17:41   #11
BHPian

sriramr9's Avatar

Join Date: Apr 2011
Location: Chennai
Posts: 211
Thanked: 45 Times
Default Re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Quote:
Originally Posted by akshay380 View Post
So now I get all readings from Torque pro without using my mobile.
How do you get data from ECM to your tablet ? If its via the ELM327 streamed through blue tooth, do you keep ELM 327 plugged all the time to the port ?

Will it not cause Battery drain ?
sriramr9 is offline   Reply With Quote
Old 23rd July 2017, 08:27   #12
BHPian

akshay380's Avatar

Join Date: Sep 2011
Location: Goa
Posts: 728
Thanked: 551 Times
Default Re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Quote:
Originally Posted by joy_swift View Post
Please can you let me know how do you get all this data from OBD.

Looks really useful.
Hey I use Torque Pro app on Android. Here is a the thread on OBD. Pl ask if you have any doubts. http://www.team-bhp.com/forum/techni...dian-cars.html (OBD (On-board diagnostics) for Indian Cars)

Quote:
Originally Posted by ank.nsit View Post
But I have one question, the setup as such does not look sturdy enough to take on the potholes of Indian roads.

How did you ensure that the blocks do not come out? Is the 3M tape that strong?
Its been a week I am using this and yesterday drove on some non existent roads thanks to monsoon. Its holding up well. The best thing I like is the dampening provided by Velcro+wood since the screen does not vibrate at all. Surely at some point I will have to find out what to use though!

Quote:
Originally Posted by harsh79 View Post
@akshay380

Try Dual Lock from 3M instead of the velcro.
Surely didnt know about that!

Quote:
Originally Posted by sriramr9 View Post
How do you get data from ECM to your tablet ? If its via the ELM327 streamed through blue tooth, do you keep ELM 327 plugged all the time to the port ?

Will it not cause Battery drain ?
Yes it is via bluetooth. Frankly I have been using this for 2+ months now and didnt see any issues. That said I make sure I ill take it out when not using car for extended periods.
akshay380 is online now   (1) Thanks Reply With Quote
Old 23rd July 2017, 13:21   #13
BHPian

Join Date: Jun 2006
Location: Chennai
Posts: 60
Thanked: 60 Times
Default Re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Quote:
Originally Posted by sriramr9 View Post
do you keep ELM 327 plugged all the time to the port ?

Will it not cause Battery drain ?
Quote:
Originally Posted by akshay380 View Post
That said I make sure I ill take it out when not using car for extended periods.
The latest OBD2 adaptor from 'icar pro' from VGATE is said to consume <3mA (Earlier versions upto 30mA) in standby mode. This 'Pro' version also has 'Auto On/Off' feature; so you can avoid plugging / unplugging.
batman is online now   (2) Thanks Reply With Quote
Old 24th July 2017, 14:25   #14
SRK
Senior - BHPian

SRK's Avatar

Join Date: Sep 2005
Location: Mumbai
Posts: 1,161
Thanked: 352 Times
Default Re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

Nice DIY Akshay. Good that it is holding up well.

Did you not check out the CD Slot Mount options? Since your car has a cd slot it could be useful.



These are avaialble on Amazon starting from Rs. 550 onwards - http://amzn.to/2tD8ogD
SRK is offline   Reply With Quote
Old 24th July 2017, 15:02   #15
BHPian

samaspire's Avatar

Join Date: Sep 2015
Location: Manipal / Udupi
Posts: 942
Thanked: 2,226 Times
Default Re: DIY: Touchscreen Android ICE on a shoestring budget (using a Tablet)

I had ordered a similar one and stopped using it because the screen vibrates too much on the road. And there is a very real danger of the tab/phone falling off on hitting a large pothole.
samaspire is offline   Reply With Quote
