Default Simple Space Saver Install for a WagonR

There has been a sudeen huge surge in Wagon R sales lately, and lot of them are Factory LPG fitted, hence the Stepney is above the gas tank in the boot itself which makes a rear speaker in a box install impossible. The other option is a plank, but unlike the Santro this car has no stock parcel tray and even if we make one it eats up the boot space and getting the stepney out also becomes a huge struggle, which in turn may make the car owner feel like pelting stones at the installer every time there is a puncture.

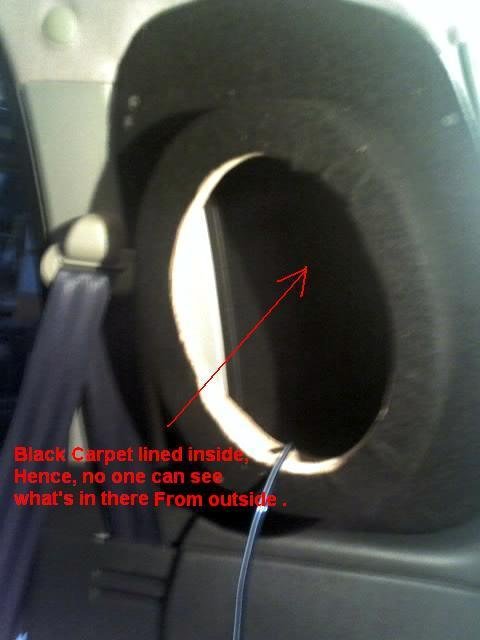

Below is an install which solves that problem at least. The rear speakers are installed in a custom MDF and board mounting which sits on top of the rear quarter glass. Serves the purpose and saves some space too without being visible from outside.
Snaps below illustrates more,






Larger view from the rear with the hatch open








Front Doors also need some cutting and custom fitting to acomodate component Speakers.
( Why does'nt maruti just make stock speaker locations for the Wagon R doors, saves all this work )




Process Involved in cutting the Doorpads and fitting MDF Speaker Mount.

1)Measurement

2)Cutting the Storage compartment and measurement of rear hole to be cut

3)Cutting hole on the doorpad to acomodate Speaker Mount

4)Placing the Spacer and making adjustments and slight shaves as needed.

5)Value for Money padding behind the Doorpad


The Above is necessary as the component speakers produce some strong mids which introduce jarring, also nothing like Damping mats if they can be used.

The mounting of the rear speakers create a surround effect for the driver & front passenger.
Smaller speakers can also be mounted instead of a 6X9, since a Wagon R has enough space for a 6X9.
Cheers.
