Old 18th April 2008, 01:57   #16
BHPian

Autophile's Avatar

Join Date: Sep 2005
Location: New Delhi
Posts: 930
Thanked: 0 Times
Default

Here are the specs you want :

S44

S500
Autophile is offline   Reply With Quote
Old 18th April 2008, 02:12   #17
BHPian

Tool's Avatar

Join Date: May 2006
Location: Mumbai
Posts: 350
Thanked: 3 Times
Default

Specs taken from the Tru-Technology site.


MODEL
S500 (Class AB)

CHANNELS
1CH (Mono Block)

FREQUENCY RESPONSE @ 1 watt
10Hz ~ 30kHz +/- 0.5dB
RATED POWER
14.4 VDC
4 STEREO RMS
325W x 1
2 STEREO RMS
500W x 1


T.H.D. + NOISE
< 0.1%
S/N RATIO (A-WEIGHTED)
> 100dB
INPUT SENSITIVITY
350mV ~ 9.5V

INPUT IMPEDENCE
10K
FUSE REQUIREMENT
30 Amp (x2)

POWER SUPPLY
9.5 VDC ~ 15 VDC

HIGH PASS X-OVER
35Hz ~ 350Hz @ 12dB / oct

LOW PASS X-OVER
35Hz ~ 350Hz @ 12dB / oct

VARIABLE BASS BOOST
Yes / -3dB ~ 12dB @ 45Hz

REMOTE BASS KNOB
Yes (Optional)

DIMENSION (W x H x D)
13 3/8 x 2 1/2 x 9 3/8

WEIGHT
7 1/2 lbs.

MODEL
S44 (Class AB)

CHANNELS
4 CH / 3CH / 2CH (Dual-Mono)

FREQUENCY RESPONSE @ 1 watt
10Hz ~ 30kHz +/- 0.5dB
RATED POWER
14.4 VDC
4 STEREO RMS
65W x 4
2 STEREO RMS
100W x 4

4 STEREO + MONO RMS (3CH)
65W x 2 + 200W x 1
4 MONO RMS (DUAL-MONO)
200W x 2
T.H.D. + NOISE
< 0.1%
S/N RATIO (A-WEIGHTED)
> 100dB
INPUT SENSITIVITY
350mV ~ 9.5V

INPUT IMPEDENCE
10K
FUSE REQUIREMENT
30 Amp (x2)

POWER SUPPLY
9.5 VDC ~ 15 VDC

HIGH PASS X-OVER
35Hz ~ 350Hz @ 12dB / oct

LOW PASS X-OVER
35Hz ~ 350Hz @ 12dB / oct

VARIABLE BASS BOOST
Yes (CH C/D Only) / -3dB ~ 12dB @ 45Hz

REMOTE BASS KNOB
Yes (Optional)

DIMENSION (W x H x D)
13 3/8 x 2 1/2 x 9 3/8

WEIGHT
7 3/4 lbs.
Tool is offline   (1) Thanks Reply With Quote
Old 18th April 2008, 02:21   #18
Senior - BHPian

Join Date: Mar 2006
Location: Faridabad
Posts: 6,814
Thanked: 294 Times
Default

Quote:
Originally Posted by Tool View Post
Personally... id take my bets with these guys over steg, audison etc. Especially on the the performace to price equation. They have just about all the amps beat according to me.
But thats just me and i dont know much lol lol
What is the price of these amps ?
low_bass_makker is offline   Reply With Quote
Old 18th April 2008, 02:30   #19
BHPian

Tool's Avatar

Join Date: May 2006
Location: Mumbai
Posts: 350
Thanked: 3 Times
Default

about 45 k i think baba lbm... fantastic amps....
and can be used as dual mono .. which i think even the stegs and audisons cant do.
Hello stereo separation

Last edited by Tool : 18th April 2008 at 02:32.
Tool is offline   Reply With Quote
Old 18th April 2008, 02:36   #20
Senior - BHPian

Join Date: Mar 2006
Location: Faridabad
Posts: 6,814
Thanked: 294 Times
Default

Quote:
Originally Posted by Tool View Post
Hello stereo separation

What is there stereo seperation number ?
low_bass_makker is offline   (1) Thanks Reply With Quote
Old 18th April 2008, 02:37   #21
BHPian

Tool's Avatar

Join Date: May 2006
Location: Mumbai
Posts: 350
Thanked: 3 Times
Default

that i have no idea ... but im sure someone will enlighten us
them being able to be used as dual mono is plenty for me though bro..
not to mention its Tru-Tech we are talking about here
Also dual power supplies..dont think any amps have all these features and performance for this price..

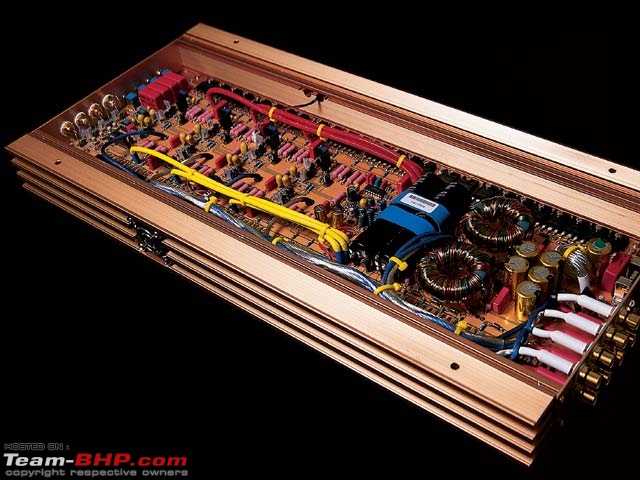

Attached Thumbnails
The Top ICE Amplifiers Discussion Thread-steel_series_002.jpg


Last edited by Tool : 18th April 2008 at 02:44.
Tool is offline   Reply With Quote
Old 18th April 2008, 02:45   #22
BHPian

Autophile's Avatar

Join Date: Sep 2005
Location: New Delhi
Posts: 930
Thanked: 0 Times
Default

Quote:
Originally Posted by low_bass_makker View Post
What is there stereo seperation number ?
LBM, its a Dual Mono .

Dual mono design is like having two seperate amplifiers hence the so called seperation number does not apply.

As far as the top amps are concerned then TRU Coppers belong to that category. Steel is their entry level.

FYI TRU Copper C7 is the reference amplifier of Car Audio and Electronics since long, which they use to test, evaluate and audition car audio speakers like Dynaudio, SEAS, Morel Supremo 6, Rainbow etc.

Last edited by Autophile : 18th April 2008 at 02:57.
Autophile is offline   Reply With Quote
Old 18th April 2008, 02:48   #23
BHPian

Tool's Avatar

Join Date: May 2006
Location: Mumbai
Posts: 350
Thanked: 3 Times
Default

there we go... enlightenment
thank you very much sir jb

P.S Sir JB did you mean this copper C-7 ?
C-7 TruTechnology Car Audio Amplifier - Car Audio and Electronics Magazine

Last edited by Tool : 18th April 2008 at 03:07.
Tool is offline   Reply With Quote
Old 18th April 2008, 09:40   #24
BHPian

BHAGWAN's Avatar

Join Date: Feb 2006
Location: Mumbai - Bombay
Posts: 628
Thanked: 7 Times
Question This is the amp I was referring to !!

Quote:
Originally Posted by Autophile View Post
FYI TRU Copper C7 is the reference amplifier of Car Audio and Electronics since long, which they use to test, evaluate and audition car audio speakers like Dynaudio, SEAS, Morel Supremo 6, Rainbow etc.
Thanks;

This is what I was referring to.

This is what TT is all about !

The 'steel' is like a 'cheap chinese replica' ['like' is the operative word] !!!

If one has to buy a TT, then it has to be this Copper Series.

:: TRU Technology ::
Attached Images

BHAGWAN is offline   Reply With Quote
Old 18th April 2008, 09:43   #25
BHPian

BHAGWAN's Avatar

Join Date: Feb 2006
Location: Mumbai - Bombay
Posts: 628
Thanked: 7 Times
Thumbs down Please do not buy this model !!!

Quote:
Originally Posted by Tool View Post
about 45 k i think baba lbm... fantastic amps....
and can be used as dual mono .. which i think even the stegs and audisons cant do.
Hello stereo separation
Sir,

Not this model [series] from TT - please...........

If you want to / are looking @ TT, then it has to be the copper series.

:: TRU Technology ::

Do not touch the Steel series - please.........

Thanks,

cheers:
BHAGWAN is offline   Reply With Quote
Old 18th April 2008, 09:50   #26
BHPian

Autophile's Avatar

Join Date: Sep 2005
Location: New Delhi
Posts: 930
Thanked: 0 Times
Default

Steels are no slouch.

There are not any chinese immitations. They are 100% designed / engineered / made in California USA. They have beaten lot of renowned amps in the performance costing much more.

Wait till 2009. When coppers will be launched along with Tube Line Driver.

Very few people can afford TRU coppers.

Last edited by Autophile : 18th April 2008 at 09:59.
Autophile is offline   Reply With Quote
Old 18th April 2008, 09:56   #27
Team-BHP Support

navin's Avatar

Join Date: Mar 2004
Location: mumbai
Posts: 22,502
Thanked: 3,880 Times
Default

Quote:
Originally Posted by Autophile View Post
LBM, its a Dual Mono . .
seperate power supplies too?

BTW does anyone know who sells and/or officially distrbutes Tru-Tech in India? Is it sold in India?
navin is offline   Reply With Quote
Old 18th April 2008, 09:57   #28
Senior - BHPian

DerAlte's Avatar

Join Date: Mar 2007
Location: Bangalore
Posts: 8,076
Thanked: 2,876 Times
Default

Vairy interesting!

Who is the dealer / distributor for the TT amps in India?

Wouldn't the "stereo separation" (in dB) be still a valid parameter even if the amp is "dual mono" (a very creative expression, one has to admit)? No matter how small the figure is, it is difficult to visualize "cross-talk" not affecting any kind of electronic circuit unless each channel is 6-sides isolated end-to-end in the box.
DerAlte is offline   Reply With Quote
Old 18th April 2008, 10:07   #29
BHPian

BHAGWAN's Avatar

Join Date: Feb 2006
Location: Mumbai - Bombay
Posts: 628
Thanked: 7 Times
Thumbs up International & Indian price ??

Quote:
Originally Posted by Autophile View Post
Very few people can afford TRU coppers.
What are their prices ?

International / US Suggested Retail Price ?

Prices in India ?

Who sells it ? Officially i.e

:: TRU Technology ::

Web site does not show any Indian Distributor...

BHAGWAN is offline   Reply With Quote
Old 18th April 2008, 10:13   #30
BHPian

sk456's Avatar

Join Date: Jun 2006
Location: @Noida/Gurgaon
Posts: 570
Thanked: 7 Times
Default

BBW are True Tech Distributors ... I had purchased mY Tru -Billets through them with B&W.. the best amps i have heard ... worth every penny IMO.

My purchase was based on extensive A/B with The Audison LRX ,VRx & Genesis profile ranges. I liked the Billets to be best what would go woth my Rainbows. Unfortunatey Copper series requires that you use them active ( I think ) and incedentaly I would have to sell my car to buy them .... :(

Soemthign more about the bilets:

The tonality - detail and headroom are jsut amazing ... I incedentalyy have one four channel and one two channel driving my froent comps and one sub ... The sub too never played liek it does now... and the comps... makes them sing...

Last edited by sk456 : 18th April 2008 at 10:20.
sk456 is offline   Reply With Quote
