Default Alto Illusionized + Zeroed to Ground + JBLized!! Nice SQ!!

Dear All,
Sorry for being late but the memory card in which i had stored the Work in progress snaps got corrupted. so now what i have is new snaps with the fitting done.

My Latest Set up:
1. Pioneer HU 5050ub
2. Illusion 6.1 front compos
3. Ground Zero MK2 sub in bass reflex box
4. JBL GTO 937 rear fillers.
5. JBL 75.4 Amp
6. Dyanamo Amp

after a lot of r&d and wastage of vitamin M over philips, sony etc i have finally achieved what i really wanted. Mindblowing SQ!!

the illusions are the best VFM components that i have heard during my auditions.the sound is very natural and sweet, not bright at all. also the drivers give a nice accurate bass. the tweeters have amazing clarity and dont give the jhankar beats "chan chan" noise at all. i had to put in lot of efforts to put those 6.1 in alto door trim. but the installer did a perfect job by cutting the trim. i used 3 spacers which i screwed tightly to the sheet metal along with the fibre, and voila i dint need any damping. though high bass and high volumes bring in vibrations only in the left front door. will go for damping later on.

i replaced the JBL GT5 12" sub by GZ MK2 12" 400 watts rms sub. i was getting a tight punch from jbl. very good vfm. now what i get from GZ MK2 is very sweet punch which is very fast and accurate.there is a total difference in the way the JBL and the GZ sub sounds. the GZ sub operates over a wide range of lower frequencies. presently i am using a bass reflex box and the sub fires well with reverse setting on HU. with normal setting the bass cancels.

the JBL 74.4 as we all know is the mightiest amp that was available and does its duty in thousands of cars. i have used this amp to fire the sub over bridged 284 watts rms and the components over the front connections.

the dyanamo amp is used to fire the rear JBL gto937 speakers and is quite adequate even if it does not have the frequency settings.

Thanks to Ajay who did the settings on the HU and amp. i was finding it very difficult to set those.

here goes the snaps : Please excuse for low quality images if any.

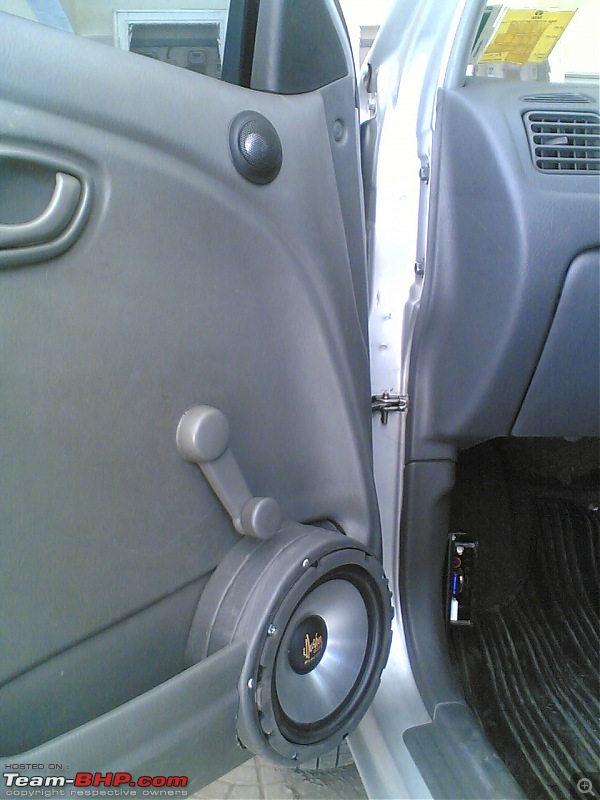

1. Illusions. the finishing on the spacers and the grills on the compos are still pending. will get it done soon.
Attached Thumbnails
Alto Illusionized + Zeroed to Ground + JBLized!! Nice SQ!!-image02.jpg

Alto Illusionized + Zeroed to Ground + JBLized!! Nice SQ!!-image01.jpg

Alto Illusionized + Zeroed to Ground + JBLized!! Nice SQ!!-27042008.jpg

Alto Illusionized + Zeroed to Ground + JBLized!! Nice SQ!!-27042008003.jpg

Alto Illusionized + Zeroed to Ground + JBLized!! Nice SQ!!-image05.jpg

amit_mechengg is offline   Reply With Quote
Old 27th April 2008, 13:38   #2
Senior - BHPian

amit_mechengg's Avatar

Join Date: Dec 2007
Location: Pune
Posts: 2,411
Thanked: 1,541 Times
Default

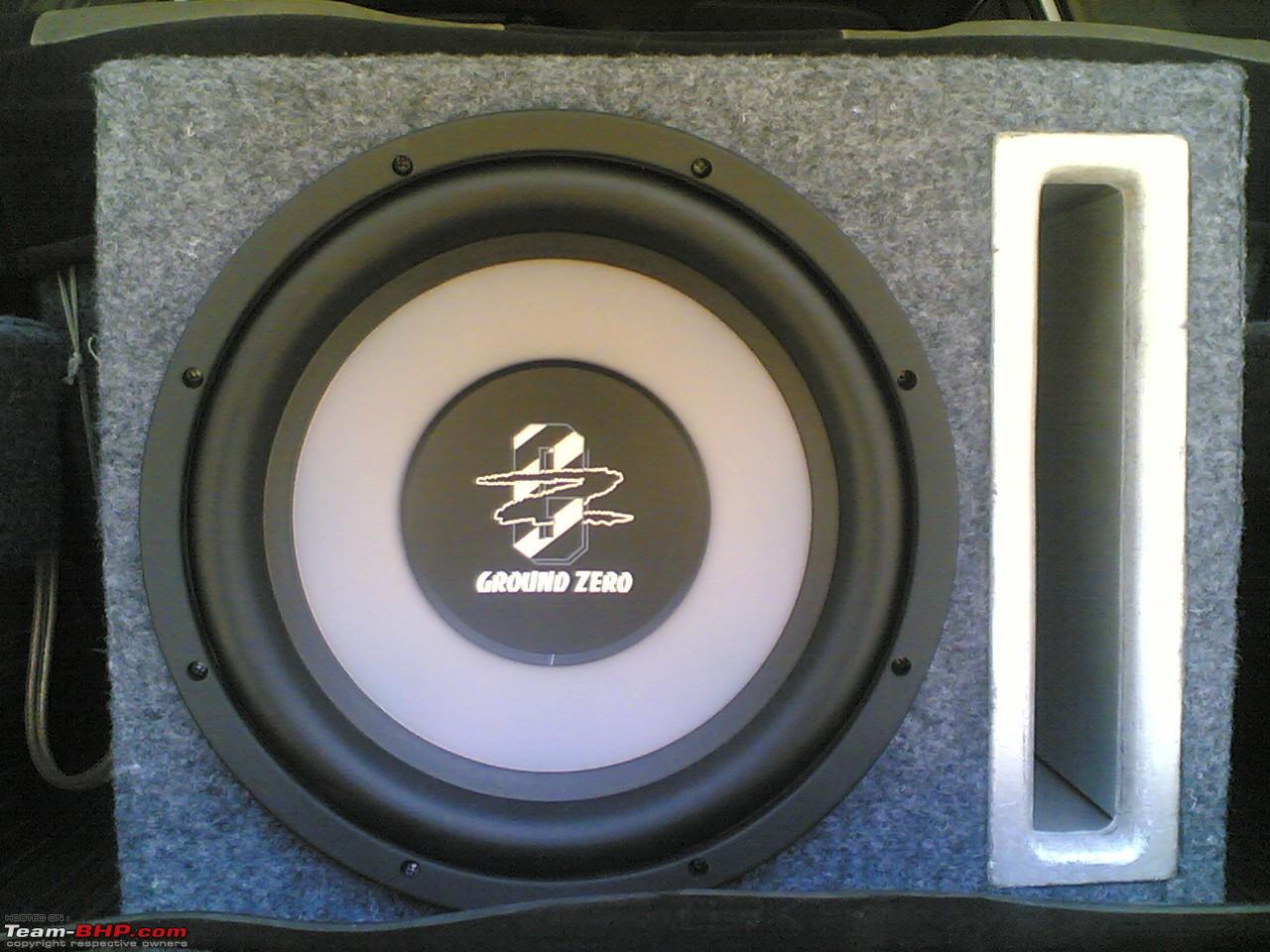

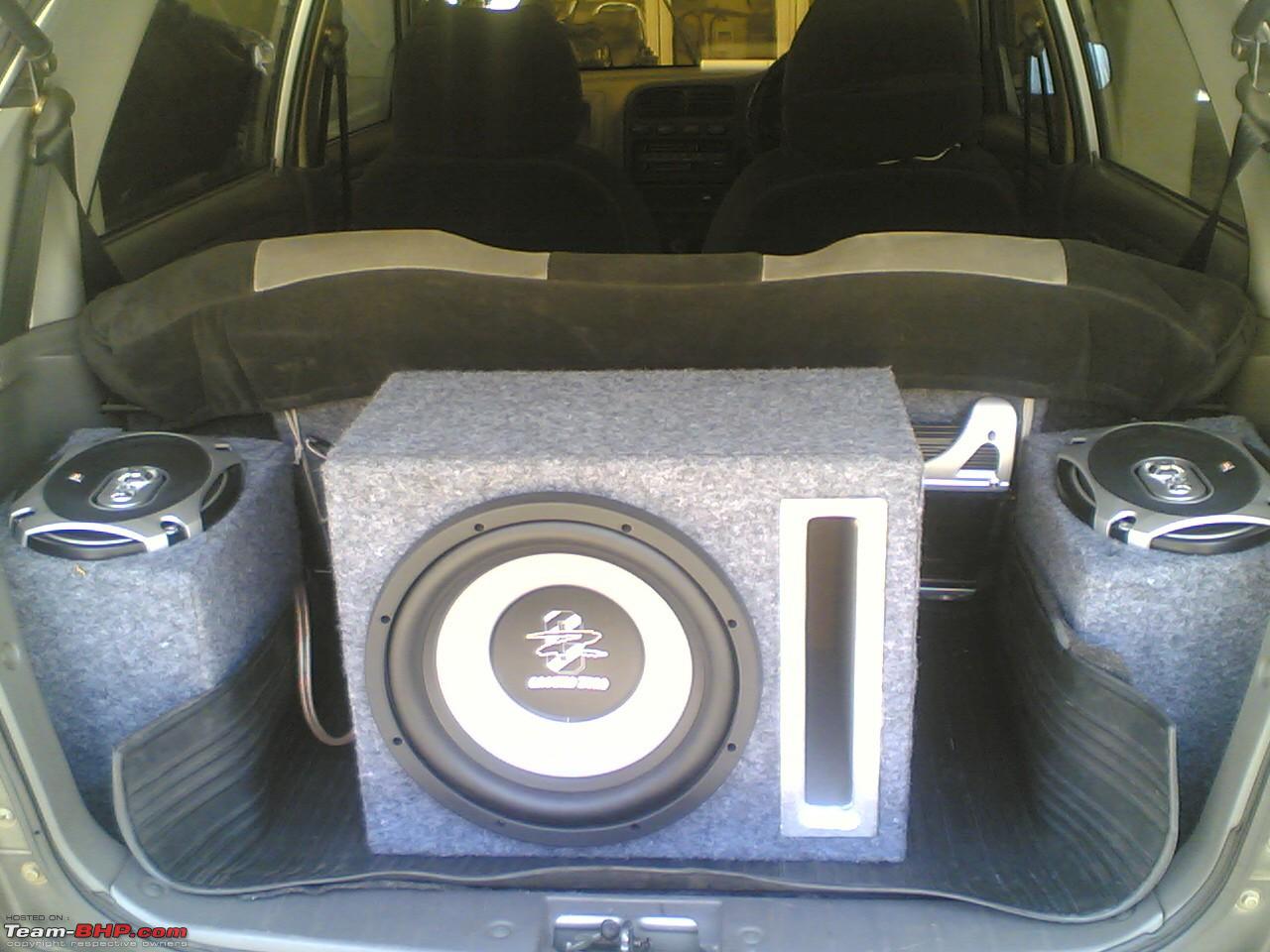

2. The GZ MK2 sub and the rear speakers. the cloth cover over all the boxes are complete DIY and was very painful to cut the cloth to the dimensions and stick it over the boxes with TEXABOND. spoilt the whole sunday and my room was all dirty.
Attached Thumbnails
Alto Illusionized + Zeroed to Ground + JBLized!! Nice SQ!!-image06.jpg

Alto Illusionized + Zeroed to Ground + JBLized!! Nice SQ!!-image07.jpg

Alto Illusionized + Zeroed to Ground + JBLized!! Nice SQ!!-image08.jpg

amit_mechengg is offline   Reply With Quote
Old 27th April 2008, 13:40   #3
Team-BHP Support

Vid6639's Avatar

Join Date: Jul 2006
Location: Bangalore
Posts: 14,471
Thanked: 19,385 Times
Default

Nice setup. Hope the crossover doesn't interfere when your pressing teh accelerator.

How about some pics of the subwoofer and amps in the boot?
Vid6639 is offline   Reply With Quote
Old 27th April 2008, 13:42   #4
Senior - BHPian

amit_mechengg's Avatar

Join Date: Dec 2007
Location: Pune
Posts: 2,411
Thanked: 1,541 Times
Default

3. The JBL and Dyanamo Amp fitted at the back of the rear seat. I bought a big piece of ply covered it with the same cloth and then screwed it to the bars of the rear seat. alto doesnt have sheet metal the the back of the rear seat. both the amps are screwed over the ply.
Attached Thumbnails
Alto Illusionized + Zeroed to Ground + JBLized!! Nice SQ!!-image09.jpg

Alto Illusionized + Zeroed to Ground + JBLized!! Nice SQ!!-image10.jpg

amit_mechengg is offline   Reply With Quote
Old 27th April 2008, 13:42   #5
Senior - BHPian

nishantgandhi's Avatar

Join Date: Jan 2008
Location: Mumbai
Posts: 1,219
Thanked: 151 Times
Default

Good install amit!
Can you post individual prices for the HU and subs? (both JBL and GZ, with enclosure)
nishantgandhi is offline   Reply With Quote
Old 27th April 2008, 13:44   #6
Senior - BHPian

amit_mechengg's Avatar

Join Date: Dec 2007
Location: Pune
Posts: 2,411
Thanked: 1,541 Times
Default

Quote:
Originally Posted by vid6639 View Post
Nice setup. Hope the crossover doesn't interfere when your pressing teh accelerator.

How about some pics of the subwoofer and amps in the boot?
no it doesnt interfere at all. actually in the snap it looks as if its very close to the pedal. but laterally there is huge gap between the pedals and cross over.

thanks a lot
amit_mechengg is offline   Reply With Quote
Old 27th April 2008, 13:44   #7
Distinguished - BHPian

Technocrat's Avatar

Join Date: Feb 2004
Location: Mid West
Posts: 14,900
Thanked: 2,492 Times
Default

Nice pics Amit looks like a good install. Congrats
Technocrat is offline   Reply With Quote
Old 27th April 2008, 13:49   #8
Senior - BHPian

amit_mechengg's Avatar

Join Date: Dec 2007
Location: Pune
Posts: 2,411
Thanked: 1,541 Times
Default

Quote:
Originally Posted by nishantgandhi View Post
Good install amit!
Can you post individual prices for the HU and subs? (both JBL and GZ, with enclosure)
HU: pio 5050 : 6300Rs had bought it earlier 2-3 months ago. w/o b&w
JBL AMP 75.4 : 9500rs with bill and warranty.
JBL GT5 sub : was free , put in temperory till my GZ MK. but price is 3700 rs
GZ SUB : 5490RS MRP - Some discounts
Illusions 6.1 : 6490 Rs Mrp - Some discounts
Rear GTO 937 : 2450rs with dealers warranty without bill.
Dyanamo amp : remained with me from earlier setup : effective price 2500 Rs.
amit_mechengg is offline   Reply With Quote
Old 27th April 2008, 14:01   #9
BHPian

adityamunshi's Avatar

Join Date: May 2007
Location: Baroda
Posts: 771
Thanked: 6 Times
Default

Nice Install !!

Any particular reason for not fitting the grills on those electra drivers ?
adityamunshi is offline   Reply With Quote
Old 27th April 2008, 15:24   #10
Senior - BHPian

Join Date: Mar 2006
Location: Faridabad
Posts: 6,814
Thanked: 294 Times
Default

Congrats on getting Illusionized and grounded !!!
low_bass_makker is offline   Reply With Quote
Old 27th April 2008, 15:42   #11
BHPian

payam's Avatar

Join Date: Oct 2006
Location: pune
Posts: 924
Thanked: 2 Times
Default

congratulation,nice set up dude.
I have the same question as aditya does and also why crossovers are fitted there?
payam is offline   Reply With Quote
Old 27th April 2008, 15:52   #12
Senior - BHPian

Bass&Trouble's Avatar

Join Date: Mar 2006
Location: Bombay
Posts: 2,744
Thanked: 71 Times
Default

Quote:
Originally Posted by amit_mechengg View Post
Thanks to Ajay who did the settings on the HU and amp. i was finding it very difficult to set those.
It is my pleasure, Amit. I am glad your quest for good audio has finally ended (albeit temporarily...muuhahahahaha << by now I hope everyone knows this is an evil laugh)

The car does sound good. The installation was done nicely. Maybe he does it well for good people, and that explains all of MF's miseries. muuhahahahah. Plus the 75.4 is the icing on the cake. Speakers are lucky to get the healthy 100 watts at the price.
