Old 24th September 2009, 10:02   #1
Senior - BHPian

wildon's Avatar

Join Date: Jul 2007
Location: Bangalore
Posts: 2,404
Thanked: 1,016 Times
Thumbs up Take Out your i20 HU

Here is the pictorial tutorial about taking out your Hyundai i20 Head Unit aka HU

UPDATE

Many Asked " How to remove the Front cover " as i only shown the dismantled picture. So for the benefit of all here is that video.

Attached Thumbnails
Take Out your i20 HU-1.jpg

Take Out your i20 HU-2.jpg

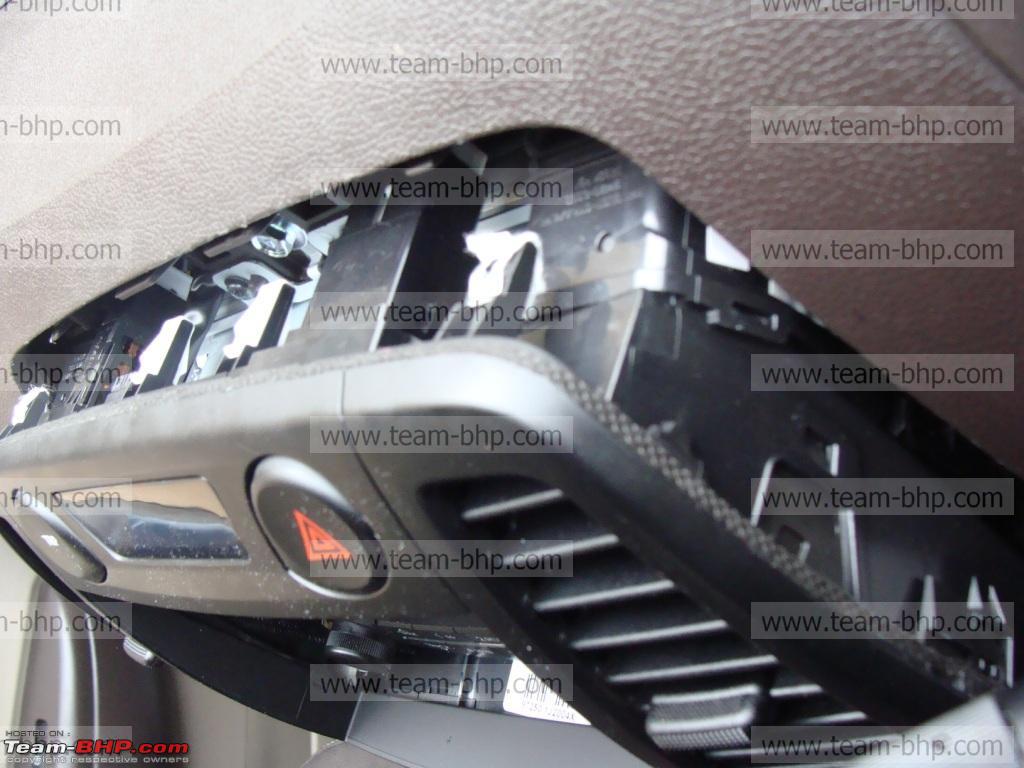

Take Out your i20 HU-3.jpg

Take Out your i20 HU-4.jpg

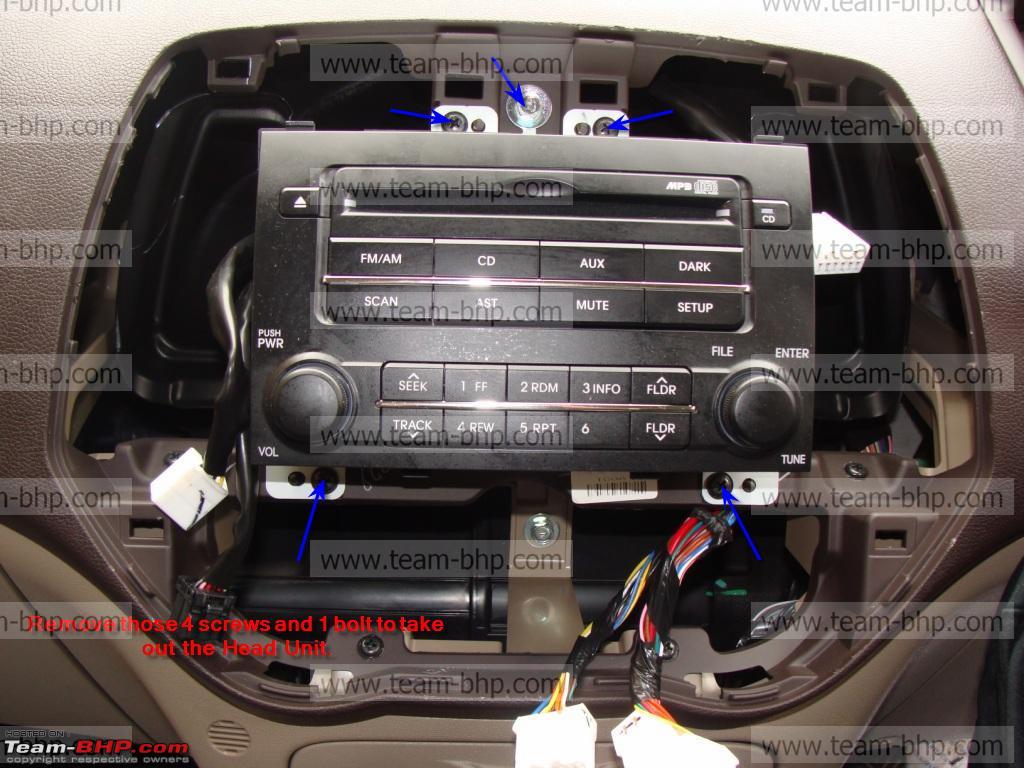

Take Out your i20 HU-5.jpg

Take Out your i20 HU-6.jpg

Take Out your i20 HU-7.jpg

Take Out your i20 HU-8.jpg

Take Out your i20 HU-9.jpg

Take Out your i20 HU-10.jpg

Take Out your i20 HU-11.jpg

Take Out your i20 HU-12.jpg

Take Out your i20 HU-13.jpg

Take Out your i20 HU-14.jpg

Take Out your i20 HU-15.jpg

Take Out your i20 HU-vacant-port.jpg


Last edited by Technocrat : 20th May 2011 at 00:29. Reason: updated with the latest Video :)
wildon is offline   (1) Thanks Reply With Quote
Old 24th September 2009, 10:08   #2
Distinguished - BHPian

JayD's Avatar

Join Date: Jun 2007
Location: Cochin! At last
Posts: 3,191
Thanked: 1,982 Times
Default

Wildon, thanks for the detailed pix. But can you elaborate why you removed the HU? did you try to attach the telephone mute lead to it? I read it on some international forum that it was possible.

Also, does this HU have any preouts? Cant see one though.
JayD is offline   Reply With Quote
Old 24th September 2009, 10:19   #3
Senior - BHPian

wildon's Avatar

Join Date: Jul 2007
Location: Bangalore
Posts: 2,404
Thanked: 1,016 Times
Default

I Just take out c'se i wanted to know whether i can fit a CarPC in its Place. I found one Vacant Port . Have to discuss with the installer about what for those vacant ports are.
Also telemute is a good option trying to get the picture of that device from the net and comparing .

Last edited by wildon : 24th September 2009 at 10:20.
wildon is offline   Reply With Quote
Old 24th September 2009, 10:23   #4
Distinguished - BHPian

Technocrat's Avatar

Join Date: Feb 2004
Location: Central NJ
Posts: 14,855
Thanked: 2,390 Times
Default

Thanks for sharing this Procedure to remove the Stock HU from 120 Wildon.

Is it possible to put an after market single Din HU there? I am not aware if sleeves or holders are available yet to install a single/double din unit in i20.
Technocrat is offline   Reply With Quote
Old 24th September 2009, 10:30   #5
Senior - BHPian

chiragh_bir's Avatar

Join Date: Dec 2004
Location: In front of you :P
Posts: 1,123
Thanked: 68 Times
Default

nice thread

there you go i20 owners .. Enjoy !!
chiragh_bir is offline   Reply With Quote
Old 24th September 2009, 10:45   #6
Senior - BHPian

wildon's Avatar

Join Date: Jul 2007
Location: Bangalore
Posts: 2,404
Thanked: 1,016 Times
Default

Quote:
Originally Posted by Technocrat View Post
Thanks for sharing this Procedure to remove the Stock HU from 120 Wildon.

Is it possible to put an after market single Din HU there? I am not aware if sleeves or holders are available yet to install a single/double din unit in i20.
Yes it is possible to install a Single DIN in i20 You need to get the Fascia

1. This is the Double DIN Fascia for i20

2. This is the Single DIN Fascia for i20

3. and Harness for i20

4. Telemute Lead which is compatible for i20

For the complete list do check this following page

WWW.AUTOLEADS.CO.UK | Complete Car Database

Last edited by wildon : 24th September 2009 at 10:53.
wildon is offline   Reply With Quote
Old 24th September 2009, 14:16   #7
Senior - BHPian

wildon's Avatar

Join Date: Jul 2007
Location: Bangalore
Posts: 2,404
Thanked: 1,016 Times
Default

!! i found the Back side panel of the HU unit of i10 as well as i20 is similar. I'm posting the picture of i10 HU unit socket connection description here and 100% sure it will be same for the i20 as well
Attached Thumbnails
Take Out your i20 HU-i10i20.jpg

wildon is offline   (1) Thanks Reply With Quote
Old 24th September 2009, 17:39   #8
Senior - BHPian

frankmehta's Avatar

Join Date: Mar 2006
Location: Mumbai
Posts: 3,865
Thanked: 2,203 Times
Infractions: 0/1 (5)
Default

well done wildon! Great going! Nice to see you educating members here!
frankmehta is offline   Reply With Quote
Old 24th September 2009, 23:28   #9
Senior - BHPian

wildon's Avatar

Join Date: Jul 2007
Location: Bangalore
Posts: 2,404
Thanked: 1,016 Times
Default

Finally got hold of the i20 HU Connector description to share with you. Please have a look at it. Wants to hear from the guru's whether a better ICE setup possible? or any other opportunities to explore !
Attached Thumbnails
Take Out your i20 HU-i20-hu.jpg

wildon is offline   (1) Thanks Reply With Quote
Old 24th September 2009, 23:52   #10
Senior - BHPian

AbhiJ's Avatar

Join Date: Jun 2008
Location: Kolkata
Posts: 1,264
Thanked: 391 Times
Default

Fantastic info. Thanks a ton!!
AbhiJ is online now   Reply With Quote
Old 25th September 2009, 07:26   #11
Senior - BHPian

wildon's Avatar

Join Date: Jul 2007
Location: Bangalore
Posts: 2,404
Thanked: 1,016 Times
Default i20 HU Steering Wheel Remote Control Connector Diagram

i20 HU Steering Wheel Remote Control Connector Diagram
Take Out your i20 HU-i20-audio-rc-dia.jpg
Aux/ipod/USB
Take Out your i20 HU-auxusbipod.jpg
Take Out your i20 HU-usb.jpg

Last edited by wildon : 25th September 2009 at 07:45.
wildon is offline   (1) Thanks Reply With Quote
Old 30th September 2009, 13:15   #12
BANNED

Join Date: Oct 2007
Location: Ludhiana
Posts: 706
Thanked: 41 Times
Default

this is really nice info.
i was wondring if i can fit a carpc in i20 if i buy it
but i have a confusion to buy i20 or honda city.
monty9991 is offline   Reply With Quote
Old 6th October 2009, 22:14   #13
Senior - BHPian

tsk13's Avatar

Join Date: Jan 2009
Location: New Delhi
Posts: 1,233
Thanked: 272 Times
Default

Wildon, nice job. Any idea whose the manufacturer of the HU and the speakers?
tsk13 is offline   Reply With Quote
Old 6th October 2009, 22:36   #14
Senior - BHPian

wildon's Avatar

Join Date: Jul 2007
Location: Bangalore
Posts: 2,404
Thanked: 1,016 Times
Default

its written only as HMC
wildon is offline   Reply With Quote
Old 6th October 2009, 22:50   #15
BHPian

patil's Avatar

Join Date: Oct 2007
Location: Shorapur
Posts: 339
Thanked: 54 Times
Default

actually i was thinking if i could remove the original head unit from my i20 crdi and fix a touch screen dvd player in its place and still have stearing mounted controls working and connect it to a reverse camera which will activate the screen with the reverse gear and a front night vision camera and a gps device and make it an all in one. can anyone suggest if it is possible and if yes where to get it done in Bangalore or Hyderabad and how much would it cost.
regards.
patil is offline   Reply With Quote
