Old 21st November 2009, 21:57   #46
BHPian

Join Date: Jun 2007
Location: Pune
Posts: 268
Thanked: 10 Times
Default

Quote:
Originally Posted by ghpk View Post
Lastly i think i toasted the IR module, will get a new one, i connected it at a wrong place.
Finally Kit is in front of me. And same problem "How to connect IR Module".

IR module (1838T) has metal casing with opening at one side. Looking at it from opening side - where to connect three terminals L-R 1,2,3 and PCB marked (GND, IR, and 3.3V).
omishra is offline   Reply With Quote
Old 21st November 2009, 23:30   #47
BHPian

amith.2974's Avatar

Join Date: Aug 2009
Location: Bangalore
Posts: 71
Thanked: 2 Times
Default

Yes, I have the fm transmitter for the ipod touch, but there is a very noticeable decrease in sound clarity quite obviously.
amith.2974 is offline   Reply With Quote
Old 21st November 2009, 23:48   #48
BHPian

kcj3b's Avatar

Join Date: Feb 2009
Location: New Delhi
Posts: 142
Thanked: 55 Times
Default

Quote:
Originally Posted by amith.2974 View Post
Yes, I have the fm transmitter for the ipod touch, but there is a very noticeable decrease in sound clarity quite obviously.
i have it too but its really not worth it.

1. sound clarity is a total miss
2. u cant shuffle songs
3. every time u switch of the ignition the song starts from the begining again.

It better buying a new USB system which today might cost 5k which i plan!
kcj3b is offline   Reply With Quote
Old 22nd November 2009, 01:22   #49
BHPian

ghpk's Avatar

Join Date: Mar 2009
Location: Ghaziabad
Posts: 869
Thanked: 192 Times
Default

Quote:
Originally Posted by omishra View Post
Finally Kit is in front of me. And same problem "How to connect IR Module".

IR module (1838T) has metal casing with opening at one side. Looking at it from opening side - where to connect three terminals L-R 1,2,3 and PCB marked (GND, IR, and 3.3V).
I was told IR module has points as "IR" , "G", "5V" when using from Left to right.
please correct me if i am wrong.
ghpk is offline   Reply With Quote
Old 23rd November 2009, 12:47   #50
BHPian

Join Date: Jun 2007
Location: Pune
Posts: 268
Thanked: 10 Times
Default

Quote:
Originally Posted by ghpk View Post
I was told IR module has points as "IR" , "G", "5V" when using from Left to right.
please correct me if i am wrong.
You are right, that's correct order of connection.

BTW, the kit I have seems different than yours. Because it does not have so many electrolyte capacitors, but has just one on PS +5V. Not even on the output stage.

My observation about this is ->
SOUND:
  1. Itís very LOW and I need to put a fet based preamp. Even cannot play headphone directly.
  2. SQ is good for FM and USB MP3. (May be I am using good quality - LM 317 regulated 5VDC power supply)
  3. Low end bass is good, vocal are clear but high are harsh/sharp. May be I need to listen more with low levels and preamp in place. I used my best amplifier for this purpose.
USEFUL:
  1. User point of view this is very very basic. All songs are played sequentially with options to repeat one or all.
  2. No option to select folders, complete drive's mp3 files are added to
  3. At power failure/resumption, does start at same point from where left.
  4. Six Equalizer settings are present.
  5. Takes 10 minute to build and make it running. PS was ready.
SUMMARY:
Not a high end system but moderate in SQ and basic in user friendliness. But still cannot beat good mp3 players like IPOD or mobile phones (I have Nokia N-series) and basic HU with USB options. So planning to use this as desktop mp3 player/fm radio with some preamp addition.

What else to expect from Rs 160/- kit with remote control?

If need to see pics let me know.
omishra is offline   Reply With Quote
Old 23rd November 2009, 21:57   #51
BHPian

ghpk's Avatar

Join Date: Mar 2009
Location: Ghaziabad
Posts: 869
Thanked: 192 Times
Default

Quote:
Originally Posted by omishra View Post

If need to see pics let me know.
Of course om Ji, waiting for the pics.

also if you can PM me the 5V supply circuit it would be very kind of you.
ghpk is offline   Reply With Quote
Old 25th November 2009, 15:16   #52
BHPian

Join Date: Jun 2007
Location: Pune
Posts: 268
Thanked: 10 Times
Default

Quote:
Originally Posted by ghpk View Post
Of course om Ji, waiting for the pics.

also if you can PM me the 5V supply circuit it would be very kind of you.
Here you go!

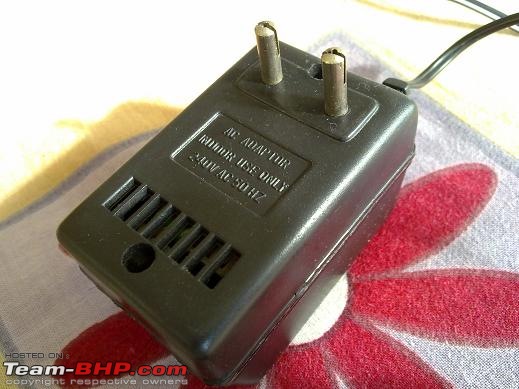

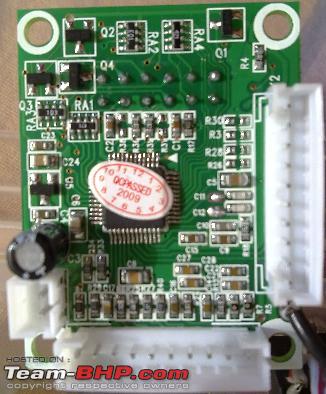

Makeshift arrangement in plastics box. It can be miniatured more.
Name:  Image2301.JPG
Views: 2592
Size:  33.3 KBName:  Image2321.JPG
Views: 2624
Size:  37.9 KB
Name:  Image2341.JPG
Views: 2609
Size:  33.7 KBName:  Image2351.JPG
Views: 2616
Size:  43.2 KB
Name:  Image2361.JPG
Views: 2549
Size:  40.9 KBName:  Image2371.JPG
Views: 2690
Size:  55.3 KB

Power supply for +5VDC. I omitted C1, D1 and D2 as input was already having 1000uF/16V capacitor.

Name:  Image2391.JPG
Views: 2654
Size:  37.2 KB
Name:  PS5VLM317.JPG
Views: 11308
Size:  30.9 KB
omishra is offline   Reply With Quote
Old 26th November 2009, 15:51   #53
BHPian

ghpk's Avatar

Join Date: Mar 2009
Location: Ghaziabad
Posts: 869
Thanked: 192 Times
Default

thanks, you remote is same as mine.
the PCB is different, Mine has components similar but placed differently.

were you able to connect IR module ?
in my kit it was having 3 solder points below the Digital display.
the "R" below the playback control was for "Repeat"

Also what input volt would be converted to 5V in your circuit ?
can this LM117 be used with car battery ?
ghpk is offline   Reply With Quote
Old 26th November 2009, 18:18   #54
BHPian

Join Date: Jun 2007
Location: Pune
Posts: 268
Thanked: 10 Times
Default

Quote:
Originally Posted by ghpk View Post
were you able to connect IR module ?
Yes I could connect that, Thanks.
Quote:
Originally Posted by ghpk View Post
Also what input volt would be converted to 5V in your circuit ?
Input to LM317 can be upto 40V, but minimum required is (output volt + 3.5V) at input. Output voltage is tuned with changing R2 in above circuit. You can see red color trimmer in my PS.
Quote:
Originally Posted by ghpk View Post
can this LM117 be used with car battery ?
Yes definitely.

Main advantage over 7805 regulator is -
1. Better regulation in terms of ripple rejection
2. Low level of noise in output.
3. Output could be changed as per requirement
4. Current upto 1A (needs heatsink)

Last edited by omishra : 26th November 2009 at 18:25.
omishra is offline   Reply With Quote
Old 26th November 2009, 18:28   #55
BHPian

akshaymahajan's Avatar

Join Date: Oct 2009
Location: Delhi
Posts: 482
Thanked: 113 Times
Default

nice DIY.
but instead of the whole power supply cant you just connect a 7805 with the car battery and connect the output of the 7805 to Vcc?
akshaymahajan is offline   Reply With Quote
Old 26th November 2009, 22:09   #56
BHPian

Join Date: Jun 2007
Location: Pune
Posts: 268
Thanked: 10 Times
Default

Quote:
Originally Posted by akshaymahajan View Post
nice DIY.
but instead of the whole power supply cant you just connect a 7805 with the car battery and connect the output of the 7805 to Vcc?
Yes. That can be done. But I told my points for selection of LM317 over 7805. Noise is reason which affect digital circuit output.

But using 7805 is simplest solution for battery as source. I don't prefer 7805 in audio projects powered from mains.

@ghpk: looking at above TO220 package of LM317, same package of 7805 regulator from left-to-right pins 1,2,3 are Input, ground and Output.

Last edited by omishra : 26th November 2009 at 22:12.
omishra is offline   Reply With Quote
Old 26th November 2009, 22:28   #57
BHPian

akshaymahajan's Avatar

Join Date: Oct 2009
Location: Delhi
Posts: 482
Thanked: 113 Times
Default

sorry some how missed reading that.
akshaymahajan is offline   Reply With Quote
Old 27th November 2009, 00:15   #58
BHPian

ghpk's Avatar

Join Date: Mar 2009
Location: Ghaziabad
Posts: 869
Thanked: 192 Times
Default

thank you sir, I appreciate your help.

let me check with that shop why my IR is not working with this PCB, may be will need to buy another one to experiment.
Remote it fine but doesn't works on this PCB.

1st day i connected IR module at "IR" pin near playback buttons, IR module was red hot and i purchased 2 more, but even connected at right place no remote doesn't work.

Note: to check if your remote is working or not, you can use your Camera of Mobile phone and focus remote's IR LED towards it, if remote works you'll see flickering Lights.
ghpk is offline   Reply With Quote
Old 27th November 2009, 18:10   #59
BHPian

Join Date: Jun 2007
Location: Pune
Posts: 268
Thanked: 10 Times
Default

Quote:
Originally Posted by akshaymahajan View Post
sorry some how missed reading that.
Why sorry? I need to convey message completely and correctly.
Quote:
Originally Posted by ghpk View Post
Note: to check if your remote is working or not, you can use your Camera of Mobile phone and focus remote's IR LED towards it, if remote works you'll see flickering Lights.
Thank you. That is valuable information.
omishra is offline   Reply With Quote
Old 10th January 2010, 22:07   #60
BHPian

car-dent's Avatar

Join Date: Jan 2010
Location: NOIDA
Posts: 132
Thanked: 27 Times
Default

i came across this.. is this useful??
Future Technology Devices Intl - VMUSIC2
car-dent is offline   Reply With Quote
