Old 8th May 2012, 10:26   #16
BHPian

prmd_cochin's Avatar

Join Date: Nov 2008
Location: Cochin
Posts: 575
Thanked: 81 Times
Default Re: What Case equipment is this? EDIT : It's a Sugarcane Harvester

Quote:
Originally Posted by jeepster View Post
yes , hubolt is correct.

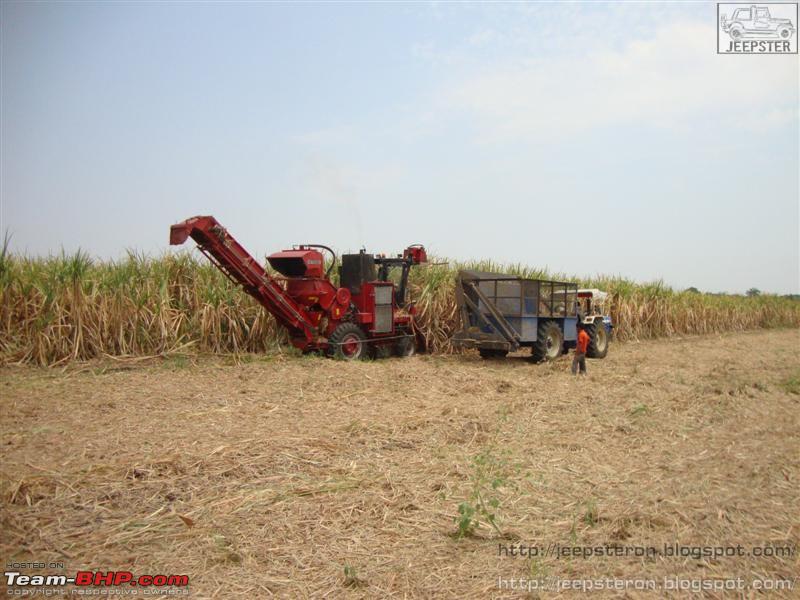

the cane goes in infielder which goes to the waiting trailer or truck & dumps the cane.

the number of infielders depends on harvester output.

here are some pics from my farm.
Attachment 920690

Attachment 920691

Attachment 920692

Attachment 920693

you can see that the infielder going towards the waiting trucks.

you can see how the infielder works in this pic.

rgds,
Nikhil

here is the link to my farm.
http://www.team-bhp.com/forum/shifti...ml#post2146012 (Calling all Team-BHP Farmers : The Farming Thread!)
Everything done and fine. How do you steer the tractor without the front wheel? Is the back wheel steerable?
prmd_cochin is offline   Reply With Quote
Old 9th May 2012, 00:12   #17
Senior - BHPian

jeepster's Avatar

Join Date: Oct 2008
Location: MH24 aka LATUR
Posts: 1,528
Thanked: 983 Times
Default Re: What Case equipment is this? EDIT : It's a Sugarcane Harvester

Quote:
Originally Posted by prmd_cochin View Post
Everything done and fine. How do you steer the tractor without the front wheel? Is the back wheel steerable?
it works on the hydraulic pivot steering mechanism.



here you can see the hydraulic cylinders.


just imagine a tractor & trailer , here the tractor & trailer has only one fixed axle each.

so its officially Front Wheel Drive Vehicle, which are not preferred in offroad conditions.

rgds,
Nikhil

Last edited by jeepster : 9th May 2012 at 00:13.
jeepster is offline   Reply With Quote
Old 12th March 2013, 15:33   #18
Senior - BHPian

jeepster's Avatar

Join Date: Oct 2008
Location: MH24 aka LATUR
Posts: 1,528
Thanked: 983 Times
Default Re: What Case equipment is this? EDIT : It's a Sugarcane Harvester

Hi guys,

I am back with some more pic's & vieos from this years harvest.
Name:  DSC03839.JPG
Views: 600
Size:  77.6 KB

Name:  DSC03854.JPG
Views: 607
Size:  92.3 KB

Name:  DSC03867.JPG
Views: 598
Size:  63.3 KB

Name:  DSC03868.JPG
Views: 620
Size:  72.4 KB

Name:  DSC03869.JPG
Views: 577
Size:  73.2 KB

Name:  DSC03870.JPG
Views: 564
Size:  62.1 KB

Name:  DSC03871.JPG
Views: 563
Size:  81.3 KB

Name:  DSC03877.JPG
Views: 657
Size:  99.1 KB

What Case equipment is this? EDIT : It's a Sugarcane Harvester-untitled_panorama1.jpg

What Case equipment is this? EDIT : It's a Sugarcane Harvester-untitled_panorama2.jpg

What Case equipment is this? EDIT : It's a Sugarcane Harvester-untitled_panorama3.jpg




rgds,
Nikhil
jeepster is offline   (1) Thanks Reply With Quote
