Default Force Motors @ The Bus & Special Vehicle Show, 2015

Force Motors had the best special vehicle display. Ranging from emergency vehicles to a luxury bus, the Force Motors stall showcased the versatility of the Traveller. Force also showcased the Gurkha and a school bus.

Force Motors @ The Bus & Special Vehicle Show, 2015-image00093.jpg
Force Traveller Quick Response Vehicle

Length: 4,935 mm
Width: 1,975 mm
Height: 2,550 mm
Wheelbase: 3,050 mm
Ground clearance: 210 mm
Fuel capacity: 70 litres
GVW: 3,510 kgs

Engine: TD 2200, 2.2-litre, 4-cylinder, VGT, dual mass fly wheel
Max power: 127 BHP @ 3,800 rpm
Max torque: 300 Nm @ 1,600-2,400 rpm
Transmission: Synchromesh, 5-speed manual, 5th gear overdrive
Axles:-
-Front: Dead rigid, I-Beam, reverse elliot type
-Rear: Live rigid
Steering: Mechanical/power steering (optional)
Suspension: Semi elliptical leaf springs with hydraulic shock absorbers and anti-roll bar
Brakes:- Hydraulic, dual circuit, vacuum assisted (ABS with EBD-optional)
-Front: 4-piston,ventilated, disc brakes with wear indicator
-Rear: Drum brakes
Tyres: 215/75 R15

Features:
-Hydrostatic drive for fire fighting pump
-500L water and 50L foam tank
-Hydraulic rescue power pack
-National Fire Protection Association (NFPA) 1936 compliant rescue tools
-Lifting bags, ram, jacks, wood and concrete cutters
-Generator set
-Roof-mounted light mast with in-built camera
-GPS and vehicle tracking
-Winch, ventilating fan
-Thermal imaging camera and multi-gas detector
-In-built PA system and siren
-Lightweight ladder

Force Motors @ The Bus & Special Vehicle Show, 2015-image00013.jpg

Winch mounted to the front bumper:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00015.jpg

Force Motors @ The Bus & Special Vehicle Show, 2015-image00017.jpg

The equipment center:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00020.jpg

Seating space for two responders, apart from the driver and front passenger. Surprisingly similar to the ones seen in rescue choppers:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00022.jpg

Gas masks. In the event of a fire, it's not just the heat that poses a risk. Hazardous gases and suffocation are the culprit behind many casualties:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00023.jpg

Fire fighting tools:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00026.jpg

Force Motors @ The Bus & Special Vehicle Show, 2015-image00028.jpg

Force Motors @ The Bus & Special Vehicle Show, 2015-image00029.jpg

A chainsaw to cut through hard surfaces:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00032.jpg

Check out the "old western" axe:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00033.jpg

Simple dashboard:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00036.jpg

The vehicle gets a siren and PA system:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00038.jpg

Roof-mounted light mast with an inbuilt camera:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00040.jpg

Just when you thought that's all this machine could carry! There's also a stretcher here:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00042.jpg

Check out the pipes for the water and foam tanks:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00046.jpg

Force Motors @ The Bus & Special Vehicle Show, 2015-image00047.jpg

Last edited by GTO : 20th January 2015 at 14:34.
Tushar is offline   (7) Thanks Reply With Quote
Old 18th January 2015, 15:36   #2
Senior - BHPian

Tushar's Avatar

Join Date: Oct 2014
Location: Mumbai
Posts: 1,138
Thanked: 8,355 Times
Default re: Force Motors @ The Bus & Special Vehicle Show, 2015

Force Traveller Trauma Ambulance

Length: 5,415 mm
Width: 1,975 mm
Height: 2,550 mm
Wheelbase: 3,350 mm
Ground clearance: 210 mm
Fuel capacity: 70 liters
GVW: 3,510 kgs

Engine #1: TD 2200, 2.2-liter, 4-cylinder, VGT, dual mass fly wheel
Max power: 127 BHP @ 3,800 rpm
Max torque: 295/300 Nm (BS III/BS IV) @ 1,600-2,400 rpm

Engine #2: TD 2650 FTI, 2.6-liter, 4-cylinder, DI, TCIC (BS III)
Max power: 79 BHP @ 3,200 rpm
Max torque: 215 Nm @ 1,800-2,000 rpm

Transmission: Synchromesh, 5-speed manual, 5th gear overdrive
Axles:-
-Front: Dead rigid, I-Beam, reverse elliot type
-Rear: Live rigid
Steering: Mechanical/power steering (optional on TD 2650, standard on TD 2200)
Suspension:-
-Front: Semi elliptical leaf springs with hydraulic shock absorbers and anti-roll bar
-Rear: Semi elliptical leaf springs with hydraulic shock absorbers
Brakes: Hydraulic, dual circuit, vacuum assisted (ABS with EBD is optional)
-Front: 4-piston, ventilated disc brakes with wear indicator
-Rear: Drum brakes
Tyres: 215/75 R15

Features:
-Warranty TD 2650: 3 year/3,00,000 kms. TD 2200: 1.5 year/1,50,000 kms

Customers include the Sahyadri hospitals, Vedanta group, Aditya Birla memorial hospital and Apollo hospitals among several others.
Force Motors @ The Bus & Special Vehicle Show, 2015-image00052.jpg

Stretcher for the patient, seat on the side for a friend/relative and a single foldable seat at the back for the attending paramedic/doctor. Also note, two fans on the inside. There's also space for a defibrillator, ventilator etc. The cabin features 4 tube lights, an inverter, power socket, fire extinguisher, waste bins and a high intensity inspection lamp:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00053.jpg

Foldable stretcher cum trolley:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00056.jpg

Oxygen delivery system. Also available are resuscitators, cylinders and flow meters:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00058.jpg

Overhead storage:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00060.jpg

Force Motors @ The Bus & Special Vehicle Show, 2015-image00062.jpg

Twin blower A/C:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00063.jpg

Last edited by GTO : 20th January 2015 at 14:40.
Tushar is offline   (5) Thanks Reply With Quote
Old 18th January 2015, 15:44   #3
Senior - BHPian

Tushar's Avatar

Join Date: Oct 2014
Location: Mumbai
Posts: 1,138
Thanked: 8,355 Times
Default re: Force Motors @ The Bus & Special Vehicle Show, 2015

Force Traveller CNG School Bus

Length: 6,065 - 6,766 mm (17+driver/20+driver)
Width: 1,975 mm
Height: 2,550 mm
Wheelbase: 3,700-4,020 mm
Ground clearance: 210 mm
CNG tank capacity: 180 liters
GVW: 3,990-4,300 kgs

Engine: TG 2600 F BSIV, 2.6-liter, 4-cylinder, CNG
Max power: 78 BHP @ 3,800 rpm
Max torque: 180 Nm @ 2,000-2,400 rpm

Transmission: Synchromesh, 5-speed manual
Axles:-
-Front: Dead rigid, I-Beam, reverse elliot type
-Rear: Live rigid
Steering: Mechanical/power steering (optional)
Suspension:-
-Front: Semi elliptical leaf springs with hydraulic shock absorbers and anti-roll bar
-Rear: Semi elliptical leaf springs with hydraulic shock absorbers
Brakes:- Hydraulic, dual circuit, vacuum assisted (ABS with EBD optional)
-Front: Disc brakes
-Rear: Drum brakes
Tyres: 215/75 R15

Force Motors @ The Bus & Special Vehicle Show, 2015-image00067.jpg

Children can only enter through the front passenger door:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00070.jpg

Force Motors @ The Bus & Special Vehicle Show, 2015-image00071.jpg

Force Traveller Super Luxury

Length: 6,770 mm
Width: 2,225 mm
Height: 2,670 mm
Wheelbase: 4,020 mm
Ground clearance: 170 mm
Fuel capacity: 70 liters
GVW: 4,510 kgs

Engine: TD 2200 2.2-liter, 4-cylinder, VGT, dual mass fly wheel
Max power: 127 BHP @ 3,800 rpm
Max torque: 295 Nm @ 1,600-2,400 rpm

Transmission: 5-speed manual
Axles:-
-Front: Dead rigid
-Rear: Live rigid
Steering: Power steering
Suspension:-
-Front: Semi elliptical leaf spring
-Rear: Air suspension
Brakes:- Hydraulic, dual circuit, vacuum assisted disc brake (ABS with EBD optional)
Tyres: 215/75 R15
-Front: 2
-Rear: 4

The biggest and widest of the set. Note the bulbous air conditioning unit on the roof:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00077.jpg

Force Motors @ The Bus & Special Vehicle Show, 2015-image00081.jpg

Cockpit:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00085.jpg

Air suspension at the back! The primary feature that makes this a "super luxury" vehicle is the ride quality:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00088.jpg

Notice the gap between the seats to free up shoulder room:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00082.jpg

Force Motors @ The Bus & Special Vehicle Show, 2015-image00091.jpg

Last edited by GTO : 20th January 2015 at 14:46.
Tushar is offline   (6) Thanks Reply With Quote
Old 18th January 2015, 15:48   #4
Senior - BHPian

Tushar's Avatar

Join Date: Oct 2014
Location: Mumbai
Posts: 1,138
Thanked: 8,355 Times
Default re: Force Motors @ The Bus & Special Vehicle Show, 2015

Force Gurkha

Ground clearance: 210 mm
Engine: TD 2650 FTI BS-III Turbo 2.6-liter
Max power: 81 BHP @ 3,200 rpm
Max torque: 230 Nm @ 1,800-2,000 rpm

Transmission: 5-speed manual
Transfer case: Single lever selective 4x4 with low ratio
Axles:-
-Front: Live independent with diff lock
-Rear: Live rigid with diff lock
Steering: Recirculating ball type hydraulic power steering
Suspension:-
-Front: Independent with solid torsion bar, hydraulic telescopic shock absorbers and anti-roll bar
-Rear: Semi elliptical leaf spring with hydraulic telescopic shock absorbers and anti roll bar
Brakes:- Hydraulic, dual circuit assisted with wear adjuster and Load Conscious Regulating Valve (LCRV)
Tyres: 245/70 R16 or 235/70 R16 (4WD or 2WD)

The Gurkha 4WD gets a hard top or soft top, while the 2wd gets a soft top. Love that stainless steel air intake snorkel:
Force Motors @ The Bus & Special Vehicle Show, 2015-image00004.jpg

Force Motors @ The Bus & Special Vehicle Show, 2015-image00006.jpg

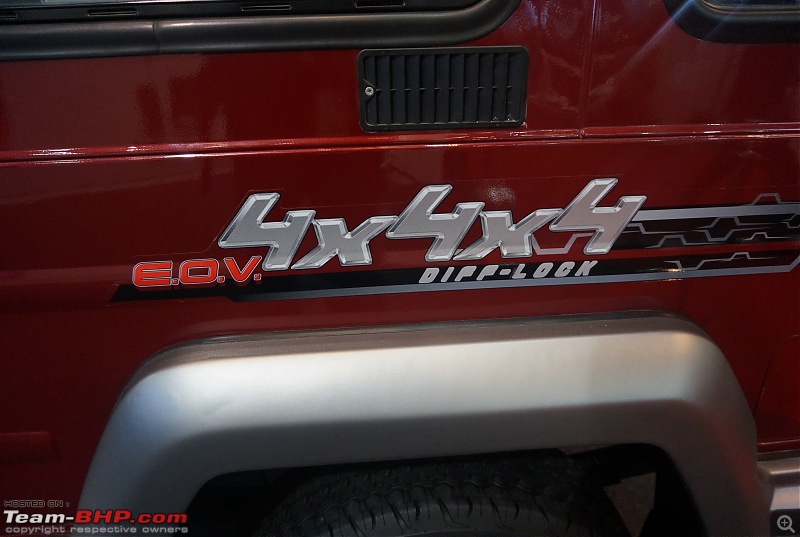

4x4x4 badging is seriously silly
Force Motors @ The Bus & Special Vehicle Show, 2015-image00008.jpg

Force Motors @ The Bus & Special Vehicle Show, 2015-image00010.jpg

Last edited by GTO : 20th January 2015 at 14:49.
Tushar is offline   (7) Thanks Reply With Quote
Old 20th January 2015, 14:51   #5
GTO
Team-BHP Support

GTO's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 47,712
Thanked: 89,052 Times
Default Re: Force Motors @ The Bus & Special Vehicle Show, 2015

Thread moved from the Assembly Line (The "Assembly Line" Forum section) to the Commercial Vehicle Section. Thanks for sharing!
GTO is offline   Reply With Quote
Old 20th January 2015, 15:18   #6
Senior - BHPian

Mr.Boss's Avatar

Join Date: Mar 2011
Location: Chennai
Posts: 1,942
Thanked: 2,396 Times
Default Re: Force Motors @ The Bus & Special Vehicle Show, 2015

Thanks for sharing the specs and snap. Did earlier version of Traveler came with Air Suspension?
Quote:
Originally Posted by Tushar View Post
4x4x4 badging is seriously silly
Does it hold any meaning?
Mr.Boss is offline   Reply With Quote
Old 20th January 2015, 15:38   #7
Senior - BHPian

Tushar's Avatar

Join Date: Oct 2014
Location: Mumbai
Posts: 1,138
Thanked: 8,355 Times
Default Re: Force Motors @ The Bus & Special Vehicle Show, 2015

Quote:
Originally Posted by Mr.Boss View Post
Thanks for sharing the specs and snap. Did earlier version of Traveler came with Air Suspension?
Not 100% sure myself, but i guess air suspension is a fairly recent addition. Force launched the Traveller 26 series in 2012 and they pointed out the plans for an air suspension back then.

The 4x4x4 thing is essentially a marketing thing. E.O.V 4x4x4= Extreme Offroader Vehicle that has 4WD for 4 terrains in 4 seasons.

Force Motors @ The Bus & Special Vehicle Show, 2015-untitled.png
Tushar is offline   (1) Thanks Reply With Quote
Old 20th January 2015, 18:20   #8
Senior - BHPian

Ashley2's Avatar

Join Date: Oct 2009
Location: NH7
Posts: 2,092
Thanked: 1,439 Times
Default Re: Force Motors @ The Bus & Special Vehicle Show, 2015

Quote:
Originally Posted by Mr.Boss View Post
Thanks for sharing the specs and snap. Did earlier version of Traveler came with Air Suspension?...
Quote:
Originally Posted by Tushar View Post
Not 100% sure myself, but i guess air suspension is a fairly recent addition. Force launched the Traveller 26 series in 2012 and they pointed out the plans for an air suspension back then.
It was available as a retro fitment by Wheels India. Now this is offered as OE fitment.
Ashley2 is offline   (2) Thanks Reply With Quote
Old 20th January 2015, 22:45   #9
BHPian

Join Date: Mar 2013
Location: kolkata
Posts: 86
Thanked: 111 Times
Default Re: Force Motors @ The Bus & Special Vehicle Show, 2015

Dear Tushar,

Thanx for such an exhaustive details. Any idea about list price.i had checked with the delhi dealer, they had a discount of 1.4 lac discount, in december, on the top model (without air suspension, abs & ebd).

Thanx and Regards

dr. sen
dr. sen is offline   (1) Thanks Reply With Quote
Old 21st January 2015, 10:38   #10
Senior - BHPian

Tushar's Avatar

Join Date: Oct 2014
Location: Mumbai
Posts: 1,138
Thanked: 8,355 Times
Default Re: Force Motors @ The Bus & Special Vehicle Show, 2015

Quote:
Originally Posted by dr. sen View Post
Any idea about list price.i had checked with the delhi dealer, they had a discount of 1.4 lac discount, in december, on the top model (without air suspension, abs & ebd).
Unfortunately, the price list wasn't available with the personnel at the stall, but you can try using this link to check out the manufacturer stated prices. I believe 4,020 mm wheelbase models start at Rs 10.40 Lakh and go up to Rs 12.10 Lakh on-road.
Tushar is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
Tata Motors @ The Bus & Special Vehicle Show, 2015 Tushar Commercial Vehicles 16 24th January 2015 20:07
Ashok Leyland @ The Bus & Special Vehicle Show, 2015 Tushar Commercial Vehicles 8 22nd January 2015 17:49
SML Isuzu @ The Bus & Special Vehicle Show, 2015 Tushar Commercial Vehicles 3 22nd January 2015 10:40
Chevy, Mitsubishi, Panasonic etc. @ The Bus & Special Vehicle Show, 2015 Tushar Commercial Vehicles 5 21st January 2015 17:30
Mahindra @ The Bus & Special Vehicle Show, 2015 Tushar Commercial Vehicles 4 21st January 2015 12:30


All times are GMT +5.5. The time now is 19:52.

Copyright 2000 - 2017, Team-BHP.com
Proudly powered by E2E Networks
