Old 11th July 2011, 09:43   #76
dot
Senior - BHPian

dot's Avatar

Join Date: Dec 2007
Location: Ban Chang
Posts: 1,681
Thanked: 711 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by dhanushs View Post
Umm.. dot, I didn't point out deep into the plumbing design. Just the opening of the snorkel. It opens upwards, which makes it highly vulnerable to water.
After I logged off and was about to sleep, then I realized that I didnt respond to this part of the question! Already I had one edit in the post, didnt want another! Late night fatigue resulted in sinking of Titanic, they say.

Yes, pouring/splashing water into the open engine bay can lead to such issues. Hydrolocking by accident may occur as a result. However the bay has a rain guard (first picture). So splashing water with the bonnet closed does not lead to water going inside the bay.
dot is offline   Reply With Quote
Old 11th July 2011, 18:43   #77
BHPian

Join Date: Apr 2010
Location: Currently, New Delhi
Posts: 423
Thanked: 92 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Alto's(800cc) engine bay with important parts labeled.
Name:  76770590.jpg
Views: 47027
Size:  188.6 KB

Last edited by aah78 : 15th July 2011 at 21:16. Reason: Existing picture removed. Correct picture uploaded.
JustCause is offline   (6) Thanks Reply With Quote
Old 11th July 2011, 22:08   #78
dot
Senior - BHPian

dot's Avatar

Join Date: Dec 2007
Location: Ban Chang
Posts: 1,681
Thanked: 711 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by JustCause View Post
Alto's(800cc) engine bay with important parts labelled.
What is the purpose of the charcoal box? I am sorry, I have never come across such a device. Is it to clean up the exhaust gas?
dot is offline   Reply With Quote
Old 11th July 2011, 22:32   #79
BHPian

Join Date: Apr 2010
Location: Currently, New Delhi
Posts: 423
Thanked: 92 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by dot View Post
What is the purpose of the charcoal box? I am sorry, I have never come across such a device. Is it to clean up the exhaust gas?
A charcoal canister stores the petrol vapour from the tank when the petrol vaporizes inside the tank on temperature changes. It uses activated charcoal to absorb the vapors & effectively storing them. After the engine has started, the vapors are fed back to the intake manifold. This device is present on all cars which don't have vented fuel filler caps.

This goes bad when people try to overfill fuel. Some of the liquid petrol gets into the canister rendering it completely useless. It is one of the causes of "petrol smell inside car"
JustCause is offline   (1) Thanks Reply With Quote
Old 11th July 2011, 22:43   #80
BHPian

AvinashKeezh's Avatar

Join Date: Aug 2005
Location: Bangalore
Posts: 226
Thanked: 5 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by JustCause View Post
This goes bad when people try to overfill fuel. Some of the liquid petrol gets into the canister rendering it completely useless. It is one of the causes of "petrol smell inside car"
JC... is this the system on all cars. I've had petrol smell inside the car when I try topping up. Normally stick to the Auto cut-off, but on the rare occasion of getting cheaper fuel would try topping it up .
AvinashKeezh is online now   Reply With Quote
Old 11th July 2011, 22:55   #81
BHPian

Join Date: Apr 2010
Location: Currently, New Delhi
Posts: 423
Thanked: 92 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by AvinashKeezh View Post
JC... is this the system on all cars. I've had petrol smell inside the car when I try topping up. Normally stick to the Auto cut-off, but on the rare occasion of getting cheaper fuel would try topping it up .
That's normal. I get it too when refilling. There is difference in location of vapor hose in different cars. One should not try to fill as much as to be able to see the petrol from the filler hole.

Last edited by JustCause : 11th July 2011 at 22:56.
JustCause is offline   Reply With Quote
Old 13th July 2011, 16:11   #82
Distinguished - BHPian

dhanushs's Avatar

Join Date: Oct 2009
Location: Bathery/BLR
Posts: 3,327
Thanked: 3,692 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

DIY: Adding An Additional Brake Light for Ford IKON Flair!

Tool Required: A sharp knife, pliers, Good quality Insulation tape

Raw Materials: A complete set of M800 Tail lamp bulb holders and wiring kit. 2 single filament bulbs to fit in those holders.

Total cost: 60 Rs for the kit, and 20 Rs for bulbs = 80 bucks.




Step 1: Refer Post #51 for steps for accessing the tail lamp cluster.

Step 2: Peel of the protection. And then you can access the additional slot for the holder in the cluster.

A List of DIY's for your car: A Pictorial Guide-peel-off-protection.jpg



Step 3: Identify the brake light wiring and splice the wires carefully. In a ’07 Ford IKON Flair, the brake light wires are the purple/brown ones. Shown in figure. While splicing the wires, make sure that you splice both +ve and –ve at some distance, so that there is no chance for them to short ciruit.

A List of DIY's for your car: A Pictorial Guide-tail-light-wiring.jpg
A List of DIY's for your car: A Pictorial Guide-splice-wire.jpg

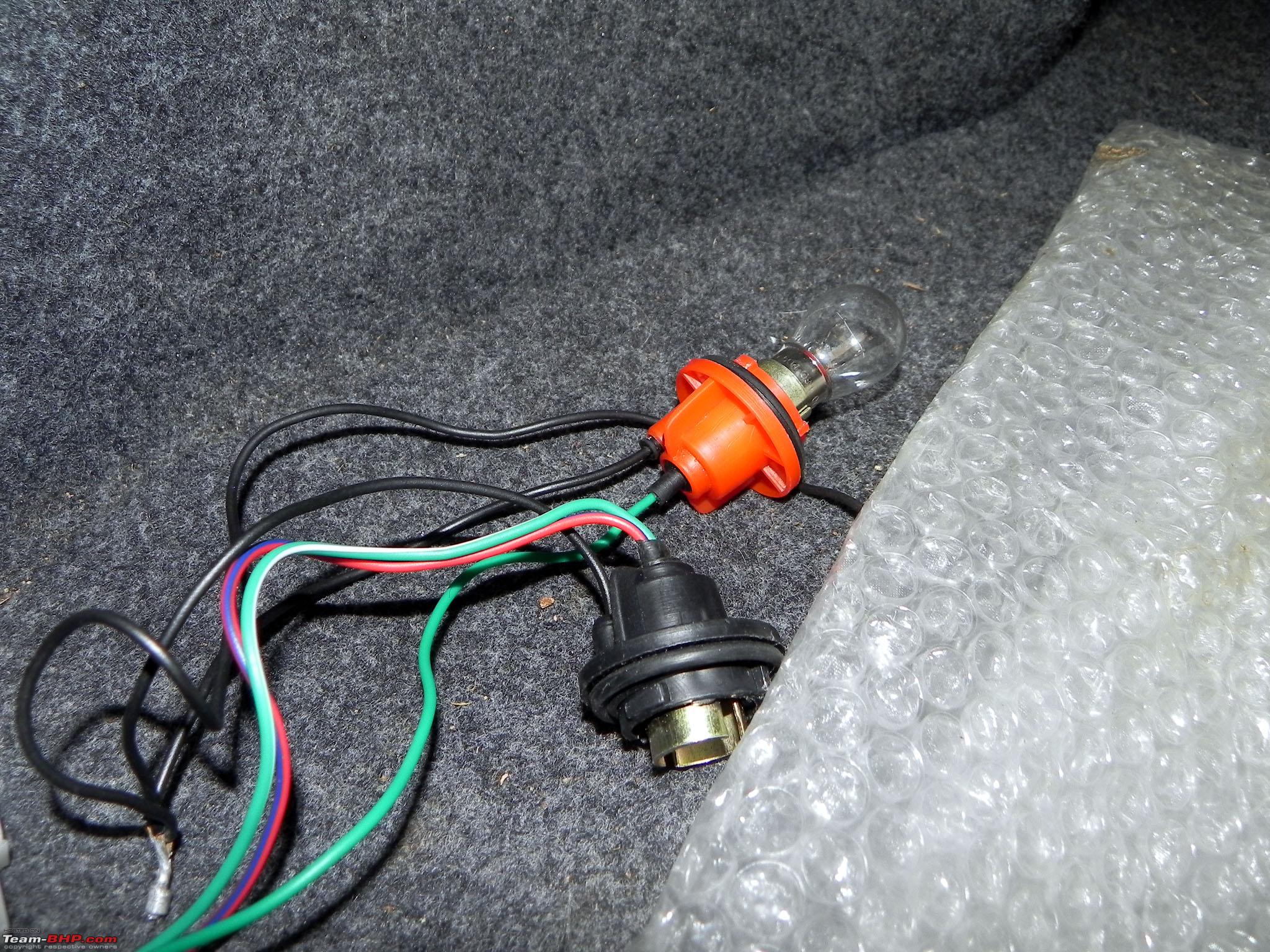

Step 4: Detach two single bulb holders from the 800 tail light wiring kit

A List of DIY's for your car: A Pictorial Guide-800-tail-lamp-cluster.jpg



Step 5:
Connect the holders appropriately. Ie, black wire from the holder to the black wiring in car, and the other.

Step 6: Insulate the wiring. Please make sure you do a good job in Insulating so that you avoid short circuits.

A List of DIY's for your car: A Pictorial Guide-insulate-properly.jpg



Step 7: Replace the holders and bulbs in their position. Again, refer Post # 51 for instructions regarding that.

==========================================

Normal lights.

A List of DIY's for your car: A Pictorial Guide-normal-lights.jpg


Cool dual tail lights - JOB DONE!

A List of DIY's for your car: A Pictorial Guide-bingo.jpg


P.S - Thanks to fellow bhp'n ilangop for the idea.

Last edited by dhanushs : 13th July 2011 at 16:31.
dhanushs is offline   (5) Thanks Reply With Quote
Old 13th July 2011, 16:24   #83
Distinguished - BHPian

IronH4WK's Avatar

Join Date: Dec 2009
Location: Bangalore
Posts: 3,436
Thanked: 2,987 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by dhanushs View Post
DIY: Adding An Additional Brake Light for Ford IKON Flair!

Tool Required: A sharp knife, pliers, Good quality Insulation tape

Raw Materials: A complete set of M800 Tail lamp bulb holders and wiring kit. 2 single filament bulbs to fit in those holders.

Total cost: 60 Rs for the kit, and 20 Rs for bulbs = 80 bucks.
hey, that's a neat trick!! extra lights at very minimal cost.

why does the Ikon tail lamp cluster have that extra slot? is it used as a spacer?
IronH4WK is online now   Reply With Quote
Old 13th July 2011, 16:33   #84
BHPian

ilangop's Avatar

Join Date: Jul 2008
Location: Pune/Neyveli
Posts: 888
Thanked: 524 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Nice job Dhanush. While I did, I have peeled off little more of the standard wiring, where I could get access to the actual joints made for this bulb holder patch harness. From there I had soldered the wires from the new holder.
The 800 bulb holders are a direct fit. For using a holder from a Tata family vehicle, you will have to remove the 3rd locating notch in the holder.
I am not sure if the 3rd lamp was reserved for any high end models when Ford launched Ikon in India.

Last edited by ilangop : 13th July 2011 at 16:37.
ilangop is offline   Reply With Quote
Old 13th July 2011, 19:31   #85
Senior - BHPian

samsag12's Avatar

Join Date: Dec 2009
Location: City of Nawaabs
Posts: 1,598
Thanked: 183 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by JustCause View Post
Alto's(800cc) engine bay with important parts labelled.
Attachment 575798
(Click to open hi-res)
I would like to correct something in the pic posted. In the picture the part marked as brake booster is actually THE WIPER MACHINE of the car and not brake booster.

Last edited by samsag12 : 13th July 2011 at 19:33.
samsag12 is offline   (1) Thanks Reply With Quote
Old 13th July 2011, 21:39   #86
Distinguished - BHPian

dhanushs's Avatar

Join Date: Oct 2009
Location: Bathery/BLR
Posts: 3,327
Thanked: 3,692 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by IronH4WK View Post
hey, that's a neat trick!! extra lights at very minimal cost.
Thanks!
Quote:
Originally Posted by IronH4WK View Post
why does the Ikon tail lamp cluster have that extra slot? is it used as a spacer?
That I dont exactly know. May be the IKON a.k.a Fiesta mk5 sold outside, had rear Fog lamps in them.
Quote:
Originally Posted by ilangop View Post
The 800 bulb holders are a direct fit.
Yes, the 800 holders I used are perfect fit. They even have a rubber washer around them to prevent misting. and.. THANKS for the tip. I appreciate it!


==================================================

Here's some night pics of the DIY! I find it pretty cool, and will be running them for a long time from now.


A List of DIY's for your car: A Pictorial Guide-result-night.jpg
A List of DIY's for your car: A Pictorial Guide-result-night-1.jpg
A List of DIY's for your car: A Pictorial Guide-result-night-2.jpg
dhanushs is offline   Reply With Quote
Old 14th July 2011, 17:29   #87
Senior - BHPian

planet_rocker's Avatar

Join Date: Sep 2006
Location: Bong-land
Posts: 2,319
Thanked: 358 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

The rear fog lamps were OE in Ikon 1.6 SXi May be they did not put it in the Flair / lower trims.

1100D's Ikon came with OE rear fog lamps.

Last edited by planet_rocker : 14th July 2011 at 17:30.
planet_rocker is offline   (1) Thanks Reply With Quote
Old 15th July 2011, 15:53   #88
Distinguished - BHPian

dhanushs's Avatar

Join Date: Oct 2009
Location: Bathery/BLR
Posts: 3,327
Thanked: 3,692 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by planet_rocker View Post
1100D's Ikon came with OE rear fog lamps.
So, they must have a separate switch or the Front fog lamp switch turned on those too?

Thanks for the clarification. I was wondering why would there be a perfect slot for a holder, and a reflector.
dhanushs is offline   Reply With Quote
Old 15th July 2011, 16:31   #89
Senior - BHPian

planet_rocker's Avatar

Join Date: Sep 2006
Location: Bong-land
Posts: 2,319
Thanked: 358 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

yes - i am sure there is a separate switch for the rear fog lamps. Infact if you recollect earlier ikons came with reverse light on one side / the other side had a fade cover on the empty slot.

In the mean time i will point this thread to him. a small correction - his ikon is a NXT(zxi) version and not the SXi.
planet_rocker is offline   Reply With Quote
Old 15th July 2011, 16:55   #90
Distinguished - BHPian

dhanushs's Avatar

Join Date: Oct 2009
Location: Bathery/BLR
Posts: 3,327
Thanked: 3,692 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by planet_rocker View Post
yes - i am sure there is a separate switch for the rear fog lamps.
hmm.. Do you have any idea where this switch is placed? The reason I'm asking is that, I'm looking for a proper OE switch and placement to trigger the boot-opener actuator. The original switch for boot-opener from Ford costs ~800 bucks, which is very costly, considering its only a switch. Aftermarket switches are very cheap (10rs) but look terribly out of place.
dhanushs is offline   Reply With Quote
