Old 15th July 2011, 17:01   #91
Senior - BHPian

planet_rocker's Avatar

Join Date: Sep 2006
Location: Bong-land
Posts: 2,320
Thanked: 362 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by dhanushs View Post
hmm.. Do you have any idea where this switch is placed?
No idea - that is why i have asked 1100D to chip in later tonight.

Quote:
Originally Posted by dhanushs View Post
The reason I'm asking is that, I'm looking for a proper OE switch and placement to trigger the boot-opener actuator. The original switch for boot-opener from Ford costs ~800 bucks, which is very costly, considering its only a switch. Aftermarket switches are very cheap (10rs) but look terribly out of place.
Electrical Boot release? Wow! i hope you are not talking about something like this
planet_rocker is offline   Reply With Quote
Old 15th July 2011, 20:17   #92
Senior - BHPian

Join Date: Sep 2006
Location: zxc
Posts: 3,390
Thanked: 651 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by JustCause View Post
Alto's(800cc) engine bay with important parts labelled.

Attachment 575798
(Click to open hi-res)
Little bit of correction.
1. brake booster is wrongly marked. Actually its the wiper motor. brake booster will be attached to the brake fluid reservoir bottle.

2. Charcoal canister is actually called receiver/drier. it part of Air conditioning system.
SirAlec is offline   Reply With Quote
Old 15th July 2011, 20:24   #93
BHPian

Join Date: Apr 2010
Location: Currently, New Delhi
Posts: 423
Thanked: 92 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by SirAlec View Post
Little bit of correction.
1. brake booster is wrongly marked. Actually its the wiper motor. brake booster will be attached to the brake fluid reservoir bottle.

2. Charcoal canister is actually called receiver/drier. it part of Air conditioning system.
I'd e-mailed T-BHP support with edited image day before yesterday. Hope they put it up soon.

The Charcoal canister I marked stores fuel vapours (confirmed by workshop). You claim that it is connected to A/C. The problem that I faced is that petrol smell used to come when the A/C was on. The hose from canister to throttle body was tightened & the issue vanished.
Could it be that the device is connected to both A/C & Fuel system?

Last edited by JustCause : 15th July 2011 at 20:25. Reason: Query added
JustCause is offline   Reply With Quote
Old 15th July 2011, 21:23   #94
Senior - BHPian

Join Date: Sep 2006
Location: zxc
Posts: 3,390
Thanked: 651 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Gasoline Vaporizer and AC receiver dryer is totally different.

Gasoline Vaporizer is connected to rubber hoses, its a efficiency and emission control related device.

AC receiver/dryer is a prime part of Air conditioning system. Its normally connected to High pressure side. Its main function is to separate liquid and gas.

Both are not related.

Distinguishing them is easy. Receiver dryer is made of aluminum and is connected to aluminum pipes, unlike vaporizer which is made of ABS plastic and thin rubber hoses is connected normally to carburetor or injection system.

PS:your images is not clear even in full resolution.

check the following images. (Marked red)

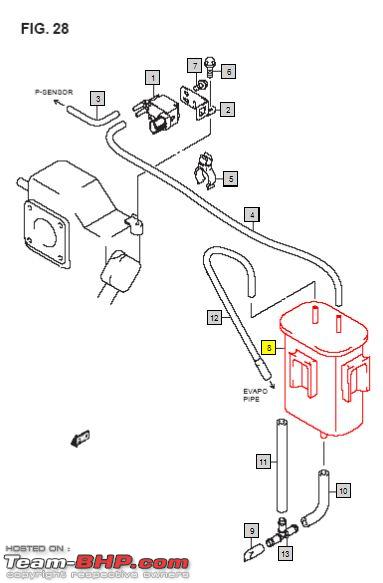

Gasoline Vapouriser
Name:  vapouriser.jpg
Views: 6397
Size:  29.8 KB

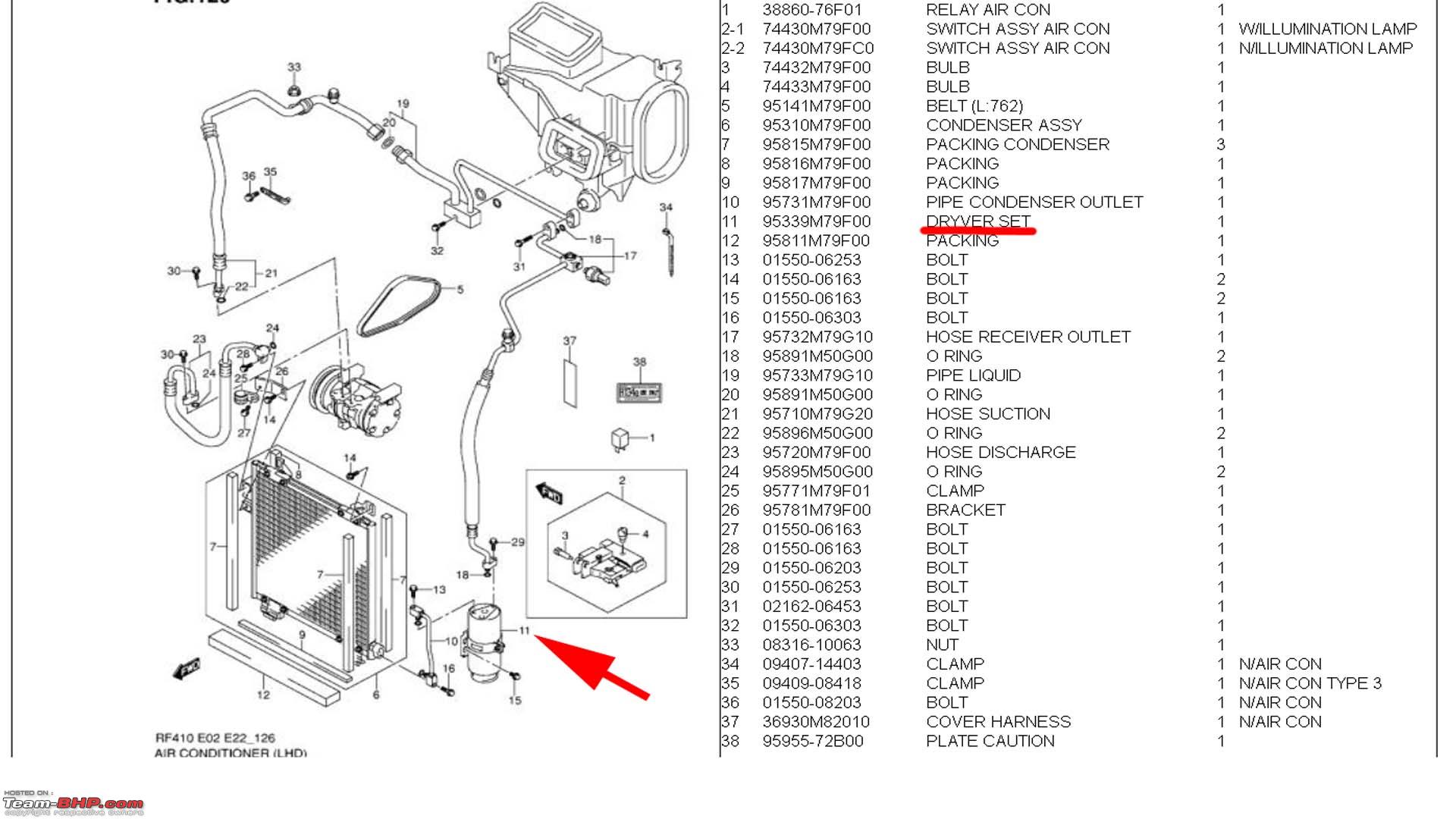

AC receiver dryer
Name:  dryer reciever.jpg
Views: 6674
Size:  52.6 KB
SirAlec is offline   (1) Thanks Reply With Quote
Old 15th July 2011, 23:23   #95
BHPian

Join Date: Apr 2010
Location: Currently, New Delhi
Posts: 423
Thanked: 92 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by SirAlec View Post
2. Charcoal canister is actually called receiver/drier. .
Charcoal canister is the term used for the device marked, though Fuel vapourizer also seems appropriate. It is referenced as such in the service manual

A List of DIY's for your car: A Pictorial Guide-untitled.jpg

Quote:
Originally Posted by SirAlec View Post
Both are not related. PS:your images is not clear even in full resolution.

I uploaded the full 8mpx resolution picture, don't know why it got resized in the edited post.
check the following images. (Marked red)

Gasoline Vapouriser
Attachment 577462

AC receiver dryer
Attachment 577461
Thanks for clarifying. I had originally marked the Canister/Fuel vaporizer in the pic. Attaching a clearer pic of canister.
A List of DIY's for your car: A Pictorial Guide-11072011162.jpg
The below mentioned part is nowhere near the fuel vaporizer/canister. It sits right below the gearbox mount on left side. It is also visible from the front bumper area.
Attached Thumbnails
A List of DIY's for your car: A Pictorial Guide-untitled1.jpg


Last edited by n_aditya : 25th November 2011 at 11:54. Reason: quote tags fixed.
JustCause is offline   Reply With Quote
Old 16th July 2011, 02:19   #96
Distinguished - BHPian

dhanushs's Avatar

Join Date: Oct 2009
Location: Bathery/BLR
Posts: 3,381
Thanked: 3,833 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by planet_rocker View Post
i hope you are not talking about something like this
Oh.. I have seen that thread. Thats cable operated, cheap, reliable and extremely easy to install. But..

I came to know recently that Ford's OE remote boot release kit, for which they charge ~6,500 includes just an actuator motor, simple wiring and a switch. I have already sourced the motor for 250 Rs, have the wire for ~50 bucks. Now searching for an appropriate switch.

Thought of going the OE way, just for the sake of it.
dhanushs is offline   Reply With Quote
Old 17th July 2011, 00:34   #97
dot
Senior - BHPian

dot's Avatar

Join Date: Dec 2007
Location: Ban Chang
Posts: 1,681
Thanked: 711 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by dhanushs View Post
Now searching for an appropriate switch.
Is it possible to use the dummy switch on top of the air flow selector dial, which is the left most dial of the three dial air con assembly on the center of the dash.
dot is offline   Reply With Quote
Old 17th July 2011, 04:14   #98
Senior - BHPian

maddy42's Avatar

Join Date: Aug 2007
Location: Phoenix, Coorg
Posts: 1,804
Thanked: 417 Times
Smile Re: A List of DIY's for your car: A Pictorial Guide

This is a great thread and would help inspire lazy buggers like me to get their bu%^ of the couch and work on their rides. Was able to check my air filter today and i realized for Hyundai elantra air filter you would not need a screw driver. You could do it very easily

Now i have minor issues bugging me and hope to get some help. Friend bought this new car a week back and there are some minor electrical problems. As i am in the US right now i do not have the advantage of going to the local mechanic to get it fixed cheaply so am coming here for help.

First my Stereo. Its a old one and comes factory fitted. I am unable to make the speakers on the left side of the car play. Only the right side speakers seems to be blaring music. Attached is the headunit picture to help you give solutions. ANy way to figure what must be wrong?
Name:  photo 1.JPG
Views: 5577
Size:  123.5 KB

Second problem is my AC and circulation buttons. Both of them seems on forever and how much i press it it doesnt switch off. How do i go about it?
Name:  photo 2.JPG
Views: 5799
Size:  130.7 KB
This is me trying to turn it off.
Name:  photo 3.JPG
Views: 5530
Size:  113.3 KB


Lastly just yesterday i realised that the passenger side pwer window switch has conked. It doesnt work and thus the passenger is at the mercy of the driver. If its a lady then you wont have your window moving at all when she is driving(this is the case of my friend so no offence women)
Name:  photo 4.JPG
Views: 5486
Size:  112.5 KB

Anyone can help me with any of these issues?

Last edited by bblost : 17th July 2011 at 23:06. Reason: Extra smiley deleted. Thanks.
maddy42 is offline   Reply With Quote
Old 17th July 2011, 22:06   #99
dot
Senior - BHPian

dot's Avatar

Join Date: Dec 2007
Location: Ban Chang
Posts: 1,681
Thanked: 711 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

For a embarrassingly simple DIY of taking out the battery and the ECU shroud of the Civic have a look at this post. Originally I was planning to post the steps on this thread, but didnt happen that way. And ignore the top part of the post.

http://www.team-bhp.com/forum/test-d...ml#post2433399

Last edited by dot : 17th July 2011 at 22:07.
dot is offline   Reply With Quote
Old 19th July 2011, 18:12   #100
Distinguished - BHPian

dhanushs's Avatar

Join Date: Oct 2009
Location: Bathery/BLR
Posts: 3,381
Thanked: 3,833 Times
Default Honda Civic Fuse and Relevance

Honda Civic Fuse and Relevance

Please download the attachment (doc file) under each image to understand the relevance of the numbers(Fuses).Under Dash:

Name:  Civic Fuse Box  Under Dash.png
Views: 15315
Size:  11.5 KB
Civic Fuse - Under Dash.doc

Under Hood:

Name:  Civic Fuse Box  Under Hood.png
Views: 127915
Size:  18.3 KB
Civic Fuse - Under Hood.doc
dhanushs is offline   (1) Thanks Reply With Quote
Old 20th July 2011, 22:36   #101
Senior - BHPian

Join Date: Dec 2010
Location: Ghaziabad/Hyderabad/Mysore
Posts: 1,415
Thanked: 313 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Guys one question:

Can someone point to which part in a Fiesta TDCi engine bay is the DPF?

Mustang.101 says it has a DPF, but I found Ford UK having no mention of DPF on the 1.4L TDCi (they mention it for 1.6L) - so wondering whether he is right.
vina is offline   Reply With Quote
Old 21st July 2011, 08:53   #102
BHPian

ilangop's Avatar

Join Date: Jul 2008
Location: Pune/Neyveli
Posts: 910
Thanked: 560 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by vina View Post
Can someone point to which part in a Fiesta TDCi engine bay is the DPF?
Vina, "I think", DPF is a part of Euro 5 mandate and not really essential in BS 4. Experts please confirm
ilangop is offline   Reply With Quote
Old 21st July 2011, 09:32   #103
Senior - BHPian

Join Date: Dec 2010
Location: Ghaziabad/Hyderabad/Mysore
Posts: 1,415
Thanked: 313 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by ilangop View Post
Vina, "I think", DPF is a part of Euro 5 mandate and not really essential in BS 4. Experts please confirm

Duratorq engines need it to meet Euro-4 (BS4) itself. All diesels need it for Euro5 - this is the info you get on wikipedia too.

The thing is I haven't read any references of the Figo engine (1.4 TDCi) having a DPF, the 1.6 TDCi definitely has it (though it isn't offered in India)
vina is offline   Reply With Quote
Old 21st July 2011, 10:17   #104
Senior - BHPian

mayankk's Avatar

Join Date: Apr 2010
Location: New Delhi
Posts: 4,004
Thanked: 3,127 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by vina View Post
Duratorq engines need it to meet Euro-4 (BS4) itself. All diesels need it for Euro5 - this is the info you get on wikipedia too.

The thing is I haven't read any references of the Figo engine (1.4 TDCi) having a DPF, the 1.6 TDCi definitely has it (though it isn't offered in India)
even if it is there, i dont think youll find it in the engine bay.
IMO it would be somewhere further downstream.
mayankk is offline   Reply With Quote
Old 21st July 2011, 12:10   #105
Senior - BHPian

Join Date: Dec 2010
Location: Ghaziabad/Hyderabad/Mysore
Posts: 1,415
Thanked: 313 Times
Default Re: A List of DIY's for your car: A Pictorial Guide

Quote:
Originally Posted by mayankk View Post
even if it is there, i dont think youll find it in the engine bay.
IMO it would be somewhere further downstream.

Well, then it has to be before the silencer somewhere - that means under the car.

The pictures I have seen on the internet have different positions - on Fiesta in UK it is a tubular structure under the car. When they show engine only, it is bolted after the turbo.

No mention of Figo, but then Figo is primarily sold in India and if anybody had a picture we would have it already on team BHP.
vina is offline   Reply With Quote
