Default DIY: The Short Shifter

After reading multiple posts on people cutting the gear lever and labelling it as a short shifter, i decided to make my own design.
So, one lazy afternoon, i opened up the whole shifter section with the linkage rods, and studied the shifter.

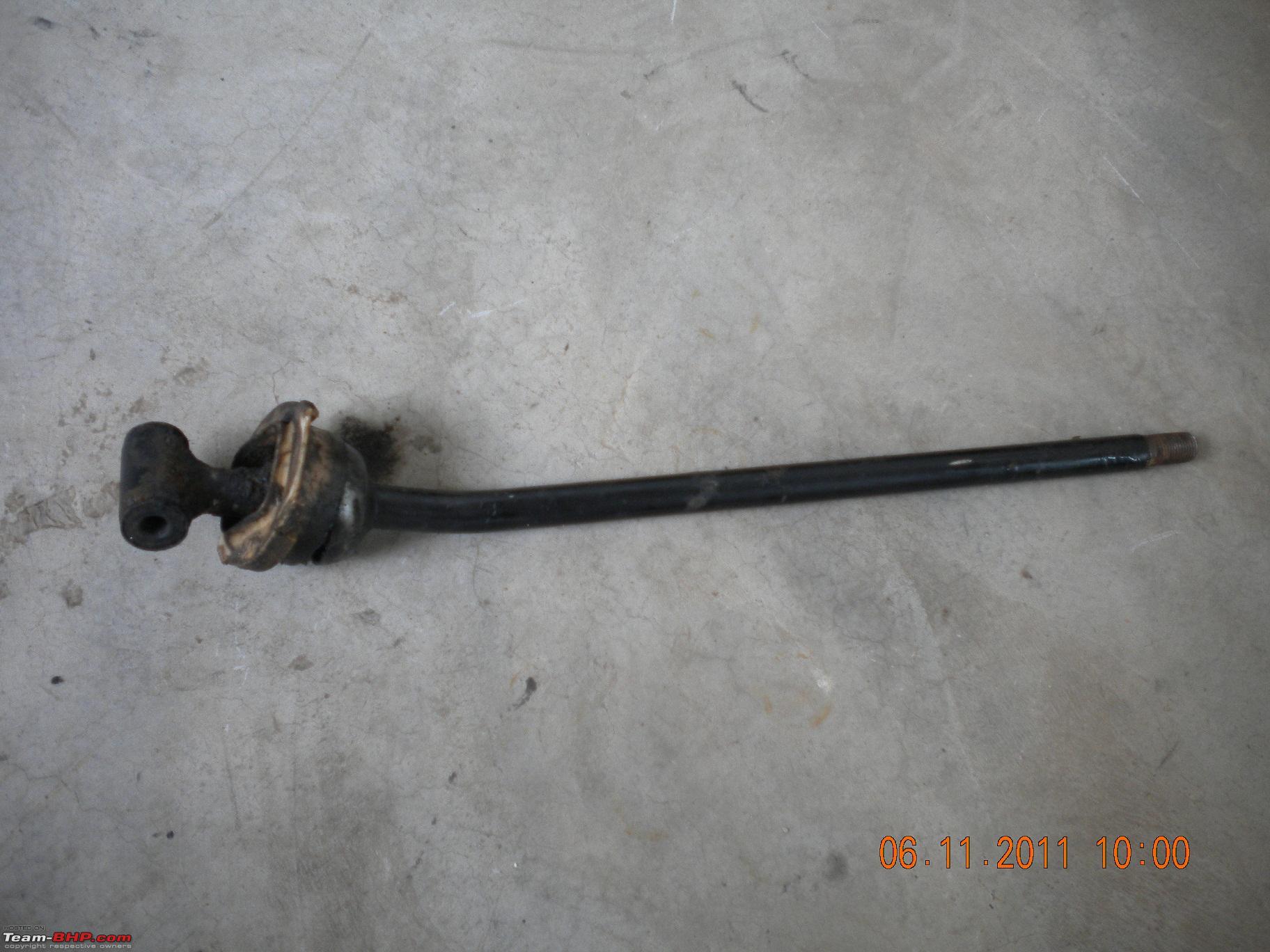

The Shifter Rod.

DIY: The Short Shifter-dscn1366.jpg

The Shifter ball. The rod moves in this.

DIY: The Short Shifter-dscn1365.jpg

The full System

DIY: The Short Shifter-dscn1368.jpg

The Shifter Ball.

DIY: The Short Shifter-dscn1369.jpg

The shifter rod was cut 4 inches on the upper part of the ball, and 2 inches were added to under section of the ball. Basically the ball and linkage length was increased.

DIY: The Short Shifter-dscn1372.jpg


The Ball assy was then exteneded by 2 inches to aling the shifter linkages to the gearbox.

DIY: The Short Shifter-dscn1370.jpg



Final Assembly and testing.

DIY: The Short Shifter-dscn1373.jpg


This is 3rd gear engaged.

DIY: The Short Shifter-dscn1375.jpg

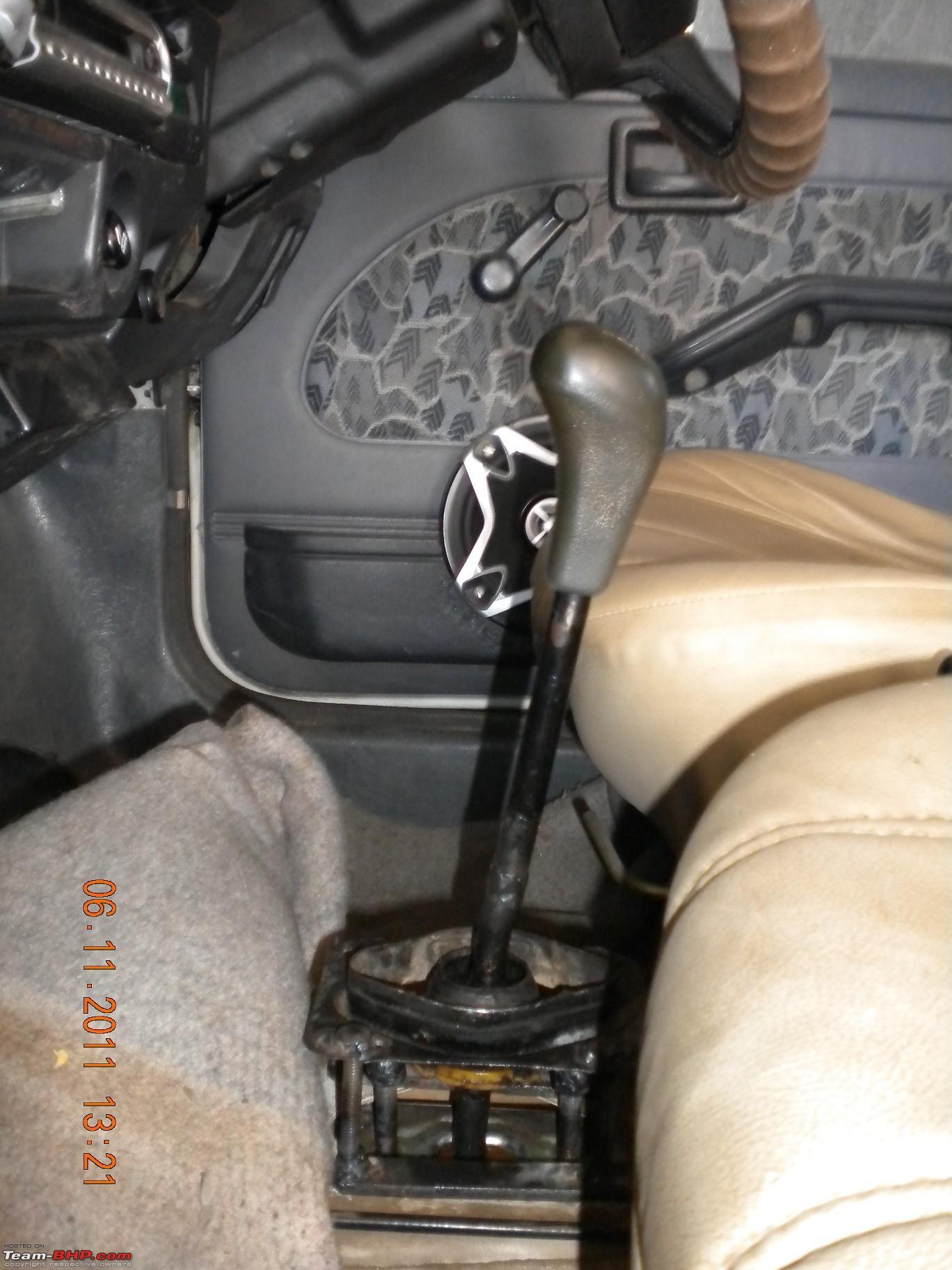

And this is 4th gear engaged. See the throw is really small. And Shifts with an Awesome mechanical clunk.

DIY: The Short Shifter-dscn1376.jpg


After this succeded, i worked on to align the assembly, and the crude welds were done with. It has been rewelded with MIG welding, with a CNC cut 3mm Ms plate as base, and 12mm Ms rods as extenders. I also replaced all the bushes. The whole system is completely reversible anytime, in just about 2 hours. No body panels cut, no linkages modified, everything stock.
Feels good to be an engineer.
racerdabba is offline   (21) Thanks Reply With Quote
Old 9th June 2012, 16:05   #2
Senior - BHPian

V-16's Avatar

Join Date: May 2005
Location: mumbai
Posts: 4,575
Thanked: 844 Times
Default Re: D-I-Y Short Shifter.

Buddy i had done a DIY short shift on my Swift almost 4 years ago and its still giving me the thrills. Please go through the posts attached as links below to get an idea what was done. Unfortunately those were the days when we used Imageshack to upload pics so you might not get to see the pictures but the description should be fine. If you do need pictoral back up, i could email you the pics.
Enjoy.

http://www.team-bhp.com/forum/modifi...tml#post673761 (My Swift ZXi...The Mods just begun!!)

http://www.team-bhp.com/forum/modifi...tml#post674750 (My Swift ZXi...The Mods just begun!!)
V-16 is offline   (1) Thanks Reply With Quote
Old 9th June 2012, 16:14   #3
BHPian

racerdabba's Avatar

Join Date: Jul 2008
Location: Bokaro steel city
Posts: 66
Thanked: 121 Times
Default Re: D-I-Y Short Shifter.

Quote:
Originally Posted by V-16 View Post
Buddy i had done a DIY short shift on my Swift almost 4 years ago and its still giving me the thrills. Please go through the posts attached as links below to get an idea what was done. Unfortunately those were the days when we used Imageshack to upload pics so you might not get to see the pictures but the description should be fine. If you do need pictoral back up, i could email you the pics.
Enjoy.

http://www.team-bhp.com/forum/modifi...tml#post673761 (My Swift ZXi...The Mods just begun!!)

http://www.team-bhp.com/forum/modifi...tml#post674750 (My Swift ZXi...The Mods just begun!!)

So u reduced the linkage length to come up with the shorter throws. I didnt want to tamper the linkages, so modded the Lever and Mounts.

As u said earlier, the pics are gone. Will be very helpful if i saw them. i have dropped a PM.
racerdabba is offline   Reply With Quote
Old 9th June 2012, 20:07   #4
Senior - BHPian

V-16's Avatar

Join Date: May 2005
Location: mumbai
Posts: 4,575
Thanked: 844 Times
Default re: DIY: The Short Shifter

Sure thing buddy. Am out of town for the next two days. Will email the pics to you on Monday
V-16 is offline   Reply With Quote
Old 10th June 2012, 12:36   #5
Senior - BHPian

theexperthand's Avatar

Join Date: Oct 2008
Location: Bangalore
Posts: 1,369
Thanked: 1,136 Times
Default re: DIY: The Short Shifter

@racerdabba: Nice DIY. One of my friends want to do a short shifter on his Eon - I will forward him this link.

@V-16: If it is not much of a bother, can you upload the pics in this thread? It might help others also.
theexperthand is offline   Reply With Quote
Old 10th June 2012, 13:27   #6
Senior - BHPian

Join Date: Nov 2007
Location: Bangalore
Posts: 2,376
Thanked: 528 Times
Default re: DIY: The Short Shifter

Quote:
Originally Posted by racerdabba View Post
Final Assembly and testing.

Attachment 938308
Nice DYI
Did the original panel/housing has the space for the raised assembly?
Guna is offline   Reply With Quote
Old 10th June 2012, 18:54   #7
BHPian

racerdabba's Avatar

Join Date: Jul 2008
Location: Bokaro steel city
Posts: 66
Thanked: 121 Times
Default re: DIY: The Short Shifter

Pictures will do the Talking.


Name:  Photo0056.jpg
Views: 9466
Size:  101.4 KB

Name:  Photo0060.jpg
Views: 9486
Size:  117.5 KB
racerdabba is offline   (1) Thanks Reply With Quote
Old 10th June 2012, 19:13   #8
Senior - BHPian

black12rr's Avatar

Join Date: Dec 2005
Location: Ridin earth now
Posts: 1,259
Thanked: 272 Times
Default re: DIY: The Short Shifter

Good DIY . Basically any DIY rocks .
Coming to point , as I understand , it reduces the throw of the stick right ? . Good to ppl with short hands .
black12rr is offline   Reply With Quote
Old 11th June 2012, 18:14   #9
BHPian

paras211's Avatar

Join Date: Nov 2006
Location: mumbai
Posts: 609
Thanked: 55 Times
Default

It's supposed to enable you to shift faster
paras211 is offline   Reply With Quote
Old 15th June 2012, 08:09   #10
Senior - BHPian

motomaverick's Avatar

Join Date: Nov 2005
Location: Bangalore
Posts: 1,838
Thanked: 864 Times
Default re: DIY: The Short Shifter

Nice DIY, the throw looks really small from 3rd to 4th, hows it with reverse or 1st gear? Did you maintain the angle of the rod?
motomaverick is offline   Reply With Quote
Old 15th June 2012, 16:10   #11
BHPian

somubj's Avatar

Join Date: Dec 2007
Location: Bangalore
Posts: 124
Thanked: 10 Times
Default re: DIY: The Short Shifter

Nice! Is this possible on a safari?
somubj is offline   Reply With Quote
Old 16th June 2012, 16:00   #12
BHPian

autotranny's Avatar

Join Date: Mar 2012
Location: Hyd, Thrissur
Posts: 281
Thanked: 201 Times
Default re: DIY: The Short Shifter

Quote:
Originally Posted by black12rr View Post
Coming to point , as I understand , it reduces the throw of the stick right ? . Good to ppl with short hands .
Its not about the length of the hands; its for quickening shifts, like a rally car does.

Anyway Black12rr gave it a whole new perspective.

Btw, Nice DIY job racerdabba

Last edited by autotranny : 16th June 2012 at 16:03.
autotranny is offline   Reply With Quote
Old 16th June 2012, 21:20   #13
Senior - BHPian

black12rr's Avatar

Join Date: Dec 2005
Location: Ridin earth now
Posts: 1,259
Thanked: 272 Times
Default re: DIY: The Short Shifter

Quote:
Originally Posted by autotranny View Post
Its not about the length of the hands; its for quickening shifts, like a rally car does.

Anyway Black12rr gave it a whole new perspective.

Btw, Nice DIY job racerdabba
I know .Just was thinking about other benefits. This is a short shifter right ? . Not a serial shifter , like 1-2-3-4-5 and 5-4-3-2-1 ?
black12rr is offline   Reply With Quote
Old 17th June 2012, 12:29   #14
BHPian

racerdabba's Avatar

Join Date: Jul 2008
Location: Bokaro steel city
Posts: 66
Thanked: 121 Times
Default re: DIY: The Short Shifter

Quote:
Originally Posted by motomaverick View Post
Nice DIY, the throw looks really small from 3rd to 4th, hows it with reverse or 1st gear? Did you maintain the angle of the rod?
Same goes with 1st/Reverse. Yes i did maintain the angle of the rod. The sideways movement has not been altered. Will have to modify the linkages for that. Let me find another Sunday.

Quote:
Originally Posted by somubj View Post
Nice! Is this possible on a safari?
Definitely. The same principle can be applied to any car having solid linkages to the 'Box. For Wire linked shifters, a different approach is needed.

Quote:
Originally Posted by black12rr View Post
I know .Just was thinking about other benefits. This is a short shifter right ? . Not a serial shifter , like 1-2-3-4-5 and 5-4-3-2-1 ?
No. Not a Serial shifter. Just a Short Shifter.
racerdabba is offline   Reply With Quote
Old 19th June 2012, 22:01   #15
BHPian

Join Date: Dec 2011
Location: Chandigarh
Posts: 42
Thanked: 22 Times
Default re: DIY: The Short Shifter

Quote:
Originally Posted by racerdabba View Post
Same goes with 1st/Reverse. Yes i did maintain the angle of the rod. The sideways movement has not been altered. Will have to modify the linkages for that. Let me find another Sunday.

As i understand this you have shifted the fulcrum of the lever ( ball joint) towards the top end to achieve a short throw. So this should act sideways also. Is it so?
risham is offline   Reply With Quote
