Default Re: DIY Install: LED cabin lights for the Maruti Swift

Thanks Anurag. I installed it yesterday - took only 2 mins. The problem was that the silly credit card won't work.

A simple thin serrated knife opened it in seconds.

It feels like a more airier car
phamilyman is offline   (1) Thanks Reply With Quote
Old 8th May 2015, 00:00   #62
Distinguished - BHPian

a4anurag's Avatar

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,104
Thanked: 12,452 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by phamilyman View Post
Thanks Anurag. I installed it yesterday - took only 2 mins. The problem was that the silly credit card won't work.

A simple thin serrated knife opened it in seconds.

It feels like a more airier car.
Thanks for your comments. It feels great to be in that cabin with brighter light to make eyes less strained.

Is yours 'V' variant or 'Z' BTW?
a4anurag is offline   Reply With Quote
Old 8th May 2015, 00:24   #63
BHPian

Grr7's Avatar

Join Date: Jul 2012
Location: Delhi
Posts: 186
Thanked: 189 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by TheLizardKing View Post
Also, I am incredibly anal, and want the light at the centre of the compartment (the same position as the OEM bulb).

I thought about it, and the only way out seems to be to fashion an L shaped bracket (from an aluminium sheet?)
No need to get an aluminium sheet and carve a L shape frame and then screw it.
Simply take some 3M double sided tape available at stationary shops, make a U shape structure of it(with extended U ends). Stick the light at one side and the ends on either side of festoon. LED light is light enough to hang in their with a simple bond of double side tape.

Regards
Grr7 is offline   Reply With Quote
Old 8th May 2015, 06:41   #64
Distinguished - BHPian

phamilyman's Avatar

Join Date: Jul 2007
Location: Gurgaon
Posts: 5,568
Thanked: 3,191 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by a4anurag View Post
Thanks for your comments. It feels great to be in that cabin with brighter light to make eyes less strained.

Is yours 'V' variant or 'Z' BTW?
VDI 2008

Quote:
Originally Posted by TheLizardKing View Post
Thanks for the effort! I was just expecting L x W dimensions of the panel, but you went the whole nine yards there!

The package arrived this morning, and works well. Now I have only one minor problem. Given the small size of the compartment, I don't have a lot of places to stick the LED panel. Also, I am incredibly anal, and want the light at the centre of the compartment (the same position as the OEM bulb).

I thought about it, and the only way out seems to be to fashion an L shaped bracket (from an aluminium sheet?) which can hang from one of the bulb terminal pins and hold the panel. I will do it this weekend (time permitting) and put up a pic once done.
You need something simpler - duct tape. Tape it on the inside of the light cover

Its held up well over a week. Let's see how it stays over the long term.
phamilyman is offline   Reply With Quote
Old 8th May 2015, 09:16   #65
Senior - BHPian

ariesonu's Avatar

Join Date: Mar 2010
Location: Bombay
Posts: 1,055
Thanked: 1,194 Times
Infractions: 0/1 (5)
Default Re: DIY Install: LED cabin lights for the Maruti Swift

I installed the same one as Anurag in my H-Accent (2000) yday. It is so blazing hot that I forgot to take any WIP photos.
H-Accent has only one center dome light for entire cabin and yellow bulb was as good as our streetlights. Thanks Anurag.

What I want to mention is that, in my Accent, there is POLARITY issue.
I installed it and slid the switch but no light, got bit tensed but then I changed FESTOON connector sides and VOILA, the light came on.

Thought of mentioning it for benefit of those who might fix the light wrong way for the first time.

Regards-Sonu

Last edited by ariesonu : 8th May 2015 at 09:20.
ariesonu is offline   (2) Thanks Reply With Quote
Old 8th May 2015, 11:10   #66
Distinguished - BHPian

a4anurag's Avatar

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,104
Thanked: 12,452 Times
Default

Quote:
Originally Posted by ariesonu View Post
Thanks Anurag.

What I want to mention is that, in my Accent, there is POLARITY issue.

Thought of mentioning it for benefit of those who might fix the light wrong way for the first time.
Thank you Sonu. Happy you liked the DIY even though it is a simple one and did perform the same on your car.

I forget to mention this Polarity issue in my actually. Thanks for raising it. It was mentioned in the product description actually on SnapDeal but slipped out of my mind.
a4anurag is offline   Reply With Quote
Old 10th May 2015, 12:58   #67
BHPian

v_safari's Avatar

Join Date: Feb 2015
Location: Delhi
Posts: 112
Thanked: 59 Times
Default

Hello all,
Here are the pics of my roof lamp LEDs.
Cost of led:Rs. 40*2

Result: It feels like sitting in my bed room. Extremely bright.

Just realized that only one image can be attached from the mobile app.
Is it true??

Attached pic is of the 2 led patches switched on.
Attached Thumbnails
DIY Install: LED cabin lights for the Maruti Swift-1431242859651.jpg

DIY Install: LED cabin lights for the Maruti Swift-1431242940609.jpg


Last edited by Gannu_1 : 10th May 2015 at 13:02. Reason: Consecutive posts merged.
v_safari is offline   Reply With Quote
Old 10th May 2015, 16:57   #68
Distinguished - BHPian

a4anurag's Avatar

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,104
Thanked: 12,452 Times
Default

Quote:
Originally Posted by v_safari View Post
Result: It feels like sitting in my bed room. Extremely bright.

Just realized that only one image can be attached from the mobile app.
Is it true?
Great. With one LED strip I feel having fixed a CFL inside the car can't imagine two!

Is the older version or newer version of the App that you are using?

Multiple images can be be added in one post.
a4anurag is offline   Reply With Quote
Old 29th May 2015, 16:02   #69
BHPian

v_safari's Avatar

Join Date: Feb 2015
Location: Delhi
Posts: 112
Thanked: 59 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

I've done this latest DIY led install but not in cabin but on the rear of the car.
Have a look at the video. Blinking led on the center fog lamp.
Led sections installed cost Rs. 50 for a pair. They have inbuilt blinker circuit. All you have to do is connect it to the 12V wiring.

v_safari is offline   Reply With Quote
Old 7th June 2015, 10:36   #70
BHPian

Join Date: Mar 2011
Location: Mumbai
Posts: 253
Thanked: 94 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

I have a query. I have purchased this SMD 5050 LED strip of 10. Can I take out two from this and fix it in the dome light? Or should I restrict it to one. My query is from an electrical load perspective and not regarding illumination.
Attached Thumbnails
DIY Install: LED cabin lights for the Maruti Swift-img20150607wa0000.jpg

@Chaand is offline   Reply With Quote
Old 7th June 2015, 11:10   #71
BHPian

Engine_Roars's Avatar

Join Date: Feb 2015
Location: Pune
Posts: 182
Thanked: 334 Times
Infractions: 0/1 (4)
Default

Quote:
Originally Posted by @Chaand View Post
I have a query. I have purchased this SMD 5050 LED strip of 10. Can I take out two from this and fix it in the dome light? Or should I restrict it to one. My query is from an electrical load perspective and not regarding illumination.
From Electrical load perspective I do not see any issue, however had I been in your place I would have used single strip. I have one LED strip installed in my car and that illuminates the cabin pretty well, and two LEDs would be too much light to handle.
Engine_Roars is offline   Reply With Quote
Old 7th June 2015, 21:27   #72
BHPian

Join Date: Mar 2011
Location: Mumbai
Posts: 253
Thanked: 94 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

So tried connecting one of the strips from post #70, directly to the edges of the festoon (after the festoon was removed). No luck. Changed polarity. Still no luck.
The bulbs are fine as I checked them later. Where am I going wrong?
@Chaand is offline   Reply With Quote
Old 7th June 2015, 21:55   #73
Distinguished - BHPian

a4anurag's Avatar

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,104
Thanked: 12,452 Times
Default

Quote:
Originally Posted by @Chaand View Post
So tried connecting one of the strips from post #70, directly to the edges of the festoon (after the festoon was removed). No luck. Changed polarity. Still no luck.
The bulbs are fine as I checked them later. Where am I going wrong?
Try getting such kind of spring loaded festoon connector.

Name:  ForumRunner_20150607_215359.png
Views: 1283
Size:  193.9 KB

Splice the ends and connect the wires of the LED strip.

Should work.
a4anurag is offline   Reply With Quote
Old 7th June 2015, 23:09   #74
BHPian

Join Date: Mar 2011
Location: Mumbai
Posts: 253
Thanked: 94 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Installed these in the boot of my ANHC and here are the results.

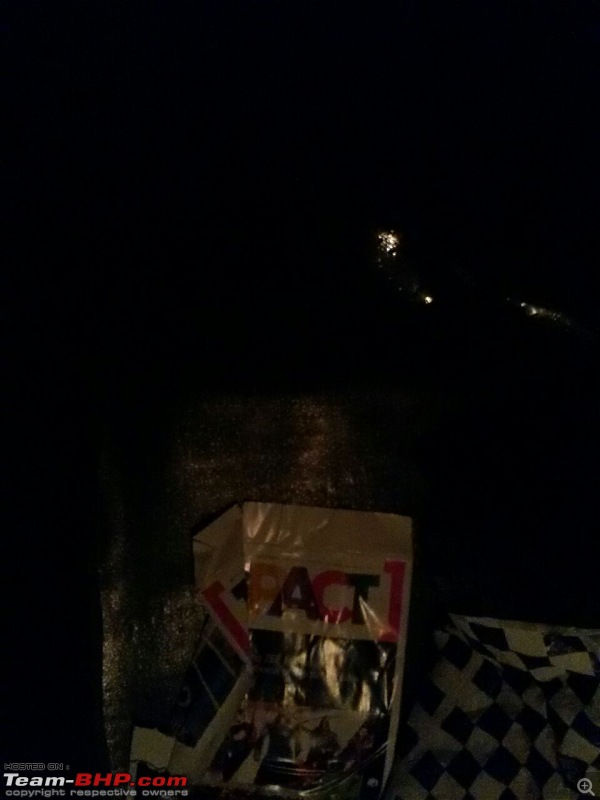

The first two pics are the ones on stock light and the rest are with new SMD 5050 LED's. I was amazed by the results myself.

Apologies to Anurag for hijacking this thread, but I guess I owe the inspiration to you!
Attached Thumbnails
DIY Install: LED cabin lights for the Maruti Swift-img20150607wa0002.jpg

DIY Install: LED cabin lights for the Maruti Swift-img20150607wa0001.jpg

DIY Install: LED cabin lights for the Maruti Swift-img20150607wa0003.jpg

DIY Install: LED cabin lights for the Maruti Swift-img20150607wa0003.jpg

DIY Install: LED cabin lights for the Maruti Swift-img20150607wa0004.jpg

DIY Install: LED cabin lights for the Maruti Swift-img20150607wa0006.jpg


Last edited by @Chaand : 7th June 2015 at 23:14.
@Chaand is offline   Reply With Quote
Old 7th June 2015, 23:21   #75
Distinguished - BHPian

a4anurag's Avatar

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,104
Thanked: 12,452 Times
Default

Quote:
Originally Posted by @Chaand View Post
Apologies to Anurag for hijacking this thread, but I guess I owe the inspiration to you!
Great results. What was once a dull view is now bright.

I am happy that the thread being useful for many BHPian's who are looking to enhance the lighting.
a4anurag is offline   Reply With Quote
