Old 22nd August 2015, 09:55   #91
BHPian

vin11's Avatar

Join Date: Aug 2015
Location: Delhi
Posts: 119
Thanked: 77 Times
Default

Quote:
Originally Posted by a4anurag View Post
Never have gone to that level of detailing and IMO it is risky.

Would involve removing the dashboard to access the instrumentation cluster.

Once that's opened, the cover holding the i console shark b be open need to expose the bulbs which are mostly T10 / T5 or w5w.
This means that bulbs would not be hard to procure. Only the installation part is difficult, plus there might be rattling problems are the install.

I will drop this plan for now and would seek help from an experienced person in the future. And I am sure the cabin would feel more plush at night after this small change.
vin11 is offline   Reply With Quote
Old 22nd August 2015, 10:49   #92
Distinguished - BHPian

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,371
Thanked: 13,345 Times
Default

Quote:
Originally Posted by vin11 View Post

This means that bulbs would not be hard to procure. Only the installation part is difficult, plus there might be rattling problems are the install.

I will drop this plan for now and would seek help from an experienced person in the future. And I am sure the cabin would feel more plush at night after this small change.
Go to AliExpress and you'll get great deals on these bulbs.

Rattling is my main worry and workmanship hence avoided it.
a4anurag is offline   Reply With Quote
Old 12th September 2015, 18:48   #93
BHPian

vin11's Avatar

Join Date: Aug 2015
Location: Delhi
Posts: 119
Thanked: 77 Times
Default

a4anurag : I had a query. I am looking to install LED lights (or maybe the COB DRLs from ebay) in the front footwell of my Swift.

I have ordered a 200 rupee COB DRL set (for the time being) offline from an Electrical shop. I have a complete layout in my mind for placement but I am not sure about the wiring.

I want them to be connected with the Cabin Lamp (to light up with the doors ajar) but wiring till the roof won't be an easy task for me. Is there any other method to wire (like tapping a wire, taking current from fuse box) it?

MODS - Please move if needed.
vin11 is offline   Reply With Quote
Old 12th September 2015, 23:27   #94
Distinguished - BHPian

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,371
Thanked: 13,345 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by vin11 View Post
I want them to be connected with the Cabin Lamp (to light up with the doors ajar) but wiring till the roof won't be an easy task for me. Is there any other method to wire (like tapping a wire, taking current from fuse box) it?
AFAIK, get a fuse tap and wiring required to connect the foot well lamps.

That can be connected to the Dome (7.5A) in the BCM that is located near the accelerator pedal.

http://www.team-bhp.com/forum/modifi...r-dashcam.html

It is a similar process used by Arun in the above link.
a4anurag is offline   Reply With Quote
Old 13th September 2015, 11:19   #95
BHPian

vin11's Avatar

Join Date: Aug 2015
Location: Delhi
Posts: 119
Thanked: 77 Times
Default

Quote:
Originally Posted by a4anurag View Post
AFAIK, get a fuse tap and wiring required to connect the foot well lamps.

That can be connected to the Dome (7.5A) in the BCM that is located near the accelerator pedal.

http://www.team-bhp.com/forum/modifi...r-dashcam.html

It is a similar process used by Arun in the above link.
I am a noob in this area, so have a silly question. Does the cabin lamp fuse get power (current) through the functioning of the switch (for on, off, door) or through the main ignition (or always as cabin lamp is directly through battery)? If it has current all the time, I think my lights (DRL) would remain lit all the time. If it gets current only in the Door and ON position, then I can go ahead with tapping a fuse.

What I want - The lights power ON with the cabin lamp, basically by the switch for OFF-DOOR-ON.

I am thinking of 2 ways to do this -

1. Route the wiring all the way up to the cabin lamp (i.e. roof) or till a place where I can find the cabin lamp wiring. Tap the wire and be happy. This way a lot of wiring would be needed.

2. Tap the cabin lamp fuse. This would do the job with less wiring.

One more question - Will power supply be enough for the 6-8W each DRLs? I have a festoon LED like in your car which would be less than 5W I assume. But anyway, I won't use it for more than 10 minutes per day.

Last edited by vin11 : 13th September 2015 at 11:23.
vin11 is offline   Reply With Quote
Old 30th November 2015, 20:29   #96
Senior - BHPian

Join Date: Dec 2007
Location: Bangalore
Posts: 1,062
Thanked: 291 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by a4anurag View Post
The Need:
Tried this on my Swift ZDi today. I'm pleased with the effect. Thanks for the idea Anurag!

And yes, it has retained the theater dimming effect.
blue_pulsar is offline   (1) Thanks Reply With Quote
Old 8th December 2015, 18:54   #97
BHPian

The Dude's Avatar

Join Date: Nov 2015
Location: Trivandrum
Posts: 88
Thanked: 57 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Amazing DIY Anurag sir! IMO, it is much more practical than the common bulb. Lower power + Better lighting + Good looks. Now that is pretty impressive. I'm looking to do this on my mom's Gi10.
DIY Install: LED cabin lights for the Maruti Swift-image.jpeg
How many LEDs do you think I can fit in there and will the process be the same? Looks like this is gonna be my first DIY.

Will this void the car's warranty?

Thanks in advance!

-Adhi
The Dude is offline   Reply With Quote
Old 8th December 2015, 20:29   #98
Distinguished - BHPian

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,371
Thanked: 13,345 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by Satan's Valet View Post
How many LEDs do you think I can fit in there and will the process be the same? Looks like this is gonna be my first DIY.

Will this void the car's warranty?
What I'll need you to do is open that plastic cover so that I can judge the size of the festoon bulb that will fit in.

IMO 16SMD should be good enough.

Warranty may not go void. Not sure how Hyundai functions.
a4anurag is offline   Reply With Quote
Old 9th December 2015, 15:56   #99
BHPian

The Dude's Avatar

Join Date: Nov 2015
Location: Trivandrum
Posts: 88
Thanked: 57 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by a4anurag View Post
What I'll need you to do is open that plastic cover so that I can judge the size of the festoon bulb that will fit in.

IMO 16SMD should be good enough.

Warranty may not go void. Not sure how Hyundai functions.

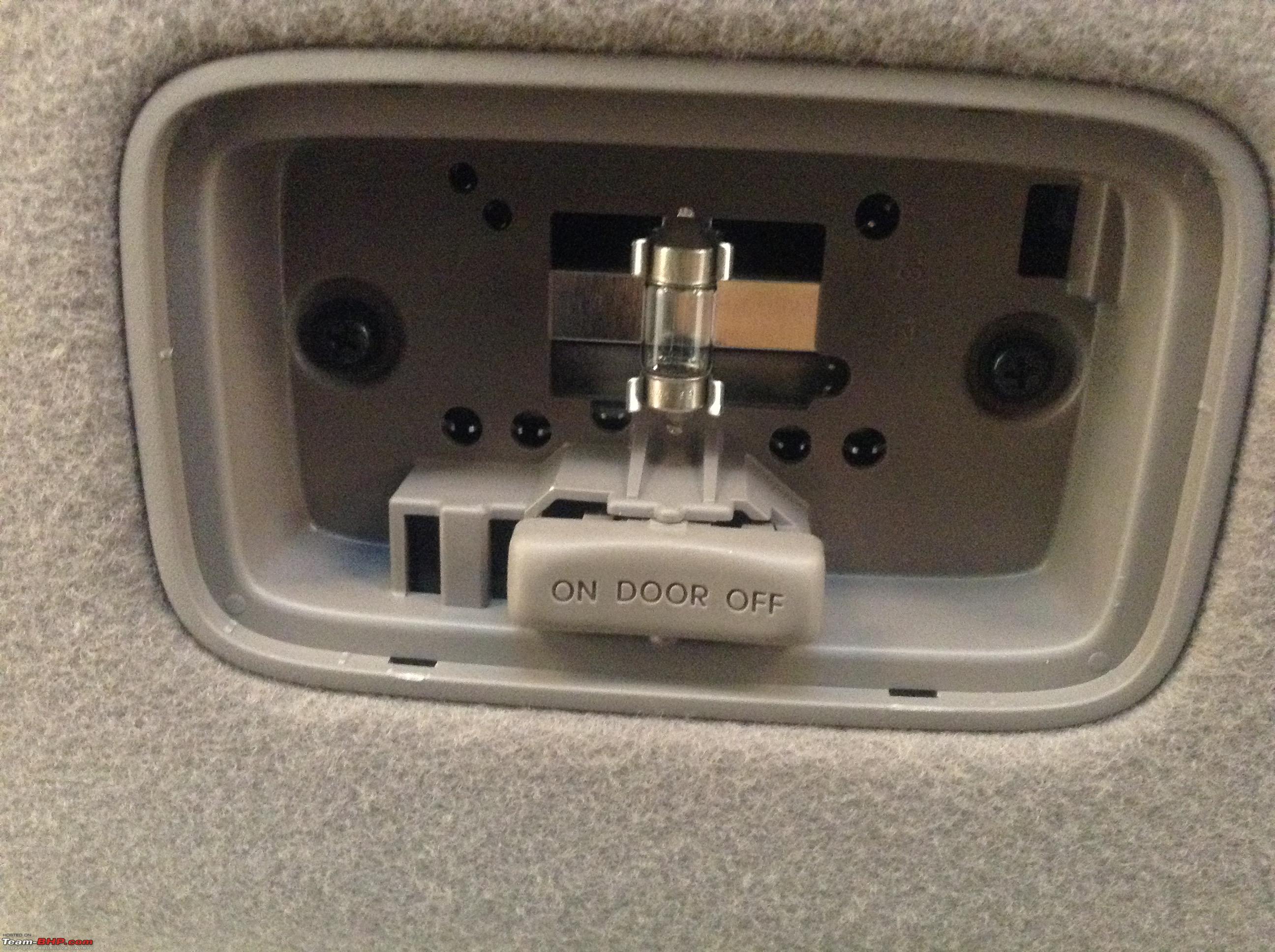

Here you go!
DIY Install: LED cabin lights for the Maruti Swift-image.jpeg
The Dude is offline   Reply With Quote
Old 9th December 2015, 18:53   #100
BHPian

Join Date: Mar 2011
Location: Mumbai
Posts: 262
Thanked: 108 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by Satan's Valet View Post
Here you go!
IMHO 24 SMD should be fine enough. Go for the spring loaded one.
@Chaand is offline   (1) Thanks Reply With Quote
Old 9th December 2015, 19:24   #101
Distinguished - BHPian

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,371
Thanked: 13,345 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by Satan's Valet View Post
Here you go!
Attachment 1448549
I'm giving you two suggestions. Though I'll pick the first one as it is reliable and better in terms of long-term life and quality. Go for the Speedwav if you are short on budget.

1. Philips Fest 14x30 LED 12941 6000K Interior Bulb (12V, 1W)
Philips Festoon

2. Speedwav 16 SMD LED festoon bulb:
Speedwav 16SMD

Do update here after your D.I.Y!

Quote:
Originally Posted by @Chaand View Post
IMHO 24 SMD should be fine enough. Go for the spring loaded one.
IMO, getting a festoon bulb directly is better rather the spring loaded with the LED strip being separately stuck which will not be reliable.
a4anurag is offline   (1) Thanks Reply With Quote
Old 27th December 2015, 10:50   #102
BHPian

samaspire's Avatar

Join Date: Sep 2015
Location: Manipal / Udupi
Posts: 958
Thanked: 2,275 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Hey anurag, do you have the MGP part numbers for the cabin light and the boot light assembly. I want to do a jugaad for my Aspire's boot
samaspire is offline   Reply With Quote
Old 27th December 2015, 14:25   #103
Distinguished - BHPian

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,371
Thanked: 13,345 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by samaspire View Post
Hey anurag, do you have the MGP part numbers for the cabin light and the boot light assembly. I want to do a jugaad for my Aspire's boot
Yes Sir, I do have them. Here you go.

DIY Install: LED cabin lights for the Maruti Swift-img_20151227_121257horz.jpg
a4anurag is offline   (1) Thanks Reply With Quote
Old 27th December 2015, 17:41   #104
BHPian

samaspire's Avatar

Join Date: Sep 2015
Location: Manipal / Udupi
Posts: 958
Thanked: 2,275 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by a4anurag View Post
Yes Sir, I do have them. Here you go.

Attachment 1453715
Thank you. Can you also post pics of the actual assemblies so that I can understand the diagram better. I guess I can use the cabin light for my boot as it mounts on the ceiling in the Aspire. Any idea about the cost?
samaspire is offline   Reply With Quote
Old 27th December 2015, 18:02   #105
Distinguished - BHPian

Join Date: Oct 2011
Location: Hyderabad
Posts: 9,371
Thanked: 13,345 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by samaspire View Post
Thank you. Can you also post pics of the actual assemblies so that I can understand the diagram better. I guess I can use the cabin light for my boot as it mounts on the ceiling in the Aspire. Any idea about the cost?
For Cabin lights:

1. Cabin Light LED

AND

Check images on the opening of this thread.

For Boot Light:

Boot Light

Do let me know if you need anything more. I'll be happy to help.
a4anurag is offline   (1) Thanks Reply With Quote
