Default Re: DIY Install: LED cabin lights for the Maruti Swift

Swapping to LED's on the Rear registration lights

Simple Process:
  1. Open the boot lid; open the black cover by pulling the plastic clips;
  2. There are 6 of them holding the cover;
  3. Pull the connectors powering the bulbs by pressing down on the tab located on the top;
  4. Hold the bulb holder and rotate it anti-clockwise (12-10 O' clock position) to free them from the boot lid;
  5. Pull out the OEM T10's and replace them with the Osram T10 LED's.
  6. Refit the holder and boot lid cover.
  7. We are Done!

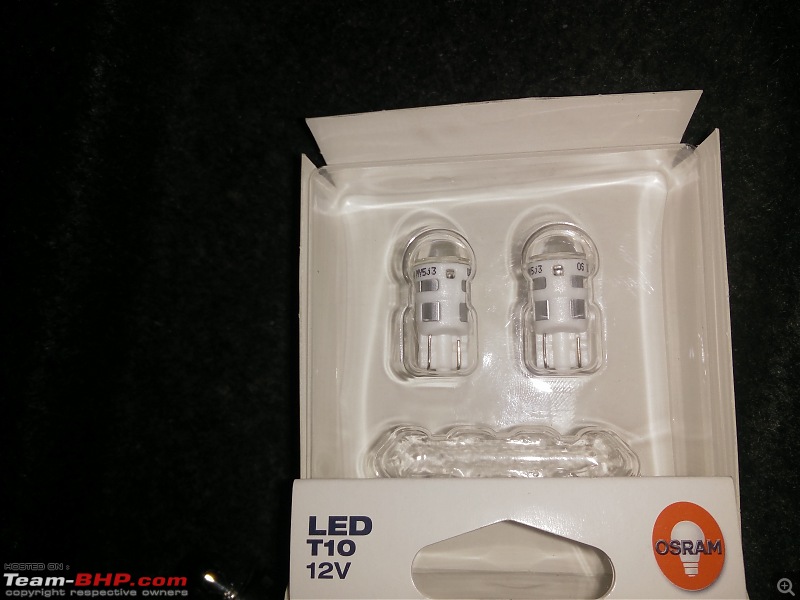

Osram LED T10/W5W
DIY Install: LED cabin lights for the Maruti Swift-1.jpg

The Bulbs
DIY Install: LED cabin lights for the Maruti Swift-2.jpg

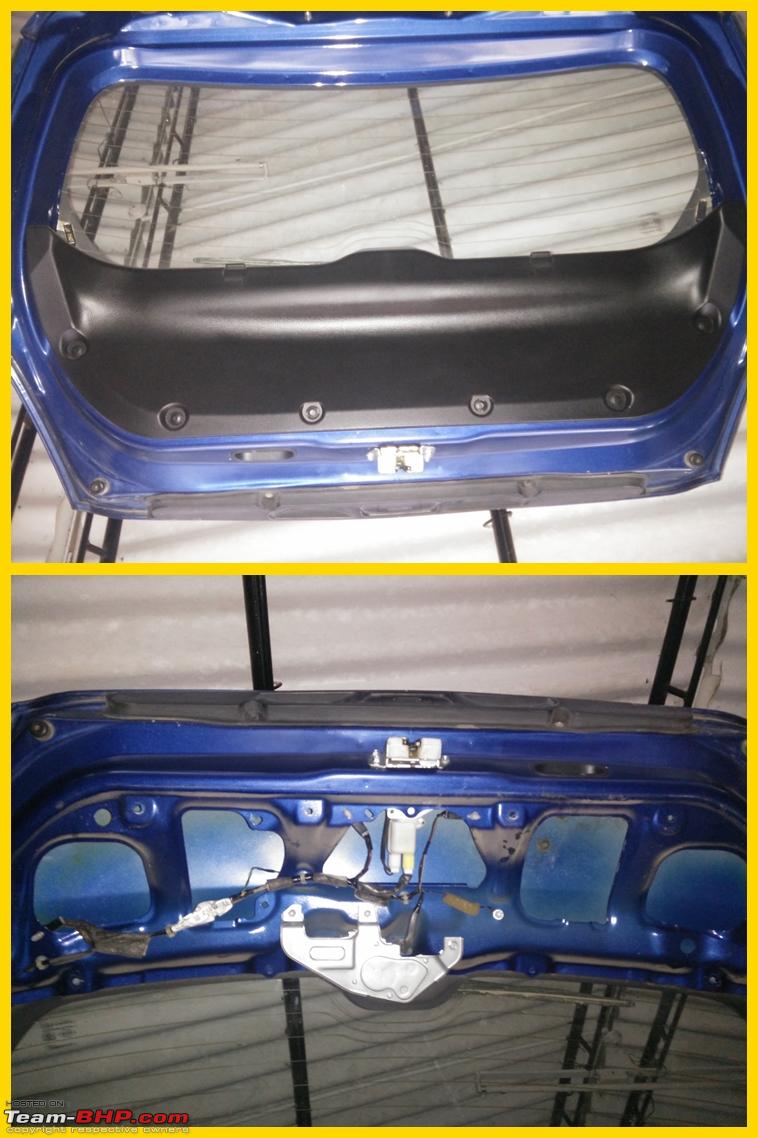

Black cover on the boot lid
DIY Install: LED cabin lights for the Maruti Swift-3.jpg

Plastic clip that holds the cover
DIY Install: LED cabin lights for the Maruti Swift-3a.jpg

Connector for the registration plate lights - Remove by pressing the tab on the top
DIY Install: LED cabin lights for the Maruti Swift-4.jpg

Rotate the bulb holder anti-clockwise (12-10 o' clock position) to remove the lights
DIY Install: LED cabin lights for the Maruti Swift-5.jpg

OEM T10 vs Osram T10 LED's
DIY Install: LED cabin lights for the Maruti Swift-6.jpg

Test Shot
DIY Install: LED cabin lights for the Maruti Swift-7.jpg

Before (i.e OEM T10's)
DIY Install: LED cabin lights for the Maruti Swift-8.jpg

After (i.e Osram T10's)
DIY Install: LED cabin lights for the Maruti Swift-9.jpg

Last edited by a4anurag : 20th January 2016 at 19:38.
a4anurag is offline   (5) Thanks Reply With Quote
Old 5th February 2016, 13:16   #107
BHPian

Join Date: Oct 2005
Location: @ Driver's Seat @
Posts: 679
Thanked: 56 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Anuraj,

Attempting to do a DIY for Swift.

Will the following model work ? Worried about the dimensions

http://www.aliexpress.com/item/48-LE...227641741.html
lambuhere1 is offline   Reply With Quote
Old 5th February 2016, 13:37   #108
Distinguished - BHPian

a4anurag's Avatar

Join Date: Oct 2011
Location: Hyderabad
Posts: 8,877
Thanked: 11,767 Times
Default

Quote:
Originally Posted by lambuhere1 View Post
Attempting to do a DIY for Swift.

Will the following model work ? Worried about the dimensions
Hey, IMO it will not fit in the interior lamp casing. 16 SMD is more than sufficient.
a4anurag is offline   (1) Thanks Reply With Quote
Old 5th February 2016, 14:15   #109
BHPian

mukeshgoel's Avatar

Join Date: Sep 2008
Location: Gurgaon
Posts: 733
Thanked: 364 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by lambuhere1 View Post
Anuraj,

Attempting to do a DIY for Swift.

Will the following model work ? Worried about the dimensions

http://www.aliexpress.com/item/48-LE...227641741.html
Hi.

I am using something similar in my swift.

http://www.team-bhp.com/forum/diy-do...ml#post3697791 (DIY Install: LED cabin lights for the Maruti Swift)

I bought it from ebay @159 (124 + 35 shipping charges).

http://www.ebay.in/itm/271623727959

Last edited by mukeshgoel : 5th February 2016 at 14:40.
mukeshgoel is online now   (1) Thanks Reply With Quote
Old 5th February 2016, 14:49   #110
Distinguished - BHPian

a4anurag's Avatar

Join Date: Oct 2011
Location: Hyderabad
Posts: 8,877
Thanked: 11,767 Times
Default

Quote:
Originally Posted by mukeshgoel View Post
I am using something similar in my swift.
Is it fitting in the cabin light casing?
a4anurag is offline   Reply With Quote
Old 10th February 2016, 13:04   #111
BHPian

Join Date: Oct 2005
Location: @ Driver's Seat @
Posts: 679
Thanked: 56 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

Quote:
Originally Posted by schakravarthy View Post
The front stock cabin light bulbs were replaced with LEDs. A bigger LED was connected in parallel at the rear. The bulb is placed at a discreet location (it's not visible unless you are looking for it).
The light throw at night is amazing, the entire cabin is lit up in a soft bluish-white light; but not jarringly so.
Sirji,

Can you kindly shed the light on how the bigger LED was connected in parallel ? Was it done at authorized service center or was it a DIY ?

How is the light fixed onto the frame ? Dual duct tape ?

Is the light connected to internal dome switch ?

And the model of the light : Is it 24 SMD or 16 SMD ?

Any additional photos of the setup will be really helpful
lambuhere1 is offline   Reply With Quote
Old 10th February 2016, 18:09   #112
Senior - BHPian

schakravarthy's Avatar

Join Date: Dec 2013
Location: KA 09 / KA 02
Posts: 1,228
Thanked: 3,460 Times
Default

Quote:
Originally Posted by lambuhere1 View Post
Can you kindly shed the light on how the bigger LED was connected in parallel ? Was it done at authorized service center or was it a DIY ?
'Twas a DIY. I connected it in parallel to the cabin light.

Quote:
Originally Posted by lambuhere1 View Post
How is the light fixed onto the frame ? Dual duct tape ?
I made a small pin hole in the headliner and passed the wire through it. The tension was enough to hold the light in place.

Quote:
Originally Posted by lambuhere1 View Post
Is the light connected to internal dome switch ?
Yep.

Quote:
Originally Posted by lambuhere1 View Post
And the model of the light : Is it 24 SMD or 16 SMD ?
No clue, sir. I bought it at a local accessories shop. Iirc, I had paid around Rs.200/- for it.

Quote:
Originally Posted by lambuhere1 View Post
Any additional photos of the setup will be really helpful
I only have more pics of the bulb and illumination; no installation pics.
And, I can't get you more pics either, I sold the car.
schakravarthy is offline   Reply With Quote
Old 17th September 2016, 13:36   #113
BHPian

Join Date: Oct 2005
Location: @ Driver's Seat @
Posts: 679
Thanked: 56 Times
Default Re: DIY Install: LED cabin lights for the Maruti Swift

A bit OT :

Did anyone do a DIY for installing a BOOT LIGHT in FIRST GEN SWIFT VXI ?

Not sure about th electrical wiring issues, was planning to do something in Dasara holidays. Need to order parts.

Planning it in such a way that when the boot lid is open, the LED light will glow within the boot.

Appreciate your guidance
