Thumbs up D.I.Y. Weekend Project: Car Battery Voltage Monitor

Sometimes friends say that I am getting older, as I need the kind of information which a normal person doesn't need at all. Sometimes friends say that I am a geek and techie who always has something beyond normal users. Anyway to keep those people busy commenting, I installed a D.C. voltage monitor in my Santro Xing.

What's different in my installation?
This one is different because it's hooked directly to the car battery instead of using the car cigarette lighter socket, which in most cases, is connected after a voltage regulator, which would never read above 13 volts.

I installed it by hooking it up to the car amplifier that I already had under the seat. Used a switch and a fuse for pre-caution, and having it installed in this way shows me whether the alternator is generating enough voltage to charge the battery. It's like something you'd see at a battery shop, where the mechanic places a meter on the battery terminal and then asks you to crank the engine and he checks if the battery voltage went above 12/13 volts once engine started running.

Some installation pics attached.

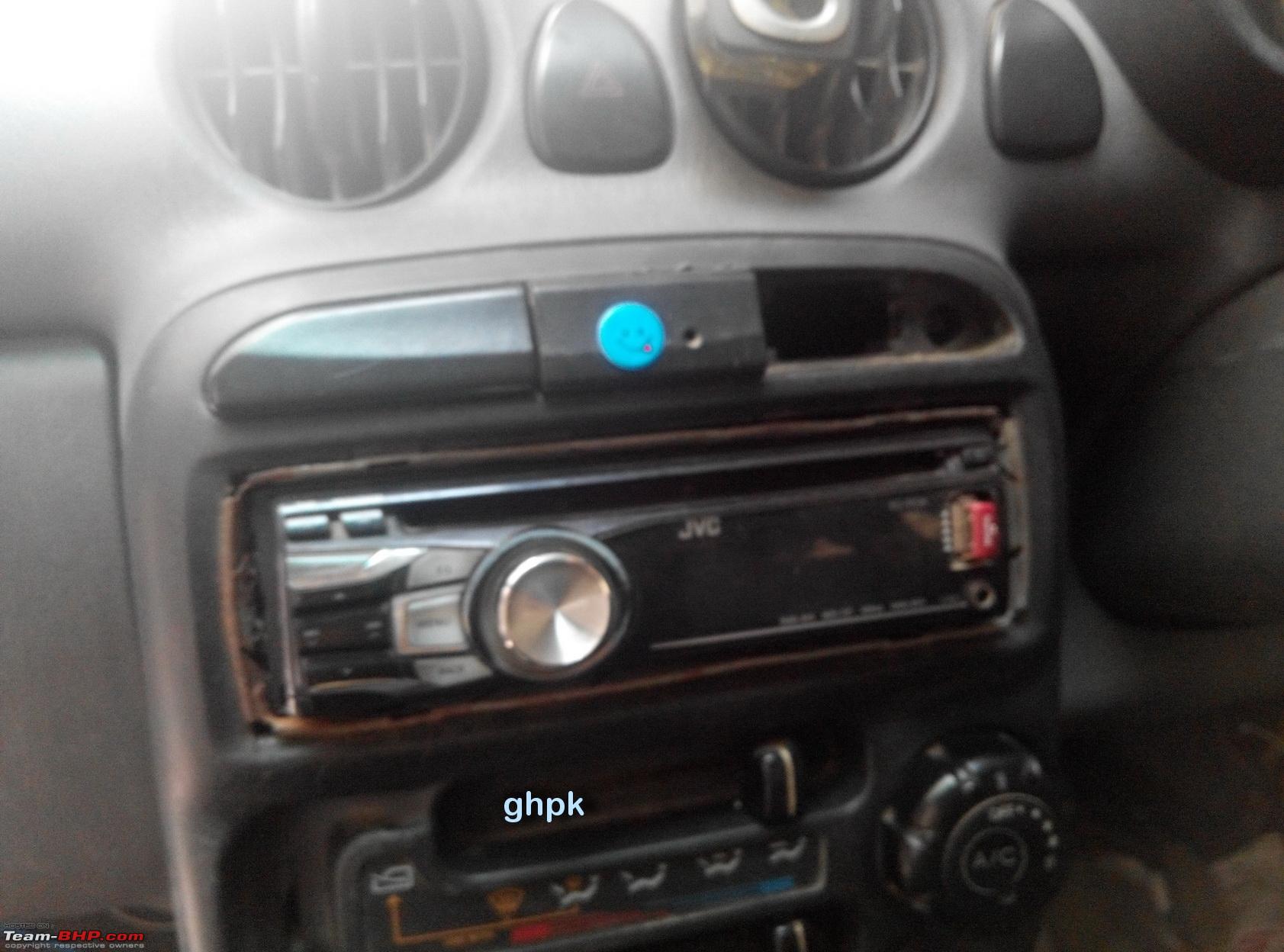

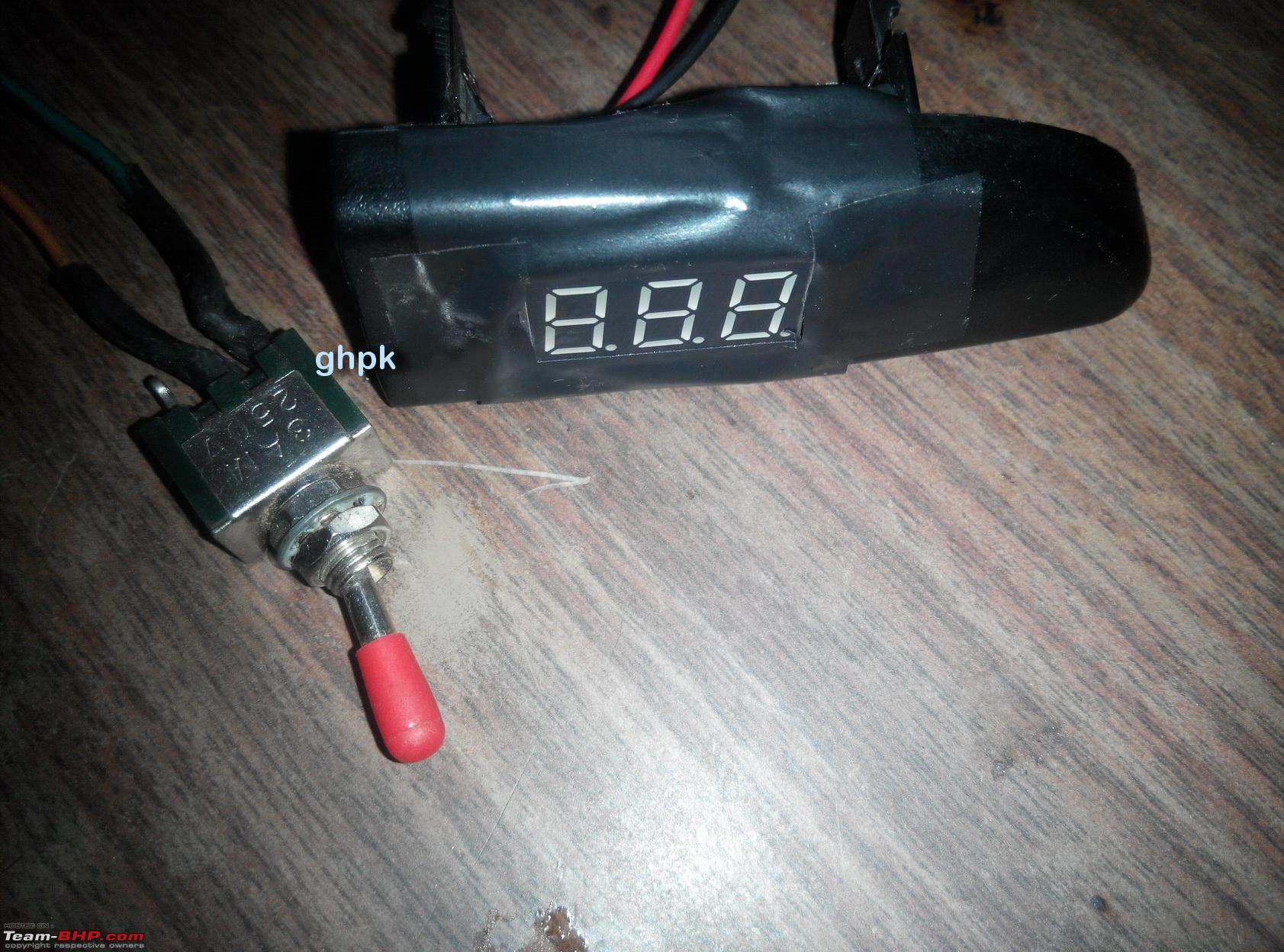

Remove the dummy switch for make a hole to fit the D.C. volt meter:
D.I.Y. Weekend Project: Car Battery Voltage Monitor-img_20150524_144035.jpg

D.I.Y. Weekend Project: Car Battery Voltage Monitor-img_20150524_143242.jpg

Tested using desktop adjustable power supply:
D.I.Y. Weekend Project: Car Battery Voltage Monitor-img_20150524_141812.jpg

Hell of a wiring in my gear lever console. Other wires used for various things, I only installed the switch:
D.I.Y. Weekend Project: Car Battery Voltage Monitor-img_20150524_153147.jpg

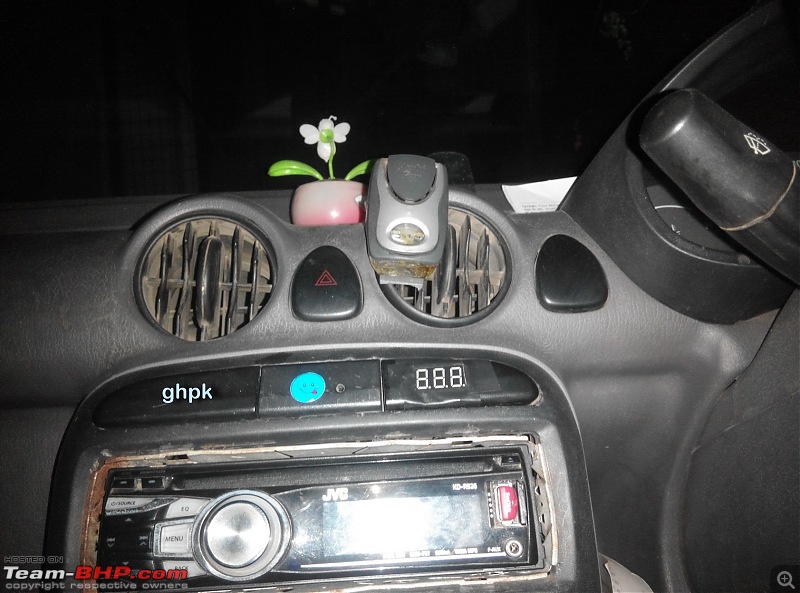

D.C. voltmeter in place:
D.I.Y. Weekend Project: Car Battery Voltage Monitor-img_20150524_201509.jpg

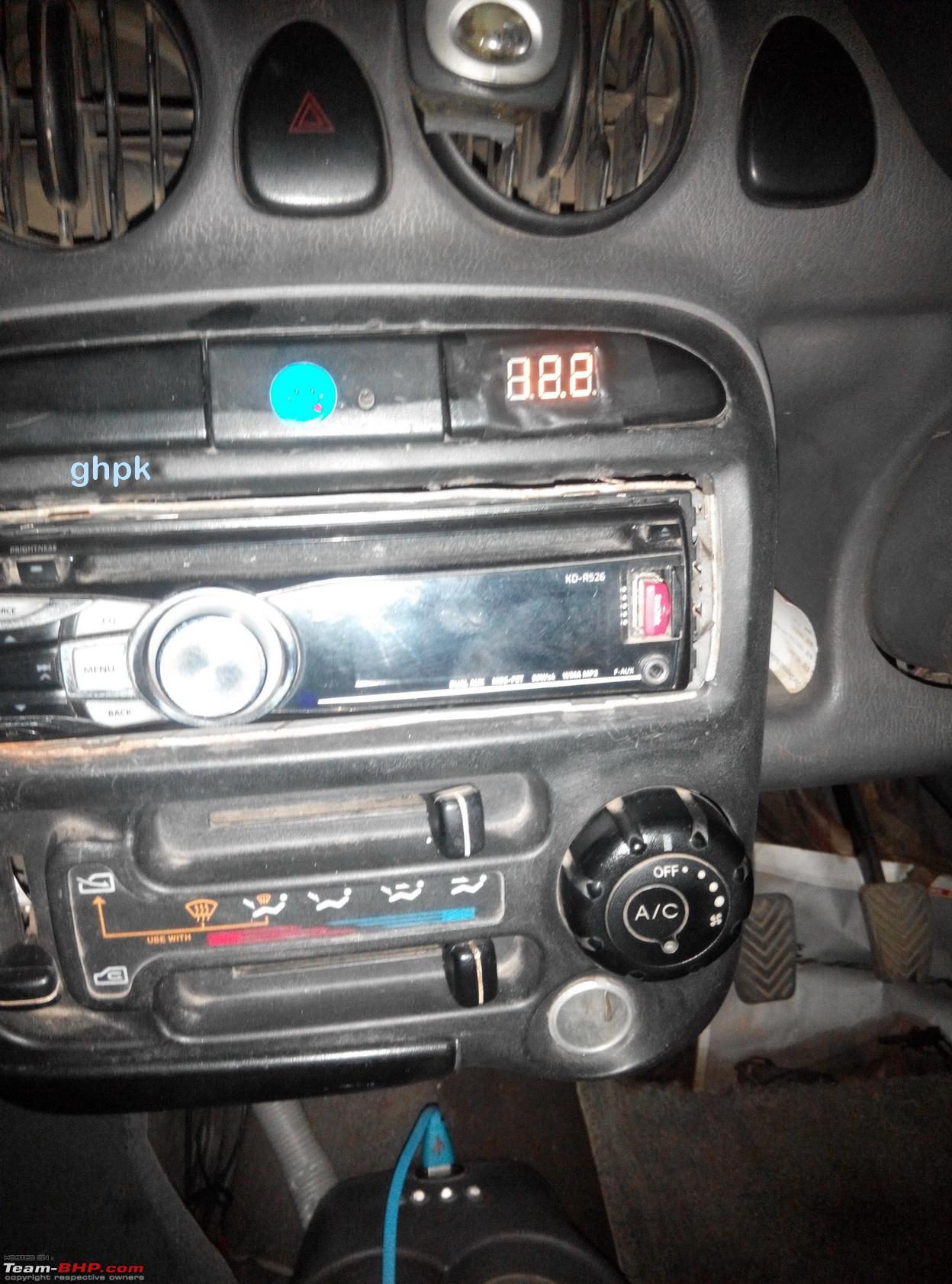

It's yellow / amber, so the camera flash spoiled the pic:
D.I.Y. Weekend Project: Car Battery Voltage Monitor-img_20150524_202733.jpg

In person, it looks great at night:
D.I.Y. Weekend Project: Car Battery Voltage Monitor-img_20150524_202742.jpg

For more details please see my installation video at :-


Edit: Forgot to mention that this D.C. voltmeter was ordered from Aliexpress and took only 2 months to reach me. I ordered 2 different colours - one came and one seems to be lost in transit. These are available on ebay India, but you would need to pay almost 3-4 times the Aliexpress price.

Last edited by Aditya : 26th May 2015 at 13:33. Reason: Spacing, editing for better readability. Embedding video.
ghpk is offline   (4) Thanks Reply With Quote
Old 26th May 2015, 11:34   #2
BHPian

archat68's Avatar

Join Date: Dec 2006
Location: Kolkata
Posts: 695
Thanked: 201 Times
Default Re: D.I.Y. Weekend Project: Car Battery Voltage Monitor

Great!! I'm always a fan of DIY projects.

There are some nice voltage meter cum clock cum temperature meters in Aliexpress which can be bought within 1000 bucks.
IMO cigarette lighter is not regulated. I had a Orange TPMS which had a voltage monitor option built into. It showed more than 14V when the car was running.

Last edited by archat68 : 26th May 2015 at 11:35.
archat68 is offline   (1) Thanks Reply With Quote
Old 26th May 2015, 12:50   #3
GTO
Team-BHP Support

GTO's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 47,749
Thanked: 89,379 Times
Default Re: D.I.Y. Weekend Project: Car Battery Voltage Monitor

Mod Note: Thread moved to Technical Stuff. Thanks for sharing!
