Smile XUV500 DIY: Replacing worn-out Key Fob cover

Well I Picked up My XUV way back in Nov 2011 and I think its about time the key fob needs replacement. I checked up with the ASS and they said they will replace the key, It will take a few days time and cost would be upwards of 6K . I always look for alternatives and I came across the key fob top cover on AMAZON. However I also read reviews on Amazon which said the key fob cover when replaced the key stopped working. However since the top cover was available hardly for Rs 300, I decided to buy it and take a chance . So here is the Pic of my old key and the new replacement KEY FOB cover.


Steps to replace the key Fob :

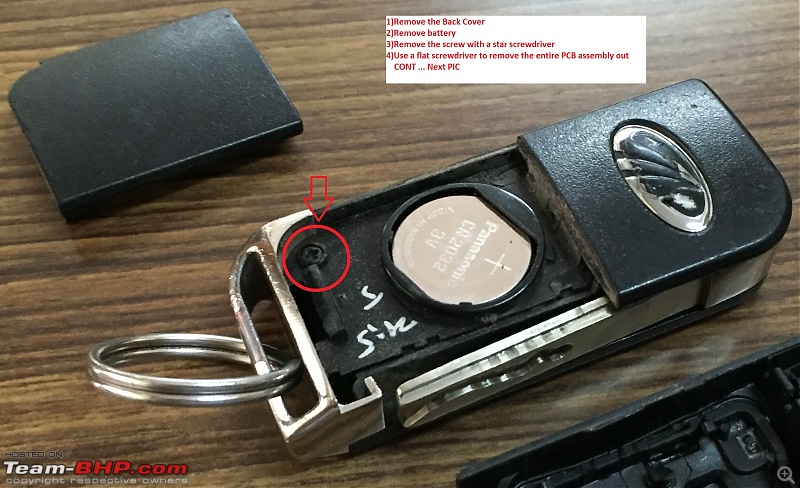

1) Remove the Key back battery Cover. This is press fit will easily open with slight pressure

2) Remove the battery

3)Locate the small Screw and remove the screw using a star screwdriver.


4)Make sure the key is in folded closed condition and then remove the entire PCB . Note the PCB sits on the black portion from where the screw is removed. So once you remove the screw this portion comes out .It takes a while to open it as it is tightly press fitted. Use a small flat screwdriver and work your way on the edges of the key to slowly open the key without damaging the fob.



5) Once It is opened you will now see the Metal portion of the Key. Just lift the entire Metal key and the circular part and place it in the new key fob. You can also increase the tension of the Spring in case your key has lost tension.



6) Now the most important part .. There is a RFID chip in the OEM fob placed in the top right corner of the key. Look at the picture. This RFID chip needs to be removed from the old fob and put inside the new FOB. This is the most important part as this is what links the key to immobilizer of your car. Removing this can be tricky, I slowly cut away the old key fob to reveal the chip and then removed it. Once the chip is out use some feviquick and place it in the new key fob.

7) Also Remove the bottom metallic portion by just lifting it up from the old fob and put it in the new fob.

8)Now insert the PCB and the black portion back inside and press-fit properly

9)Put back the screw and then the Battery

10) Put back the rear cover and your done!!

GENTLEMEN START YOUR ENGINE!!! Hope this was helpful..
Attached Thumbnails
XUV500 DIY: Replacing worn-out Key Fob cover-11.jpg

XUV500 DIY: Replacing worn-out Key Fob cover-img_3491.jpg

XUV500 DIY: Replacing worn-out Key Fob cover-45.jpg

XUV500 DIY: Replacing worn-out Key Fob cover-img_3499.jpg

XUV500 DIY: Replacing worn-out Key Fob cover-img_3572.jpg

XUV500 DIY: Replacing worn-out Key Fob cover-img_3495.jpg

XUV500 DIY: Replacing worn-out Key Fob cover-dd.jpg

XUV500 DIY: Replacing worn-out Key Fob cover-img_3496.jpg

Shai100 is offline   (19) Thanks Reply With Quote
Old 1st July 2016, 17:47   #2
BHPian

rahul_kej's Avatar

Join Date: Jul 2014
Location: Siliguri
Posts: 205
Thanked: 228 Times
Default

Quote:
Originally Posted by Shai100 View Post
Well I Picked up My XUV way back in Nov 2011 and I think its about time the key fob needs replacement. I checked up with the ASS and they said they will replace the key, It will take a few days time and cost would be upwards of 6K . I always look for alternatives and I came across the key fob top cover on AMAZON. However I also read reviews on Amazon which said the key fob cover when replaced the key stopped working. However since the top cover was available hardly for Rs 300, I decided to buy it and take a chance .
Great DIY. On top of this i would even suggest you to use a silicone case for the key which is also available on online sites.

I am using it since almost 2 years and my keys are as good as it was during its early days.
rahul_kej is offline   (3) Thanks Reply With Quote
Old 1st July 2016, 22:54   #3
BHPian

djpeesh's Avatar

Join Date: Sep 2007
Location: Mumbai
Posts: 537
Thanked: 635 Times
Default

Quote:
Originally Posted by rahul_kej View Post
Great DIY. On top of this i would even suggest you to use a silicone case for the key which is also available on online sites.

I am using it since almost 2 years and my keys are as good as it was during its early days.

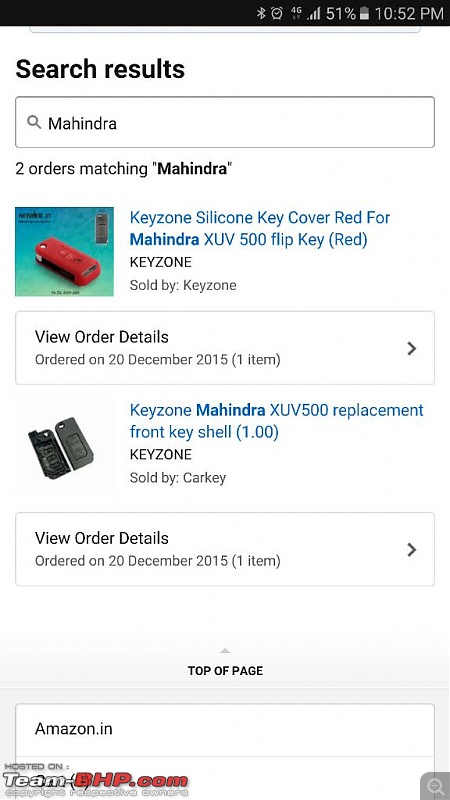

I did the same DIY (replacing the top of the key fob with a new one off Amazon) and got a silicon rubber cover. It works perfectly now.
