Default Tata Nano DIY - Upgraded to LED Headlights

I installed LED H4 headlamp bulbs in my Nano over the last weekend. This is a pictorial guide of how that was done.

LED bulbs purchased from Aliexpress, I chose fanless as I heard stories of fans not working after few months, but the disadvantage is that we get only upto 40W LEDs in fanless design.

Name:  5.jpg
Views: 2223
Size:  46.6 KB

I was using these bulbs in my M800 and now got it transferred to Nano.

Pros : Beautiful and wide low beam ( 2 LEDs or 20W)
: Low beam always stays ON, irrespective of high beam position
: Low battery drain, good for cars of low running like mine
: Low to almost no heating if back cover is open, LED is water proof
: Different colors possible to suite different weather situations ( requires re installation of bulbs)
: Almost same glare as Halogens
: Amount of bullying by big vehicles has come down

Cons : Average high beam. ( 1 LED/10W), not adequate for highway drives


Step 1: remove the headlight assembly

Tata Nano DIY - Upgraded to LED Headlights-1.jpg

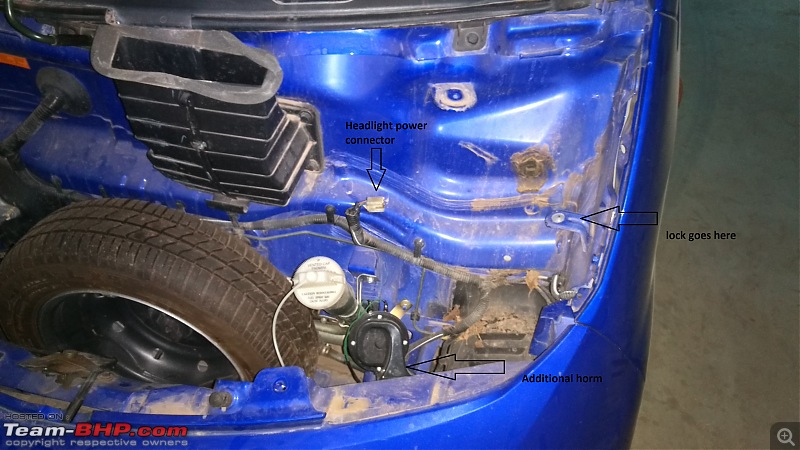

Tata Nano DIY - Upgraded to LED Headlights-2.jpg

Step 2: install the base plate of H4 lamp. (this step may differ according to the LED bulb you purchase).

Tata Nano DIY - Upgraded to LED Headlights-3.jpg


Step 3: Install LED bulb by inserting it through the baseplate and twisting it to position. I also installed the rubber cover in reverse way to make room.

Tata Nano DIY - Upgraded to LED Headlights-4.jpg

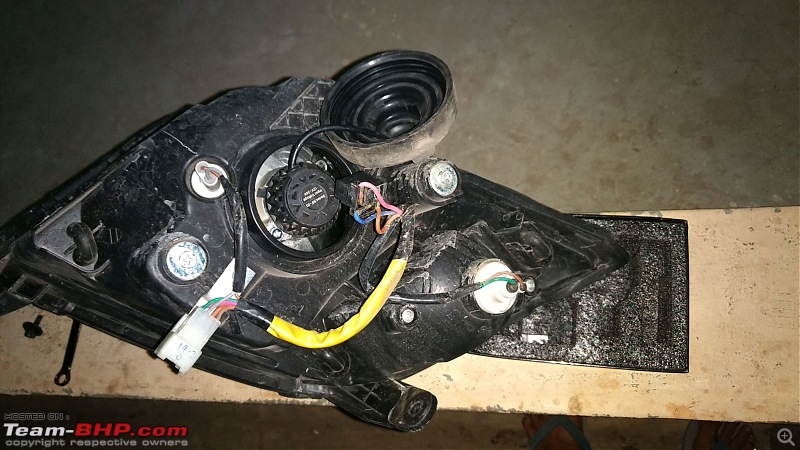

Tata Nano DIY - Upgraded to LED Headlights-6.jpg

Tata Nano DIY - Upgraded to LED Headlights-9.jpg

I upgraded a LED pilot lamp as well
Tata Nano DIY - Upgraded to LED Headlights-8.jpg

Step4: Re install the headlight assembly in the reverse order (start with the backside lock, then the botton locks to align with bumper, and finally a gentle push to get into right place)

I made a mistake in step 3 to install the low beam LEDs facing bottom. So the light was going up as seen in the below pictures.

Tata Nano DIY - Upgraded to LED Headlights-10.jpg

I reinstalled the LEDs with low beam LEDs facing up, and the low beam throw is corrected. But while reinstalling I realized that LEDs are running very very hot due to the rubber cover blocking any air circulation. So I removed the rubber cover (LEDs dont like high temperatures) completely. A bit of water shouldn't cause any problem as LEDs are waterproof.

Low beam correctly aligned
Tata Nano DIY - Upgraded to LED Headlights-11.jpg


High beam
Tata Nano DIY - Upgraded to LED Headlights-12.jpg

Some other shots - Be aware that only right light is working in these two pictures. I realized that I forgot to reconnect the electrical connector only after taking the pictures.

Low beam
Tata Nano DIY - Upgraded to LED Headlights-13.jpg

High beam
Tata Nano DIY - Upgraded to LED Headlights-14.jpg
arjithin is offline   (17) Thanks Reply With Quote
Old 14th March 2017, 10:24   #2
Team-BHP Support

aah78's Avatar

Join Date: Feb 2004
Location: NYC / BOM
Posts: 3,564
Thanked: 1,538 Times
Default

Thread moved from the Assembly Line (The "Assembly Line" Forum section) to the DIY Section. Thanks for sharing!
aah78 is offline   (1) Thanks Reply With Quote
Old 16th March 2017, 17:30   #3
BHPian

Join Date: Jan 2009
Location: Pune
Posts: 524
Thanked: 193 Times
Default Re: Tata Nano DIY - Upgraded to LED Headlights

Great DIY! A few questions:

1. If I may ask, What is the cost of these lamps?
2. Are these lamps available in stores?
3. Can these be fit to any other car. In my case - Ford Ecosport, as I think even that has got a H4 bulb. I stand corrected though!
ObsessedByFIAT is offline   Reply With Quote
Old 16th March 2017, 18:25   #4
BHPian

abhishek46's Avatar

Join Date: Oct 2010
Location: Athlone,Ireland
Posts: 608
Thanked: 861 Times
Default Re: Tata Nano DIY - Upgraded to LED Headlights

Superb!

Some questions:
What is the difference in wattage with respect to the halogens?
What is the difference in Lumens with respect to the halogens?
abhishek46 is offline   Reply With Quote
Old 16th March 2017, 18:47   #5
Senior - BHPian

Mr.Boss's Avatar

Join Date: Mar 2011
Location: Chennai
Posts: 1,894
Thanked: 2,331 Times
Default Re: Tata Nano DIY - Upgraded to LED Headlights

Quote:
Originally Posted by ObsessedByFIAT View Post
1. If I may ask, What is the cost of these lamps?
2. Are these lamps available in stores?
3. Can these be fit to any other car. In my case - Ford Ecosport, as I think even that has got a H4 bulb. I stand corrected though!
1. Available as low as 2k INR, but branded ones are bit costlier (Philips retails for 10k for a pair of H4 LEDs)
2. Yes, but normally they are costlier than the online price
3. Yes

Quote:
Originally Posted by abhishek46 View Post
What is the difference in wattage with respect to the halogens?
What is the difference in Lumens with respect to the halogens?
Halogens : 55/60W
LED : 20/30W (the one discussed in this thread)

Lumens depends on the bulb that you choose.

EDIT:
There is a separate thread on this subject
http://www.team-bhp.com/forum/modifi...e-end-hid.html (LED Headlamp Bulbs are here! The end of HID?)

Last edited by Mr.Boss : 16th March 2017 at 18:49.
Mr.Boss is offline   Reply With Quote
Old 16th March 2017, 18:54   #6
BHPian

abhishek46's Avatar

Join Date: Oct 2010
Location: Athlone,Ireland
Posts: 608
Thanked: 861 Times
Default Re: Tata Nano DIY - Upgraded to LED Headlights

Quote:
Originally Posted by Mr.Boss View Post

Halogens : 55/60W
LED : 20/30W (the one discussed in this thread)

Lumens depends on the bulb that you choose.

[/url]
Correct.
Want to know how much more lumens do these particular 20W LEDs produce when compared with the 55W halogens.

In the end, the Lumens (amount of light) matter the most.

Last edited by abhishek46 : 16th March 2017 at 18:54. Reason: spelling
abhishek46 is offline   Reply With Quote
Old 16th March 2017, 19:05   #7
BHPian

Maverick1977's Avatar

Join Date: Aug 2007
Location: Mumbai
Posts: 821
Thanked: 245 Times
Default Re: Tata Nano DIY - Upgraded to LED Headlights

Quote:
Originally Posted by abhishek46 View Post
Correct.
Want to know how much more lumens do these particular 20W LEDs produce when compared with the 55W halogens.

In the end, the Lumens (amount of light) matter the most.
The Lumens for LED's will definitely be much higher for LED's. There is a stark difference that I have observed, however I have seen that the throw of these LED lights isn't that far. So, for city driving these may be good (may be not for on coming traffic which might be blinded) but for highway they will not give you the required throw. This is for LED's which get retrofitted and not for OEM headlights which any way come with more than one!
Maverick1977 is offline   Reply With Quote
Old 17th March 2017, 07:36   #8
BHPian

arjithin's Avatar

Join Date: Aug 2011
Location: BGLR/Chalakudy
Posts: 812
Thanked: 657 Times
Default Re: Tata Nano DIY - Upgraded to LED Headlights

Quote:
Originally Posted by abhishek46 View Post
Correct.
Want to know how much more lumens do these particular 20W LEDs produce when compared with the 55W halogens.

In the end, the Lumens (amount of light) matter the most.
Quote:
Originally Posted by Maverick1977 View Post
The Lumens for LED's will definitely be much higher for LED's. There is a stark difference that I have observed, however I have seen that the throw of these LED lights isn't that far. So, for city driving these may be good (may be not for on coming traffic which might be blinded) but for highway they will not give you the required throw. This is for LED's which get retrofitted and not for OEM headlights which any way come with more than one!
For LED bulbs, Lumens in paper looks always good, typically 1000 lumens per 10W, no way to verify if the claims are true or not. But there is a catch..

in a Halogen bulb, all your Lumens are available in Low OR High mode (as there two separate filaments). But in the case of a LED bulb, only the LED designated as high beam LED comes on when you flip to high beam. In the case of above bulb, thats only 10W or 1000 lumen for high beam compared to 1650 lumnes of a halogen. Thats a lower output for highway driving in Indian conditions (but note that low beam stays on always)

So my suggestions are
1. 20/30W bulbs are good for city driving where low beam is more important
2. 20/30W bulbs are better suited for 2 wheelers
3. Higher wattage bulbs 'may' be good for highway, but a friends car I drove with a higher wattage bulb was giving LOT of light in low beam that my eye was having difficulty to see objects far away due to the contrast (hence I chose a lesser wattage one)
4. higher wattage bulbs come with fans and extended cooling fins. Better to go with fan less models, one less part that can fail !

Quote:
Originally Posted by ObsessedByFIAT View Post
Great DIY! A few questions:

3. Can these be fit to any other car. In my case - Ford Ecosport, as I think even that has got a H4 bulb. I stand corrected though!
Yes, but check the space available behind headlight assembly. These bulbs need more space

Last edited by arjithin : 17th March 2017 at 07:40. Reason: corrected suggestion 3
