Old 13th May 2009, 21:34   #166
BHPian

srikant's Avatar

Join Date: Jul 2008
Location: Bengaluru
Posts: 488
Thanked: 9 Times
Default

Inspired by all of you here, i went searching for shop where i can find these LED s and found one atlast today. Bought ten 5mm blue LED and ten 5mm white LEDs. Did not buy resistors as i had not noted down the resistance values for the same. However, now that i have found the shop atlast, i ll go get em and hope to join you guys into some DIY, of course with all your support.

Note from Team-BHP Support : Please DO NOT use chat/sms style lingo while posting. Do take time to type in proper english with punctuation etc. Do read the board rules before proceeding.

Thanks for your co-operation.

Last edited by mobike008 : 18th March 2011 at 15:54.
srikant is offline   Reply With Quote
Old 14th May 2009, 00:41   #167
BHPian

rahulya007's Avatar

Join Date: Jul 2006
Location: Thane, Mumbai
Posts: 109
Thanked: 28 Times
Default

Greenhorn,

Have you used the 4 legged LED's or the normal 5 mm ones with 4 rows sharing 3 LED's each in series/ parallel. My boot lamp is the same, but i don't think there's enough space to fit in those 4 legged LED's. What was the resistor value if they were all 5 mm ones.

The light from your setup looks really bright and enough to lit up the boot. Nice Job..!!

Regards,

Rahul
rahulya007 is offline   Reply With Quote
Old 14th May 2009, 00:48   #168
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: TN-14
Posts: 6,837
Thanked: 1,315 Times
Default

Thanks
I'm using regular 5mm LED's with two legs.

each row is 3 LED's in series, and I've got four such rows in parallel

as always. the resistor used is 100 ohm

I was able to cram these many in because i soldered them onto a dot PCB
greenhorn is offline   Reply With Quote
Old 14th May 2009, 00:59   #169
Team-BHP Support

benbsb29's Avatar

Join Date: Nov 2006
Location: Brisbane
Posts: 8,018
Thanked: 3,471 Times
Default

Quote:
Originally Posted by greenhorn View Post
I was able to cram these many in because i soldered them onto a dot PCB
That reminds me i need to redo my boot LED setup using a PCB and an adapter. Rather crude setup as of now.
benbsb29 is online now   Reply With Quote
Old 14th May 2009, 01:04   #170
BHPian

ghpk's Avatar

Join Date: Mar 2009
Location: Ghaziabad
Posts: 869
Thanked: 192 Times
Default

Quote:
Originally Posted by rahulya007 View Post
Greenhorn,

Have you used the 4 legged LED's
4 Legged L.E.D's would be a RGB LED, where one pin is common and other three are for Red, Green, Blue,
Such L.E.D's are expensive and are used in circuits which change light color based on a PIC based controller to mix colors and give you many more shades than you could imagine.


for 5mm L.E.D. use a 1/4 watt, 100ohm or a 220ohm resistor for each three L.E.D. in Series. if you wish you can go for 1/2 watt resistor too, but 1/4 is OK.

DO NOT USE one resistor with one L.E.D. it wastes a lot of energy.
However I've previously used a 560ohm resistor with single LED and it kept glowing till more than a year before i changed the setup due to color choice.
ghpk is offline   Reply With Quote
Old 14th May 2009, 16:55   #171
BHPian

gopinathann's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 765
Thanked: 20 Times
Default

Quote:
Originally Posted by badboyscad View Post

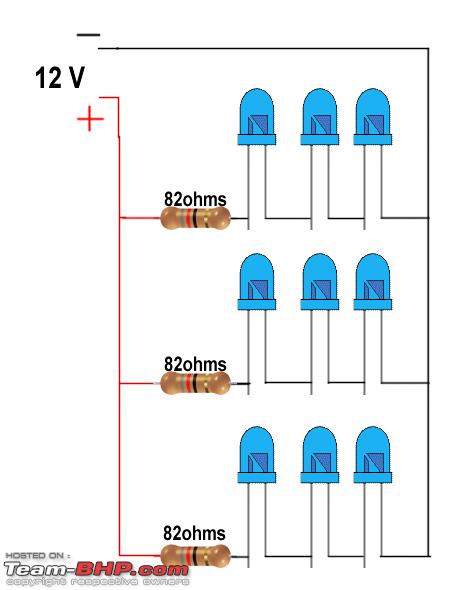

Here is a small pictorial representation of my setup:

Attachment 135477

All LEDs are 5mm blue and all resistors are 820 ohms 1/4watts.
With your experience and advice I was able to setup the LED interior light successfully.
Considering 12-14 V I calculated to 150 ohm for 6 LEDs, however I had added 142 ohm (100 + 42) 1/4 Watt resistor for each series.

Benny's first DIY : LEDs on an Ikon-200905141116_231.jpg

Question:
1. The cabin light is 12V 10W, If I want to create LED setup for a light of 12V 5W or 12V 60W, do I need to take care of any other calculation. Does the W mean the max output to the terminal ?
2. What would be the approximate Watt for this 6 LEDs ?
3. There is a loose contact when connecting the wires to the holder, any best way to do this ?
gopinathann is offline   Reply With Quote
Old 14th May 2009, 17:18   #172
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: TN-14
Posts: 6,837
Thanked: 1,315 Times
Default

each set of 3 LED's + 1 resistor in series consumes about 1W. So if you want a 5W setup, use that many strings. Cant imagine using 60

how exactly have you connected the LED's ?

But a 2~3W LED setup will be as bright as , if not better than a 10W bulb setup - LED's are kinda like CFL's

Last edited by greenhorn : 14th May 2009 at 17:20.
greenhorn is offline   Reply With Quote
Old 14th May 2009, 17:48   #173
BHPian

gopinathann's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 765
Thanked: 20 Times
Default

Quote:
Originally Posted by greenhorn View Post
each set of 3 LED's + 1 resistor in series consumes about 1W. So if you want a 5W setup, use that many strings. Cant imagine using 60

how exactly have you connected the LED's ?

But a 2~3W LED setup will be as bright as , if not better than a 10W bulb setup - LED's are kinda like CFL's
LED Setup
Name:  LED setup.png
Views: 2053
Size:  4.3 KB

I was looking for Fog lights for high wattage. Think the Fogs will be around 35-40 W. In that case I have to go for small LEDs with more power.
gopinathann is offline   Reply With Quote
Old 14th May 2009, 17:57   #174
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: TN-14
Posts: 6,837
Thanked: 1,315 Times
Default

the fog lights thing has been done. Personally, dont think you get better performance than bulbs, unless you want want to do it for the appearance.
Unless you find very narrow beam high intensity LED's and a way to cram in about 30~40 LED's into a foglight housing , i think the halogens still have the edge.
greenhorn is offline   Reply With Quote
Old 15th May 2009, 02:10   #175
BHPian

ghpk's Avatar

Join Date: Mar 2009
Location: Ghaziabad
Posts: 869
Thanked: 192 Times
Default

Quote:
Originally Posted by gopinathann View Post

Question:
1. The cabin light is 12V 10W, If I want to create LED setup for a light of 12V 5W or 12V 60W, do I need to take care of any other calculation. Does the W mean the max output to the terminal ?
2. What would be the approximate Watt for this 6 LEDs ?
3. There is a loose contact when connecting the wires to the holder, any best way to do this ?
1). 10w of filament bulb can be dimmer than a couple of LED's as the light emitted is equal or more than those stock filament bulbs.

2). greenhorn already answered this.
3). It would be better to get it properly TAPPED, using an electricity/adhesive tape, or BEST option is to SOLDER the wire to the connectors like I did.
ghpk is offline   Reply With Quote
Old 15th May 2009, 10:01   #176
BHPian

gopinathann's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 765
Thanked: 20 Times
Default

Though the LEDs look bright, during the night it does not provide the better output and it is less than the stock, planning to add more bulbs.
gopinathann is offline   Reply With Quote
Old 15th May 2009, 19:45   #177
BHPian

ghpk's Avatar

Join Date: Mar 2009
Location: Ghaziabad
Posts: 869
Thanked: 192 Times
Default

Quote:
Originally Posted by gopinathann View Post
Though the LEDs look bright, during the night it does not provide the better output and it is less than the stock, planning to add more bulbs.
you may see less light as most of the light is getting out of LED Lense in focused form.
you can try to FILE the top of LED and see if it helps.

There are other LED's available which would scatter more light than throwing all at one
specific spot.
Check the middle one in attached pic.
This is the LED iam using in Dome light and spreads more light even than the pirhana LED.

Name:  3led.jpg
Views: 835
Size:  75.5 KB
ghpk is offline   Reply With Quote
Old 16th May 2009, 18:11   #178
BHPian

srikant's Avatar

Join Date: Jul 2008
Location: Bengaluru
Posts: 488
Thanked: 9 Times
Default

I too tried changing my cabin light to white LEDs, have done it in a crude manner for now this morning. Will check out the brightness tonight and then if it feels ok, then i ll have to find a solution to fix em in a better way using insulation tape or so.

I have connected 3 rows parallel, each row consisting of 3 white LED in series. (Without using any resistors).

I am not good in these stuff, but can come body please explain whats the need to add the resistor? it seems ok without the resistor.

Some problems uploading the pics. Will upload them later.
srikant is offline   Reply With Quote
Old 16th May 2009, 18:56   #179
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: TN-14
Posts: 6,837
Thanked: 1,315 Times
Default

the resistor is kinda like a fuse. it limits the current through the LED's. without it , the LED's will be using up a LOT more current (without much increase in brightness) , and they'll die out soon.
greenhorn is offline   Reply With Quote
Old 16th May 2009, 20:17   #180
BHPian

ghpk's Avatar

Join Date: Mar 2009
Location: Ghaziabad
Posts: 869
Thanked: 192 Times
Default

Greenhorn is correct, without a resistor, you'll blow up a lot of LED's and can also blow up dome light fuse in some cases.

Do use a 100ohm resistor atleast with 3 L.E.D. thing.
Using the short glass LED (which are used in china made torches these days) will help attain more illumination.
ghpk is offline   Reply With Quote
