Old 20th January 2009, 22:39   #46
BHPian

akshay_b's Avatar

Join Date: Oct 2008
Location: Bangalore
Posts: 363
Thanked: 10 Times
Default

@UM and jatin

Yes i have the new version santro.
And i didn't remove any kind of gelatin paper, In fact i was shocked to see the red glow when i connected the cables. I think there's no such kind of gelatin paper cos' the stock illumination bulb had a blueish green rubber cap on it.

BTW i bought a few red and blue leds and resistors today, Will try them tomorrow.
akshay_b is offline   Reply With Quote
Old 21st January 2009, 07:04   #47
BHPian

Join Date: Jul 2007
Location: Dibrugarh
Posts: 67
Thanked: 0 Times
Default

Quote:
Originally Posted by akshay_b View Post
Here's mine,

i used red colored sticky tape to cover the bulbs instead. Sorry for the quality of the pics, my digi cam is dying :(
Will take more pics in the night.
Yeah Akshay, thats great man, lovely. Phew feels good to know that one more santro has red instrument panel. Nice man congratulations. Now I think we will have to somehow help yatin change his dash panel colour. I am surprised where did his green paper / shield come from I checked thoroughly and could not find any such thing in my santro. Lets put on our thinking caps.

Ciao

Lifewater
Lifewater is offline   Reply With Quote
Old 21st January 2009, 10:08   #48
BHPian

yatinchoubal's Avatar

Join Date: Dec 2008
Location: Texas / Pune
Posts: 144
Thanked: Once
Default

Quote:
Originally Posted by Lifewater View Post
Yeah Akshay, thats great man, lovely. Phew feels good to know that one more santro has red instrument panel. Nice man congratulations. Now I think we will have to somehow help yatin change his dash panel colour. I am surprised where did his green paper / shield come from I checked thoroughly and could not find any such thing in my santro. Lets put on our thinking caps.

Ciao

Lifewater


Yeah Surely. Help me out, coz I'm still not able to figure out how do I still get the green color. I checked it yesterday again, and my bulbs are still red with the glass color paint. But yet, my dashboard shows green color.
Help guys.
yatinchoubal is offline   Reply With Quote
Old 21st January 2009, 10:25   #49
BHPian

yatinchoubal's Avatar

Join Date: Dec 2008
Location: Texas / Pune
Posts: 144
Thanked: Once
Default

Quote:
Originally Posted by akshay_b View Post
@UM and jatin
Friend, its Yatin , please dont make me jatin.
yatinchoubal is offline   Reply With Quote
Old 21st January 2009, 12:19   #50
BHPian

akshay_b's Avatar

Join Date: Oct 2008
Location: Bangalore
Posts: 363
Thanked: 10 Times
Default

Quote:
Originally Posted by Lifewater View Post
Yeah Akshay, thats great man, lovely. Phew feels good to know that one more santro has red instrument panel. Nice man congratulations. Now I think we will have to somehow help yatin change his dash panel colour. I am surprised where did his green paper / shield come from I checked thoroughly and could not find any such thing in my santro. Lets put on our thinking caps.

Ciao

Lifewater
Thanks buddy, How do u remove the marking board? I was able to reach the needles.

Quote:
Originally Posted by yatinchoubal View Post
Yeah Surely. Help me out, coz I'm still not able to figure out how do I still get the green color. I checked it yesterday again, and my bulbs are still red with the glass color paint. But yet, my dashboard shows green color.
Help guys.
(j)YATIN I think the intensity/coats of glass paint is not sufficient, Try using red colored insulation tape. Get a nail polish remover and try removing the paint.

Quote:
Originally Posted by yatinchoubal View Post
Friend, its Yatin , please dont make me jatin.
sorry buddy got confused

@Lifewater - Can we try doing the LED method?
akshay_b is offline   Reply With Quote
Old 21st January 2009, 12:52   #51
BHPian

yatinchoubal's Avatar

Join Date: Dec 2008
Location: Texas / Pune
Posts: 144
Thanked: Once
Default

Quote:
Originally Posted by akshay_b View Post

(j)YATIN I think the intensity/coats of glass paint is not sufficient, Try using red colored insulation tape. Get a nail polish remover and try removing the paint.

Might be you are right about the intensity/ coats of glass paint. But when I havent put up any green cap, and atleast I see the bulb red, there should be some red thingy on the Speedo
The Speedo, shows complete green color. Thats the reason I'm confused.
yatinchoubal is offline   Reply With Quote
Old 22nd January 2009, 07:13   #52
BHPian

Join Date: Jul 2007
Location: Dibrugarh
Posts: 67
Thanked: 0 Times
Default

Quote:
Originally Posted by akshay_b View Post

@Lifewater - Can we try doing the LED method?
Yes we can. But let me warn you the light intensity is not uniform in all places of the speedo. You can try roughing the LEDs but wont be of much use.

Lifewater
Lifewater is offline   Reply With Quote
Old 22nd January 2009, 13:06   #53
BHPian

akshay_b's Avatar

Join Date: Oct 2008
Location: Bangalore
Posts: 363
Thanked: 10 Times
Default

Quote:
Originally Posted by Lifewater View Post
Yes we can. But let me warn you the light intensity is not uniform in all places of the speedo. You can try roughing the LEDs but wont be of much use.

Lifewater
I'm gonna try it in a while,But even after sandpaper-ing the 3 leds' in series throw a pretty decent light, Better than the stock bulb atleast.

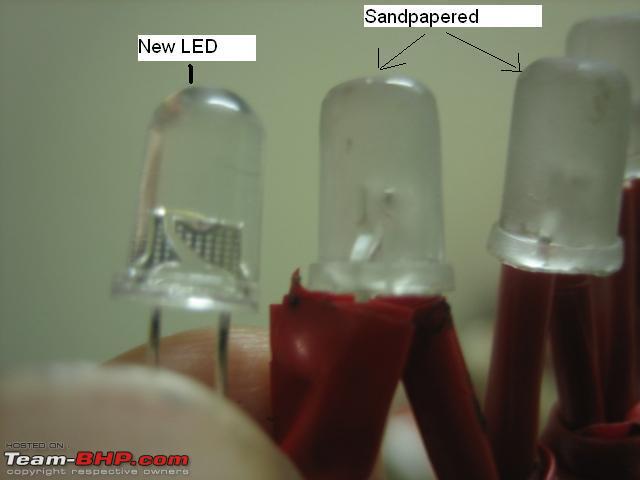

BTW here are the sandpapered leds
Attached Images

akshay_b is offline   Reply With Quote
Old 22nd January 2009, 16:42   #54
BHPian

akshay_b's Avatar

Join Date: Oct 2008
Location: Bangalore
Posts: 363
Thanked: 10 Times
Default

Here comes
The Blue guages The needles kind of disappear on the cam, But can be seen clearly.
Attached Images

akshay_b is offline   Reply With Quote
Old 22nd January 2009, 17:28   #55
Senior - BHPian

badboyscad's Avatar

Join Date: Feb 2007
Location: TN
Posts: 1,444
Thanked: 154 Times
Default

@ akshay_b : Now, that's a grade-A DIY. Blue speedo cluster looks fabulous.
badboyscad is offline   Reply With Quote
Old 22nd January 2009, 17:52   #56
BHPian

yatinchoubal's Avatar

Join Date: Dec 2008
Location: Texas / Pune
Posts: 144
Thanked: Once
Default

This is looking awesome. COuld you please describe in more details, regarding what all steps you took, while doing it. ?
yatinchoubal is offline   Reply With Quote
Old 22nd January 2009, 20:04   #57
BHPian

akshay_b's Avatar

Join Date: Oct 2008
Location: Bangalore
Posts: 363
Thanked: 10 Times
Default

Thank you badboyscad

@Yatin, Put the 3 leds(on each side) together and connected to the terminals where the stock bulb is connected.

Check out the guide written by lifewater in this thread.
Its very easy.
akshay_b is offline   Reply With Quote
Old 22nd January 2009, 22:49   #58
BHPian

akshay_b's Avatar

Join Date: Oct 2008
Location: Bangalore
Posts: 363
Thanked: 10 Times
Default

Here's one more pic taken from a digi cam showing actual colors of the gauge and the needles.
Attached Images

akshay_b is offline   Reply With Quote
Old 23rd January 2009, 10:14   #59
Senior - BHPian

tanwaramit's Avatar

Join Date: Aug 2005
Location: Dilwalon ki Dilli
Posts: 1,886
Thanked: 334 Times
Default

Quote:
Originally Posted by akshay_b View Post
Thank you badboyscad

@Yatin, Put the 3 leds(on each side) together and connected to the terminals where the stock bulb is connected.

Check out the guide written by lifewater in this thread.
Its very easy.

Hi Akshay,

Putting Bulbs and LEDs is a different thing, as bulbs have a socket where it fits in easily. While LED needs to be connected at both ends with either a socket or PCB of the Instrument panel.

1. How did you connect LEDs in the instrument panel ?
2. Also, if I choose white LEDs do I need to use the same resistor value?
3. Sand Papered - u mean u rubbed the LED using sand paper ? How does this help? Cant I use LED without Sand Paper ?

Lots of questions, but am curious...the weekend is also coming, so looking forward to working on this coming weekend.
tanwaramit is offline   Reply With Quote
Old 23rd January 2009, 10:55   #60
Senior - BHPian

badboyscad's Avatar

Join Date: Feb 2007
Location: TN
Posts: 1,444
Thanked: 154 Times
Default

Quote:
Originally Posted by tanwaramit View Post
1. How did you connect LEDs in the instrument panel ?
akshay_b has to answer this.

Quote:
Originally Posted by tanwaramit View Post
2. Also, if I choose white LEDs do I need to use the same resistor value?
You may use 3 white LEDs in a series with a 82 Ohm resistor.

Quote:
Originally Posted by tanwaramit View Post
3. Sand Papered - u mean u rubbed the LED using sand paper ? How does this help?
Yes, sand papered LEDs mean to rub the LEDs with sandpaper so that they lose their glossiness and focusing characteristic.

Quote:
Originally Posted by tanwaramit View Post
Cant I use LED without Sand Paper ?
If you use LEDs without sandpaper, the light will be focused to a small point, only certain areas of the speedo will be illuminated and the rest will remain dark. Sandpapering or filing the LEDs makes the light spread to all areas of the speedo.
badboyscad is offline   Reply With Quote
