Default DIY tacho for a car, using a bike's tacho

Hi all,
Here I am to announce my success in modifying, calibrating, packaging and functioning of a Bajaj bike's tacho in my Premier 118-NE. It has been a dream for me to own an 118-NE since my dad sold his in 2004. Now at Pune I had got one about 8 months back. Since then I did all the DIY job of fixing a central locking system (@ a meagre price of Rs 450/-) and a DVD player. Next project was to have a tacho. The market price for a tacho seems to start from Rs.2500/- which in my opinion was too much to my budget. As a DIY guy, the idea to use a Motor cycle tachometer for a car. One fine day I even bought a tacho from a spare part shop. He charged me Rs 450/- for this.

Now the study of principle started. I ripped it apart and separated the coil from the circuit board so that I could identify the components and trace the circuit layout. From the data sheet I could locate where exactly to hit, to make the required calibration. In the motorcyle, the tacho displays the rate at which spark occurs, and the same principle is going to be used here. But the problem here is that in a bike the tacho would sense one spark per crank revolution. As an example while it senses 50 sparks per second (meaning 50*60) the needle points 3000rpm. On the other hand my car would deliver 2 sparks per rev, which would mean that the needle would point to 4000 rpm when the engine actually revs at 2000. And thats the need for playing with the circuit.

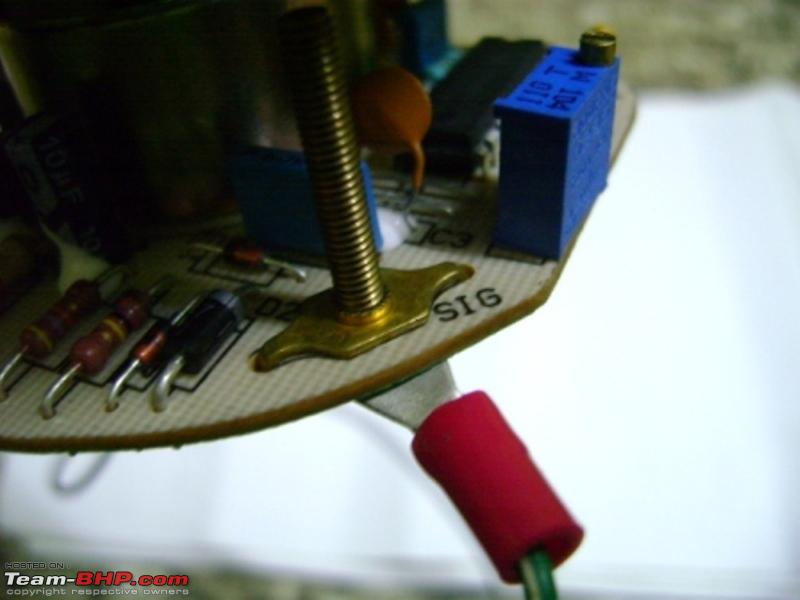

The circuit board after replacement with the appropriate components (a blue coloured preset and a 220K resistor) are also shown in the picture below. Now comes teh question of how I do I set the preset to meet the required setting. As a example while the tacho senses pulses at a rate of 50Hz the needle should actually point 50*60/2 = 1500rpm. You can simply use a step down transformer of about 15 volts rating to have a 50Hz or 100Hz signal. Feed the 15V signal to the signal input point on the board and adjust the preset to point 1.5. Your job is done for a 4 cylinder application.

Then comes the problem of packaging it...
Attached Images

ilangop is online now   (5) Thanks Reply With Quote
Old 30th March 2009, 17:36   #2
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: TN-14
Posts: 6,838
Thanked: 1,318 Times
Default

Um, if the display is based on frequency of the AC, i doubt how using a step down transformer would help. that would only reduce the voltage right, not the frequency. I think you would need a divide by 4 counter
greenhorn is online now   Reply With Quote
Old 31st March 2009, 08:23   #3
BHPian

ilangop's Avatar

Join Date: Jul 2008
Location: Pune/Neyveli
Posts: 913
Thanked: 578 Times
Default

Quote:
Originally Posted by greenhorn View Post
Um, if the display is based on frequency of the AC, i doubt how using a step down transformer would help. that would only reduce the voltage right, not the frequency. I think you would need a divide by 4 counter
Hi Green horn,
The first point is that the signalling voltage should be some where equivalent to the signalling frequency in the motor cycle. So I used a step down transformer.
Secondly we need a standard frequecy source to standardize the tachometer for a 4 cylinder application. I took advantage of the domestic supply frequency 50Hz. Though they are sine waves, teh circuit has got a Schmidt trigger to convert it to square pulses. I had also mentioned that I had used the unfiltered output, which means that the signal input to the tacho was sinusoidal, and at a voltage of 15V. Hope this makes you clear.
This 50Hz is equivalent to 50 sparks per second. Any 4 cylinder petrol engine makes 2 sparks per revolution. Hence the 50Hz corresponds tp 50*60/2 = 1500 rpm. Now adjust the preset to show 1500 rpm. Thats it.
ilangop is online now   Reply With Quote
Old 31st March 2009, 16:53   #4
BHPian

ilangop's Avatar

Join Date: Jul 2008
Location: Pune/Neyveli
Posts: 913
Thanked: 578 Times
Default DIY tacho Part -2; Packaging

Hi all,
The hunt for a suitable housing started as soon I saw the tacho needle pointing the right rom at the right frequency. The guy who sold me the tacho was generous enough to offer me a worn out speedometer from his bullet. The speedo was ripped to pieces so as to remove the mechanism from inside. That was not the end. The tacho's dial would'nt go in. So I had to remove about 1mm of the dial from all sides. First I thought of doing it with a nail cutter (quite a crude tool, nothing else striked then). After traversing the third cut, I ended up breaking the nail cutter. What other options?? The dial is made out of acrylic or some semi transparent plastic. So a hot pen knife did the job, but took half an hour to do it slowly. A little of filing and the job was fine. The dial would perfectly fit in and again it proved wrong with my assumption.

Now stupid Ilango did'nt check if there was enough height available before cutting the dial. Yes, the height was too less. See the first pic. What to do now. Thought of cutting the rear half and extended it with a PVC tube. Bought a piece of 90mm PCV pipe for Rs 10. HEated it and tried to push it around the speedo case. Alas, only the pipe deformed. No result. Since I did'nt like to have a huge container for the tacho, I was exhausting all possiblities with that bullet's speedo. Nothing happened. So the next idea!!!

Went to a scrap yard to procure a speedo (who cares whether working or not, need one with scratch free glass and good looking case) for Rs 100/-

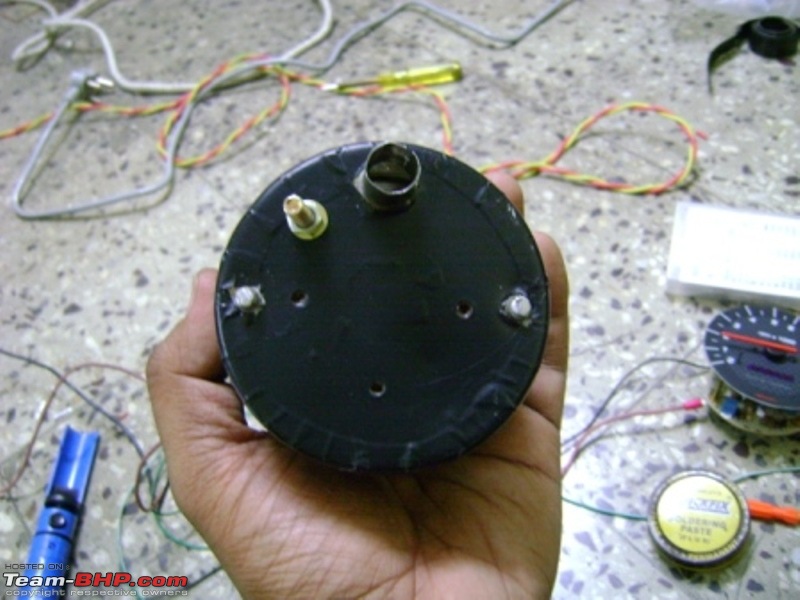

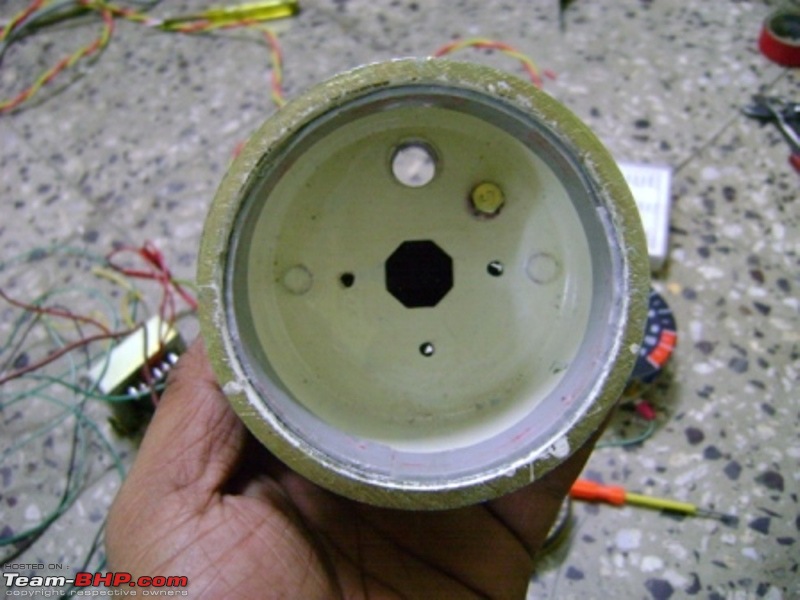

Came home and ripped it only to find that the box is now too long to accomodate. But that did have its own advantage. The second picture shows the acrylic sheet which I had cut for using as an insulation. Used 3 plastic spacers between the circuit board and the sheet. You can see another 3 holes at the centre, for bolting the rest to the box. Again used 3 spacers here. Got a foot long (3" wide) black sticker strip from a number plate guy in our neighbourhood and wrapped it around the casing. Crimped the speedo lens back after painting it black.
Attached Images

ilangop is online now   (1) Thanks Reply With Quote
Old 31st March 2009, 16:59   #5
BHPian

ilangop's Avatar

Join Date: Jul 2008
Location: Pune/Neyveli
Posts: 913
Thanked: 578 Times
Default Bullet Speedo

Sorry guys, fogot the bullet's speedo at the end. I didnt take a pic. This is a schematic for a better unbderstanding
Attached Images

ilangop is online now   Reply With Quote
Old 31st March 2009, 20:53   #6
BANNED

Join Date: Nov 2004
Location: Bangalore / Madras
Posts: 1,980
Thanked: 14 Times
Default

Fantastic and very interesting. Waiting to read the rest of the story.
hrag is offline   Reply With Quote
Old 31st March 2009, 21:18   #7
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: TN-14
Posts: 6,838
Thanked: 1,318 Times
Default

Quote:
Originally Posted by ilangop View Post
Hi Green horn,
The first point is that the signalling voltage should be some where equivalent to the signalling frequency in the motor cycle. So I used a step down transformer.
I still don't understand this bit
Quote:
Now adjust the preset to show 1500 rpm. Thats it.
so you used the preset pot in the tacho to adjust the ratio?

Last edited by greenhorn : 31st March 2009 at 21:19.
greenhorn is online now   Reply With Quote
Old 31st March 2009, 22:00   #8
BHPian

Perakath's Avatar

Join Date: Feb 2009
Location: Chennai
Posts: 259
Thanked: 28 Times
Default

Quote:
Originally Posted by ilangop View Post
Hi all,
It has been a dream for me to own an 118-NE since my dad sold his in 2004.
Wow! I must say I've never heard such a dream before!

But congrats on following your heart. The DIY here is much beyond anything I'll ever be able to DM.

Perhaps this thread would be better suited in the Mods & Accessories subforum?
Perakath is offline   Reply With Quote
Old 1st April 2009, 08:16   #9
BHPian

ilangop's Avatar

Join Date: Jul 2008
Location: Pune/Neyveli
Posts: 913
Thanked: 578 Times
Default

Originally Posted by ilangop
Hi Green horn,
The first point is that the signalling voltage should be some where equivalent to the signalling frequency in the motor cycle. So I used a step down transformer.


Sorry Greenhorn, that was a typing mistake. It should be voltage in place of frequency.
ilangop is online now   Reply With Quote
Old 1st April 2009, 08:18   #10
BHPian

ilangop's Avatar

Join Date: Jul 2008
Location: Pune/Neyveli
Posts: 913
Thanked: 578 Times
Default

Quote:
Originally Posted by greenhorn View Post
so you used the preset pot in the tacho to adjust the ratio?
Yes, you can refer to the data sheet of CS8190.
ilangop is online now   Reply With Quote
Old 1st April 2009, 08:21   #11
BHPian

ilangop's Avatar

Join Date: Jul 2008
Location: Pune/Neyveli
Posts: 913
Thanked: 578 Times
Default

Quote:
Originally Posted by Perakath View Post
But congrats on following your heart. The DIY here is much beyond anything I'll ever be able to DM.

Perhaps this thread would be better suited in the Mods & Accessories subforum?
Thanks buddy.
Since this was more of a study and DIY kind of activity I found this as the right place. This tacho experiment was more for learning rather than an accessory.
ilangop is online now   Reply With Quote
Old 1st April 2009, 09:25   #12
Senior - BHPian

greenhorn's Avatar

Join Date: Apr 2007
Location: TN-14
Posts: 6,838
Thanked: 1,318 Times
Default

oh ok, got it now
greenhorn is online now   Reply With Quote
Old 1st April 2009, 09:40   #13
BHPian

ilangop's Avatar

Join Date: Jul 2008
Location: Pune/Neyveli
Posts: 913
Thanked: 578 Times
Default DIY tacho Final; Fixing

The tacho was glued with the dash board with a strip of double-sided sticker tape. The wirings were all made and finally cranked the engine and raced it. Wow!! the needle moved. The pictures have been attached here. This was the first time I did such a job, so poor finish in painting. Please bear with that.
Attached Images

ilangop is online now   (1) Thanks Reply With Quote
