Default DIY OHC white Dials

hi friends

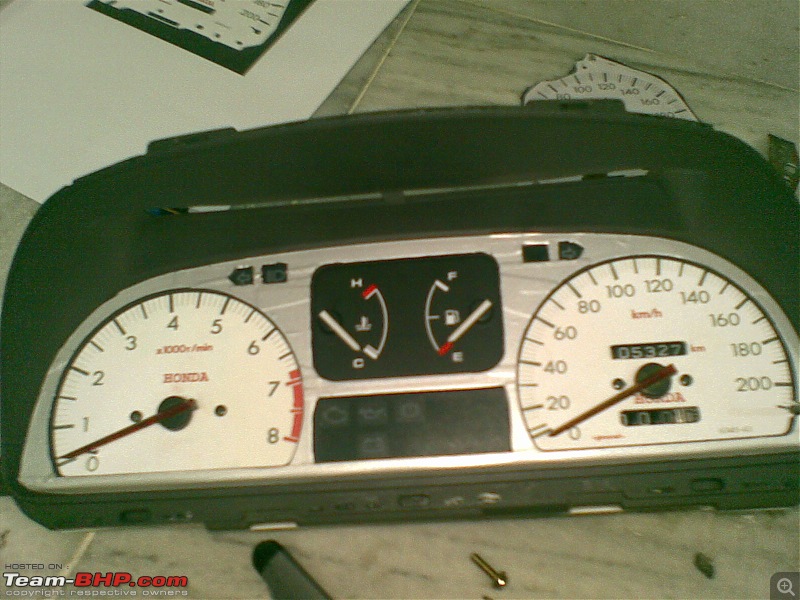

I got bored from the dials of my OHC .So tried to change the colour and look hope you like it.
Attached Thumbnails
DIY OHC white Dials-image181.jpg

DIY OHC white Dials-image182.jpg

DIY OHC white Dials-image183.jpg

DIY OHC white Dials-image184.jpg

DIY OHC white Dials-image185.jpg

honda3938 is offline   Reply With Quote
Old 14th April 2010, 14:33   #2
BHPian

ghpk's Avatar

Join Date: Mar 2009
Location: Ghaziabad
Posts: 869
Thanked: 192 Times
Default

Nice, are those White Dials available in market ?
Also post night pics with lights ON.
ghpk is offline   Reply With Quote
Old 14th April 2010, 14:46   #3
BHPian

dar3dev|l's Avatar

Join Date: Dec 2009
Location: Hannover, DE
Posts: 290
Thanked: 88 Times
Default

thts a neat DIY. u planning to change the backlights too ??
dar3dev|l is offline   Reply With Quote
Old 14th April 2010, 14:49   #4
BHPian

Cartman's Avatar

Join Date: Nov 2009
Location: Mumbai
Posts: 408
Thanked: 220 Times
Default

It does look good buddy. The finish isn't that good at certain places. Night pics please..

And yes, since it is a DIY, total cost incurred?
Cartman is offline   Reply With Quote
Old 14th April 2010, 15:05   #5
BHPian

captainsokhi's Avatar

Join Date: Aug 2005
Location: Jalandhar, PUNJAB
Posts: 171
Thanked: Once
Default

Nice DIY there bro. Please post some night time pics and also what is the total cost? and where did u source the dials from?
captainsokhi is offline   Reply With Quote
Old 14th April 2010, 17:36   #6
BHPian

honda3938's Avatar

Join Date: Aug 2009
Location: patiala
Posts: 125
Thanked: 0 Times
Default

thanks friends for the comments. Total cost is only rs 1. I think cheap DIY. I took old dials and scanned them took coloured printout and fixed them.Backlights are red already. Will post night shoots. Photos are blur the odo looks pretty nice in real.

Friends speedo error was also taken car off.
honda3938 is offline   Reply With Quote
Old 16th April 2010, 08:28   #7
BHPian

honda3938's Avatar

Join Date: Aug 2009
Location: patiala
Posts: 125
Thanked: 0 Times
Default

some more pics of the DIY dials
Attached Thumbnails
DIY OHC white Dials-image192.jpg

DIY OHC white Dials-image199.jpg

DIY OHC white Dials-image200.jpg

DIY OHC white Dials-image201.jpg

DIY OHC white Dials-image202.jpg

DIY OHC white Dials-image203.jpg

DIY OHC white Dials-image209.jpg

honda3938 is offline   Reply With Quote
Old 16th April 2010, 11:39   #8
Senior - BHPian

DRIV3R's Avatar

Join Date: Nov 2009
Location: India
Posts: 1,655
Thanked: 1,109 Times
Default

The letters arent that visible at night. Maybe brighter LED's can help. Red would be a good choice of colour, for the LEDs.
DRIV3R is offline   Reply With Quote
Old 16th April 2010, 12:01   #9
BHPian

Ripper's Avatar

Join Date: Jul 2007
Location: Mumbai
Posts: 253
Thanked: 21 Times
Default

Could you post the Step By Step procedure, would help other DIYer's do something similar. And if possible post some clear night pics of the dials with lights ON. Thanks
Ripper is offline   Reply With Quote
Old 23rd April 2010, 16:28   #10
Senior - BHPian

motomaverick's Avatar

Join Date: Nov 2005
Location: Bangalore
Posts: 1,838
Thanked: 864 Times
Default

I did not get your DIY. is the OHC dials different in color? if so then did you print these white dials or you purchased from somewhere?

Btw its good DIY nonetheless.
motomaverick is offline   Reply With Quote
Old 23rd April 2010, 17:07   #11
BHPian

honda3938's Avatar

Join Date: Aug 2009
Location: patiala
Posts: 125
Thanked: 0 Times
Default

Quote:
Originally Posted by motomaverick View Post
I did not get your DIY. is the OHC dials different in color? if so then did you print these white dials or you purchased from somewhere?

Btw its good DIY nonetheless.

OHC dials are black in colour.Here is the step by step process

1. First take your car for a drive and note down the particular speed in particular gear at particular rpm. Lets say at 3k rpm the speed is 70kmph in 4th gear(this is just an example).This would be helpful when you are going to refit the needles.There will be less chances of speedo error.I didnt opened fuel and temperature needle as they are electronically operated and error in these two can be hazardous.Also note idle Rpm.

2.After you note down the rpm,speed at a particular gear . Now open the speedo meter console by opening the 4 screws in the picture.


3. Now take out the meter by removing two clamps behind the meter one on right and another on left side. Now remove the speedometer cable .
4. First take out the speedometer needle .dont put too much pressur just put a small screwdriver below it and lift up.
5. Once the needle comes out remove two screws holding the dial and remove the dial.

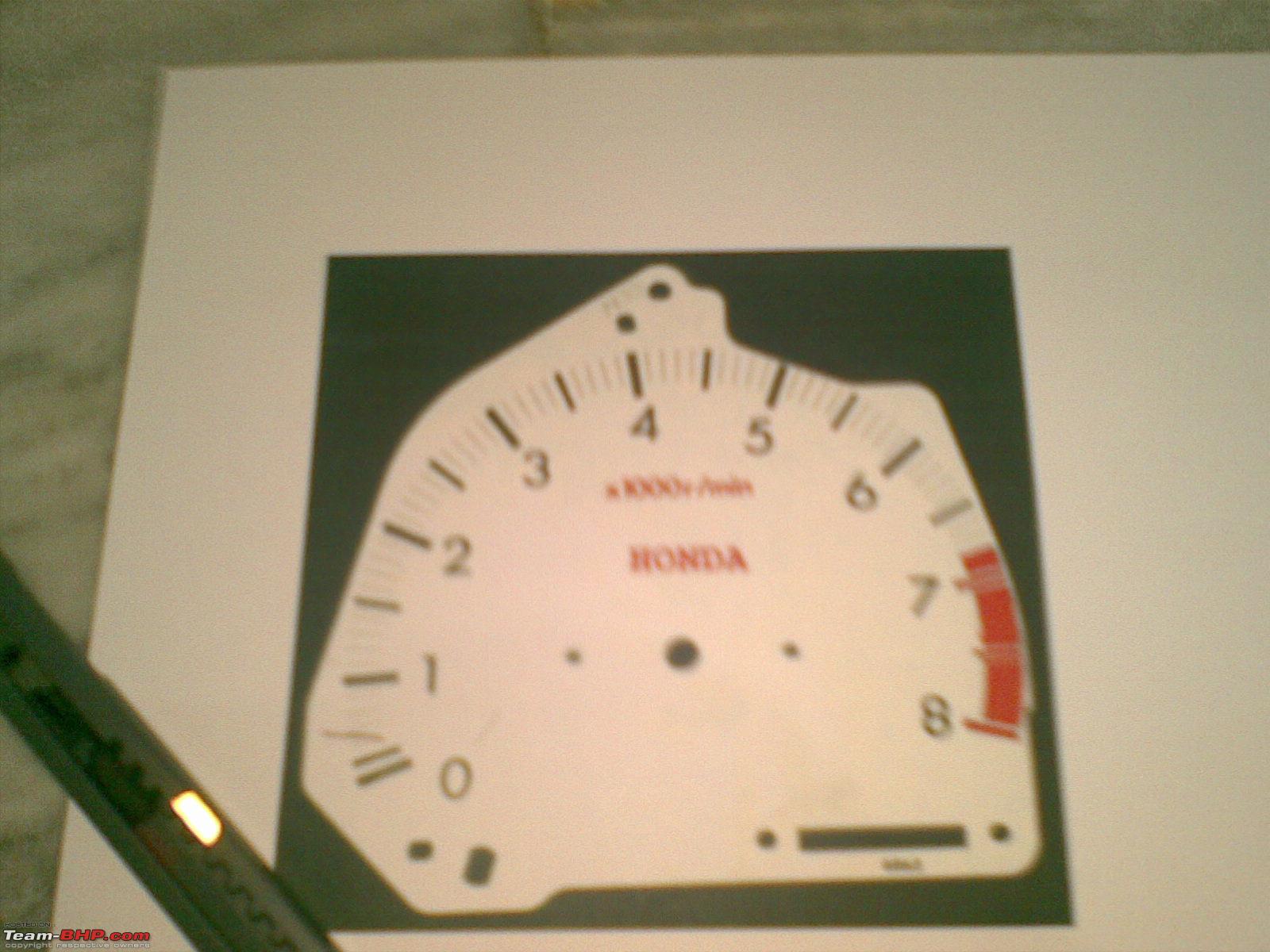

6.Scan the dial and do some photoshop work but dont resize keep the size same.Take the print out on simple paper as light wont pass from photo quality and the meter will not be of any use at night.
7.You can also change the bulbs to leds.
8. now cut the printout and fix it over the original Dial.
9. Fix needle in such a way so that it rest at 0 .Move the needle it has spring action and should returns to 0.
10. Fix the meter temperorily in car and go for a drive . Observe the speed at particular rpm and gear and compare it with noted down reading. if its same than its ok otherwise you can adjust the needle.
11. Now repeat the same steps and take out rpm meter needle and remove the dial.But Rpm dial has a metal stopper kind of thing which stops needle from going beyond zero. you have to bend it gently so that it dont break.than scan it and take the print out and fix that.
12. Now fix the meter but dont fix the rpm needle. start the car and let it warm up.Fix the needle according to the noted idle Rpm and for surity compare it with the noted reading on runninng car.
