Old 12th October 2015, 14:26   #1141
BHPian

::CMS::'s Avatar

Join Date: Sep 2013
Location: Bangalore
Posts: 572
Thanked: 450 Times
Default Re: Tools for a DIYer

Quote:
Originally Posted by venki7744 View Post
Finally managed to find some compressors for < 10k.
Check with any compressor rent outs (painters or paint shops will help you in finding one). They will have different types of compressors, heard a new one (not professional grade) costs around 4-5K desi ones

Last edited by ::CMS:: : 12th October 2015 at 14:27.
::CMS:: is offline   (1) Thanks Reply With Quote
Old 12th October 2015, 16:49   #1142
Distinguished - BHPian

Thad E Ginathom's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 7,387
Thanked: 6,297 Times
Default Re: Tools for a DIYer

I have never bought a compressor, but I'd be wary of buying unbranded as safety may be an issue.
Thad E Ginathom is offline   Reply With Quote
Old 12th October 2015, 16:51   #1143
BHPian

::CMS::'s Avatar

Join Date: Sep 2013
Location: Bangalore
Posts: 572
Thanked: 450 Times
Default Re: Tools for a DIYer

http://www.ebay.in/itm/221676426577?...3097.m2703.l55
::CMS:: is offline   Reply With Quote
Old 14th October 2015, 17:49   #1144
BHPian

AJ-got-BHP's Avatar

Join Date: Sep 2014
Location: Calcutta
Posts: 557
Thanked: 1,937 Times
Default Re: Tools for a DIYer

Venki7744 You can check this one out if it helps your purpose and suits your needs :

GROZ - 2HP Direct Drive Air Compressor.pdf

Last edited by AJ-got-BHP : 14th October 2015 at 17:53. Reason: Changes
AJ-got-BHP is offline   Reply With Quote
Old 16th October 2015, 14:11   #1145
Distinguished - BHPian

DerAlte's Avatar

Join Date: Mar 2007
Location: Bangalore
Posts: 8,068
Thanked: 2,866 Times
Default Re: Tools for a DIYer

Quote:
Originally Posted by Thad E Ginathom View Post
I have never bought a compressor, but I'd be wary of buying unbranded as safety may be an issue.
Usually safety is not an issue even with the unbranded ones. The motor drives the air compressor via v-belt, and there is steel mesh protection around the motor-compressor assembly. Electrically, using an MCB on the line feeding the motor is a good policy.
DerAlte is offline   Reply With Quote
Old 16th October 2015, 16:18   #1146
Distinguished - BHPian

Thad E Ginathom's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 7,387
Thanked: 6,297 Times
Default Re: Tools for a DIYer

How about the pressure tank? Or are the pressures not high enough to merit worry?
Thad E Ginathom is offline   Reply With Quote
Old 19th October 2015, 09:01   #1147
BHPian

Join Date: Jan 2008
Location: Trivandrum
Posts: 70
Thanked: 24 Times
Default Re: Tools for a DIYer

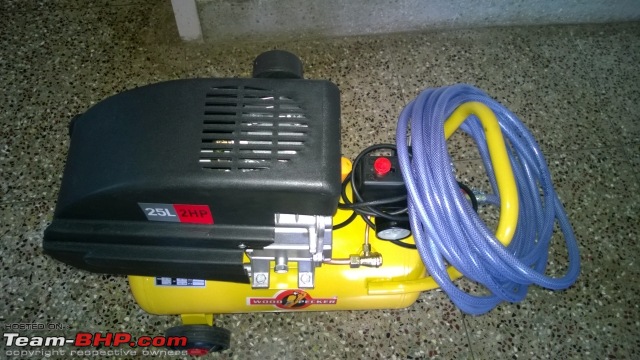

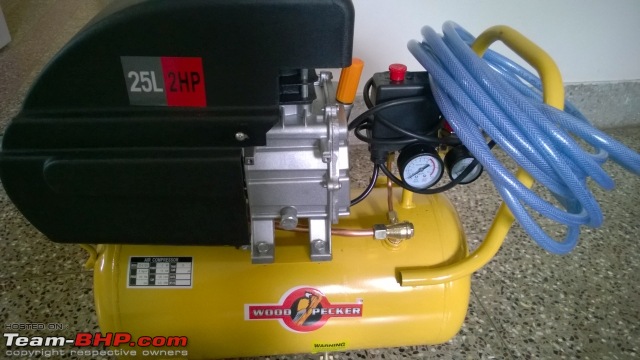

Finally got Woodpecker 25l direct drive compressor for 8.5k. Went for this model as they had a local dealer and provided a 1 year warranty. Besides this I have ordered an 18 Guage brad nailer from Tolexo (brand Wudtul). Here are some pics of the compressor.

Name:  WP_20151017_003.jpg
Views: 687
Size:  177.2 KB

Name:  WP_20151018_002.jpg
Views: 692
Size:  233.6 KB

Name:  WP_20151018_003.jpg
Views: 689
Size:  242.5 KB

Name:  WP_20151018_004.jpg
Views: 687
Size:  208.6 KB

Thanks,
Venki
venki7744 is offline   (2) Thanks Reply With Quote
Old 21st October 2015, 23:43   #1148
BHPian

diyguy's Avatar

Join Date: Jun 2009
Location: Chennai
Posts: 236
Thanked: 105 Times
Default

Guys need help to figure out how to fix a circuit that is draining batteries. I purchased a weighing scale from the US and it drains the battery in a couple of days. Any battery that I put in - Duracell too. That's really expensive to maintain and I would like to see if I can check if there is a short in the internal pcb. Has anyone done this before? I have the same issue with a motion sensor spot light that runs on batteries. Would like to fix both if possible!
diyguy is online now   Reply With Quote
Old 22nd October 2015, 05:59   #1149
Senior - BHPian

SunnyBoi's Avatar

Join Date: Dec 2006
Location: Mysore / B'lore
Posts: 1,394
Thanked: 1,728 Times
Default Re: Tools for a DIYer

Quote:
Originally Posted by diyguy View Post
Guys need help to figure out how to fix a circuit that is draining batteries. I purchased a weighing scale from the US and it drains the battery in a couple of days. Any battery that I put in - Duracell too. That's really expensive to maintain and I would like to see if I can check if there is a short in the internal pcb. Has anyone done this before? I have the same issue with a motion sensor spot light that runs on batteries. Would like to fix both if possible!
Connect a DMM in ammeter mode between the positive pole of the battery and the socket on the device, connect negative in a normal fashion or via a piece of wire. you should see a positive value when the device is on, check if the DMM picks up any reading when device is off - that tells you if there is any leakage.
SunnyBoi is offline   (1) Thanks Reply With Quote
Old 22nd October 2015, 08:14   #1150
Senior - BHPian

Join Date: Apr 2008
Location: Dombivli/Gurgao
Posts: 2,580
Thanked: 1,090 Times
Default

Hmmm not exactly under the tools heading, but I am looking for some pulleys of three to four inch diameter. Where can I pick them up?

Also on the tools front, I bought a cordless Dremel from Flipkart a few months back. Have found it useful for odd jobs like shaving the sharp corners of cabinet doors and drawers.
honeybee is offline   Reply With Quote
Old 22nd October 2015, 14:11   #1151
BHPian

Prowler's Avatar

Join Date: Jul 2008
Location: Madras
Posts: 462
Thanked: 247 Times
Default Re: Tools for a DIYer

Quote:
Originally Posted by SunnyBoi View Post
Connect a DMM in ammeter mode between the positive pole of the battery and the socket on the device, connect negative in a normal fashion or via a piece of wire. you should see a positive value when the device is on, check if the DMM picks up any reading when device is off - that tells you if there is any leakage.
Quote:
Originally Posted by diyguy View Post
I purchased a weighing scale from the US and it drains the battery in a couple of days. Any battery that I put in - Duracell too. That's really expensive to maintain and I would like to see if I can check if there is a short in the internal pcb. Has anyone done this before? I have the same issue with a motion sensor spot light that runs on batteries.
As SunnyBoi says you can hook up a DMM in less than 1 A range to check for current consumption which is the easy part. The hard part comes when you need to figure out which part consumes the current. Normal quiescent current ( when the equipment is not doing any work) should be less than a mA. If it takes more or stays put in the work mode where it can consume a few mA, you need to isolate the component. Usually for such gadgets, it is COB type where most of the electronics is etched into a small blob of silicon with very few peripheral components.

But if you do spot an electrolytic capacitor, chances are it could be the culprit.
If it is the COB, it may well end up in the dustbin.
Prowler is offline   Reply With Quote
Old 23rd October 2015, 00:54   #1152
BHPian

ilangop's Avatar

Join Date: Jul 2008
Location: Pune/Neyveli
Posts: 910
Thanked: 560 Times
Default Re: Tools for a DIYer

Quote:
Originally Posted by honeybee View Post
Hmmm not exactly under the tools heading, but I am looking for some pulleys of three to four inch diameter. Where can I pick them up?
What sort of belt type and size are you looking at? And what is the OD of the shaft where the pulley sits. Here in MIDC Pune a shop by name Divil Engineering specialize on gears. I guess you can find their contact in Indiamart or so.
Virtually getting a pulley turned out from a lathe is possible and not as difficult as getting a sprocket made.
ilangop is online now   Reply With Quote
Old 23rd October 2015, 09:02   #1153
Senior - BHPian

Join Date: Apr 2008
Location: Dombivli/Gurgao
Posts: 2,580
Thanked: 1,090 Times
Default Re: Tools for a DIYer

Oh, I needed them for a household project. Found them in a local hardware shop. They are small and not very strong but fit my purpose.
honeybee is offline   Reply With Quote
Old 23rd October 2015, 20:55   #1154
Senior - BHPian

SunnyBoi's Avatar

Join Date: Dec 2006
Location: Mysore / B'lore
Posts: 1,394
Thanked: 1,728 Times
Default Re: Tools for a DIYer

SKIL 6513 13mm Drill for Rs 1899 - 760 cashback = net Rs 1139. Just bought one!

https://paytm.com/shop/p/skil-6513-5...B70669B4D9F3B3

SKIL 6510 10mm Drill is available for Rs 1630 - 652 cashback = net Rs 978.

https://paytm.com/shop/p/bosch-skil-...L45901CEC2E9C8

EDIT : Even this looks tempting along with the drill. Bosch X30TI for Rs 699 - 279 cashback = net Rs 420

https://paytm.com/shop/p/bosch-x30ti...I38330544F7BA1

Last edited by SunnyBoi : 23rd October 2015 at 21:23.
SunnyBoi is offline   Reply With Quote
Old 25th October 2015, 12:02   #1155
BHPian

Join Date: Jan 2008
Location: Trivandrum
Posts: 70
Thanked: 24 Times
Default Re: Tools for a DIYer

Hi All,

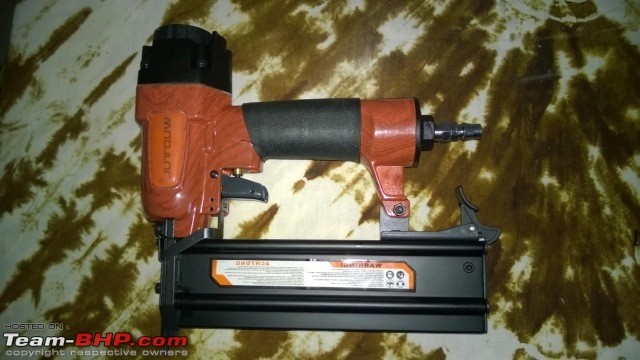

Just thought of keeping you guys updated on my Compressor Journey. Yesterday received the WudTul 18G Brad Nailer. The build quality looks ok except for the spring for the Safety switch, looks little weak. Hope it would survive my abuse . I also changed the hose from Braided plastic hose to Composite (Rubber) hose. The first one was leaking air at all the joints. Also got a box of 18G 36mm brad nails from Wudtul itself. Overall very happy with the transaction with hpmart.in their CS was much better than most of the main stream e-commerce sites. Now for some pics:
Name:  WP_20151024_022.jpg
Views: 493
Size:  205.5 KB

Name:  WP_20151024_023.jpg
Views: 471
Size:  191.6 KB

Name:  WP_20151024_027.jpg
Views: 494
Size:  215.5 KB

Name:  WP_20151024_031.jpg
Views: 496
Size:  217.4 KB

Name:  WP_20151024_032.jpg
Views: 488
Size:  188.0 KB

Name:  WP_20151024_033.jpg
Views: 477
Size:  201.6 KB

Name:  WP_20151025_002.jpg
Views: 490
Size:  221.5 KB

Name:  WP_20151025_001.jpg
Views: 484
Size:  213.8 KB

Last edited by venki7744 : 25th October 2015 at 12:08.
venki7744 is offline   (3) Thanks Reply With Quote
