Lightbulb DIY : Fixing a broken A/C Louver / Vent

Hi All,
I have put the guide in PUG but its useful for any car. When I bought this car the louver adjustment broke in 2 A/C control vents. One from the Co driver side and other one from the center A/C control. I tried numerous method before and this is the best and outlast original A/C vent. Even if you buy a new one it will break within 2 years of usage. Why? Its because of one critical design flaw. There is no strengthening on the sides of "C" clips also called as support lugs. The other and main contributing factor is the plastic rod which clips in the "C" clamp. Its not rounded rather its oval due to the poor molding process. This causes the clip to expand beyond its tolerance value and breaks at the base of the clip.

Procedure:
1. Open the louver control with the help of screw driver it will pop out.
Name:  disassembly.jpg
Views: 3856
Size:  52.4 KB

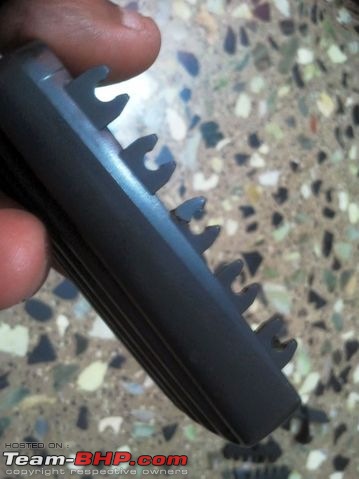

2. It fixed in three parts. Gently remove the flow control knob by opening the lugs with the help of the screw driver. You must be very careful it will break easily. Even if you break dont worry it can be fixed back by silicone sealant.

Name:  broken clip.jpg
Views: 3705
Size:  35.8 KB

3. Now you need to open the vane (black grill). It may look press fit but its not. On one side you will see a metal pin with a plastic bush. Take a punch or 2~4mm steel bit, place over the pin and punch it with a hammer slightly. You can even push out without hammer. Once its out of the seating push the both ends of the grill evenly. It will come out.

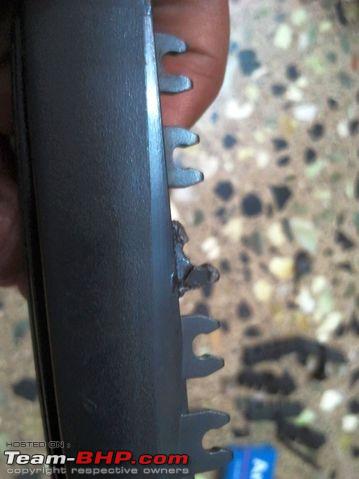

4. I tried with feviquick and these materials does not stick with feviquick and breaks very easily.

Name:  broken clip feviquick.jpg
Views: 4036
Size:  33.2 KB

5. Be careful when you fix you can easily reverse the position. Once Mseal is set you cant reverse again. Make a quick dry run before applying resin.

6. Wrap a piece of plastic cover with grease coated on the stems and tie with a piece of string. Refer pic.
Name:  preparation.jpg
Views: 3469
Size:  32.4 KB

Name:  end result 1.jpg
Views: 3506
Size:  38.4 KB

7. Take a small portion of M seal. Mix well. Make it cylindrical by rolling between the hands. The thickness can be 3~4 mm not more. If its thick then it will obstruct during assembly.

8. Place it over the stem and press firmly to take the shape. Cut off the excess with a knife and shape it. The Purpose of plastic cover is to protect the stems being bonded from the adhesive.

9. Now take 1:1 ratio of Araldite and make a thin coating over Mseal. Put a dab of araldite on the other clips as shown in the pic "end result".

10. Leave 12 hrs atleast for setting. Place between two books and the control knob should be facing down and should touch the floor.


11. Next day remove the thread and cut the plastic cover near the end of the stem using a knife .Reassemble all the parts and fix it in the car.
Name:  end result 2.jpg
Views: 3730
Size:  39.7 KB

Name:  fit and finish.jpg
Views: 3984
Size:  38.4 KB

Regards,
Vijay

Last edited by Stratos : 11th April 2011 at 20:33. Reason: Thanks for sharing!
vijaycool is offline   (4) Thanks Reply With Quote
Old 12th April 2011, 12:23   #2
GTO
Team-BHP Support

GTO's Avatar

Join Date: Feb 2004
Location: Bombay
Posts: 47,763
Thanked: 89,537 Times
Default Re: DIY : Fixing a broken A/C Louver

Hi Vijay,

Thanks for sharing; I'm certain it will be of help to many others. We've spaced out your paragraphs (for easier readability) and also inserted the pictures inline with your text content.
GTO is offline   Reply With Quote
Old 12th April 2011, 12:40   #3
Senior - BHPian

bluevolt's Avatar

Join Date: Jan 2011
Location: New Delhi
Posts: 2,963
Thanked: 2,211 Times
Default Re: DIY : Fixing a broken A/C Louver

Thanks vijay for sharing this DIY with us. I too have similar problem in my WagonR and will follow this DIY very soon.

PS - Is your car also a Maruti?
bluevolt is offline   Reply With Quote
Old 12th April 2011, 12:53   #4
BHPian

rock18's Avatar

Join Date: Feb 2007
Location: Chennai
Posts: 310
Thanked: 54 Times
Default Re: DIY : Fixing a broken A/C Louver

Thanks for this very useful post Vijay..
@blue volt: Car is Fiat Palio. See the vents carefully.
rock18 is offline   Reply With Quote
Old 9th May 2011, 14:54   #5
BHPian

sadnabrina's Avatar

Join Date: Oct 2005
Location: Kolkata
Posts: 347
Thanked: 105 Times
Default Re: DIY : Fixing a broken A/C Louver

Thanks Vijay for the great DIY. My Polo's front right vent's louvers broke yesterday. Tried Feviquick and it did not work. Will try your method (MSeal + Araldite) over the next week end.
sadnabrina is offline   Reply With Quote
Old 10th May 2011, 11:13   #6
BHPian

Join Date: Aug 2006
Location: chennai
Posts: 308
Thanked: 110 Times
Default Re: DIY : Fixing a broken A/C Louver

Last week I need to fix the other two vents. In the central vent 5 clips were broken and fixed back successfully with the same stock tightness. It will last for the lifetime of the car. I have saved almost Rs 3000 and there is no guarantee the new vent will last for couple of years.

Regards,
Vijay
vijaycool is offline   Reply With Quote
Old 10th May 2011, 11:26   #7
Senior - BHPian

bottle's Avatar

Join Date: Sep 2006
Location: Chennai
Posts: 1,489
Thanked: 133 Times
Default Re: DIY : Fixing a broken A/C Louver

Vijay, you need to open a Fiat workshop You should post that clock guide you sent me as well and have a single DIY thread
bottle is offline   Reply With Quote
Old 10th May 2011, 11:55   #8
BHPian

Join Date: Aug 2006
Location: chennai
Posts: 308
Thanked: 110 Times
Default Re: DIY : Fixing a broken A/C Louver

Thanks bottle. I am planning to start my own workshop at some point of time exclusively for fiat.
To open the clock cluster you need to start from removing the A/C control knob. Its a clip type. Then use philips screw driver and remove the center A/C control. Next part is the black trim on the speedo cluster. No need to strip entire trim. Remove the trip adjacent to the clock. You can see one philips screw. Remove that along with the two exposed screws in the bottom. Now you can remove the clock.

Regards,
Vijay
vijaycool is offline   Reply With Quote
Old 25th July 2012, 18:00   #9
BHPian

Join Date: Apr 2011
Location: Madras/Bangalor
Posts: 106
Thanked: 62 Times
Default Replacing a broken A/C vent

The A/C vent of my Bolero (vlx, 2011) is broken. Is there a way to replace it, or do I have to pony up the money for the entire dashboard ?

I live in Chennai.

Any leads/pointers would be appreciated.

Thanks

Shyam
shyamk is offline   Reply With Quote
Old 25th July 2012, 21:32   #10
Senior - BHPian

SPIKE ARRESTOR's Avatar

Join Date: Nov 2009
Location: Deutschland
Posts: 2,680
Thanked: 752 Times
Default re: Replacing a broken A/C vent

The vent itself can be ordered as a spare, no need to buy the whole dash. 15 minutes job (max) if one has the right tools.

Spike
SPIKE ARRESTOR is offline   (1) Thanks Reply With Quote
Old 26th July 2012, 01:52   #11
Distinguished - BHPian

dhanushs's Avatar

Join Date: Oct 2009
Location: Bathery/BLR
Posts: 3,446
Thanked: 4,057 Times
Default re: Replacing a broken A/C vent

As Spike mentioned, the vent can be changed individually.

IIRC, its called 'Louvers Assy' or something.

Will cost you somewhere around ~300-500 bucks.
dhanushs is offline   (1) Thanks Reply With Quote
Old 26th July 2012, 11:52   #12
BHPian

G-BoleroBoy's Avatar

Join Date: Dec 2006
Location: Bangalore
Posts: 94
Thanked: 10 Times
Default re: Replacing a broken A/C vent

Yes. But if you ask dealer to replace it, labour will be Rs 600 or Rs 900. I have replaced all mine in last 7 years and 1 of the replaced ones is now broken again.
G-BoleroBoy is offline   (1) Thanks Reply With Quote
