Old 28th August 2009, 22:45   #2926
Senior - BHPian

AyAn!'s Avatar

Join Date: Oct 2008
Location: Durgapur/Calcutta/Pune
Posts: 2,166
Thanked: 846 Times
Default

Quote:
Originally Posted by AltoHoncho View Post
ID 638: I think this is NIMR 4x4 quite inspired from HMMV.
It is indeed the NIMR 4x4.
NIMR 4X4 STATION WAGON
SPECIFICATION AND PERFORMANCE DATA

Engine: MTU Type 6R 106 TD20
Displacement: 6.36 L Diesel,
Turbo Charged,
Liquid Cooled,
24 V
Power/RPM: 280 hp / 2300
Torque Max: 750 Nm

Transfer Case:
- 2 speed
- Low: 1:1
- High: 1:2
- Lockable Longitudinal Differential
- 3 Positions High, Low and Neutral
- Air Operated Shifting with Electronic Protection

Suspension
- Fully independent Wheel Stations
- Double Wishbone with Torsion Bar and State-of-the-art
Shock Absorbers
- Front and Rear Stabilizer Bars

Steering
- Hydraulic-Assisted
- Separate Steering Pump
- Servo-com Gearbox

Exterior Dimensions
- Overall Length : 4990 mm
- Overall Width : 2200 mm
- Overall Height: 2000 mm
- Wheel Base : 3300 mm
- Approach Angle: 52
- Departure Angle: 52
- Ground Clearance: 400 mm

Strategic Mobility
- By Land
- By Sea
- By Air
- C-130 Hercules
- C-160 Transall
Transmission: Allison LCT 1000
(Auto 5+1)
Gear Ratios
- 1st Gear : 3.102
- 2nd Gear : 1.811
- 3rd Gear : 1.406
- 4th Gear : 1
- 5th Gear : 0.712
- Reverse : 4.492

Axle
- Differential with Air-Operated Differential Locks
- Wheel Hubs with Gear Reduction

Wheels
- Michelin Tires
- 3 Piece Split-Type Wheels
(Bead Lock or Run Flat fixing)
- Run Flat
- Patented CTIS

Brakes
- Dual Circuit
- Air over Hydraulic System

Wheel Performance
- Maximum Speed : 135 km/h
- Cruising Range : 1000 km
- Fuel Capacity : 200 L
- Gradient : Up to 100%
(depending on loading conditions)
- Side Slope : 60%
- Tem. Range : -25C to + 55C @ 90% humidity

Weights
- Type
2 Door Hard Top Single Cabin - 4650 2000
4 Door Hard Top Double Cabin
(Station Wagon) - 4500
4 Door Hard Top Double Cabin
(Missile Carrier)
4 Door Hard Top Double Cabin
(Special Ops)
Name:  NIMR_4x4_armyrecognition_idex_2005_01.jpg
Views: 1525
Size:  76.6 KB
AyAn! is offline   Reply With Quote
Old 29th August 2009, 01:23   #2927
Senior - BHPian

wasif's Avatar

Join Date: Jan 2009
Location: Abu Dhabi (for now)
Posts: 2,929
Thanked: 335 Times
Default

Spot on boys its a NIMIR as you have rightly guessed. It looks like plenty of companies have produced their versions of the Hummer under different names and this is the UAE's version produced and sold by the Bin Jaber Group. Its actually powered by a Cummins 5.9 diesel.

Engine:

Cummins EUSB 190Type: 5.9 litre H.Power / RPM : 146 KW/2400Torque/RPM: 705 Nm/1400.Power / Weight Ratio : 24Alternator 24 V; 100 Amp.Standard Power 24V; VARTA 2 x 55 A/h.

This is the link to their website

NIMR 4X4 Specification


A friend drives one and today in the sands it was a delight to be pulled out of a deep bowl by its awsome torque.

Last edited by wasif : 29th August 2009 at 01:28.
wasif is offline   Reply With Quote
Old 29th August 2009, 13:39   #2928
Senior - BHPian

predatorwheelz's Avatar

Join Date: Feb 2009
Location: Delhi/Kolkata
Posts: 1,647
Thanked: 1,085 Times
Default

Good going, Altohoncho. Your first hit on this thread, eh?

Quote:
Originally Posted by V-16 View Post
Absolutely right. Its a Hudson. Probably a 1939 Hudson Victoria Country Club Roadster.

But it is also very similar to the 112 Roadster....??!!
Gogi Bhai, the few book references that I use for Hudson do not mention that the Victoria Country Club was ever made in roadster/convertible format. A google search with the name also yielded no results. That is why I was convinced that the car in Karl's pic is either a chop job or a one-off. Anyway, this one we'll never know for sure.

Quote:
Originally Posted by wasif View Post
A friend drives one and today in the sands it was a delight to be pulled out of a deep bowl by its awsome torque.
Wasif Bhai, , which vehicle do you use for off-roading? Is it the FJ cruiser?
predatorwheelz is offline   Reply With Quote
Old 29th August 2009, 21:12   #2929
BHPian

AltoHoncho's Avatar

Join Date: Jul 2009
Location: Bangalore
Posts: 581
Thanked: 13 Times
Default

Quote:
Originally Posted by predatorwheelz View Post
Good going, Altohoncho. Your first hit on this thread, eh?
Thanks preds, actually this vehicle was asked in one of the quiz forums, and somehow i remembered it, you know already 'bout the quiz passion among us. This is a really great thread, I somehow reached to it while exploring the forum. Liked it very much, helpful for my poor vintage know how.
AltoHoncho is offline   Reply With Quote
Old 29th August 2009, 21:59   #2930
Senior - BHPian

wasif's Avatar

Join Date: Jan 2009
Location: Abu Dhabi (for now)
Posts: 2,929
Thanked: 335 Times
Default

Hi Aniket.

Yes I do drive my FJ on desert outings and on road for the rest of the time. Its my Fun Junky / Midlife Crisis car. Just got a TRD Cold Air Intake and Cat Back exhaust fitted today and it sounds mean now.

Am going in for a Icon Stage 5 suspension next week and then its gonna be able to do some spectacular jumps !!!

Last edited by wasif : 29th August 2009 at 22:01.
wasif is offline   Reply With Quote
Old 31st August 2009, 16:33   #2931
BHPian

AltoHoncho's Avatar

Join Date: Jul 2009
Location: Bangalore
Posts: 581
Thanked: 13 Times
Smile Id639

ID 639: Identify this vintage beauty.
Attached Images

AltoHoncho is offline   Reply With Quote
Old 2nd September 2009, 00:13   #2932
Senior - BHPian

wasif's Avatar

Join Date: Jan 2009
Location: Abu Dhabi (for now)
Posts: 2,929
Thanked: 335 Times
Default

ID 639 looks like a Citroen to me
wasif is offline   Reply With Quote
Old 2nd September 2009, 13:39   #2933
BHPian

AltoHoncho's Avatar

Join Date: Jul 2009
Location: Bangalore
Posts: 581
Thanked: 13 Times
Default

No. A hint would be its a 1920 vintage, horse-collar design. A US based car company manufactured these.
AltoHoncho is offline   Reply With Quote
Old 2nd September 2009, 13:59   #2934
Senior - BHPian

wasif's Avatar

Join Date: Jan 2009
Location: Abu Dhabi (for now)
Posts: 2,929
Thanked: 335 Times
Default

i thought so looking at the whitewalls. The name eluudes me maybe a Hudson
wasif is offline   Reply With Quote
Old 2nd September 2009, 18:44   #2935
Ram
Senior - BHPian

Ram's Avatar

Join Date: Dec 2005
Location: Singapore, Mumbai, Nagpur
Posts: 2,164
Thanked: 131 Times
Default 1923 Franklin 10 four-door touring sedan

ID:639 is a 1923 Franklin 10 4-door touring sedan
The entire hood along with the grille would open upwards and forwards hinging near the front bumper, not unlike our 1960s Standard Herald, Triumph Spitfire, Jaguar E-type, etc.

Name:  1923Franklin10.jpg
Views: 559
Size:  59.9 KB

I was initially confused by the faux-radiator cowl being painted the same color as the body. Originally it should have been glossy black. Then I realized that the car had been repainted.

The 1923 Franklin had a body built on top of a solid wooden chassis and rolled on artillery type wooden wheels.

It had an aircooled six cylinder engine, so no radiator!

Ram

Last edited by Ram : 2nd September 2009 at 18:55. Reason: Added more content later
Ram is offline   Reply With Quote
Old 4th September 2009, 12:00   #2936
BHPian

AltoHoncho's Avatar

Join Date: Jul 2009
Location: Bangalore
Posts: 581
Thanked: 13 Times
Default

Quote:
Originally Posted by Ram View Post
ID:639 is a 1923 Franklin 10 4-door touring sedan

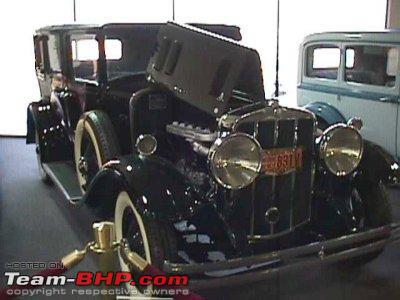

Correct, in the image, on a closer look, the front hinge can be felt quite unconventional of those times. Intentionally I searched for something which doesnt have two-tones coz model 9 through 15 they came in twin-tones with the front bonnet in separate color than the rest body (not considering the roof which was standard black). These were 32 bhp machines, which was quite amazing at those times. Another look of it while the bonnet is open is below:
Attached Images

AltoHoncho is offline   Reply With Quote
Old 4th September 2009, 12:06   #2937
Senior - BHPian

predatorwheelz's Avatar

Join Date: Feb 2009
Location: Delhi/Kolkata
Posts: 1,647
Thanked: 1,085 Times
Default

Quote:
Originally Posted by AltoHoncho View Post
Another look of it while the bonnet is open is below:
Buddy, I think you've got the wrong pic. Its obvious that the Franklin car was not centre hinged. The bonnet was hinged at the front and opened upwards.

I've posted a pic of my 1954 Merc 300SL scale model. Look at the way the bonnet opens. I think this is what Ram was referring to:
Attached Images

predatorwheelz is offline   Reply With Quote
Old 4th September 2009, 15:38   #2938
BHPian

AltoHoncho's Avatar

Join Date: Jul 2009
Location: Bangalore
Posts: 581
Thanked: 13 Times
Default

Maybe the mechanism would've evolved along with the models, the one that he mentioned about was model 9/10, my pic is of model 15 (I didnt get any of the models 9/10).
The gullwing is surely awesome. Its always fascinating to see this one in particular. I saw it at the scale models store in Inorbit mall (that store is no more there now)
AltoHoncho is offline   Reply With Quote
Old 5th September 2009, 00:12   #2939
BHPian

FourWheelDrift's Avatar

Join Date: Jan 2008
Location: Mumbai
Posts: 469
Thanked: 178 Times
Default

ID:640 Make and model, please.
Attached Images

FourWheelDrift is offline   Reply With Quote
Old 5th September 2009, 00:15   #2940
Senior - BHPian

wasif's Avatar

Join Date: Jan 2009
Location: Abu Dhabi (for now)
Posts: 2,929
Thanked: 335 Times
Default

Suzuki something maybe.....?
wasif is offline   Reply With Quote
