Default The Vbox 0-100 thread: Post your times here!

Background:
Sid & Vivek from Tune-O-Tronics picked up a Vbox Sport few months back.
One of the first measurements we took with the Vbox sport was a hurried 0-100 on my Rapid TDI, which runs their remap.
More on that later...


Fast forward:
With that said, one of my close pals and I found ourselves jobless few weekends ago, and since he wanted to measure his 0-100 time on his remapped Figo, we thought we'll make good use of a Saturday.
So, I called up Sid/Vivek and asked them what they're up to, and if they can accommodate some time for us to borrow their Vbox and do a couple of runs.
They were busy remapping cars, but said they'd give us a buzz if they wrap up early.

And true enough, we got a call in the afternoon from them saying they were done with the cars they'd lined up for the day, and we could catch up to do the runs.
Oh yeah, nice! We scampered over to their new office at Sarjapur, and after exchanging pleasantries, set about doing what we came for.


Testing the Figo:
We hooked up the Vbox to the Figo, found a completely deserted stretch of road that's closed at the moment to public, and my friend took the Figo for a couple of runs.
He happens to be a very smooth driver who rarely pushes the car to his limit, and he came back saying the car can go much faster.
So, I decided to take a shot at it. Took the car around for a spin to get used to the bite of the clutch, and how the engine responds, and after I felt comfortable, I went ahead and started my runs.

I did 5 runs, and hit very similar times on my 4th and 5th runs to the ton, at which point I knew we (the combination of the car and I) couldn't go any faster.
I'm sure other drivers might be able to extract an even faster time, but I think I found my limit without being overly aggressive on the car.
Look for the time further below in this post; you'll be surprised at what it did!

We still had time to kill, and I was wishing I'd brought my Rapid along as well.
Though we'd already done a quick run on my Rapid few months ago, I knew I could go slightly faster.
Another weekend for sure!


Managed to run a Swift too!
Sid's own remapped Swift was parked nearby and happened to catch my eye, and I was quietly thinking to myself, if I might be able to take it for a spin.
I think Sid caught my drift, and voiced the same idea himself, so I gleefully jumped into the Swift and took it out for a spin to get accustomed to the car.
Once I was comfortable with the Swift, I did few runs, and my 3rd and 4th runs to the ton were very similar. I was confident I personally had found my limit without being overly aggressive on the car.
I think you'll love the time his Swift clocked as well... further below in this post.


This thread:
We thanked Sid/Vivek for their time, and made our way back home, very happy with the times the cars clocked.
En route, I was thinking... I should post this on Team-BHP, would be useful to others.
Maybe... I should just start a Vbox 0-100 thread, hadn't seen one on Team-BHP, and I really didn't mind maintaining the thread going forward if others pitched in with their times.

I slept on the idea, and today morning, it still sounded like a darn good idea! So here we are ;-)


The figures:
Here are the specs of the cars I've personally tested, with their 0-100 figures


My friend's Ford Figo 1.4 diesel:
Stock engine specs: 68 BHP, 160 NM
Estimated figures post Tune-O-Tronics remap: 88~90 BHP, 190~195 NM

Stock 0-100 figures as per Autocar's Vbox run on the Figo Diesel: 16.26s
The 0-100 time that I did on a Vbox in the remapped Figo Diesel: 12.72s

Vbox graph of my 2 best runs below:
The Vbox 0-100 thread: Post your times here!-12.72-12.84.jpg


Sid's Suzuki Swift 1.3 Diesel:
Stock engine specs: 74 BHP, 190 NM
Estimated figures post Tune-O-Tronics remap: ~100 BHP, 230~235 NM
Note: This isn't the regular remap he would advocate to others, he personally runs at a higher state of tune, it's his own car!

Stock 0-100 figures as per Autocar's Vbox run on the Swift Diesel: 13.65s
The 0-100 time that I did on a Vbox in the remapped Swift Diesel: 11.24s

Vbox graph of my 2 best runs below:
The Vbox 0-100 thread: Post your times here!-swift-11.24-11.26.jpg


My Skoda Rapid 1.6 Diesel:
Dyno figures at wheel in Stock: 108 BHP, 282 NM
Dyno figures at wheel post Tune-O-Tronics remap: 138 BHP, 327 NM

Stock 0-100 figures as per Autocar's Vbox run on the Rapid Diesel: 11.44s
The 0-100 time that I did on a Vbox in the remapped Rapid Diesel: 9.34s
Note: As mentioned before, the 9.34s run was hurried; I think I can go slightly faster

Vbox graph below:
The Vbox 0-100 thread: Post your times here!-0100.jpg


Kudos to Tune-O-Tronics!
Having driven stock Swifts, stock Figos, and stock Rapids - and their remapped versions, I can tell you for sure. The Tune-O-Tronics remaps are uber quality. All the cars rev smoothly & cleanly to the redline if required, and they put down their power on the road linearly, and impressively. None of the 3 cars have taken a hit in fuel efficiency either under normal city & highway driving conditions, and all cars have run 20,000 kms+ post the remaps.


Shall we Team-BHPians collaborate and keep this thread active?
If everyone thinks it's a good idea, please share 0-100 Vbox graphs of your cars in this thread, and I can volunteer to catalog them on behalf of everyone for reference.
Please be sure to specify your car model, fuel type, stock engine specs, remapped or modded engine specs (if you have remap, or have carried out internal mods), and if the 0-100 run reflects your stock tune or remapped tune.
I'm sure it'll be very useful to a lot of folks on the forum. Cheers!
kryptonite is offline   (8) Thanks Reply With Quote
Old 20th August 2013, 15:26   #2
BHPian

kryptonite's Avatar

Join Date: Nov 2011
Location: Bangalore
Posts: 391
Thanked: 1,118 Times
Default Re: The Vbox 0-100 thread: Post your times here!

(Reserving post for the future, to append Vbox 0-100 times of cars & bikes from this forum)

So far:

Cars:
  • 7.86s: Skoda Laura 2.0 TDI CR, 6 speed DSG (remapped by Tune-O-Tronics)
  • 8.09s: Skoda Laura 2.0 TDI PD, 6 speed DSG (remapped by Tune-O-Tronics)
  • 8.26s: Skoda Rapid / VW Vento 1.6L TDI CR (remapped by Tune-O-Tronics, Stage2 race tune)
  • 8.36s: Optra Magnum 2.0 TCDI (remapped by Tune-O-Tronics)
  • 8.54s: VW Polo GT 1.6L TDI CR (remapped by Tune-O-Tronics)
  • 8.78s: Honda City Old VTEC with Stage1 mods & lightened flywheel
  • 8.83s: Skoda Rapid / VW Vento 1.6L TDI CR (remapped by Tune-O-Tronics)
  • 9.50s: Skoda Laura 1.9 PD (remapped by Tune-O-Tronics)
  • 9.84s: Honda Accord 3.0L V6, 4 speed Automatic (stock)
  • 9.73s: Zen with Baleno's 1.6L engine + Esteem's 5 speed gearbox
  • 10.33s: Mahindra XUV500 2.2L Diesel, 2W drive (remapped by Tune-O-Tronics)

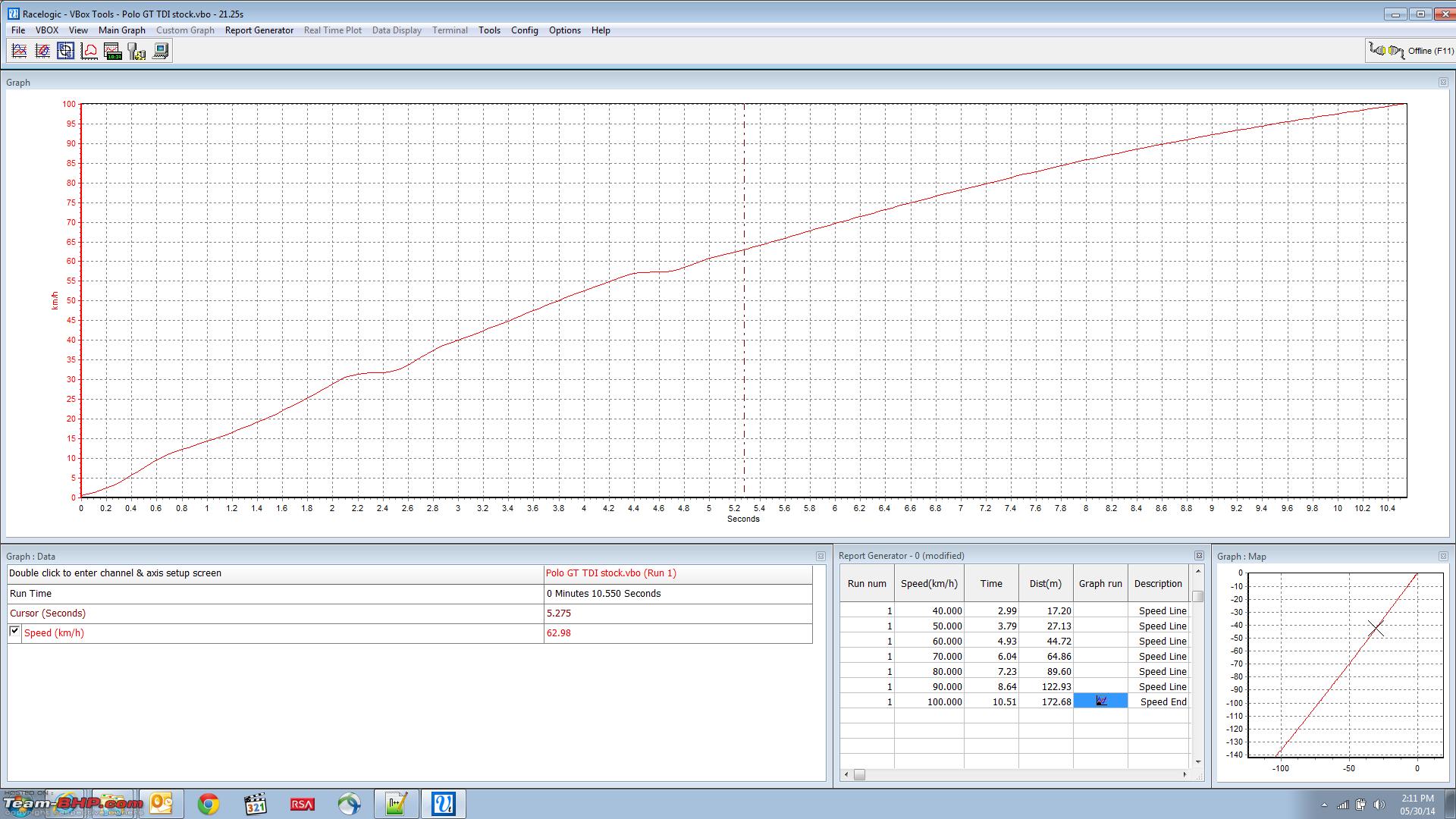

  • 10.51s: VW Polo GT 1.6L TDI CR (stock)
  • 10.81s: Volvo XC60 2.4L 5cyl Diesel, Automatic (stock)
  • 11.20s: Ford Fiesta 1.5 TDCI (remapped by Tune-O-Tronics)
  • 11.24s: Suzuki Swift 1.3 DDIS (remapped by Tune-O-Tronics)
  • 12.46s: Ford Figo 1.4 TDCI (remapped by Tune-O-Tronics)
  • 13.67s: Hyundai i20 1.2 Kappa (stock)
  • 19.53s: Zen 1.0L, 3 speed Automatic (stock)
  • Maruti Suzuki S-Cross 1.6 DDIS ( remapped by Tune-O-Tronics) : 9.08 seconds
  • Maruti Suzuki SX4 1.3 DDIS ( remapped by Tune-O-Tronics) : 10.85 seconds

Bikes:
  • 3.27s: Yamaha FZ1 with Akrapovic exhaust & sprocket mods
  • 3.80s: Yamaha FZ1 (stock)
  • 4.77s: Kawasaki Ninja 650 (stock)
  • 5.38s: KTM Duke 390 (remapped by Tune-O-Tronics)
  • 6.75s: Harley Davidson Electra Glide (stock)
  • 8.20s: KTM Duke 200 (remapped by Tune-O-Tronics)
  • 10.53s: Suzuki Supra SS with a Stage2 Shaolin 140cc engine

Last edited by Aditya : 25th November 2016 at 07:46. Reason: Updated on request.
kryptonite is offline   (6) Thanks Reply With Quote
Old 20th August 2013, 16:25   #3
Distinguished - BHPian

karan561's Avatar

Join Date: Aug 2006
Location: Mumbai
Posts: 3,390
Thanked: 7,167 Times
Default Re: The Vbox 0-100 thread: Post your times here!

Most of us out here dont own a VBOX or such similar tech so hope we can use tested data from the web for posting our timings

Here's a quick video of the 0-60 & 1/4 timings of a stock 328i done by DragTimes



0-60: 5.5 secs
1/4 Mile: 14.1 @ 99.8 MPH


BMW under rating the HP figures etc is a known fact & hence no surprises why the numbers are better than factory quoted

Last edited by karan561 : 20th August 2013 at 16:38.
karan561 is offline   (2) Thanks Reply With Quote
Old 21st August 2013, 18:30   #4
Distinguished - BHPian

sudev's Avatar

Join Date: Jan 2008
Location: Gurgaon
Posts: 3,351
Thanked: 1,762 Times
Default Re: The Vbox 0-100 thread: Post your times here!

Lovely idea. Can we keep all figures in same units (metric)?

Question: Why do remaps only work good on diesels? Have not seen any for petrol engines.
sudev is offline   Reply With Quote
Old 21st August 2013, 19:56   #5
BHPian

muditgrover's Avatar

Join Date: Oct 2010
Location: Gurgaon
Posts: 188
Thanked: 83 Times
Default Re: The Vbox 0-100 thread: Post your times here!

How much did you pick up the VBox for? It works using GPS?

Thanks
muditgrover is offline   Reply With Quote
Old 22nd August 2013, 00:29   #6
BHPian

nareshov's Avatar

Join Date: Jul 2012
Location: Bangalore
Posts: 268
Thanked: 163 Times
Default Re: The Vbox 0-100 thread: Post your times here!

Quote:
Originally Posted by sudev View Post
...
Question: Why do remaps only work good on diesels? Have not seen any for petrol engines.
Remaps generally give significant gains on force-induced engines: i.e. engines with turbochargers and/or superchargers. Most modern diesel engines are turbo-charged (because their exhaust is stronger).

Turbo-charged petrols (like TSi, T-Jet, etc.) are kind of rare - comparatively, here - so we see/hear little of them.
nareshov is offline   (1) Thanks Reply With Quote
Old 4th September 2013, 11:48   #7
BHPian

kryptonite's Avatar

Join Date: Nov 2011
Location: Bangalore
Posts: 391
Thanked: 1,118 Times
Default Re: The Vbox 0-100 thread: Post your times here!

Quote:
Originally Posted by karan561 View Post
Most of us out here dont own a VBOX or such similar tech so hope we can use tested data from the web for posting our timings
Feel free to share, but since the goal of the thread was to limit it to the most accurate numbers obtained from a vbox, I'll consolidate the 2nd post of this thread with just these numbers that us Team BHPians can extract out of our cars, measured by a vbox.

I don't own a vbox either, but I borrow it over a weekend whenever it's free


Quote:
Originally Posted by sudev View Post
Lovely idea. Can we keep all figures in same units (metric)?

Question: Why do remaps only work good on diesels? Have not seen any for petrol engines.
I'm quoting what majority of manufacturers publish, which happens to be in BHP/PS and NM. I'm okay with converting everything to metric if that's what everyone prefers.

nareshov explained it accurately, it's forced induction (turbocharging or supercharging) that helps you extract more from the engine. For example, in India:

Linea TJet 1.4 Turbo petrol can be remapped from 114 to 135~140 BHP.
The Skoda Laura 1.8 TSI turbo petrol can be remapped from 160 to 200 BHP.
I'm sure the 1.6L Turbo petrols in the Mini & BMW 1 series, and the 1.8L Turbo Petrol in the Merc C Class can be remapped as well


Quote:
Originally Posted by muditgrover View Post
How much did you pick up the VBox for? It works using GPS?

Thanks
I think it costs around 40~45k in India, need to double check with Sid if that's accurate. Yes, it uses GPS. Check this link:
http://www.vboxmotorsport.co.uk/inde...ers/vbox-sport


Quote:
Originally Posted by kryptonite View Post
Stock 0-100 figures as per Autocar's Vbox run on the Rapid Diesel: 11.44s
The 0-100 time that I did on a Vbox in the remapped Rapid Diesel: 9.34s
Note: As mentioned before, the 9.34s run was hurried; I think I can go slightly faster
So, I finally spent time with my car the other day.

In Stock: I managed to do a 10.77s run to 100, much quicker than Autocar's 11.44s
With the remap: I managed to do a 9.07s to 100! Super thrilled with this, and this was a perfect run in every sense.

Note: These times were obtained on a flat road, with full tank of fuel, regular tyre pressures, with everything still in the car (all my accessories incl. subwoofer, spoiler, spare wheel, etc.)


The Vbox 0-100 thread: Post your times here!-stock-vs-mr_perfect-0100-shoot-out.jpg
kryptonite is offline   (1) Thanks Reply With Quote
Old 5th September 2013, 13:48   #8
BHPian

kryptonite's Avatar

Join Date: Nov 2011
Location: Bangalore
Posts: 391
Thanked: 1,118 Times
Default Re: The Vbox 0-100 thread: Post your times here!

Fiesta 1.5 TDCI: My friend's car (Vyshak, owner of Adiga Motors, Bosch service)

Stock engine specs: 88 BHP, 204 NM
Estimated figures post Tune-O-Tronics remap: 112~114 BHP, 240~245 NM

Stock 0-100 figures as per Autocar's Vbox run on the Fiesta Diesel: 13.90s

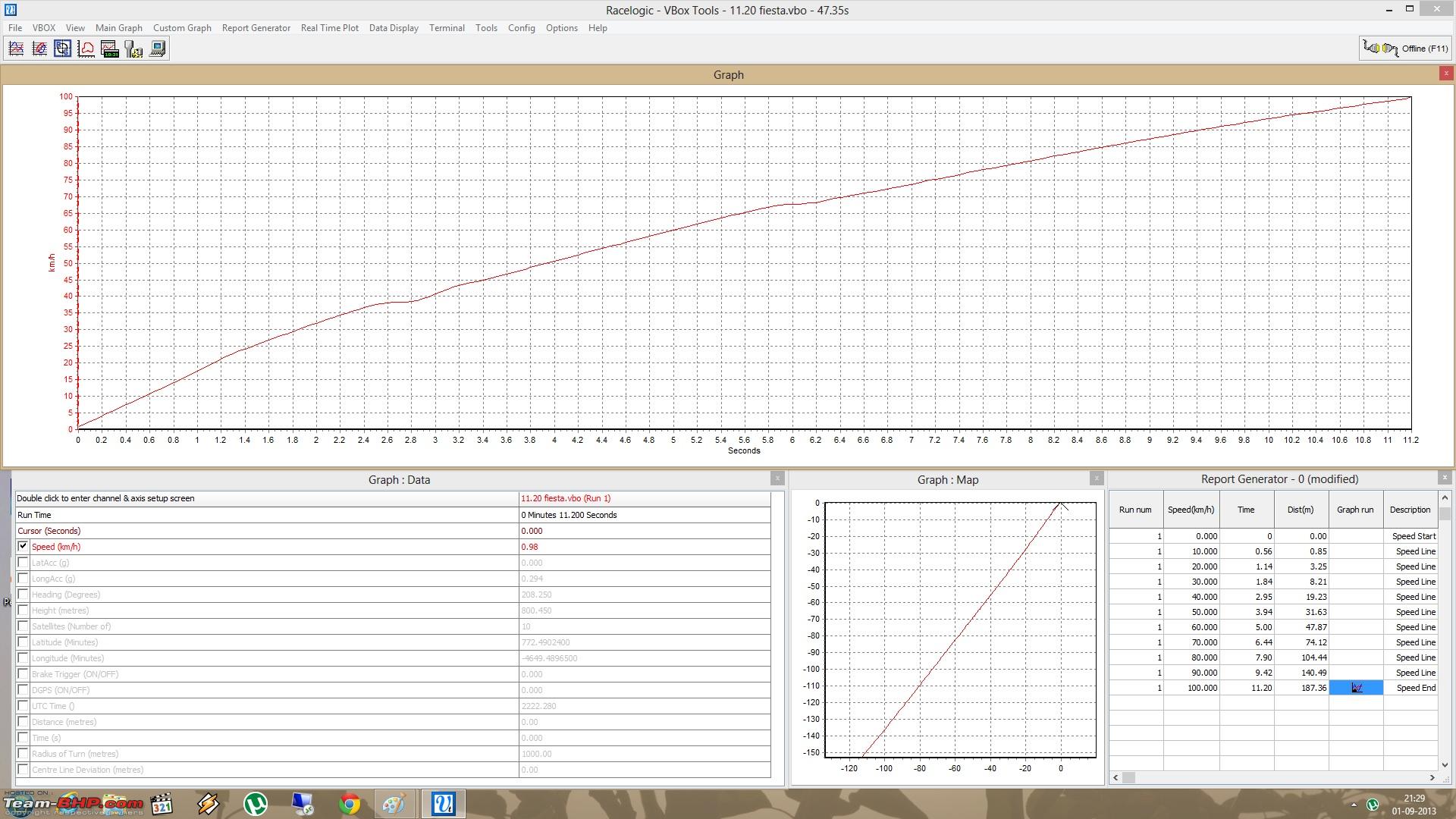

The 0-100 time that I did on a Vbox in the remapped Fiesta Diesel: 11.20s
Attached Thumbnails
The Vbox 0-100 thread: Post your times here!-fiesta-1.5-tdci-11.20s.jpg

kryptonite is offline   (4) Thanks Reply With Quote
Old 7th September 2013, 18:57   #9
BHPian

kryptonite's Avatar

Join Date: Nov 2011
Location: Bangalore
Posts: 391
Thanked: 1,118 Times
Default Re: The Vbox 0-100 thread: Post your times here!

Laura 1.9 PD: My friend's car again (Vyshak, owner of Adiga Motors, Bosch service)

Stock engine specs: 103 BHP, 250 NM
Estimated figures post Tune-O-Tronics remap: ~140 BHP, ~330 NM

Stock 0-100 figures specified by Skoda in their reference manual: 11.8s
The 0-100 time that I did on a Vbox in the remapped Laura Diesel: 9.50s
Attached Thumbnails
The Vbox 0-100 thread: Post your times here!-laura-1.9-pd-9.50s.jpg

kryptonite is offline   (3) Thanks Reply With Quote
Old 9th September 2013, 15:24   #10
BHPian

kryptonite's Avatar

Join Date: Nov 2011
Location: Bangalore
Posts: 391
Thanked: 1,118 Times
Default Re: The Vbox 0-100 thread: Post your times here!

Just to spice things up a bit:

Kawasaki Ninja 650: My friend's bike (Vyshak, owner of Adiga Motors, Bosch service)

Stock engine specs: 72 BHP, 64 NM
Note: The bike is in stock condition, and this is the only run that I didn't personally execute, I trusted the owner to launch it himself

We managed to do a 4.77s to 100 !
Should be able to go faster since the launch was not very aggressive at all.
Attached Thumbnails
The Vbox 0-100 thread: Post your times here!-ninja-650-4.77s.jpg

kryptonite is offline   (2) Thanks Reply With Quote
Old 19th September 2013, 21:22   #11
BHPian

kryptonite's Avatar

Join Date: Nov 2011
Location: Bangalore
Posts: 391
Thanked: 1,118 Times
Default Re: The Vbox 0-100 thread: Post your times here!

Optra Magnum 2.0 TCDI: Sid's (from Tune-O-Tronics) own car

Stock engine specs: 120 BHP, 315 NM
Estimated figures post Tune-O-Tronics remap: ~150 BHP, ~380 NM

Stock 0-100 figures as per Autocar's Vbox run on the Magnum Diesel: 10.90s
The 0-100 time that I did on a Vbox in the remapped Magnum Diesel: 8.73s

The Vbox 0-100 thread: Post your times here!-magnum-8.73s.jpg

This completes all the remapped cars in my group of friends. I'll see if I run some of the stock cars in the upcoming months

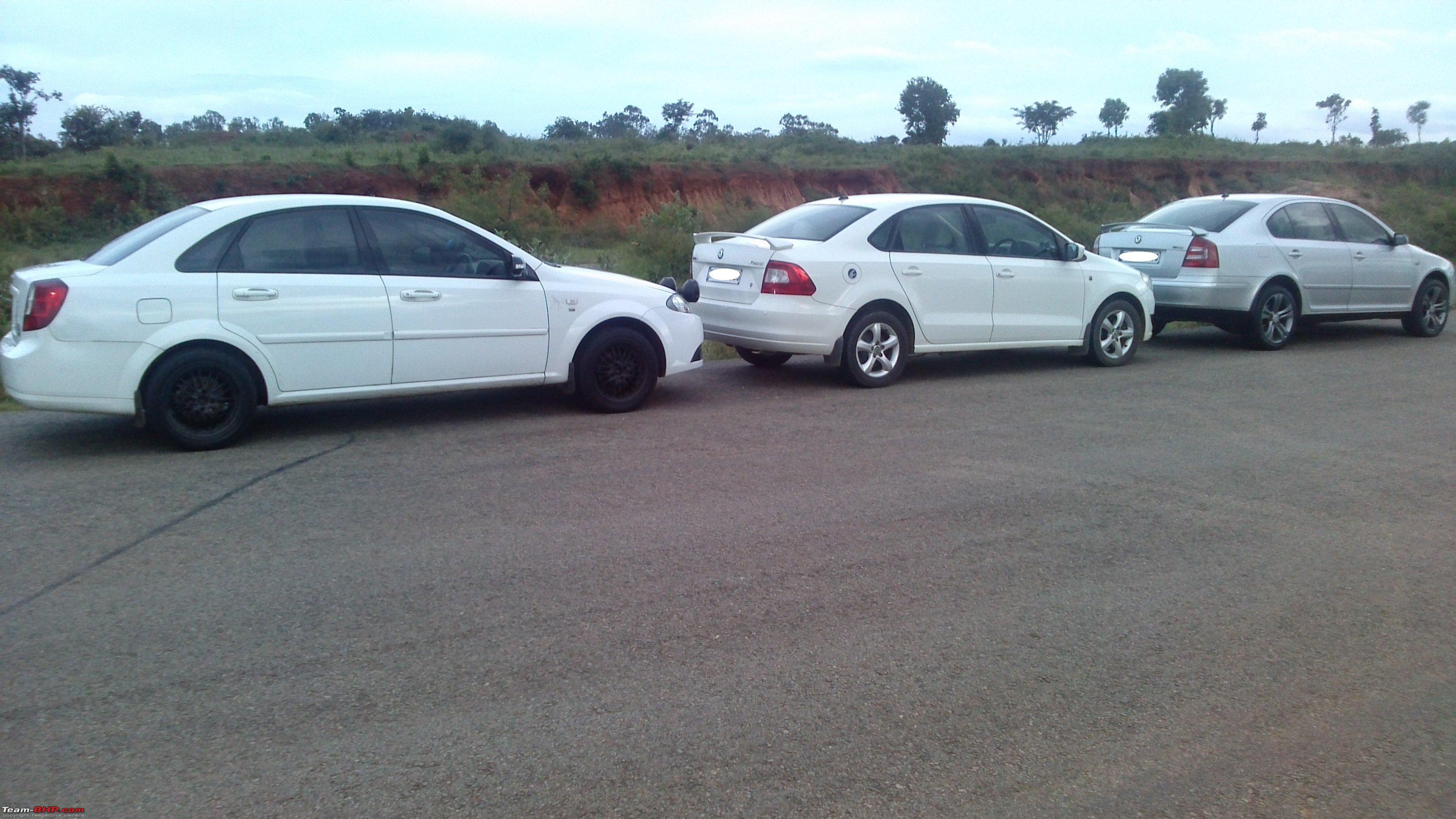

Till then, a parting photo of the 3 fastest cars I've personally Vbox'ed
The Vbox 0-100 thread: Post your times here!-cam00287.jpg
kryptonite is offline   (5) Thanks Reply With Quote
Old 1st December 2013, 13:54   #12
BHPian

kryptonite's Avatar

Join Date: Nov 2011
Location: Bangalore
Posts: 391
Thanked: 1,118 Times
Default Re: The Vbox 0-100 thread: Post your times here!

VW Polo GT TDI: My friend's car again (Vyshak, owner of Adiga Motors, Bosch service)

Stock engine specs: 103 BHP, 250 NM
Estimated figures post Tune-O-Tronics remap: ~134 BHP, ~320 NM

Stock 0-100 figures as per Autocar's Vbox run on the Polo GT TDI: 10.51s
The 0-100 time that I did on a Vbox in the remapped Polo GT TDI: 8.82s
Attached Thumbnails
The Vbox 0-100 thread: Post your times here!-polo-gt-tdi-8.82s-0100.png

kryptonite is offline   (5) Thanks Reply With Quote
Old 22nd April 2014, 18:41   #13
BHPian

kryptonite's Avatar

Join Date: Nov 2011
Location: Bangalore
Posts: 391
Thanked: 1,118 Times
Default Re: The Vbox 0-100 thread: Post your times here!

Optra Magnum 2.0 TCDI: Sid's (from Tune-O-Tronics) own car

Updated map for his personal use
Estimated figures post Tune-O-Tronics remap: ~160 BHP, ~400 NM

The 0-100 time that I did on a Vbox in the remapped Magnum Diesel: 8.36s

The Vbox 0-100 thread: Post your times here!-magnu-2.0-tcdi-8.36s.png


My friend's Ford Figo 1.4 diesel:

Updated/tweaked map
Estimated figures post Tune-O-Tronics remap: ~90 BHP, ~195 NM

The 0-100 time that I did on a Vbox in the remapped Figo Diesel: 12.46s

The Vbox 0-100 thread: Post your times here!-figo-1.4-tdci-12.46s-.png

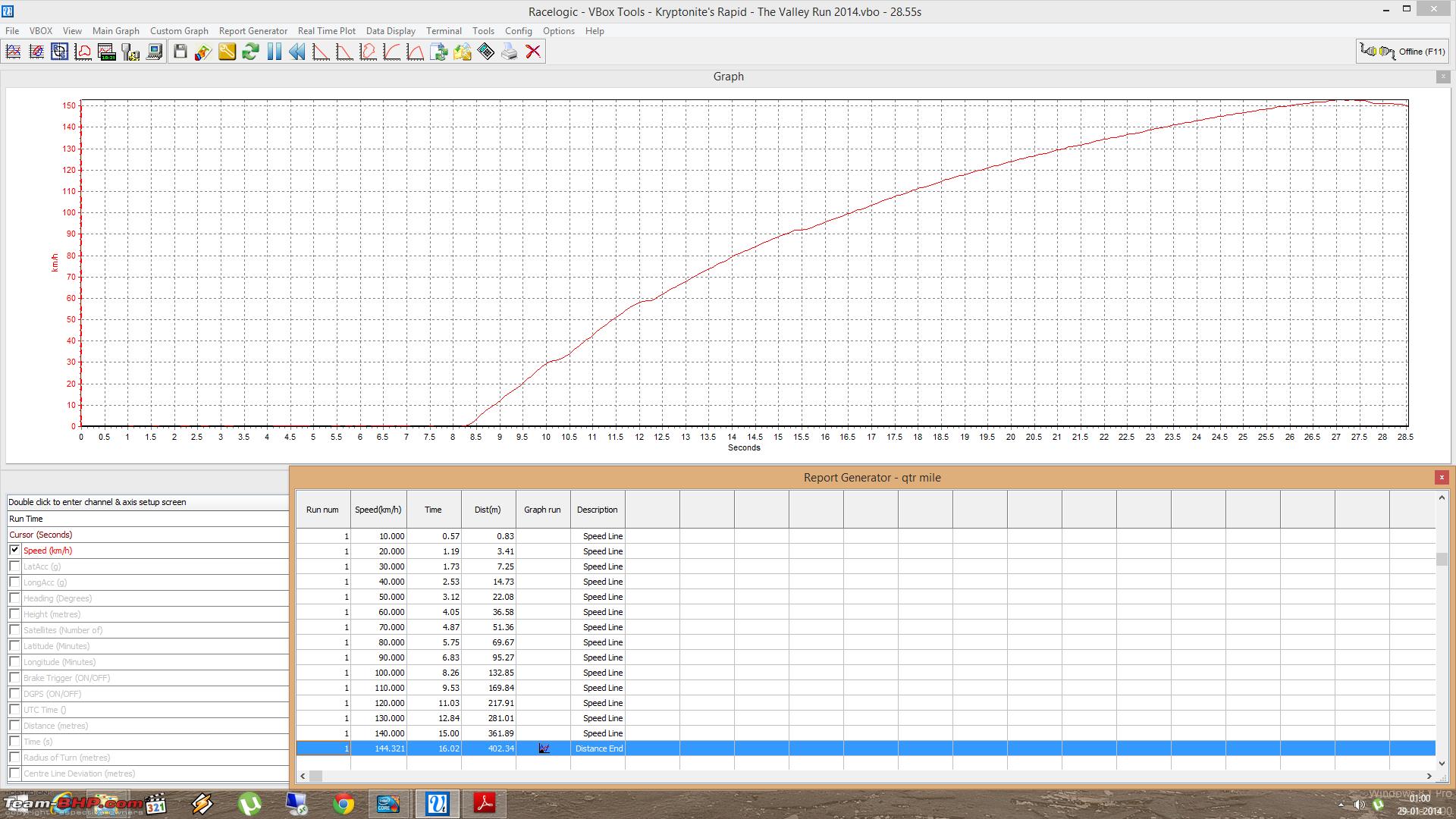

My Skoda Rapid 1.6 TDI:

Stage2 tune, with which I won The Valley Run 2014 & The Drag Wars 2014
Dyno figures at wheel post Tune-O-Tronics remap: 151 BHP, 371 NM

The 0-100 time that I did on a Vbox at The Valley Run: 8.26s
The Quarter Mile time was: 16.02s

The review of my phenomenal experience at the drag events is documented here: http://www.team-bhp.com/forum/indian...oda-rapid.html

The Vbox 0-100 thread: Post your times here!-vbox.png
kryptonite is offline   (2) Thanks Reply With Quote
Old 30th May 2014, 15:10   #14
BHPian

kryptonite's Avatar

Join Date: Nov 2011
Location: Bangalore
Posts: 391
Thanked: 1,118 Times
Default Re: The Vbox 0-100 thread: Post your times here!

KTM Duke 200: My friend's bike (remapped by Tune-O-Tronics)

Stock engine specs: 25 BHP, 19.2 NM
Estimated figures post Tune-O-Tronics remap: 28.5 BHP, 24 NM

Stock 0-100 figures as per Autocar's Vbox run in the KTM Duke 200: 9.52s
The 0-100 time that my friend did on a Vbox in remapped KTM Duke 200: 8.48s

The Vbox 0-100 thread: Post your times here!-duke-200.png


Yamaha FZ1: My friend's bike (stock)

Stock engine specs: 150 BHP, 106 NM

Stock 0-100 figures as per Autocar's Vbox run in the Yamaha FZ1: 3.86s
The 0-100 time that my friend did on a Vbox in the stock Yamaha FZ1: 3.80s

The Vbox 0-100 thread: Post your times here!-fz1.png


Polo GT TDI : My friend's car (stock)

Stock engine specs: 103 BHP, 250 NM

Stock 0-100 figures as per Autocar's Vbox run in the Polo GT TDI: 10.51s
The 0-100 time that I did on a Vbox in the stock Polo GT TDI: 10.51s

The Vbox 0-100 thread: Post your times here!-polo-gt.png


Hyundai i20 1.2 Kappa: My friend's car (stock)

Stock engine specs: 80 BHP, 112 NM

Stock 0-100 figures as per Autocar's Vbox run in the i20 Kappa: 15.2s
The 0-100 time that I did on a Vbox in the stock i20 Kappa: 13.67s

The Vbox 0-100 thread: Post your times here!-i20-stock.png
kryptonite is offline   (2) Thanks Reply With Quote
Old 30th May 2014, 16:07   #15
Senior - BHPian

Vik0728's Avatar

Join Date: Feb 2010
Location: Bangalore
Posts: 1,492
Thanked: 1,509 Times
Default Re: The Vbox 0-100 thread: Post your times here!

Quote:
Originally Posted by kryptonite View Post

Polo GT TDI
: My friend's car (stock)

Stock engine specs: 103 BHP, 250 NM

Stock 0-100 figures as per Autocar's Vbox run in the Polo GT TDI: 10.51s
The 0-100 time that I did on a Vbox in the stock Polo GT TDI: 10.51s
I am a bit confused here kryptonite.

Did you just run the stock GT TDI using the Vbox or did a remapped GT TDI on the VBox return a 0-100 time of 10.51s ?

I hope it is not the latter !!
Vik0728 is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search


Similar Threads
Thread Thread Starter Forum Replies Last Post
Times of Finland : How I live here 14000rpm Travelogues 118 28th November 2016 01:09
Palio and Panda replacements coming in 2009 - Times of India, Times Drive 4strings The Indian Car Scene 14 5th June 2008 07:41
"60 new cars coming in 2008" - Hindustan Times. Now take your pick. Hyundai.Lover The Indian Car Scene 21 5th January 2008 12:49
Your best 0-60 and 0-100 times adman77 Technical Stuff 46 23rd October 2007 10:25


All times are GMT +5.5. The time now is 03:24.

Copyright 2000 - 2016, Team-BHP.com
Proudly powered by E2E Networks
